High quality 80kw biogas engine generator price

Share on (60787105220):


Price:$15,300.00 - $17,000.00

Quantity:


Product Overview

Description


High quality 80kw biogas engine generator price



Product Description





Dear customer, please check our 80kw biogas generator with CHP.

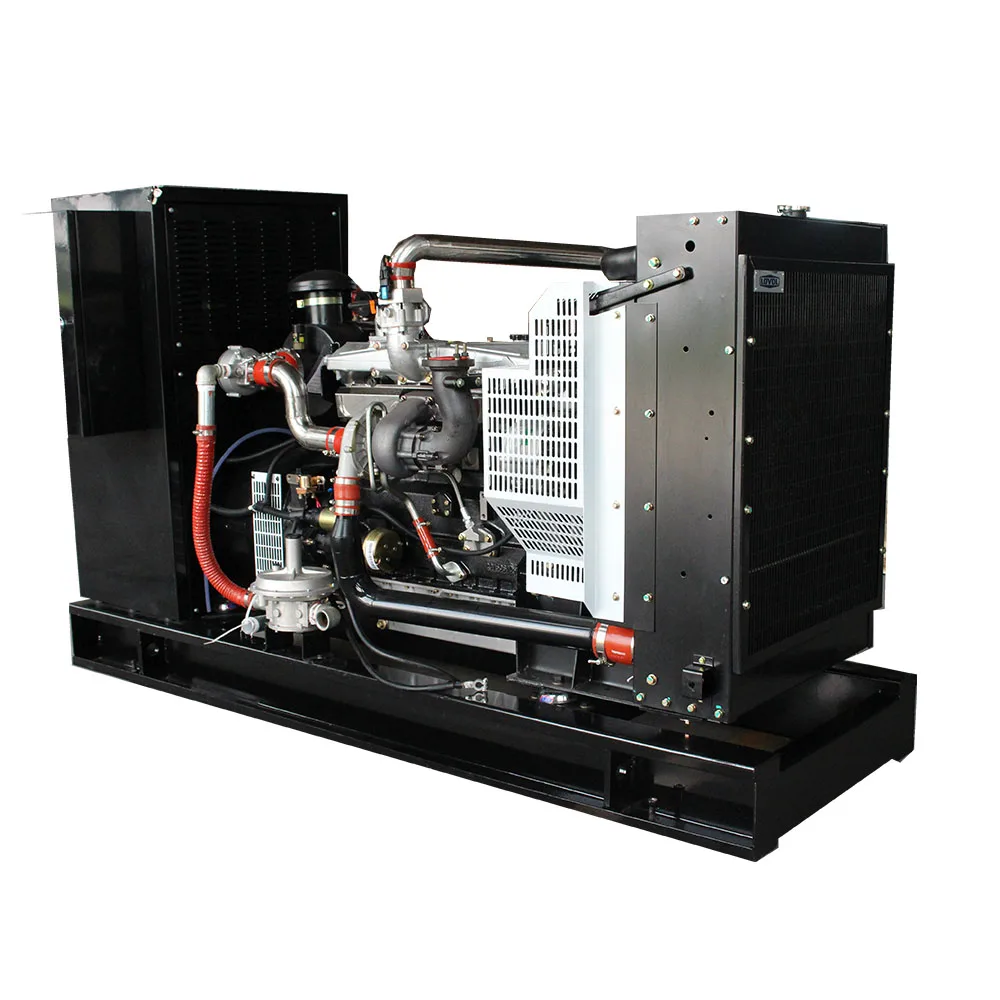

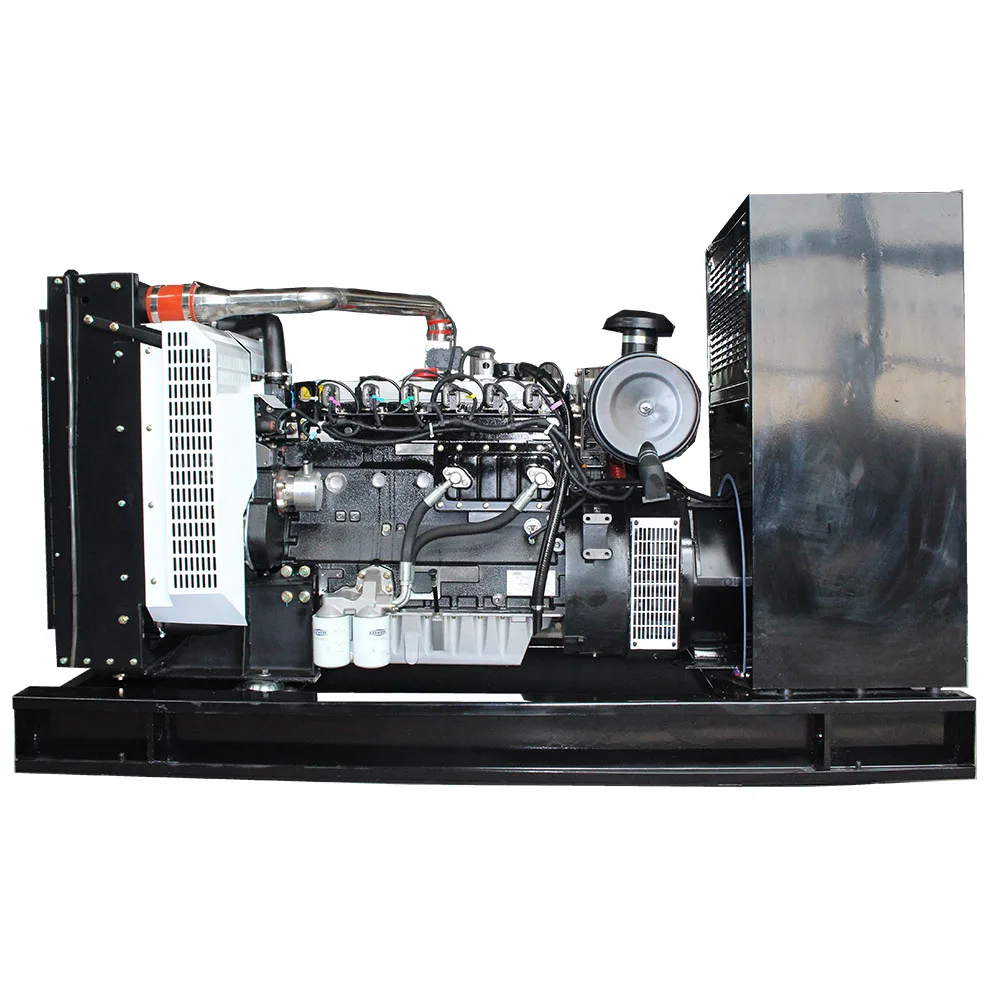

The picture allows you to see that our 80kw biogas generator with CHP style is very novel.

80kw biogas generator with CHP Detailed technical parameters are attached below.

















































































































































High quality 80kw biogas engine generator price
Genset ModelYDNL-80
Rated Power (kW/kVA)80/100
Rated Current (A)144
Dimension (mm)2150*800*1430
Gross Weight (kg)1300
Biogas engineBrandLOVOL 1006-G6TAG
ConfigurationWater-cooled, 4-stroke, 4 cylinder in-line
Rated Power (kW/kVA)100
Rated Speed (rpm)1500
Cylinder No.6
Cooling MethodWater cooling
Oil Consumption (g/kw.h)2
Gas Consumption (m3/h)52
Starting method24V DC
Gas control systemE-ThrottleBOSCH®(German Brand)
MIXERIMPCO®(USA Brand)
RegulatorMADAS®(Italian Brand)
Spark plug TORCH®(China Brand)
Water temperatureBOSCH®(German Brand)
AlternatorBrandFARRAND
ModelFLD-80
Rated Power (kW/kVA)80/100
Efficiency92.50%
Voltage Regulation±1
Voltage RegulationBrushles, Self Excitation
Insulation ClassH
Control SystemBrandSMARTGEN
Working VoltageDC8.0V to DC35.0V, continuous
Overall Dimensions (mm)197*152*47
Panel Cutout (mm)186*141
Working ConditionTemperature: (-25~70)ºC; Humidity: (20~90)%
Weight0.56kg

Unlike a diesel generator set, the gas system of a gas generator set is very important.
And we use more high quality gas generator parts for you as following parts:

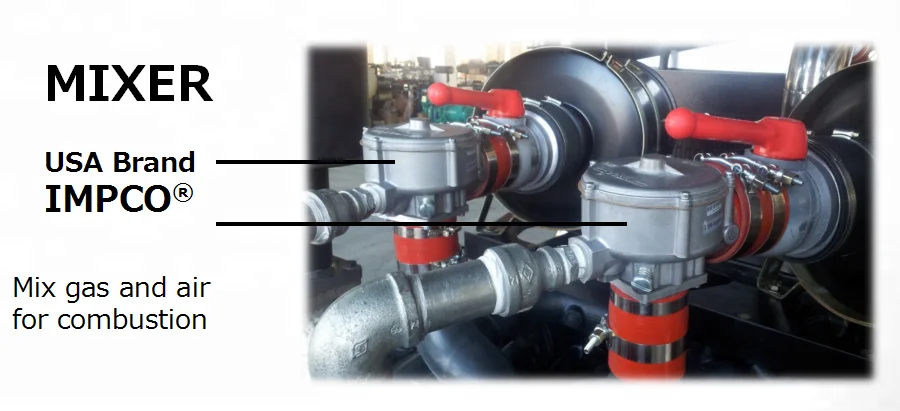

Mix gas and air for combustion we use USA Brand IMPCO.

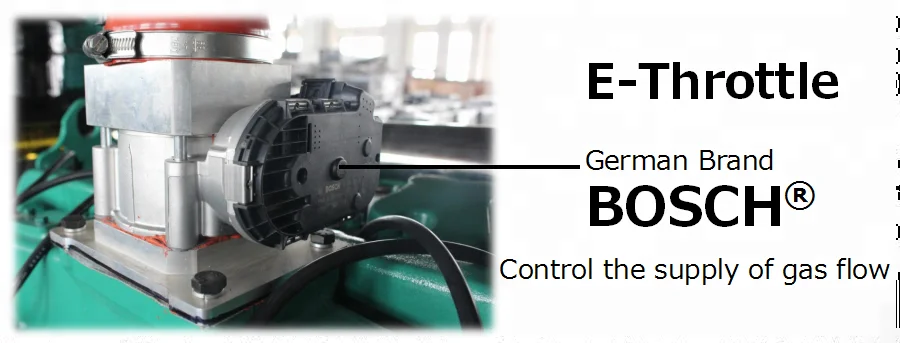

E-Throttle is German Brand BOSCH.
Regulator is Italian Brand MADAS
Spark plug is Chinese famous brand TORCH
Water temperature Sensor also is BOSCH
And other high quality parts.









Scope of application


 -1





QC





 In order to ensure that 80kw biogas generator is 100% qualified, our factory has strict quality inspection process.


1).Strict inspection of all components


2).Strict inspection of AC Alternator, including AVR, copper wire, insulating varnish, silicon steel sheet.


3).Check gas engines, including cylinder heads, cylinders, superchargers, exhaust manifolds, etc.


4).Check gas engine electronic control circuit


5).Check the heat sink, radiator and radiator lines.


6).Check the ECU, the brain of the gas generator set.


7).Check the control module to ensure that the generator control system is operating properly.









Packaging & Shipping





For open type, packing with plywood case; For silent type, packing with bubble and stretch film.


 _20180731165327








Case show


 The sources of biogas are very wide: landfill biogas, kitchen waste biogas, sewage treatment plant biogas, food plant biogas, alcohol plant biogas, farm biogas, straw to produce biogas.


_20180731165020








Certification
