Sleep apnea diagnosis with Nasal Oxygen Cannula multifunction

Product Overview

Description

Title: Sleep apnea diagnosis with Nasal Oxygen Cannula multifunction

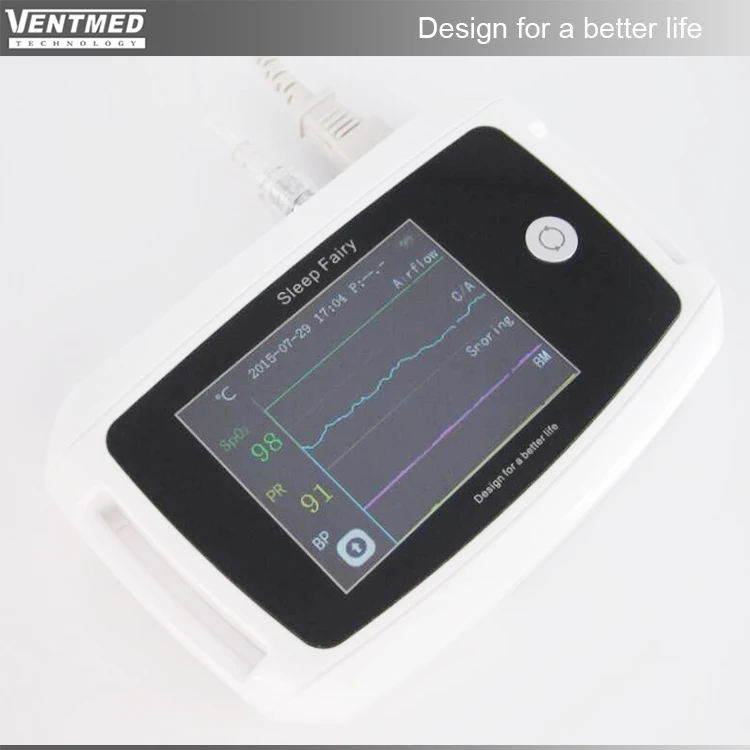

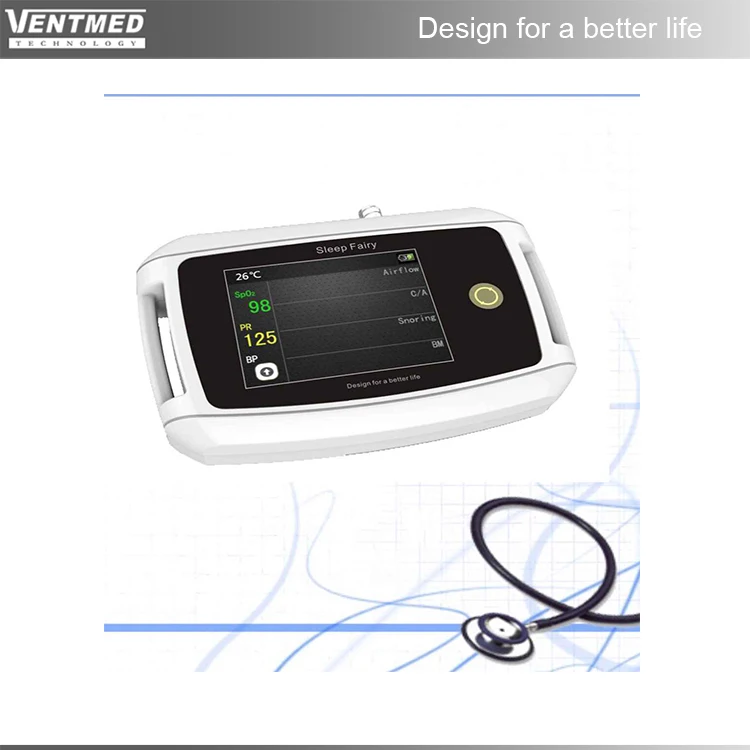

VentMed sleep monitor device is a brand new intelligent diagnosis system for sleep disorders and sleep apnea, which is suitable for clinic/hospital/sleep centre/home usage, especially for screening of Sleep Apnea Syndrome (SAS).



Innovative integrated 3D sensor, need SpO2 sensor only, no need extra sensor ,  get the most comfortable sleep diagnosis.



Patients can be tested in the comfort and convenience of their own homes without an observer and with fewer sensors attached to their body. This reduces anxiety, leads to a more natural night of sleep and improves patient acceptance of test protocol.

This device meets all American Academy of Sleep Medicine (AASM) requirement.



VentMed sleep monitor device provides multiple monitor recordings and reports of sleep. sleep physicians can provide professional treatment recommendations and therapy pressure titration.

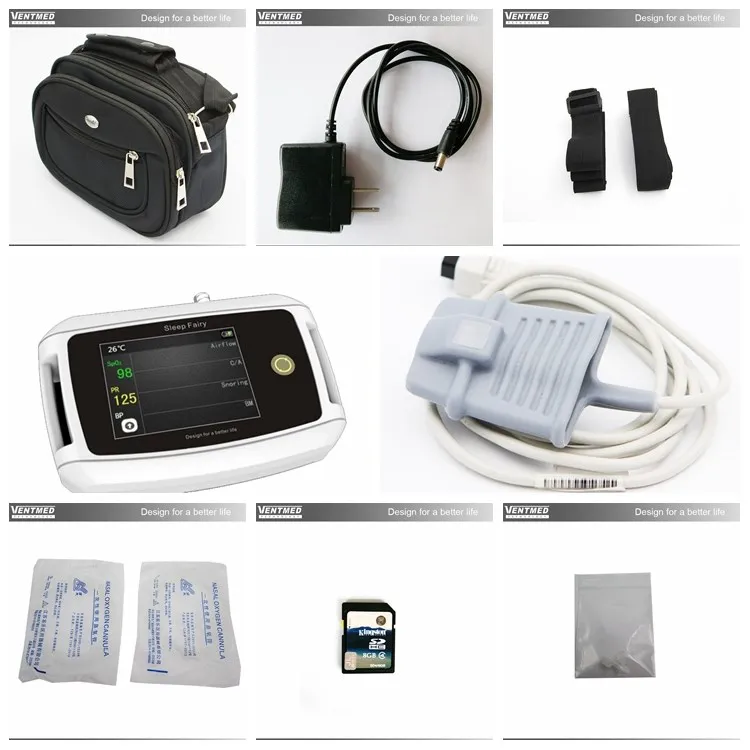

1.  Product Structure



  The delivery parts include:

(1)  1 pcs Host

(2)   2 pcs Luer Connector   (Spare parts)

(3)  1 pcs SpO2 sensor

(4)  2 pcs Nasal Oxygen Cannula

(5)  2 pcs fixing band

(6)   1 pcs SD card

(7)  1 pcs SD card reader

(8)  1 pcs Charger

(9)  1 pcs Carrying bag







2. Specification

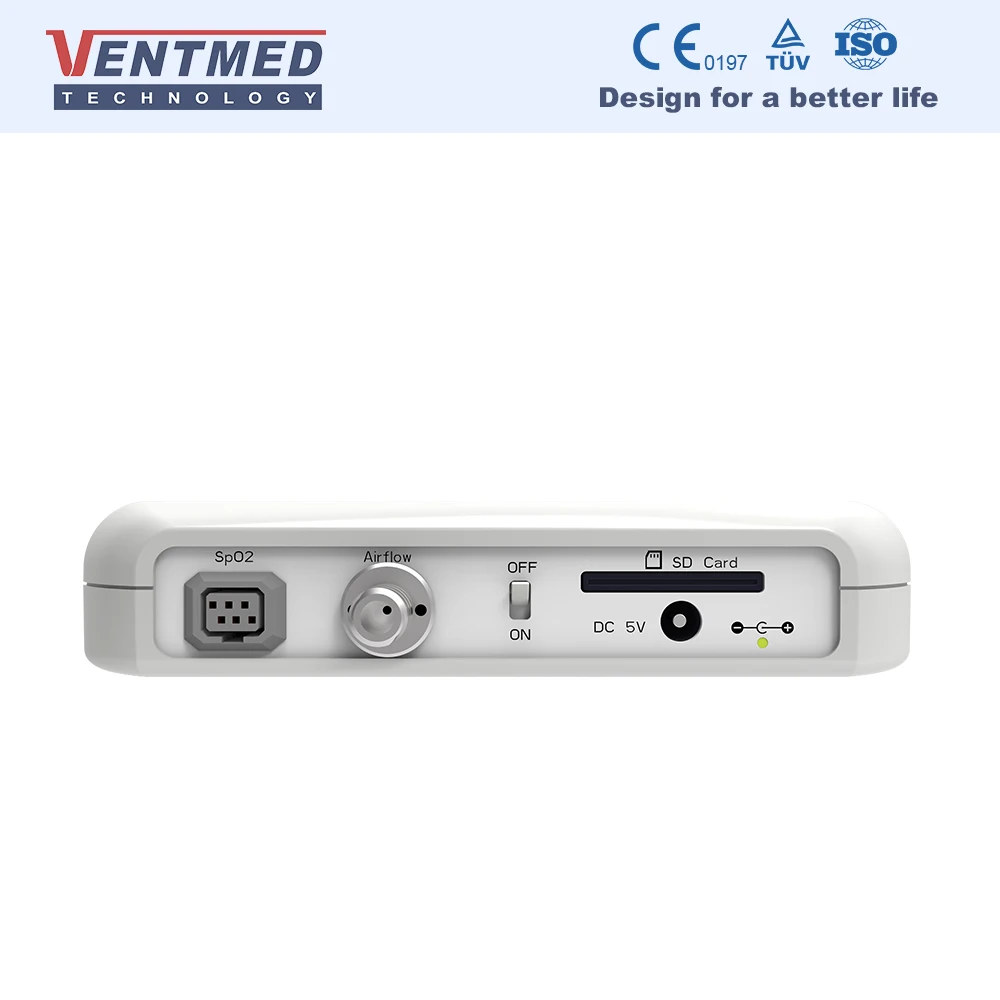

9 Channels: Air flow, Snore, SpO2, Pulse Rate, Pulse Wave,    Body Position, Body Movement, Respiratory Effort, CPAP Pressure

Data resolution: AD : 12Bit

Data Sampling Rate: 50-200Hz

Storage Data: 8G, over 8000 hours data

Communication: SD card

SpO2: 70% - 100%

Pulse Rate: 30 – 240 bpm

Battery:  Integrated Rechargeable Lithium Battery, 2500mAh

Continuous recording time:  over 30 hours

Screen: 2.8 inch TFT, 320 x 240

Host Net Weight:    176g with battery

Gross Weight: 0.9KGS

Device Dimensions: 125mmL x 80mmW x 24mmH

Carton Size: 310mmL x 130mmW x 160mmH



3.  Features

l Compact, light and convenient;

2 Innovative 3D sensor built in machine, no need extra sensor for body movement/body position/respiratory effort

3 Extremely easy to operate with one switch;

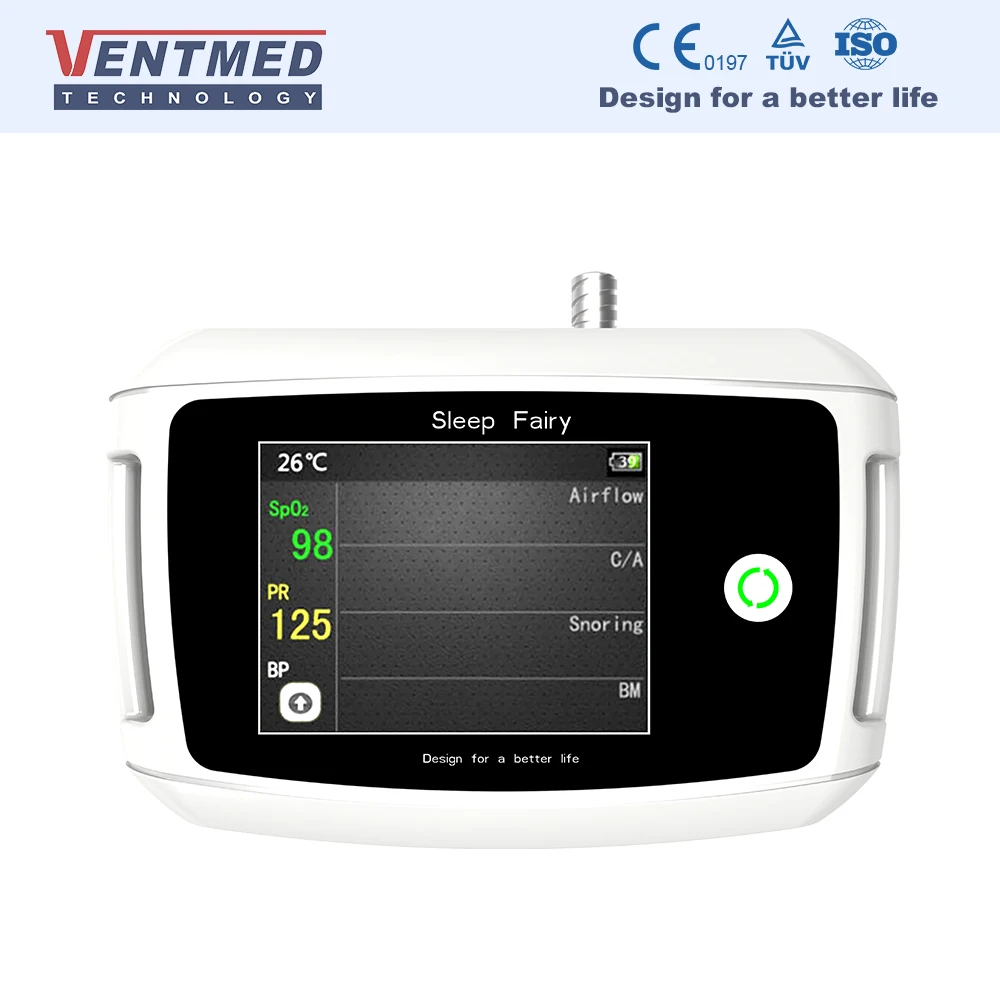

4 Huge display, 2.8” TFT Screen, Showing all channels, include recording time;

5 Reliably providing extensive, detailed and accurate sleep clinical data;

6 Suitable for home sleep testing and clinical use;

7 Sophisticated scoring and diagnostic report software;

8 Link to any CPAP device to titrate patient’s pressure;

9.  SD storage data is read by Sleep Fairy software in computer, so that you can  browse the record data by image display and can print the test report.







4. Why choose us?

(1) Professional research & development team;

(2) Experienced Manufacturer specializing in breathing & sleep tharapy and monitor;

(3) Responsible corps offering intimate service: reponse to clients in 24 hours,  quality warranty 2 years, regular delivery time short to 7 days,   market protection for dealers;

(4) Trustable supplier owing good reputation due to top quality & competitive price product.
