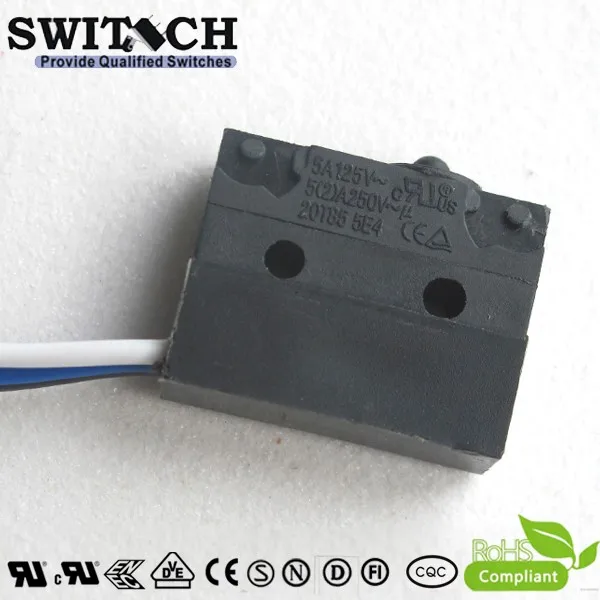

WS1 ZSW0 W150R300 Sealed Micro Switch TUV Approval
- Category: >>>
- Supplier: Switech Electronics Co. Ltd.
Share on (60787111249):
Product Overview
Description
Products Description
Specification & Drawing | ||||||
Name | WS1-ZSW0-W150R300 Sealed Miniature Switch Manufacturer UL/TUV Approval | |||||
Model | WS1-ZSW0-W150R300 | |||||
Rating | 5A 250VAC | |||||
Contact resistance | 50mΩ MAX | |||||
Insulation resistance | 100MΩ MIN | |||||
Operation force | 1.5 Max N | |||||
Operation life | 50,000 cycles | |||||
Terminal form | Wire type | |||||
Solder ability | 235±5℃ for 3±0.5s | |||||
Operation temperature | -40℃~85℃ | |||||
Storage temperature | -50℃ ～ 95℃ | |||||
Material & Color | ||
Moving piece | Tin-brass QSn6.5-0.1 | |
Static contact | AgNi10/Cu | |
Cover | Nylon PA66-FR50(black） | |
Move contact | AgNi10/Cu | |
Case | Nylon PA66-FR50(black | |
Terminal | The brass strip H65 | |
Wire | PVC Insulated Wire 1007# | |
Terminal | Epoxlde resin WD3049 | |
Support | The brass strip,H65 | |
Epoxy resin | Engineering plastic | |
Tin solder | Soldering tin 50Sn | |
Sealing ring | Methyl-silicone rubber NT9503 | |
Spring | Stainless steel SUS304H | |
Plunger | Plastic PBT4308(Black) | |
Press ring | Plastic PBT4308(Black) | |
