geocomposite drainage system

Product Overview

Description

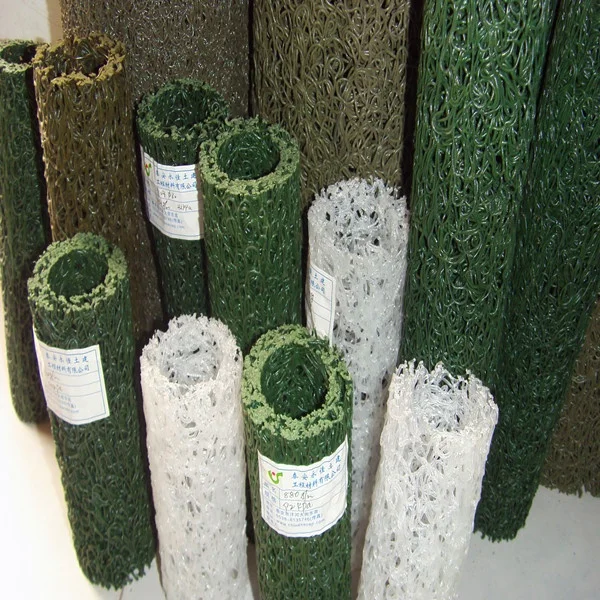

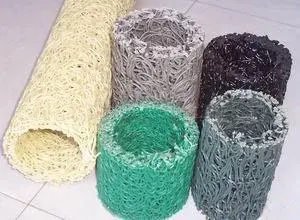

Geocomposite drainage system is made of plastic core and outer filtering cloth. In the state of hot melting, it is formed into three-D network structure. It has two shapes: rectangle and round. This kind of pipe has some advantages: good drainage, high pressure resistance, light weight, so it is very popular in some projects.

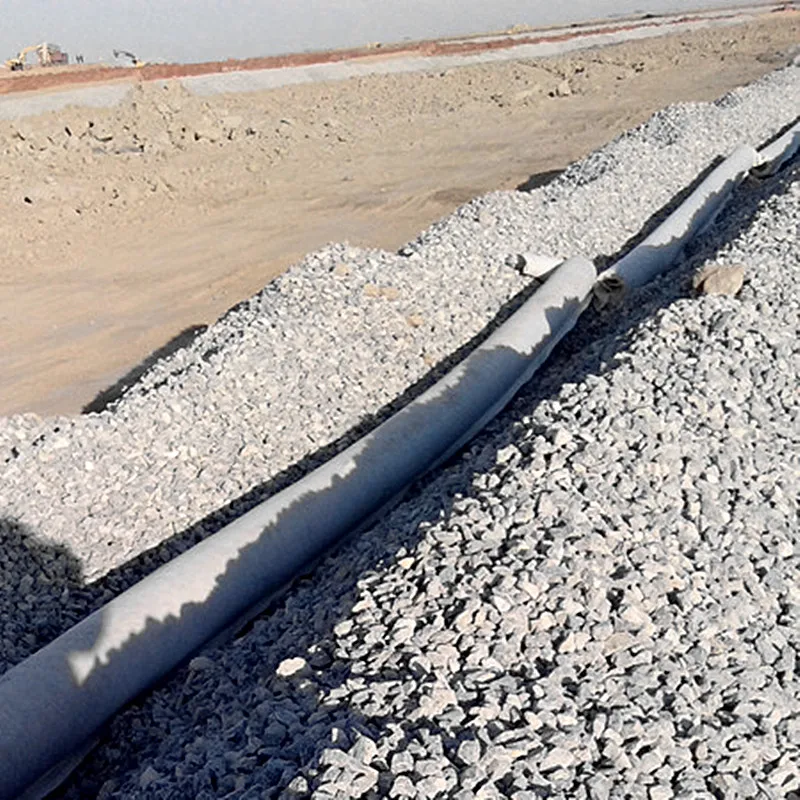

Application of Geocomposite Drain Pipe:

1)      Highway and roadway subgrade

2)      Retaining wall

3)      Landfill

4)      Roof garden

5)      Building foundation

6)      Underground irrigation



                                                    Technical Data

Art No.		PLD0205	PLD0206	PLD0207	PLD0208	PLD0209
Item		Circular shape
Type		YB60	YB80	YB100	YB150	YB200
Outer Size(mm)≥		φ60	φ80	φ100	φ150	φ200
Cannular Size≥		φ25	φ45	φ55	φ80	φ120
Weight≥		400	750	1000	1800	2900
Gap rate≥		82	82	84	85	85
Pressure Resistance	Flat rate 5%	80	85	80	40	50
	Flat rate 10%	160	170	140	70	70
	Flat rate 15%	200	220	180	100	90
	Flat rate 20%	250	280	220	125	120
