Micro Small Size Strain Load Cell 500g 1kg 2Kg 3Kg 5Kg 10kg 15kg 20kg 50kg For Weighing Scales

Product Overview

Description

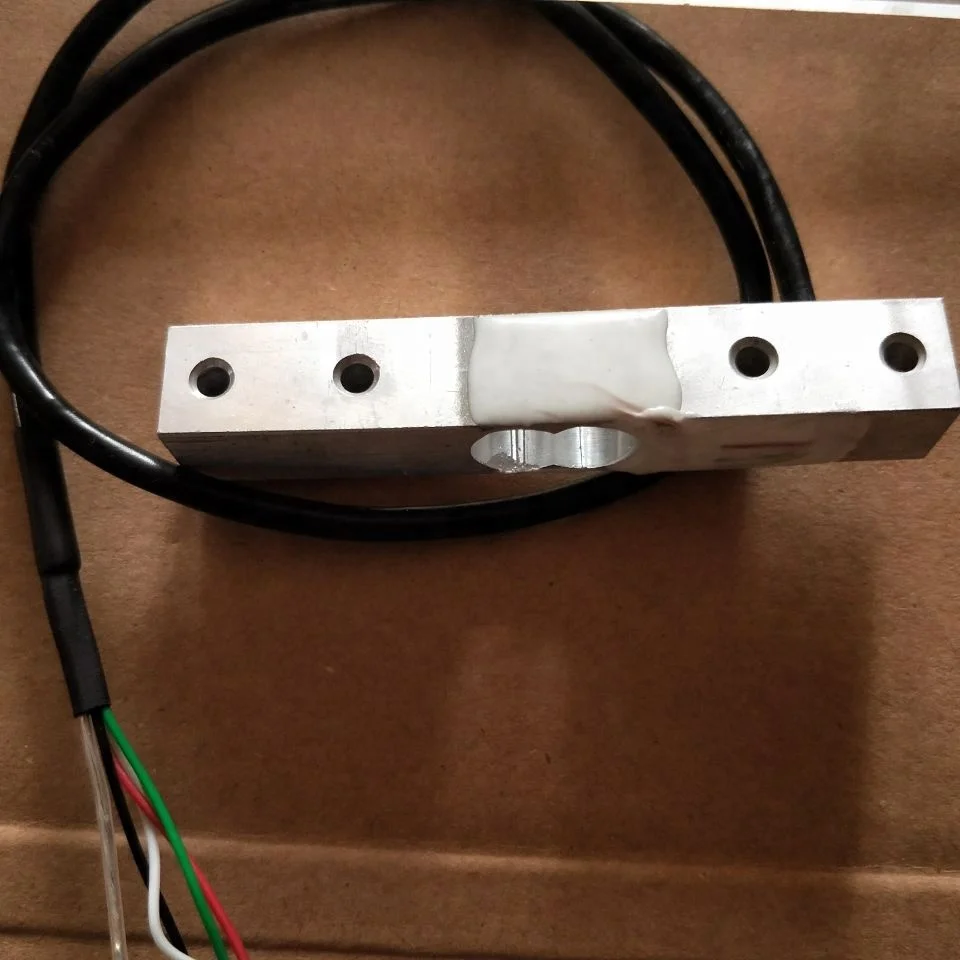

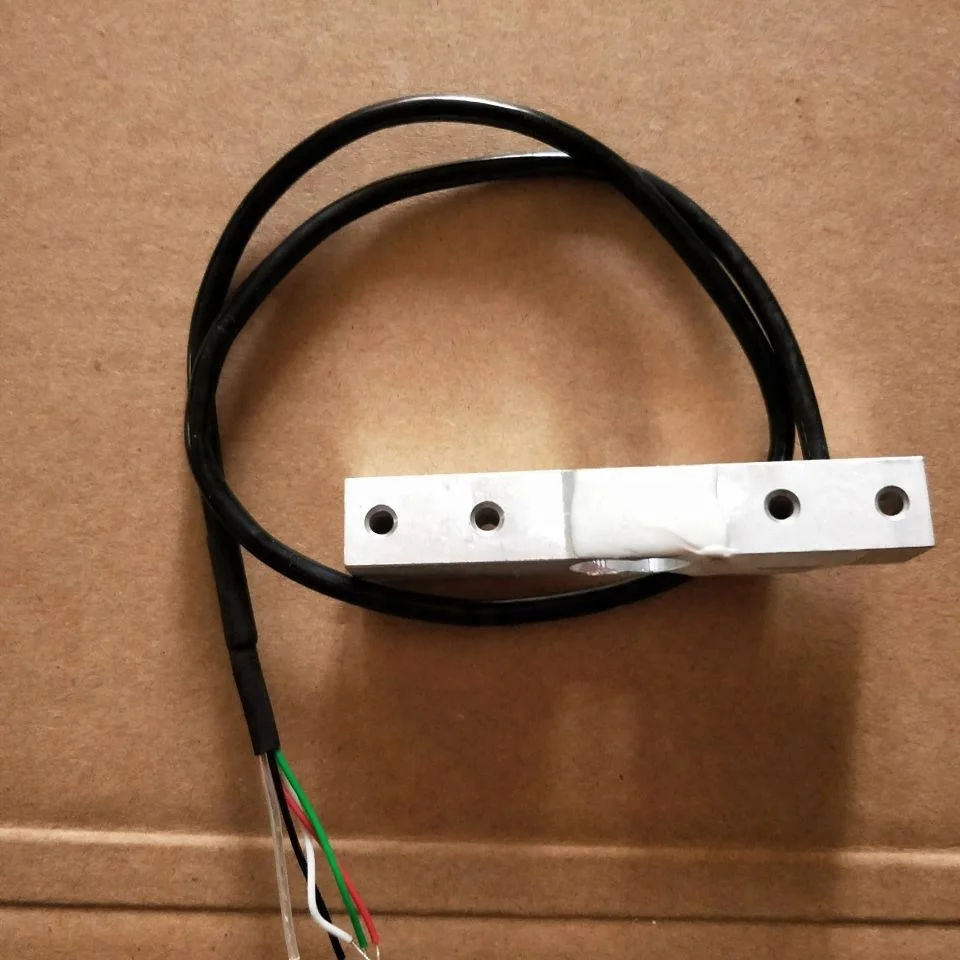

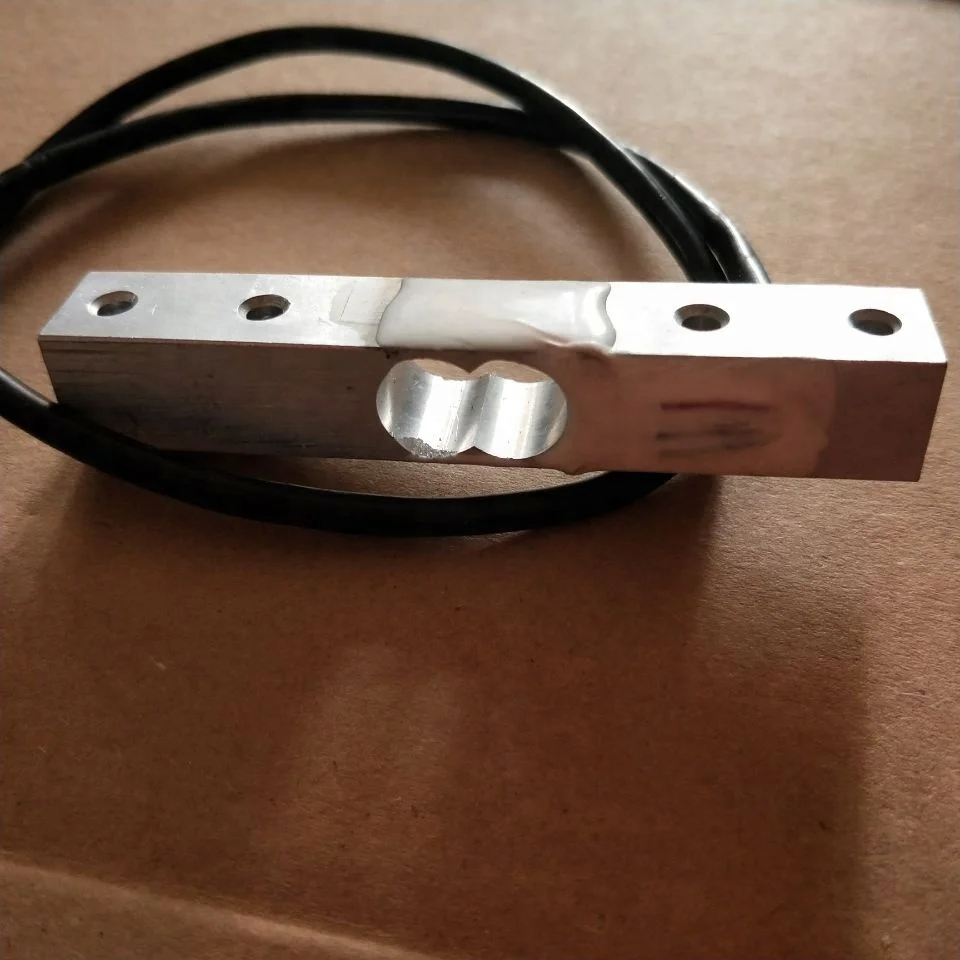

QL-55(II) mini load cells are available in the capacities of 500g 1kg 2kg 3kg 5kg 10kg 15kg 20kg 50 kg.

Aluminum alloy construction with parallel beam type.

Silicon adhesive sealed, surface anodized and anti-corrosion.

Integral structure and easy installation.

Suitable for electronic balance, electronic platform scale and other electronic weighing devices.



Capacity :500g 1kg 2kg 3kg 5kg 10kg 15kg 20kg 50 kg

High accuracy.
Aluminum alloy parallel beam

Max. platform size:200x300mm

Integral installation

     The cable length could be chose by customer’s application.













Specifications:
capacity	kg	QL-55(II): 0.5, 1, 2, 3, 5, 10, 20, 30, 50,
		QH-55(II):  20, 30, 50, 80, 100
safe overload	%FS	120
ultimate overload	%FS	150
rated output	mV/V	1.0 ± 0.1
excitation voltage	Vdc	5 ~ 12
combined error	%FS	± 0.05
zero unbalance	mV/V	± 0.1
non-linearity	%FS	± 0.05
hysteresis	%FS	± 0.05
repeatability	%FS	± 0.03
creep	%FS/5min	± 0.05
input resistance	Ω	1090 ± 50
output resistance	Ω	1000 ± 10
insulation resistance	M Ω	≥ 3000 @ 50 Vdc
operating temperature range	℃	-20 ~ +55
compensated temperature range	℃	-10 ~ +40
temperature coefficient of SPAN	%FS/10℃	± 0.05
temperature coefficient of ZERO	%FS/10℃	± 0.05



Excitation+ red     Excitation- black   Signal+ green   Signal- white

The four-dispersion wire could be selected

Cable length: 160mm ±20 mm

Cable diameter: 0.8 ±0.2 mm

The cable length could be chose by customer’s application.







All products can be shipped by International Express including EMS,UPS,FedEx,DHL and TNT as you required. By plane or by ship is available, too. The detailed can be discussed with our sales.We will choose the safe and cheapest way for you to reduce your cost.

All products will be well packed in hard paper box properly and security. Packing list will be enclosed inside the box. Please take care of this when you unpack the package.











1. OEM/ODM Services:

Our company provides OEM/ODM service and Customized products service.

With know-how technique and mass production capability, we are able to provide the specified sensing solution according to customer's application.

What's your requirement?

2. Quality Quarantee

We quarantee product quality for one-year starting from the date of delivery.
