1200C with high temperature cremation dental box muffle furnace

Share on (60787172743):


Price:

Quantity:


Product Overview

Description


1200C with high temperature cremation dental box muffle furnace

Product Show

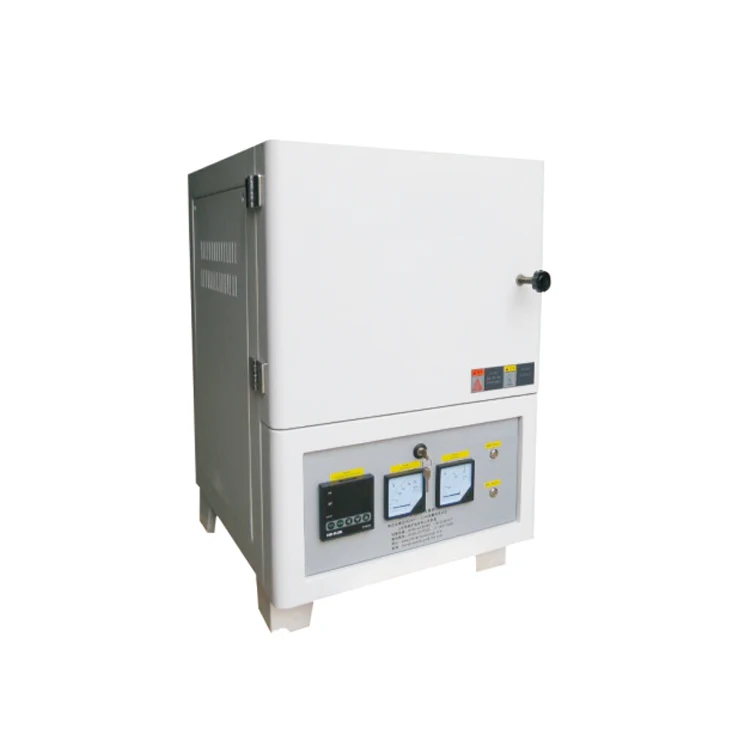

dental sintering furnace

dental sintering furnace

Product Description

dental sintering furnace

        Main technical parameter
ProjectIndex value
Design power2.5KW
Rated voltage220V
set tempreture1700 ℃
Long-term working temperature1600 ° C
Heating rate≤0.1-30 ℃ / min (adjustable)
Furnace modeUnder the mouth of feed, lift, electric lift
Display modetouch screen
Heating elementHigh-quality silicon molybdenum rods
Temperature control accuracy± 1 ℃
Temperature zone diameter120mm
Temperature zone height120mm
Sealing methodBottom bracket door
Temperature control methodPID regulation, microcomputer control, programmable temperature curve, without caretaker (automatic heating, insulation, cooling)
Temperature componentsB (0-1800 ° C)
equipment weightAbout 200Kg
Furnace materialGermany imported composite alumina fiber
surface temperature≤42 ℃
Temperature category800 ° C   1000 ° C   1200 ° C   1400 ° C   1600 ° C   1700° C   1800 ° C
Qualification honorISO9001: 2008, AAA enterprises, CE certification
Note: Furnace size and other special requirements, please specify when ordering, can be customized according to requirements.
         Application

    The equipment is mainly used in the dental porcelain powder processing, the furnace is heated around, compared to the traditional muffle furnace temperature field is more uniform, fired crown permeability, consistency is better, more User-friendly loading mode, convenient loading, convenient materials .

         Technical characteristics

    1, Control accuracy: ± 1 ℃ Furnace temperature uniformity: ± 1 ℃.
    2, microcomputer automatic control: easy to operate, programmable multi-stage, automatic heating, automatic insulation, automatic cooling.
    3, warming fast: (heating rate adjustable).
    4, energy-saving
: (energy-saving effect is more than 60% of the old electric furnace).
    5, the furnace: Electrostatic spray corrosion-resistant acid and alkali, furnace and furnace isolation using air-cooled furnace wall temperature close to room temperature.
    6, dual-circuit protection: (over-temperature, over-voltage, super-flow, paragraph even, power, etc.).
    7, the furnace material: made of imported fiber, thermal insulation performance, high temperature, thermal shock resistance.

dental sintering furnace

List of selectable accessories

Separate control cabinet

Touch screen instrument

Remote auxiliary module

Observation window

Air-bleed hole and chimneys

Heat fan

Crucible

Door plugging

Hearth plate

Alundum tube

Quartz tube

Vacuum pump

Production Flow

dental sintering furnace

Main Products

dental sintering furnace

Company Information

dental sintering furnace

Luoyang Liyu Kiln Co., Ltd. is a large electric furnace manufacturing base integrating R&D, production, sales, and service. Base on professional technology and manufacturing team with over 20 years of manufacturing experience, design and manufacture of various sizes and models, a variety of high-precision electric furnace and kiln for customer according to the user requirements.

Our products mainly include high temperature muffle furnace, frit furnace, vacuum atmosphere furnace, tube furnace, box furnace and vertical furnace, etc. These products are widely used in universities, research institutes, industrial and mining enterprises for experiment and production of powder, military, electronics, metallurgy, medicine, ceramics, glass, machinery, new material development, special materials, refractory materials, building materials, chemicals, metal sintering and metal heat treatment.

We continually develop the new products, and have developed a series of energy-saving JNL furnace, furnace products with more excellent conditions of fast heating, high energy, high precision, high stability, good thermal insulation performance, full microcomputer control, programmable automatic warming, cooling, heat preservation, furnace surface temperature near room temperature etc.

In recent years, Liyu has passed ISO 9001:2008 quality management system certification in 2015, and in product safety, we passed the CE certification.

Sincerely welcome new and old customers to visit and negotiate.

workshop

Our Services

dental sintering furnace

Packaging & Shipping

dental sintering furnace

FAQ

dental sintering furnace

Q: Can I use our country's plug?

A: Yes, we can provide following standard plugs in different countries.



Q: Usually I only need 900℃ to conduct my experiment, can I have a furnace with max temperature of 1000℃?

A: Yes, we can custom-made the furnace according to your need.



Q: How about the temperature/time control?

A: the furnace's temperature and time is controlled by PID touch panel,it is a programmable control type.Easy to operate.



Q: How about the delivery period?

A: The delivery period is depends on the order quantity, in ordinary we have 1~3 sets in stock.It can be delivery within 10 working days.

dental sintering furnace
