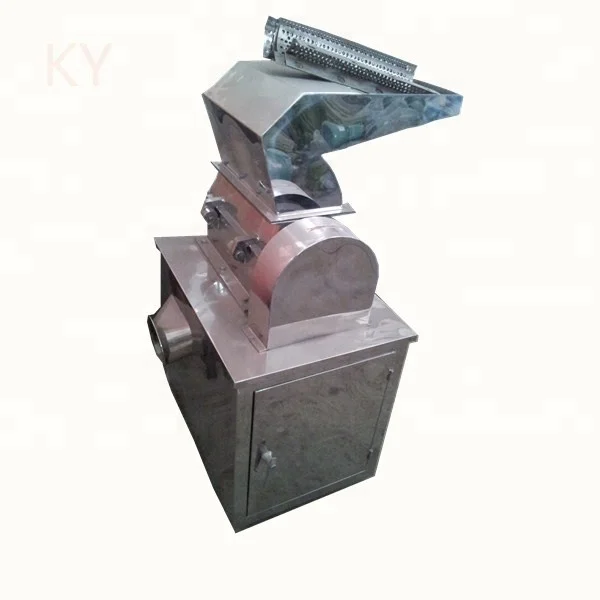

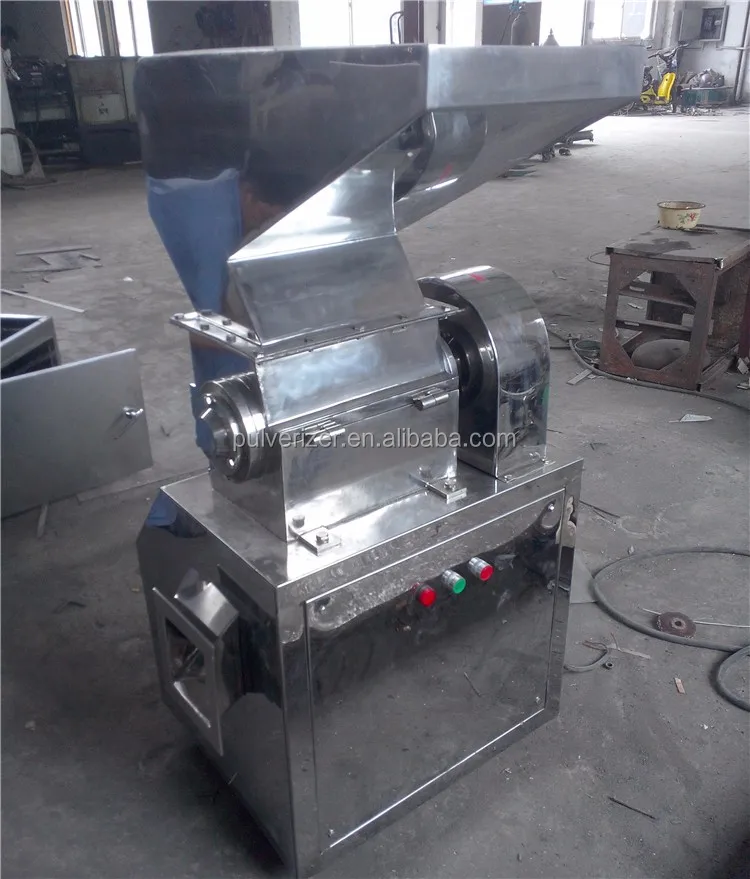

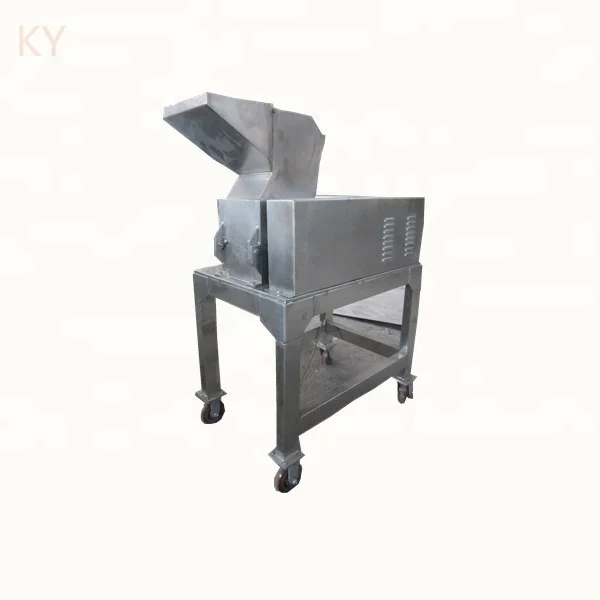

CSJ series coarse crusher is widely used for material crushing in the industries of pharmaceutics, chemical and foodstuff, etc. It can be the first step equipment of fine grinding.
Working Principle

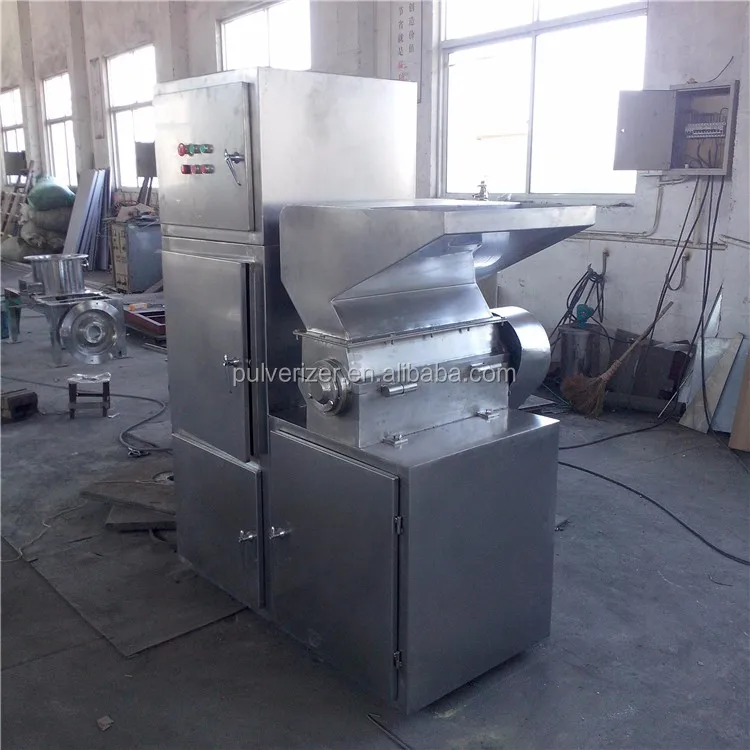

The machine has horizontal crushing structure and the whole machine is made of stainless steel. Any raw material, being fed into the grinding chamber through the upper feeder, grinded by the revolving and fixed knives, and then automatically runs to the exit by the centrifugal force of revolving object. The machine is designed according to "GMP" standard, with the characteristics of compact structure, easy washing, and low noise.The machine can add dust collecting equipment.Feeder hopper and outlet hopper can be changed according to customer requirements to adapt to different working place and different working way.
Model
Production capacity（kg/h）
Spindle speed(r/min)
Feeding size(mm)
Fineness of products(mesh)
Motor power(kw)
Overall dimension(mm)
Weight(kg)
CSJ80
30-200
500
≤50
0.5-20
2.2
600*500*950
180
CSJ120
100-500
500
≤100
0.5-20
4
700*800*1250
250
CSJ200
150-800
500
≤120
0.5-20
5.5
800*650*1350
340
Main Features
1) Simple structure ,easy in installation and maintation. 2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging
Size
It depends
Weight
It depends
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
It depends
Weight
It depends
Packaging Details
If machine is big, we will fix the machine inside container with steel wires and nails.Machine won't move inside the container.
