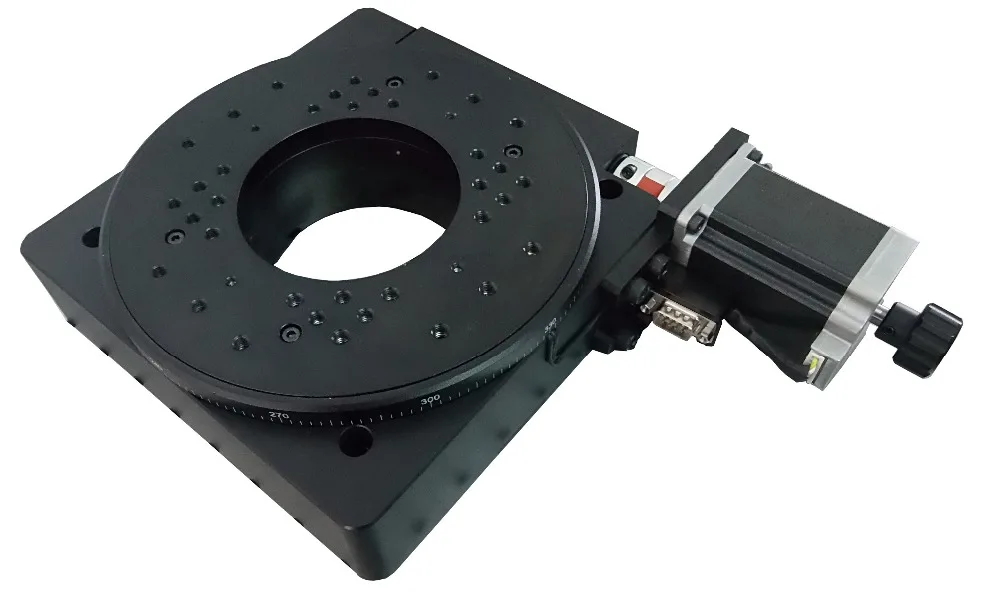

PX110 200 diameter: 200mm Electric Rotary stage Motorized rotary table Motorized Rotation Stage

Product Overview

Description

Product features

New construction ,new technology;the key index has up to the international level of the similar products by strictly inspection .This series products are used to laser precision processing,three dimensional scanning measurement system and so on .

Best-selling products

PDV offers high precision electric platform, high precision manual platform, optical plate, microscope bracket, long working distance objective, microscope lighting source, optical bench products for laboratory light path building.

we will provide excellent service and competitive price for you, we are expecting become your long-term partner in China.

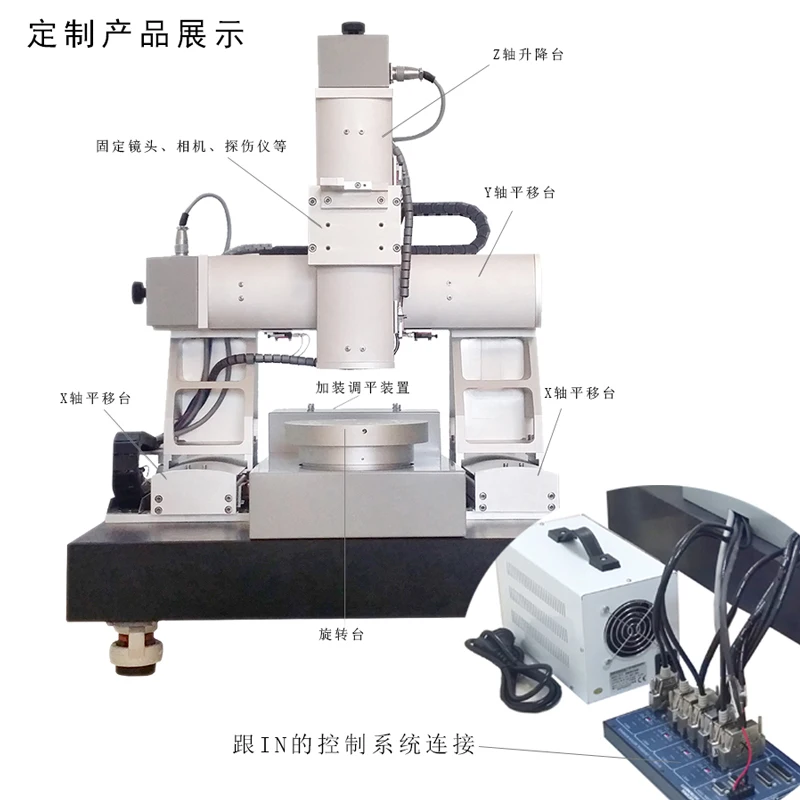

The products can be produced according to your needs if it don't meet your need.

The regular stage without limit switch and home position, but can add according to requirements

Structure Specifications

1   Item Number: PX110-200

2   Rotation Range: 360° of Continuous Rotation

3   Diameter of Platform: Ø200mm

4   Drive Mechanism: Worm Gear

5   Worm Gear Ratio: 180 : 1or  90:1or 45:1(Choose one of the three)

6   Stepper Motor (1.8°): 57BYG - Stepping  Motor with 2-Phases & 1.8° of Step Angle

7   Material – Finish: Aluminum Alloy - Black-Anodized

8   Load Capacity: 55Kgs

9  Weight: 9.0kgs



Accuracy Specifications

1  Design Resolution: 0.01°=36”, Non-MS Driver; 0.0005°=1.8”, 20MS Driver

2  Rotational Velocity (Max): 25°/sec

3  Repeatability: 0.005°=18”

4  Absolute On-Axis Accuracy: 0.01°=36”

5  Run-Out of Top Plate: 15μm

6  Backlash: 0.005°=18”

7  Eccentricity: 20μm

8  Lost Motion: 0.005°=18″

9  Parallelization: 100μm

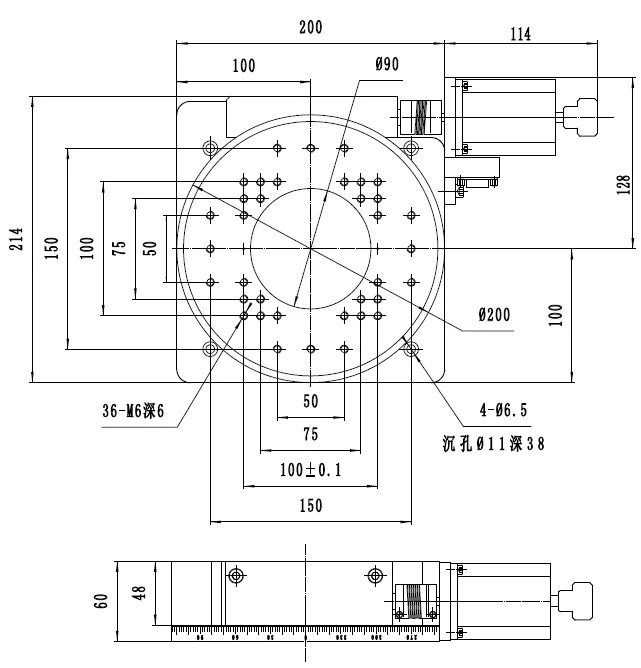

Product  parameter
