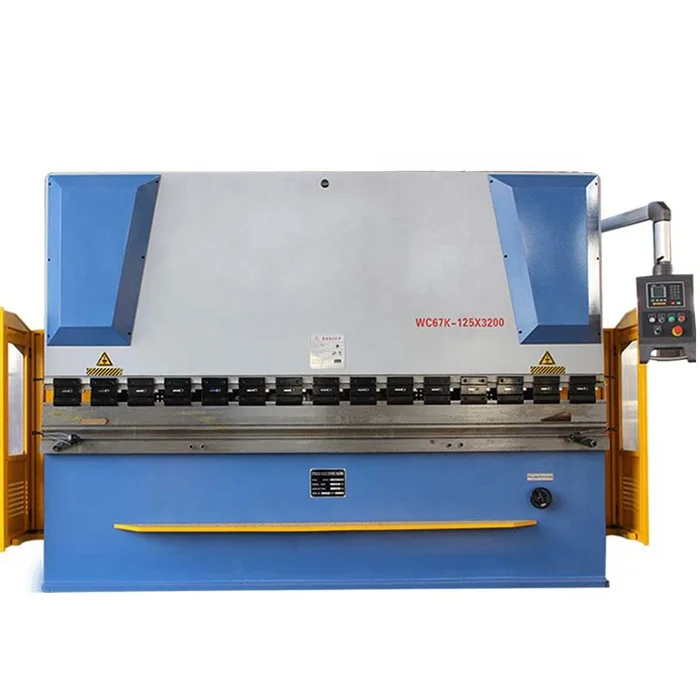

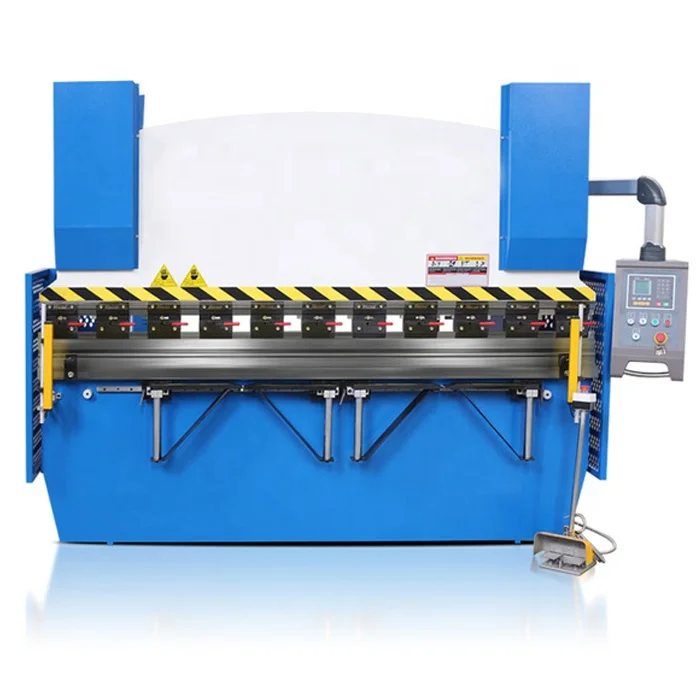

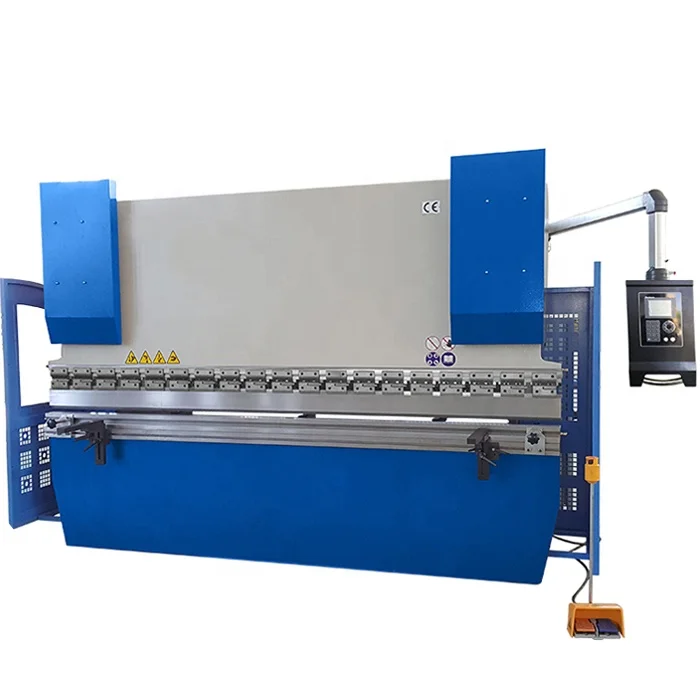

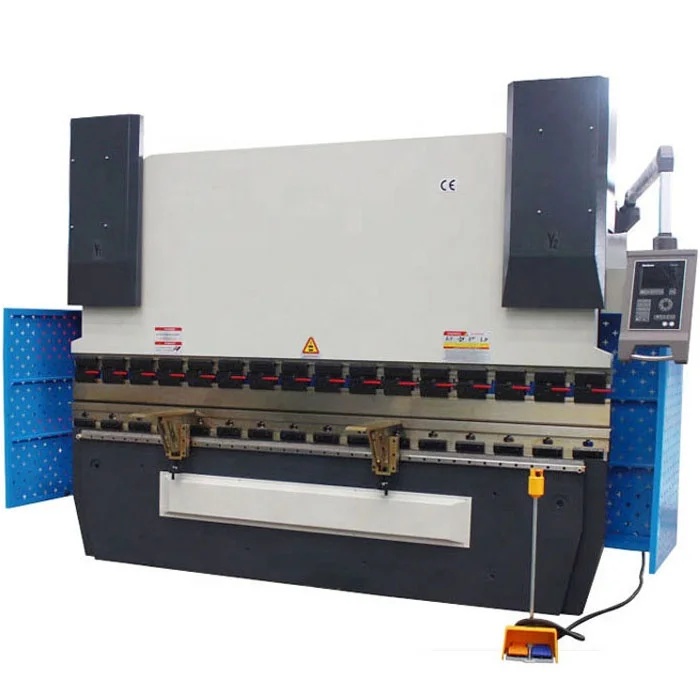

63Ton Metal Steel Sheet Plate Bending Machine WC67Y/K NC Hydraulic Press Brake For Metal Working
- Category: >>>
- Supplier: Nantong Jobest Machinery Technology Co. Ltd.
Share on (60787345957):
Product Overview
Description
63Ton Metal Steel Sheet Plate Bending Machine WC67Y/K NC Hydraulic Press Brake For Metal Working
1. All steel welded structure, integrated treatment (vibration aging, heat treatment) heating to eliminate stress, have good rigidity and stability
2. Heat treatment of the rack, rigidity optimization verification on entire machine and the application of hydraulic compensation structure jointly ensure the bending precision of MB8 series Press Brakes.
3. Programming a product simply consists of introducing the characteristics of the material to be bent,the dimensions of the product and the necessary tooling & die.The optimizing software searches for the best bending cycle.
4. Rear block distance, upper stroke, electric adjustment, manual fine adjustment device, digital display.
5. Imports including linear transducer,pressure proportional valve and servo motor.
6. Ram stroke(Y1,Y2) and backgauge(X,R,Z) are controlled by controller automatically,high productivity.
7. Adopting Electro-hydraulic proportional servo synchronization. Optional point within stroke can be controlled.Repeat precision of Y axes: ±0.01mm, Parallism: 0.02mm. Strong ability of deviation resistance.
8. Backgauge adopts ball-bearing screw and rolling guideway,quick speed and high repeat positioning precision.X axes with resolution 0.1mm.

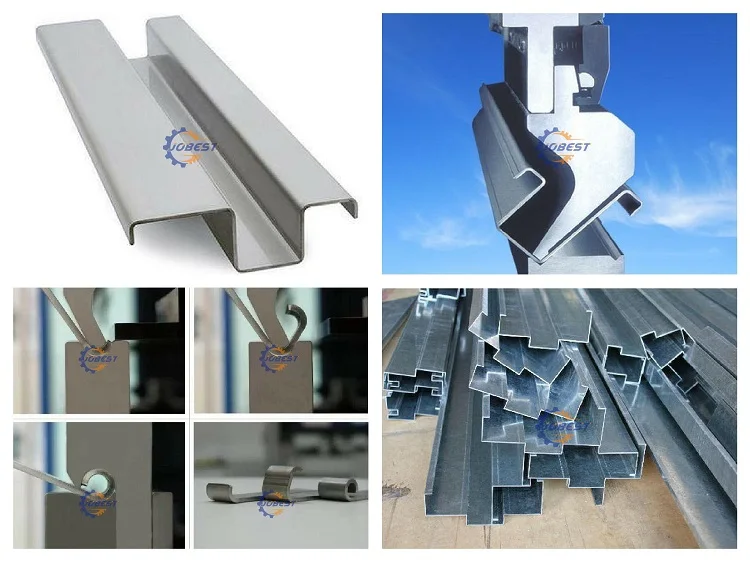

Kinds of shapes processed by our Press brake machine
Product Description

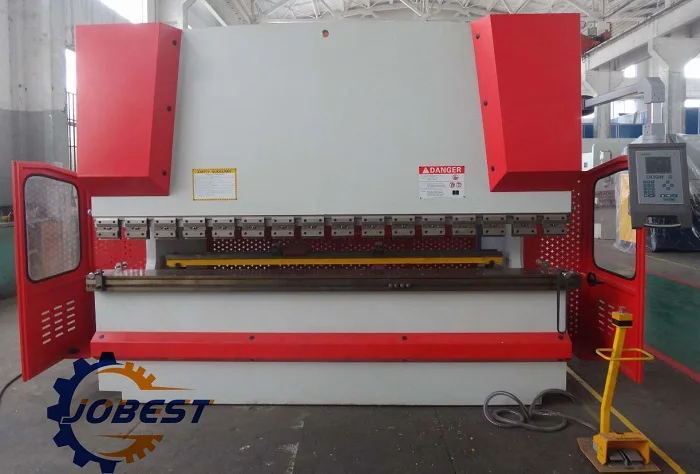

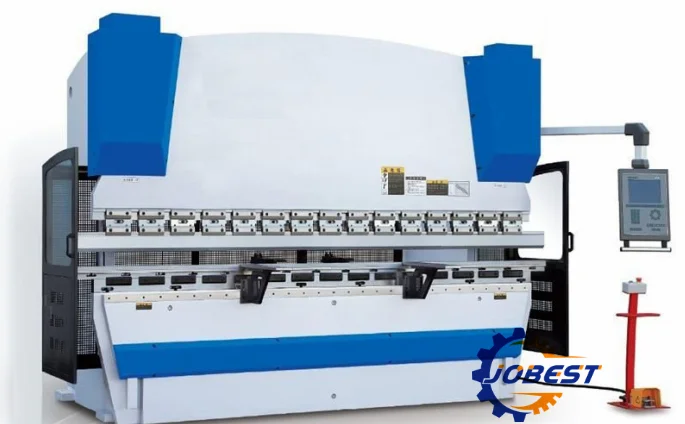

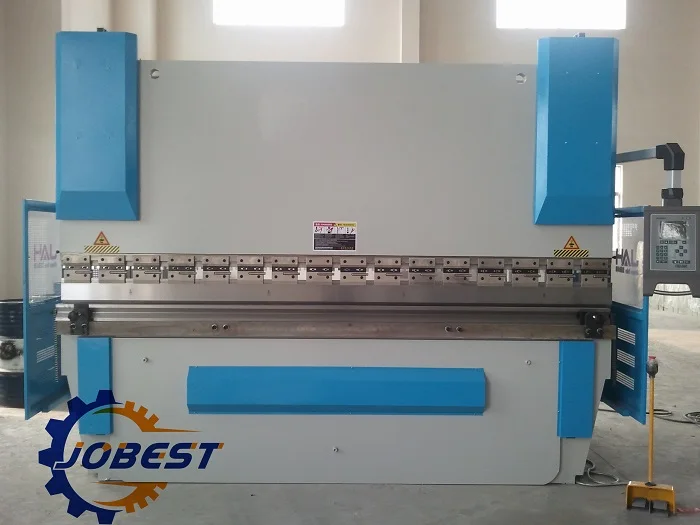

63Ton Metal Steel Sheet Plate Bending Machine WC67Y/K NC Hydraulic Press Brake For Metal Working

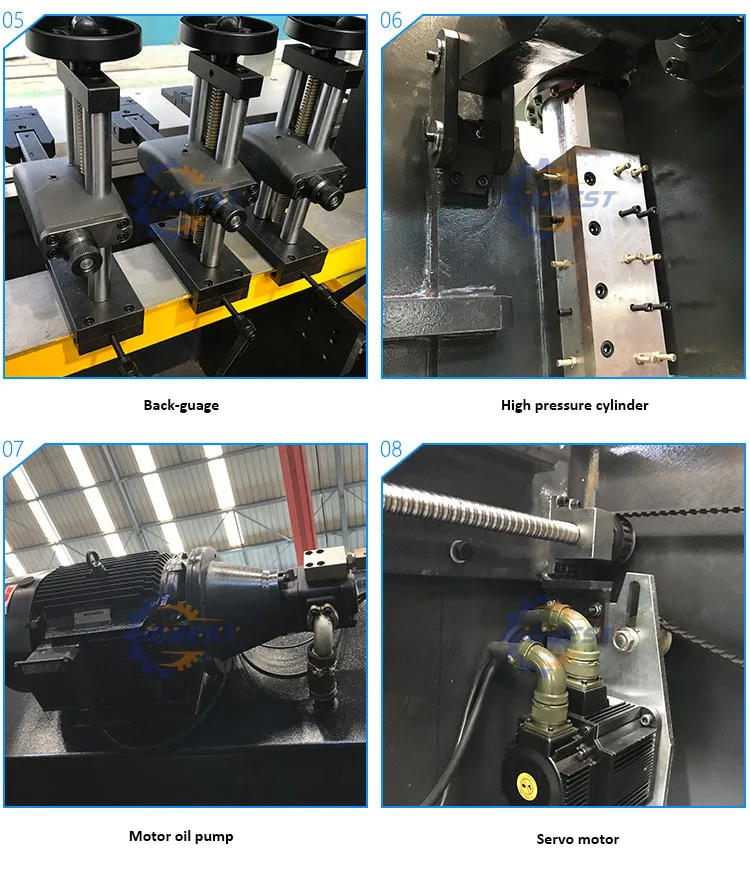

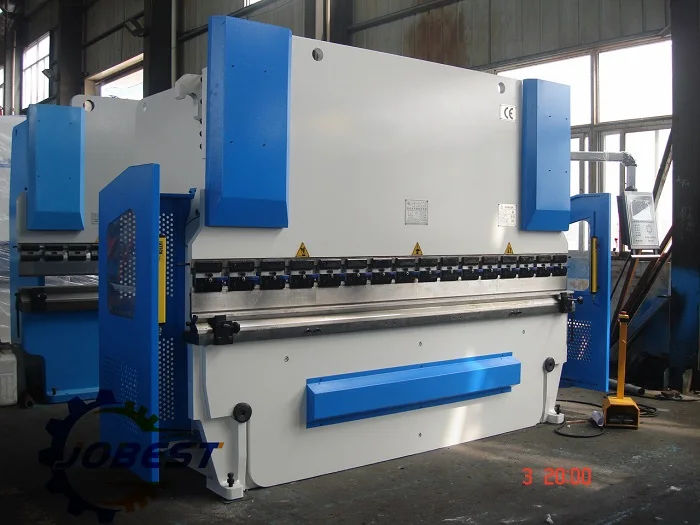

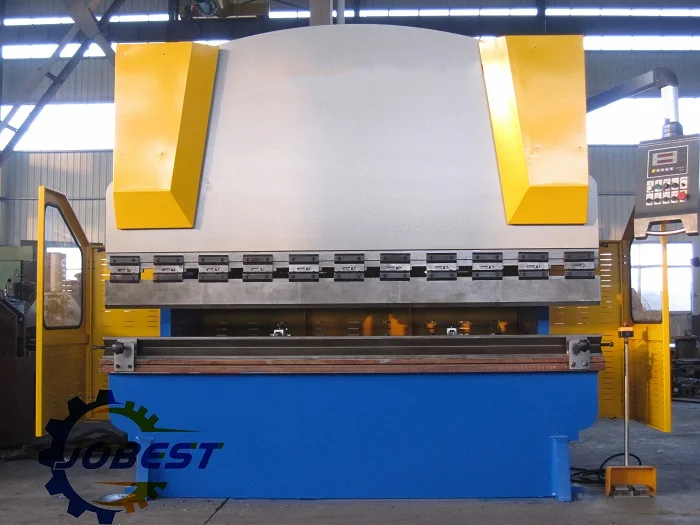

Press Brake Details
63Ton Metal Steel Sheet Plate Bending Machine WC67Y/K NC Hydraulic Press Brake For Metal Working

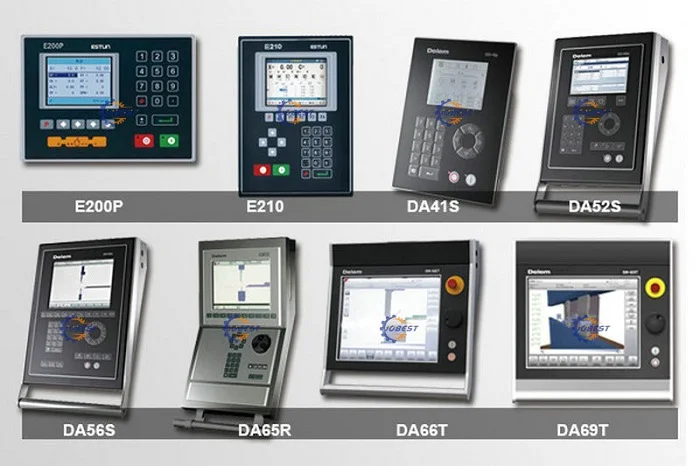

Press brake machine optional control system, ESTUN E-series / DELEM DA-series.
Technical Parameters
63Ton Metal Steel Sheet Plate Bending Machine WC67Y/K NC Hydraulic Press Brake For Metal Working
| Model | Nominal Pressure | Working Table Length | Distance of column | Throat depth | Max. Opening Height | Slide Stroke | Motor power |
| WC67Y-40T/2500 | 400 | 2500 | 2000 | 200 | 320 | 100 | 4 |
| WC67Y-63T/2000 | 630 | 2000 | 1600 | 250 | 320 | 100 | 5.5 |
| WC67Y-80T/3200 | 800 | 3200 | 2700 | 320 | 400 | 150 | 7.5 |
| WC67Y-100T/3200 | 1000 | 3200 | 2700 | 400 | 460 | 180 | 7.5 |

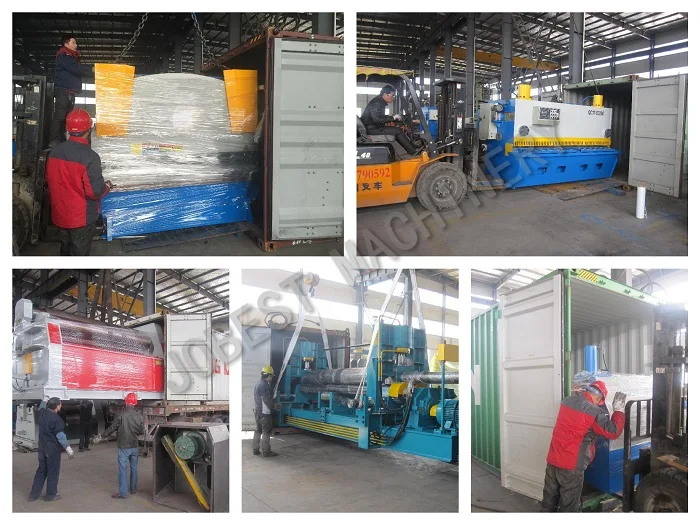

Packaging & Shipping
63Ton Metal Steel Sheet Plate Bending Machine WC67Y/K NC Hydraulic Press Brake For Metal Working
Delivery Shipping
Company Information
WHY CHOOSE US - JOBEST MACHINERY?
Pre-sale:
(1) Regarding your demands, the best suitable machine will be recommend you, the customized machine also support;
(2) Regarding your country requirements, some certificates will supply to help you clearance. Like CE,CO, FORM-A, FORM-E, FORM-F, original certificate signed by Embassy.etc.
(3) All the machine will be tested before delivery, and we will take the video and pictures to you. When you receive it , it can work directly.
After-sales
(1) We will supply all the control system and software operate manual,so you can operate the machine easily refer it.
(2) All the machine problem , you can ask me any time , we will help you solve by online way ,or tel,email,remote video at first time ,if all these can’t solve your problem , our engineer will go to your factory to help you on spot.
Welcome to our factory for learning how to operate machine ,one professional engineer will together with you , this service for free.
Guarantee:
One year for whole machine , any parts except consumables broken regarding machine quality within one year, we will send you the parts for free.
All the service is for machine whole life.
Machines in stock, can be delivery within 3 days
FAQ
WC67Y Hydraulic Press Brake , Plate Bending Machine
1. How i can choose a suitable Press brake bending Machine?
Tell us the plate sizes (Thickness * Width), also your we can help choose the best suitable machine.
2. Are you the manufacture?
Yes, we are manufacturer factory, so you can get factory price directly. Don't need pay some extra agent price.
3. Can we visit your factory?
Yes, of course , welcome you visit our factory and check our machine qualtiy on spot. After you confirm the coming time , tell me in advance, then we will go to air port or train station to pick you up on time.
And one professional will together with you in the factory , any question will be solved on spot at first time.
4. Any benefits can we get if introduce new customer to you ?
Yes, of course, some gifts you will get, and the commission regarding the new customer amount.
5. Can we be your agent?
Welcome , we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.
6. Payment terms?
T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect. Buyer pays 30% by T/T to start this order, rest 70% paid before shipment.
7. How can you gunarantee the quality?
Professional product quality inspection team ensure our plasma cutting machine in top-quality.
Otherwise, we take full responsibility according to our wholesale after-sale support system
8. I want to buy this machine, what suggestion can you give?
Please tell me what material do you process? What's the size of your material?
