High quality automatic mesh belt drying machine in conveyor, conveyor belt type dryer machine

Brief introduction

Mesh belt drying machine in conveyors, belt dryer machine is a continuous drying equipment for batch production, which is used for drying sheet, strip and granular materials with good air permeability. It is especially suitable for dehydrated vegetables, catalysts, Chinese herbal medicine slices and other materials with high moisture content, but the material temperature is not allowed to be high. Good advantages, for dehydrated filter cake paste materials, need to be granulated or made into strips before drying.

Product Description                                                                     Working principle:

The material is evenly spread on the mesh belt by the feeder, and the mesh belt adopts 12-60 mesh stainless steel screen. Move in the dryer by the drive. The drying machine is composed of several units, and each unit has its own hot air circulation. Part of the exhaust gas is discharged by a special dehumidifying fan. The exhaust gas is controlled by the regulating valve. The mesh belt moves slowly, and the operation speed can be adjusted freely according to the material temperature. The upper and lower circulation units can be flexibly equipped according to the user's needs, and the number of units can be selected according to the needs.

Structure Features of Mesh belt drying machine in conveyors, belt dryer machine:

• Single-stage belt dryer: the dry material is distributed evenly to the belt by feeding device. Conveyor belt is usually made of perforated stainless steel sheet, driven by motor through gearbox, can speed. The dryer box is usually divided into several units for independent control of operating parameters and optimization of operation. There is an isolated section between the drying sections, where there is no drying medium cycle.


• Multi-stage belt dryer: multistage belt drying is composed of several single-stage belt dryers in series, and its operation principle is the same as single-stage belt dryer.

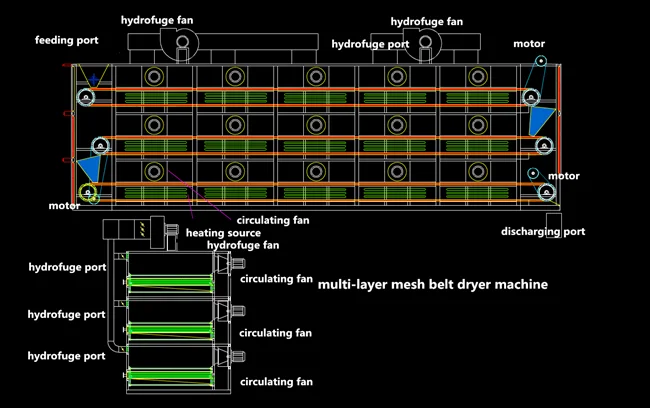

• Multi-layer belt dryer: the multi-layer belt dryer is often used in situations where the drying speed is low, the drying time is longer, and the operating conditions can be kept constant during the whole drying process. A partition is arranged between the layers to organize the directional flow of the drying medium, so that the material can be dried evenly. Multi-layer dry machine occupies less land, simple structure, widely used in dry grain materials. However, it is not suitable for dry and easy adherent conveyor belt and not allowed to break because of multiple loading and unloading in operation.


• Impact belt dryer: impact belt dryer for drying fabric, tobacco, substrate surface coating and other sheet materials. Impact belt usually consists of two conveyor belts. Impact belt can be separated into units for independent control. Dry medium humidification, part of the discharge, the other part returned to the fresh drying medium after circulation.

Applications:
It is suitable for the drying of flake, strip and granule materials with good air permeability. The series dryer has the advantages of fast drying speed, high evaporation intensity and good product quality. The paste material of dehydrated filter cake can be dried by granulation or bar.

Description of  Stainless Steel and Carbon Steel mesh Belt Dryer:
The cost of stainless steel mesh belt drying machine in conveyors, belt dryer machine is much higher, so it is usually selected according to the situation as customers' requirements. If the drying materials are not corrosive and the quality requirements are not high, the carbon steel shall be selected. Of course, the food industry drying materials must choose stainless steel mesh belt drying machine in conveyors, belt dryer machine. So the carbon steel type mesh belt dryer is suitable for coal ,charcoal and other material briquettes. While the stainless steel (like SUS 304, SUS316, etc.) type mesh belt dryer is suitable for food, like fruits, vegetable, sea food and some other food industry drying materials.

Packing & Delivery

1. Our mesh belt drying machine in conveyors, belt dryer machine should been cleanned first, then packaged with the transparent coating, next it will been shipped into the marine container with steel wire fixing.

2. If there is over-size drying machine, we will choose the flat rack container to shipping.

3. First the drying machines are transported by land to China's maritime ports, then shipped and delivery, and final the containers are shipped to the customer's designated port of arrival.

Our Service & FAQ

Sale service:
1. Ensure product with high quality and pre-commissioning before delivery.
2. Delivery on time.
3. Provide full set of documents as customer’s requirements.

After-sale service:
Provide considerate services to minimize customers’ worries.
1. Assist customers to prepare for the first construction scheme.
2. Install and debuging the drying equipment.
3. Train the first-line operators.
4. Exame the drying equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship with all my customers.

Service commitment:
We provide customers 12-months warranty to make sure the machine work well, and always keep certain inventory level of spare parts, which means the replacements can be sent to you timely. At the same time, we send every customer a preferential and reasonable quotation.

FAQ

Q: How can i visit your factory?
A: Our company is in Changzhou city, and it is very near Shanghai city. It takes about 1 hour to get to Changzhou. Or we can even visit you in Shanghai.

Q: Are you a factory or a trading company?

A: We are a manufacturer, and have been in the drying industry for more than ten years.

Q: What’s the MOQ of your products?
A: 1 set.

Q: How is the quality of your products?
A: Our products come with best quality, and passed CE certification. And exported to lots countries around the world. You can rest assured with the quality absolutely.

Q: What to do if the drying machine has a problem?
A: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.

Q: What is your payment term?
A: Our usual payment term is T/T. 30% T/T in advance, another 70% T/T before shipment. Other ways can also be received after we discussion and agreement, like L/C.

Q: Does your price include freight?
A: The price we offer usuallly is FOB Shanghai price. If you request CIF, please give us your delivery port, and even can offer the EXW price (machine cost) for you.

Q: What kind of fuel can be used with the mesh belt dryer?

A: Natural gas, LPG (liquefied petroleum gas), steam, electricity and other kind of fuel are OK.

Q: Is the belt drying machine in conveyor, belt type dryer machine drying speed adjustable?

A: Yes, the speed of our belt drying machine in conveyor, belt type dryer machine is adjustable. It is adjustable to make sure dry material with differnt moisture.

Company Information

Jiangsu Shengman Drying Equipment Engineering CO., Ltd is a high-tech enterprise mainly engaged in drying innovative equipment, located in zhenglu town, tianning district, changzhou city, covering an area of 16,000 square meters and a building area of over 9,000 square meters. Our company is specialized in producing all kinds of drying equipment, granulating equipment, mixing equipment, crushing equipment and dust removal equipment. Companies have set up cooperation with nanjing university of science and technology of drying technology research and development centers, and a drying equipment sample workshop, modern large heavy-duty workshop and related measurement test equipment, have professional research and development, design and production applicable to the pharmaceutical, chemical, agricultural products deep processing, bioengineering and food additive industries dry series equipment. The company has 180 employees, among which 30 are engineers, 25 are comprehensive managers, 25 are sales staff, and 40% are college degree or above. The company has passed ISO9001 quality management system certification, and good operation, the bank credit AAA grade.
All of Shengman people will be in the spirit of down-to-earth enterprise, sincerely for the purpose of users, all-round pre-sale, sale, after-sale services, and all friends to cooperate with the drying industry in China to further improve the level of efforts.
