Automatic Metal Circular Saw Electric Tube Stainless Steel Pipe Cutter LYJ 450CNC B
Automatic Metal Circular Saw Electric Tube Stainless Steel Pipe Cutter LYJ-450CNC-B

Automatic Metal Circular Saw Electric Tube Stainless Steel Pipe Cutter LYJ 450CNC B

Share on (60787392630):


Price:

Quantity:


Product Overview

Description


Company Presentation

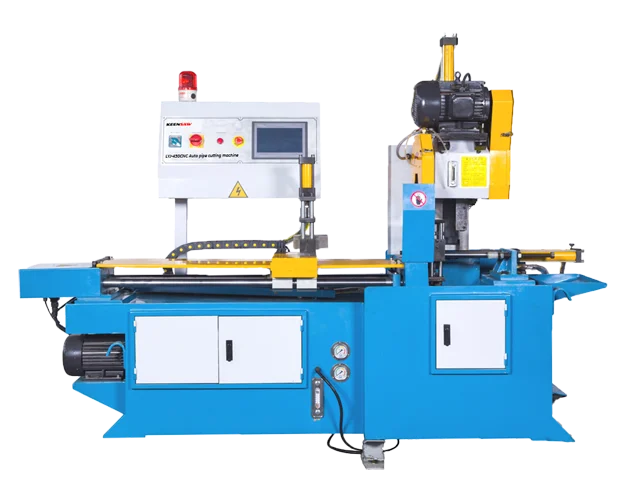

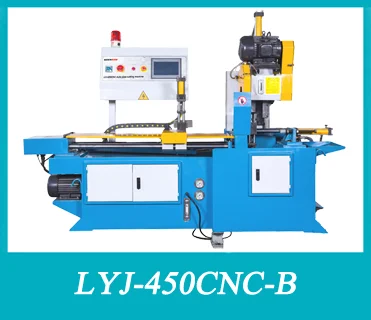

Machine Image

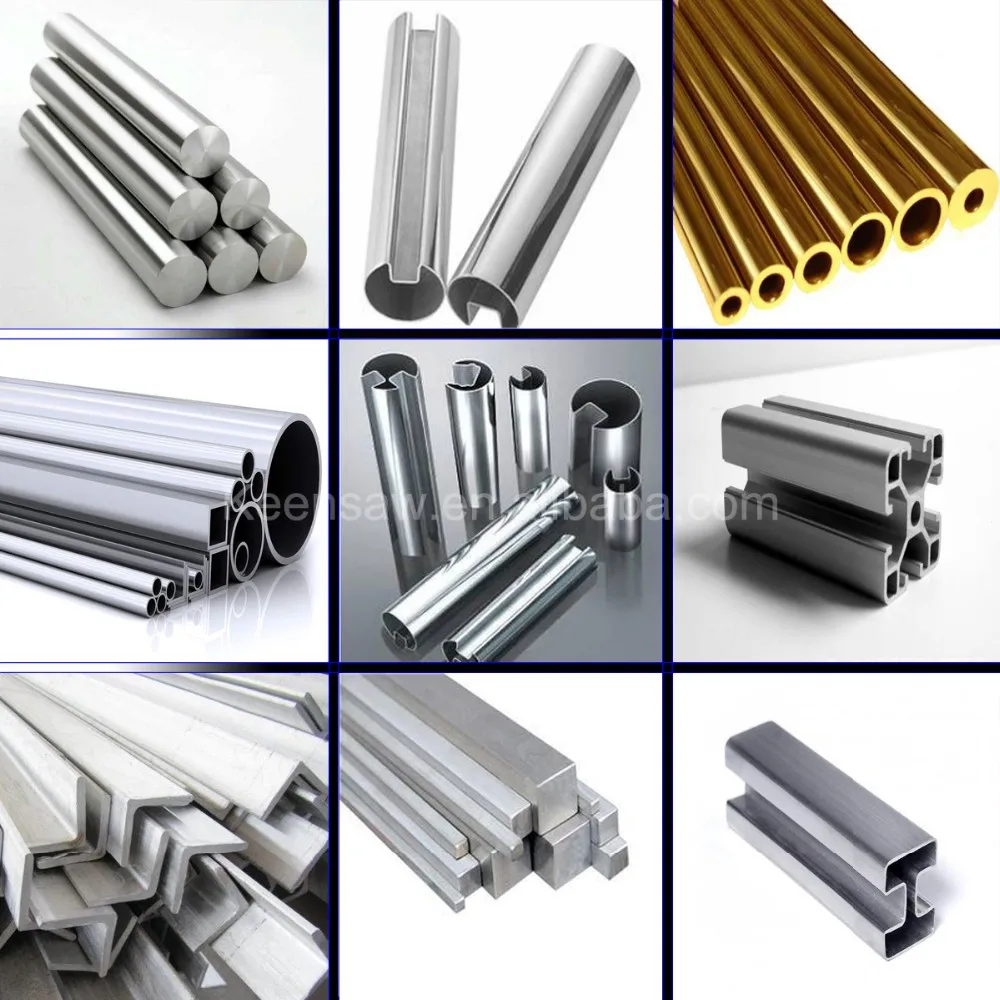

Product Application

KeenSaw LYJ-450CNC Automatic servo metal circular sawing machine is good for stianless steel ,iron ,aluminum, brass and copper material tubes and bars bundle cutting.

Automatic servo metal circular sawing machine uses the advanced cutting technology to keep full-autometic cutting and servo motor feeding control system to ensure high cutting accuracy within +/-0.1-0.05mm. The Main motor drived by sets of imported gears,is suitable for heavy-duty cutting.

Screen displays states of all the electric joints and operation,helping troubleshooting,it provides simply operating and conveniently data collection . Automatic cycled coolant ensure surface of metal smooth.

.


Machine Feature

What Features Of LYJ-450CNC-B

1.Blade goes up and down vertically, improving the precision and blade life.

2.Man-machine interface control,simple and convenient to operate.

3.Machine has pole-changing motor to achieve 4 speed gear can adapt to different material cutting.

4.Special design vertical floating clamping suitable for different shapes and size tube tight lock for bundle cutting.

5.Automatic counting and shut down and no material shut down functions of machine are easy to manage.

6.Equipped with a digital display, it is easy to adjust the cutting length, the precision can reach to 0.1-0.05mm

7.Zero tailing decive can achieve tailing length to 0-10mm remain, no second cutting for tailling.

8.Coolant automatic cycles to ensure smooth cut surface and enhance blade durability.

\t
Model
\t

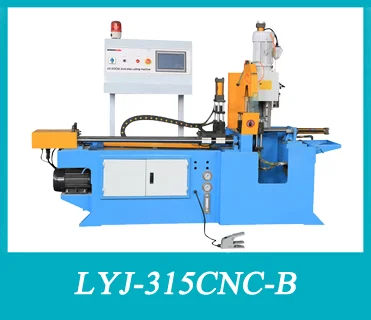

LYJ-315CNC-B
\t
LYJ-350CNC-B
\t
LYJ-450CNC-B
\t
Max Capacity
\t
○: 110mm

□: 90x90mm
\t
○: 130mm

□:120x120mm
\t
○: 150mm

□:140x140mm
\t
Blade Size
\t
200~350mm
\t
250~450mm
\t
300~500mm
\t
Blade Speed
\t
2 speed gear
\t
4 speed gear
\t
4 speed gear
\t
Blade Cleaning
\t
Flood coolant
\t
Flood coolant
\t
Flood coolant
\t
Main Motor
\t
3.3-4.0kw
\t
4.0kw
\t
4.5-5.5kw
\t
Servo Feeding Motor
\t
1.0kw
\t
1.0kw
\t
1.0kw
\t
Work Feeding
\t
Automatic & Hydraulic
\t
Automatic & Hydraulic
\t
Automatic & Hydraulic
\t
Feeding Length
\t
1000mm one time, can feed many times
\t
1000mm one time, can feed many times
\t
1000mm one time, can feed many times
\t
Clamping
\t
Automatic vertical clamp
\t
Automatic vertical clamp
\t
Automatic vertical clamp
\t
Weight
\t
1200kg
\t
1600kg
\t
1600kg
\t
Packaging Size
\t
2800*950*1800mm
\t
3500*950*1800mm
\t
4000*950*1800mm
Our Service
Packing & Delivery
Related Products

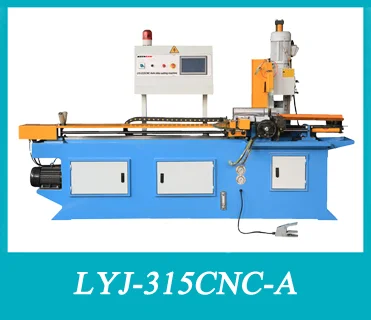

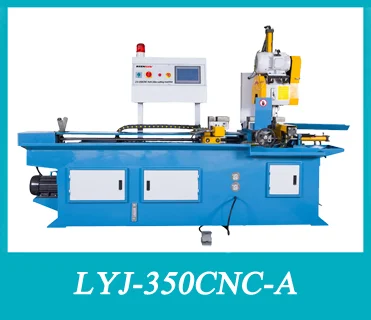

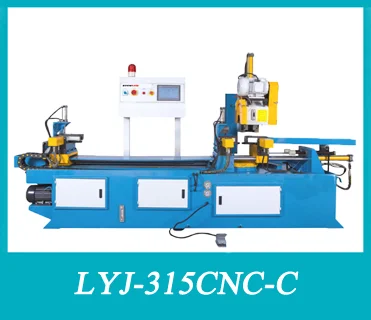

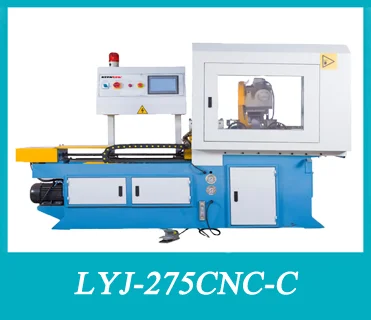

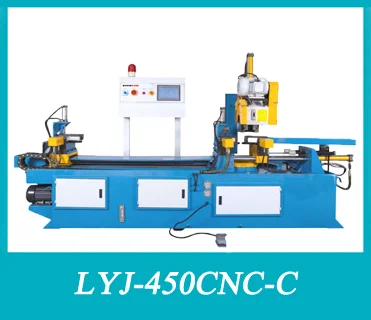

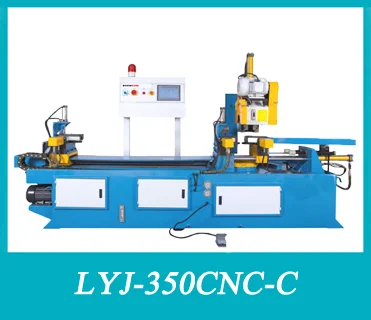

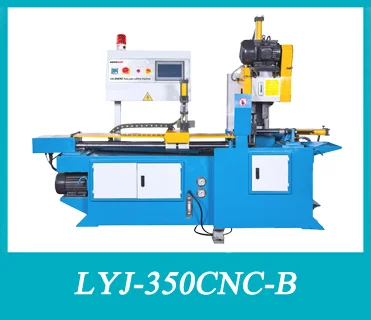

Automatic Pipe Cutting Machine Series

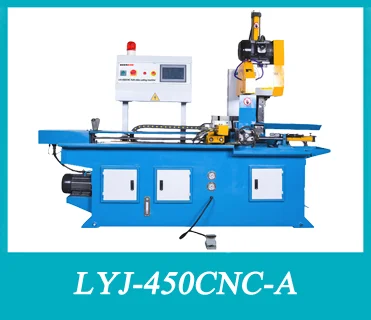

Automatic Pipe Angle Cutting Machine Series

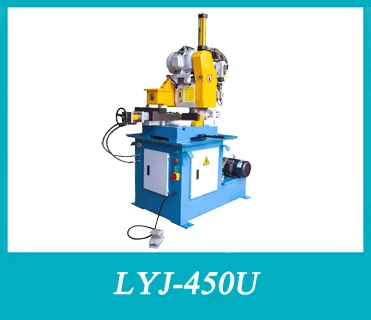

Semi-Auto Pipe Cutting Machine

FAQ

1. Q: Can i have your quotation?

A: First, please offer us the information of your material size, without these parameter, we are not able to recommend you the suitable machine.

2. Q: Do you have overseas service?

A: No,but we normally help our customers to solve the problems through phone,Email, skype, internet video. high efficiency. We offer one year guaranteen, within one year, if component of the machine broken, we freely offer the component, but the delivery fee should be paide by client

3. Q: What is the voltage and Hertz in your country?

A: In China,the Voltage is 380V(3 Phase), the Hertz is 50HZ, we can change the voltage and Hertz according to your requirment.

4). Q: Your price are high

A: You get what you pay for, our price is based on good quality,We sell the machines all over the world with good feedback from our customers

5. Q: How about the payment term

A: T/T 30% deposit, 70% of balance paid before shipment.
