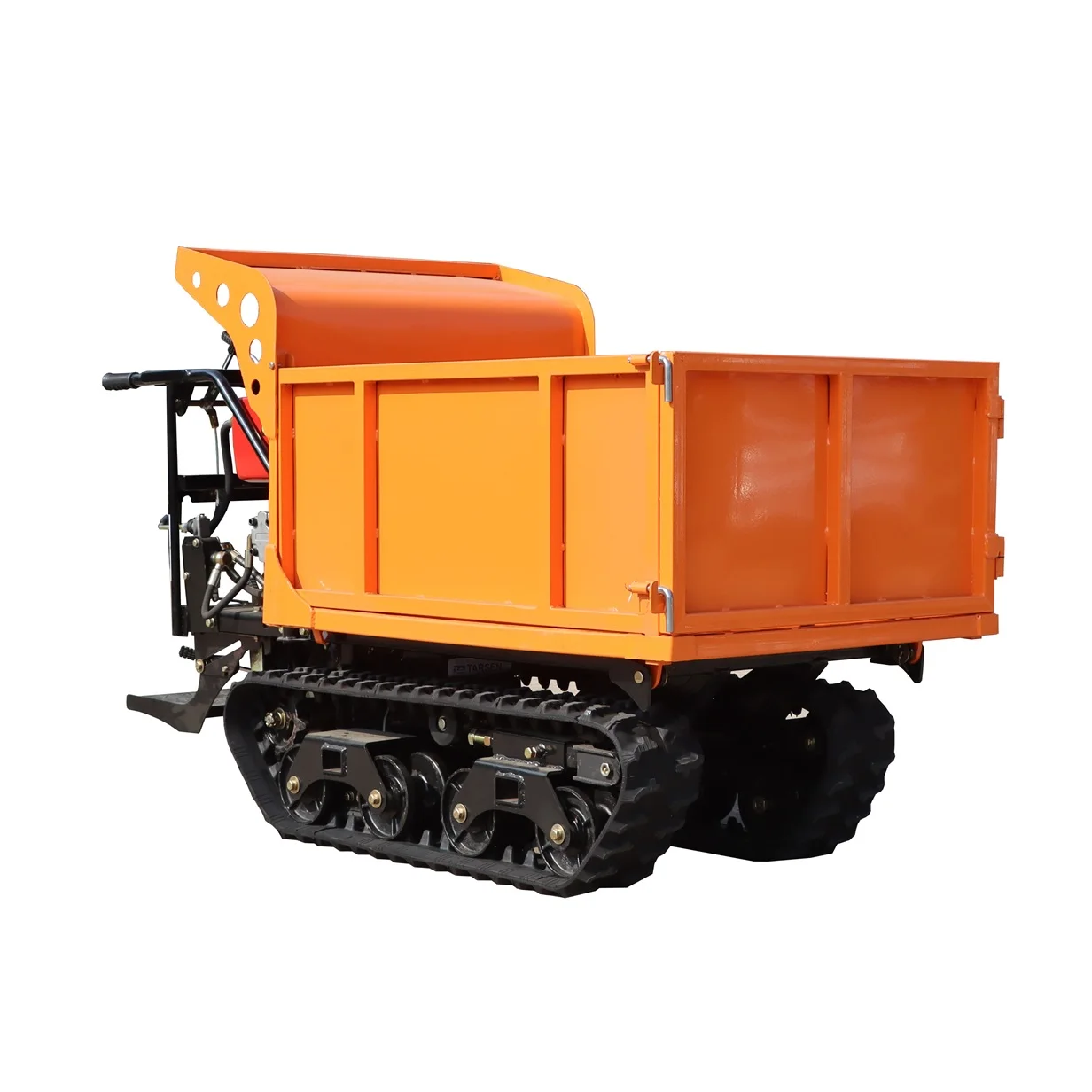

mini garden crawler skid steer loader mini crawler tractor

Mini crawler type garden truck dumper

Engine: Huasheng gas engine 10HP or Changfa diesel engine 10HP.
Loading weight: 500-600KG .

Dump type: hydraulic dump

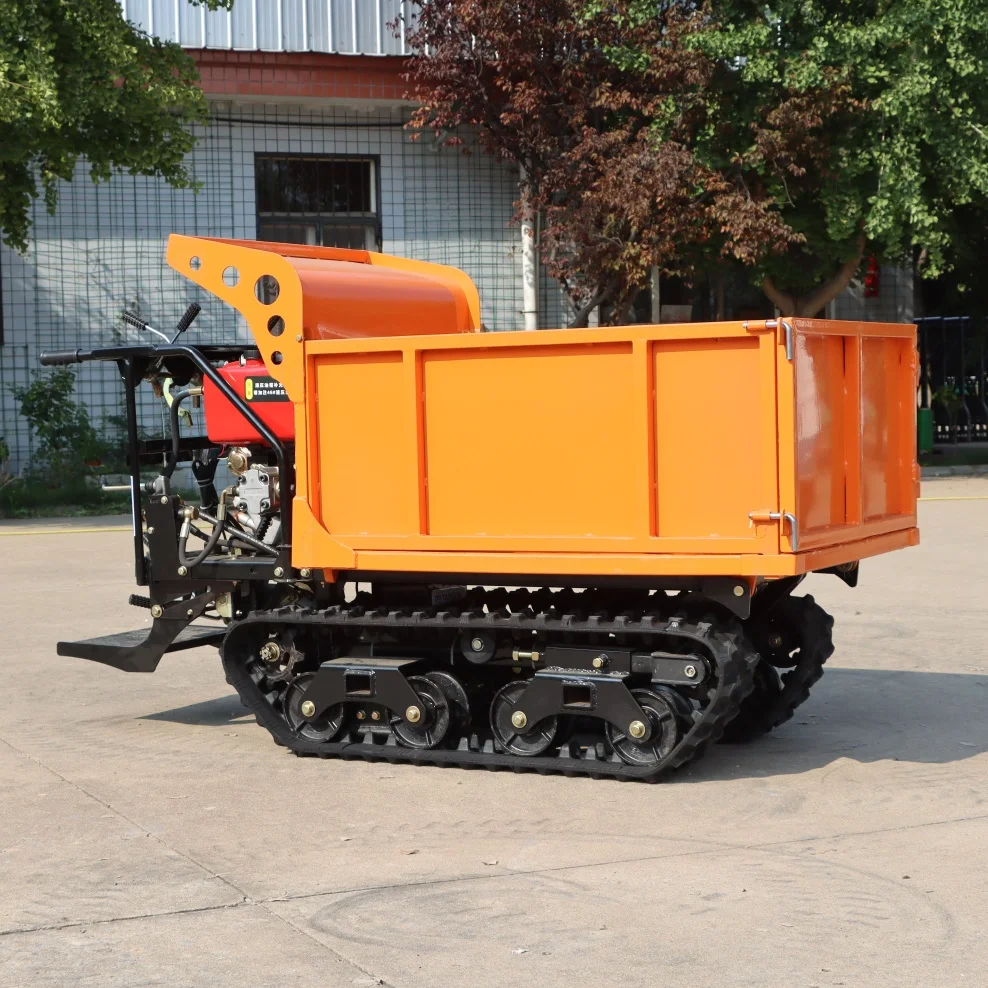

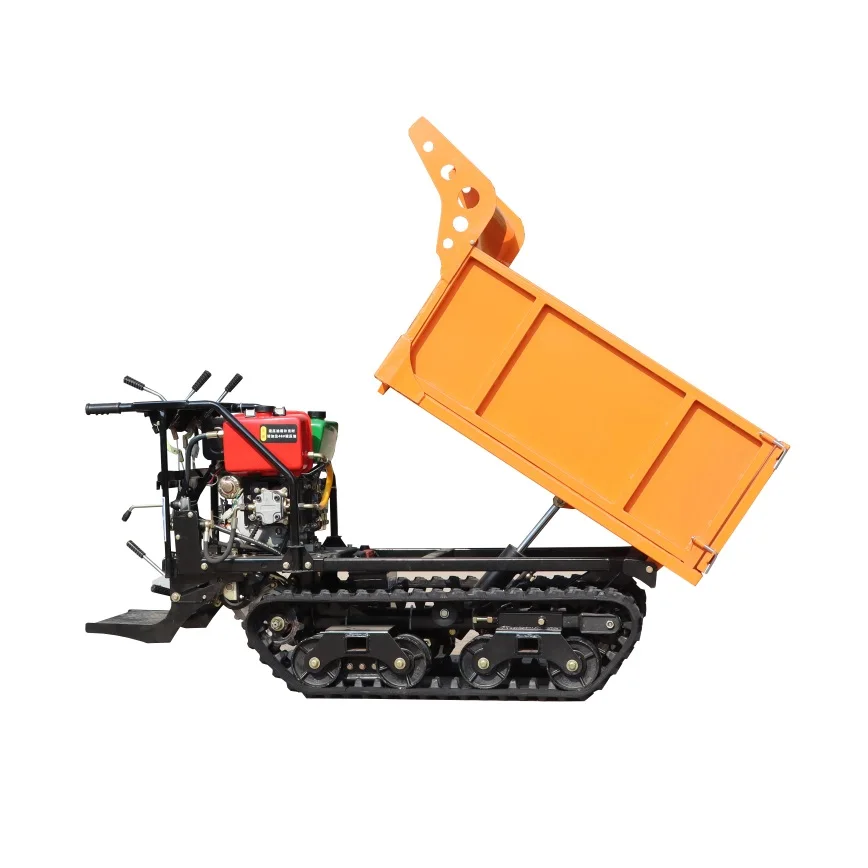

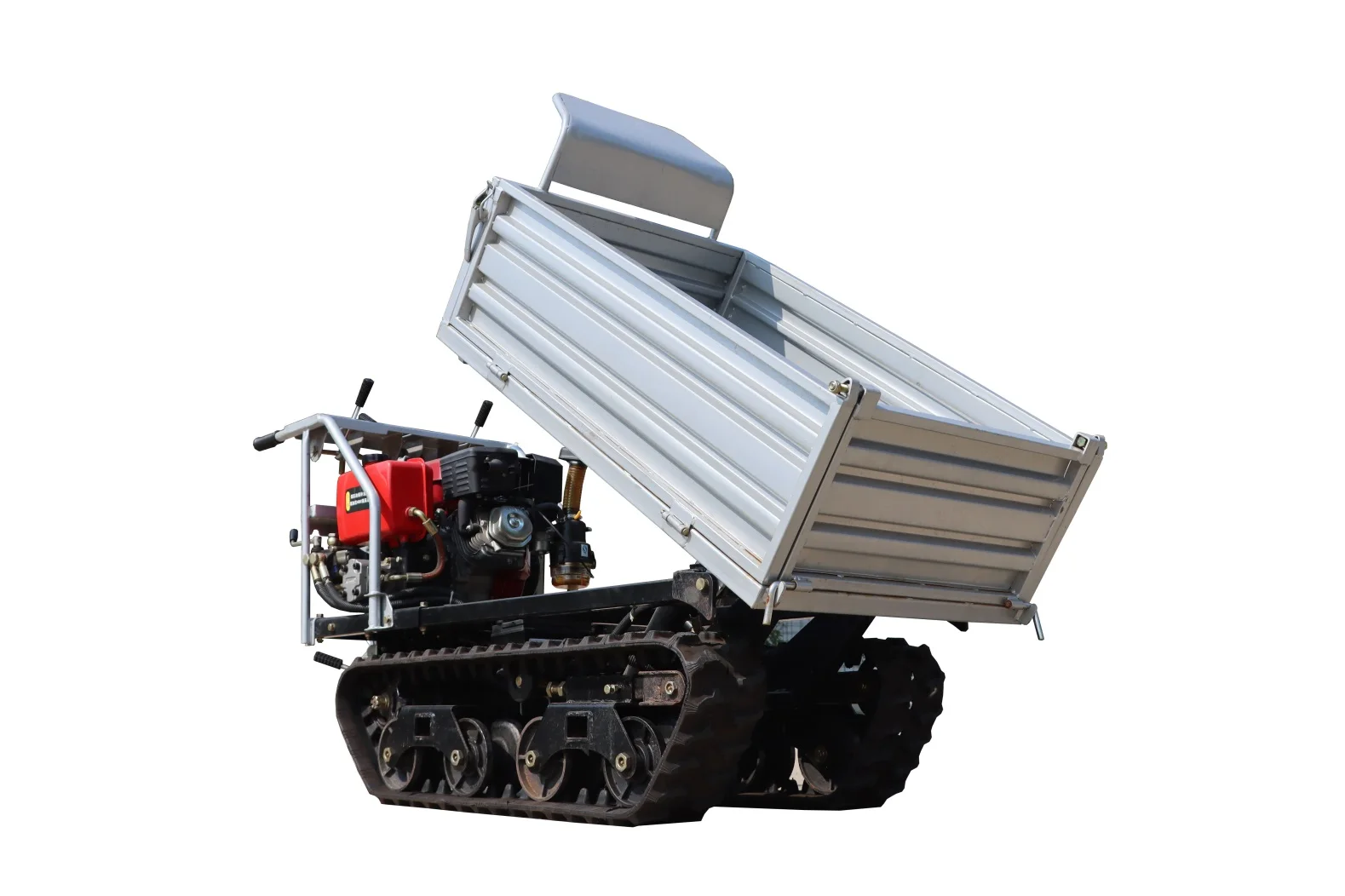

Left side Main picture

Left side Main picture

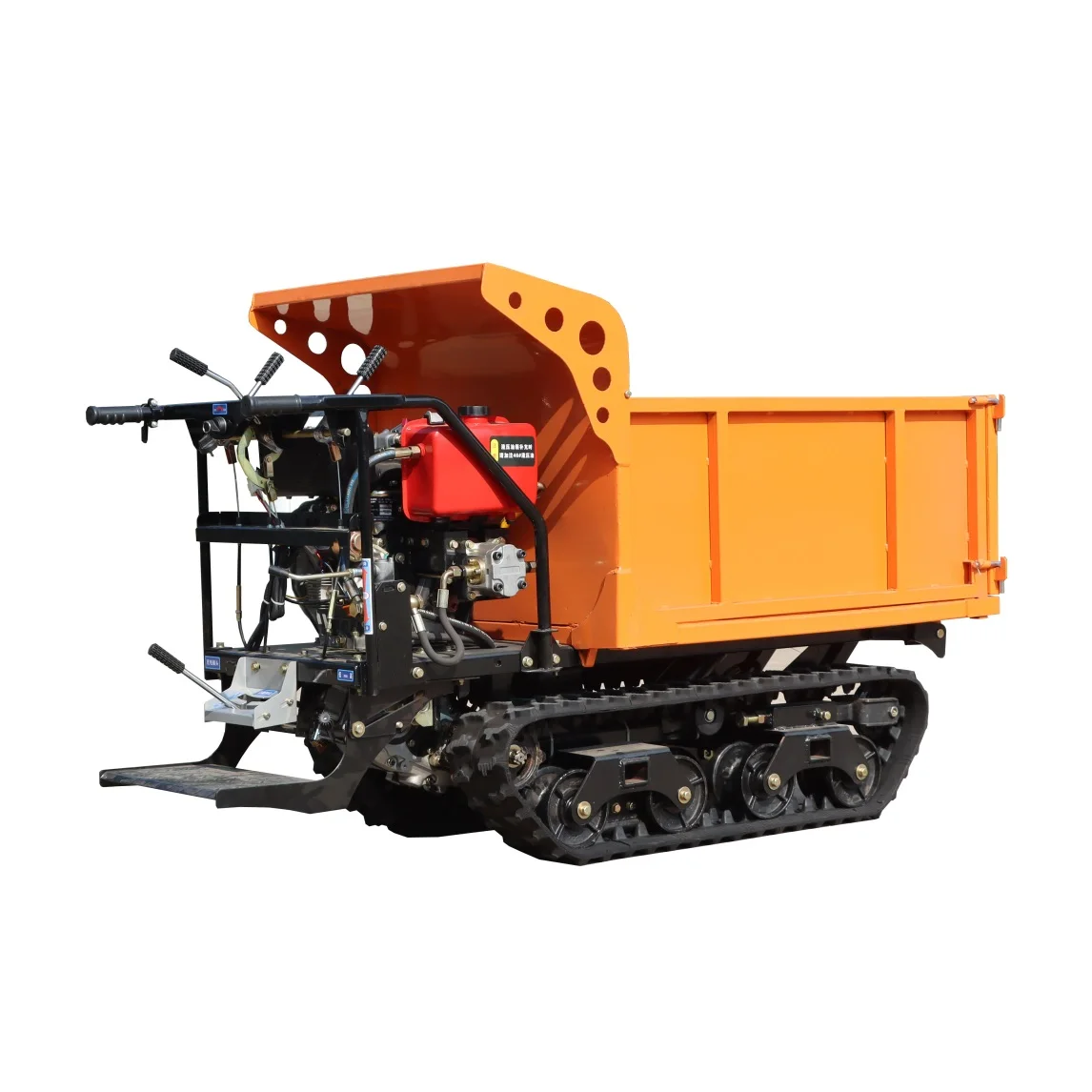

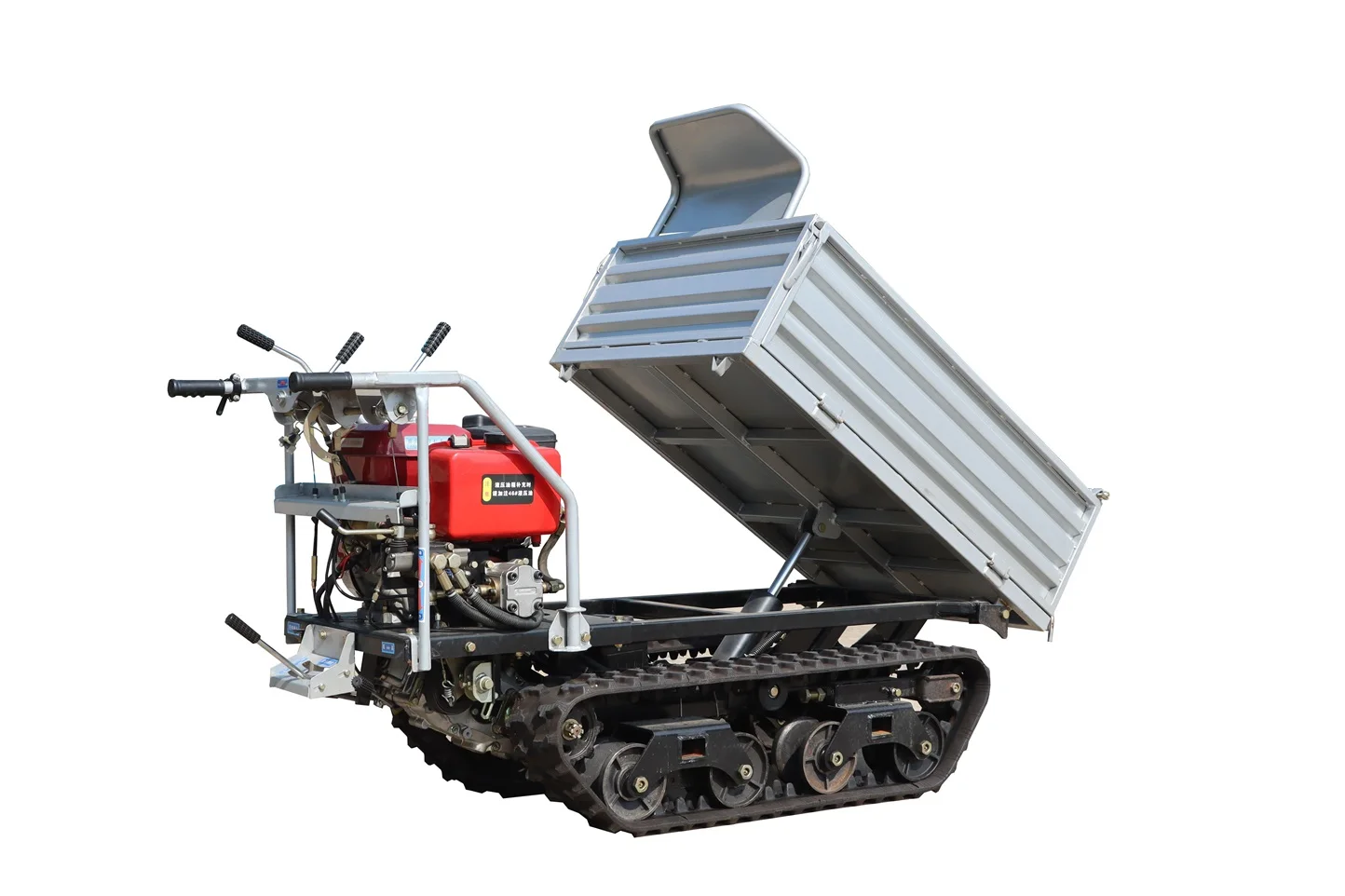

Right rear side Main picture

Model: WL-350

Engine: Huasheng gas engine 177 10HP

Net weight: 350 KG

Transmission: 6 forward + 2 Reverse (High and lower speed)

Brake parking: Mechanical

Box length: 1100 mm

Box width: 720 mm

Box depth: 320 mm

Measurement: 1900x730x1100 mm

Start model: electric

Rated power: 5.5KW/3600rmp

Max. Torque: 17N.m/≤2880rmp

Bore Stroke:86*72

Fuel tank: 5L

Oil Capacity: 1.7L

Tracks:

Standard Tracked length: 800cm

Standard tracked width: 180 mm

Loading capacity: 300 KG

Others:

Noise:about 100db(A)

Climbing of up to 30 degree inclines

Tipping system: hydraulic

Package:

1pc/steel pallet+carton

Gross weight: 490KG

Package size: 2100*1000*1100mm

20GP: 6SET

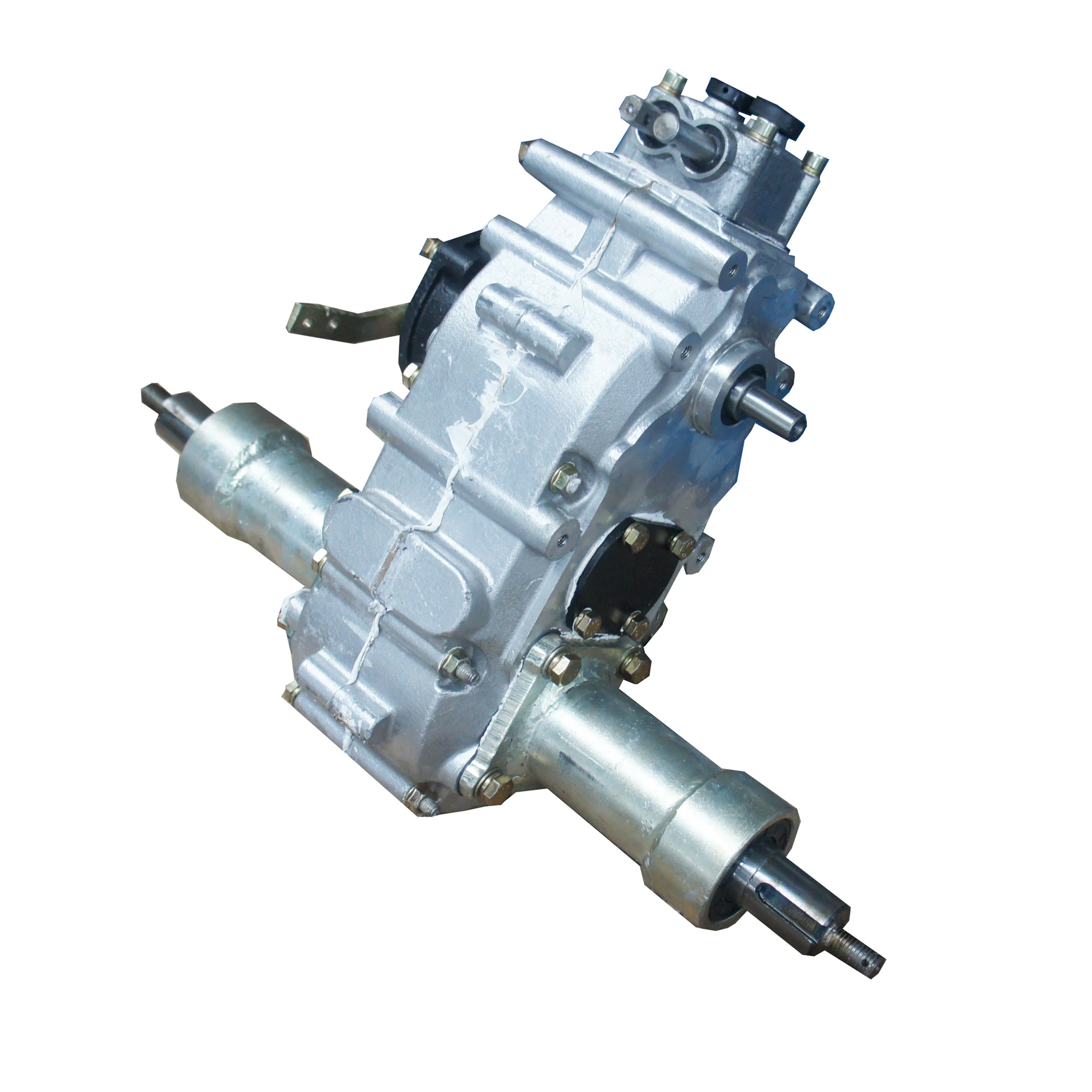

Gear Box Main Picture

Gear box:(3+1)*2 configuration the high and low speed

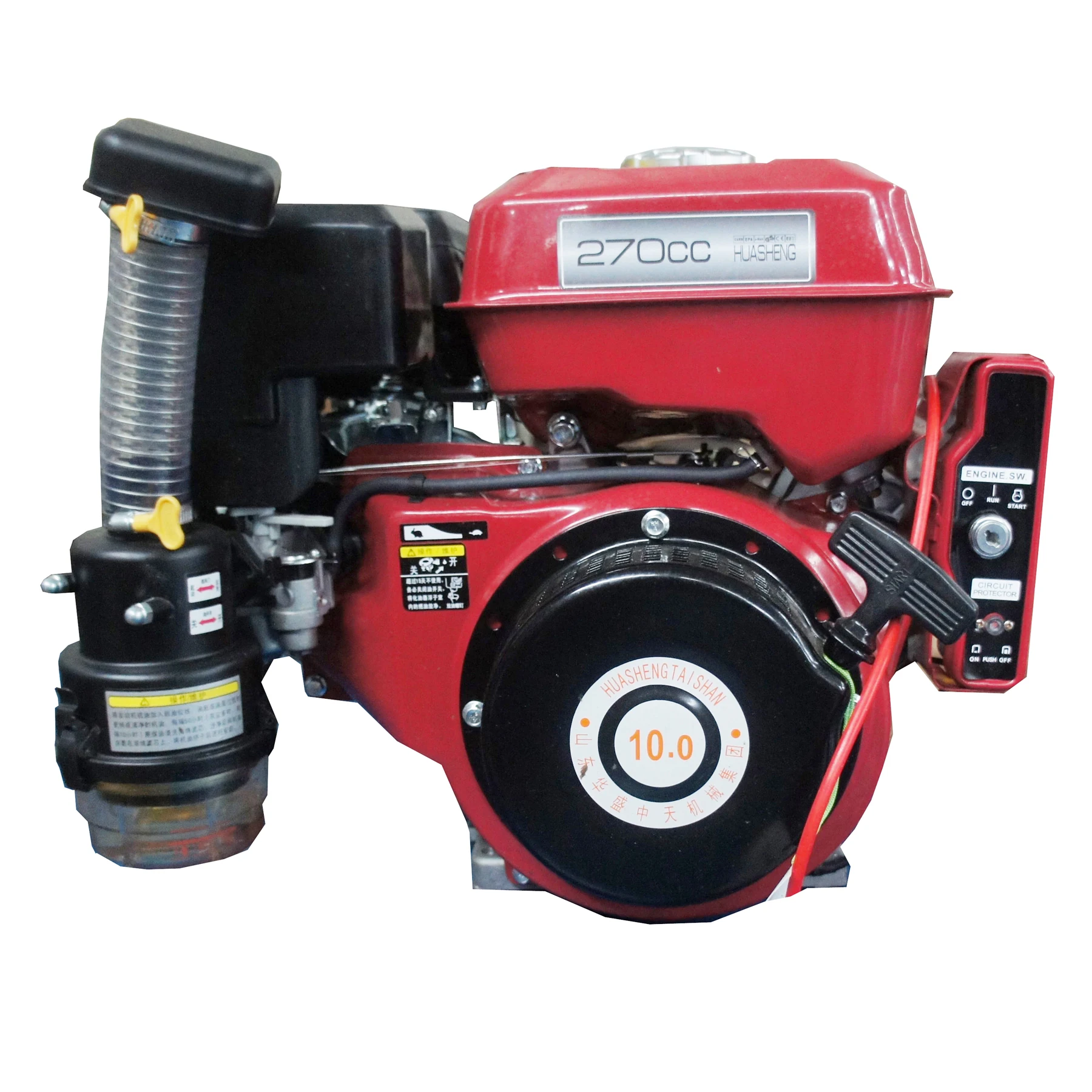

Engine Power System

Changfa 186F diesel engine 10HP or Huasheng gas engine 10HP

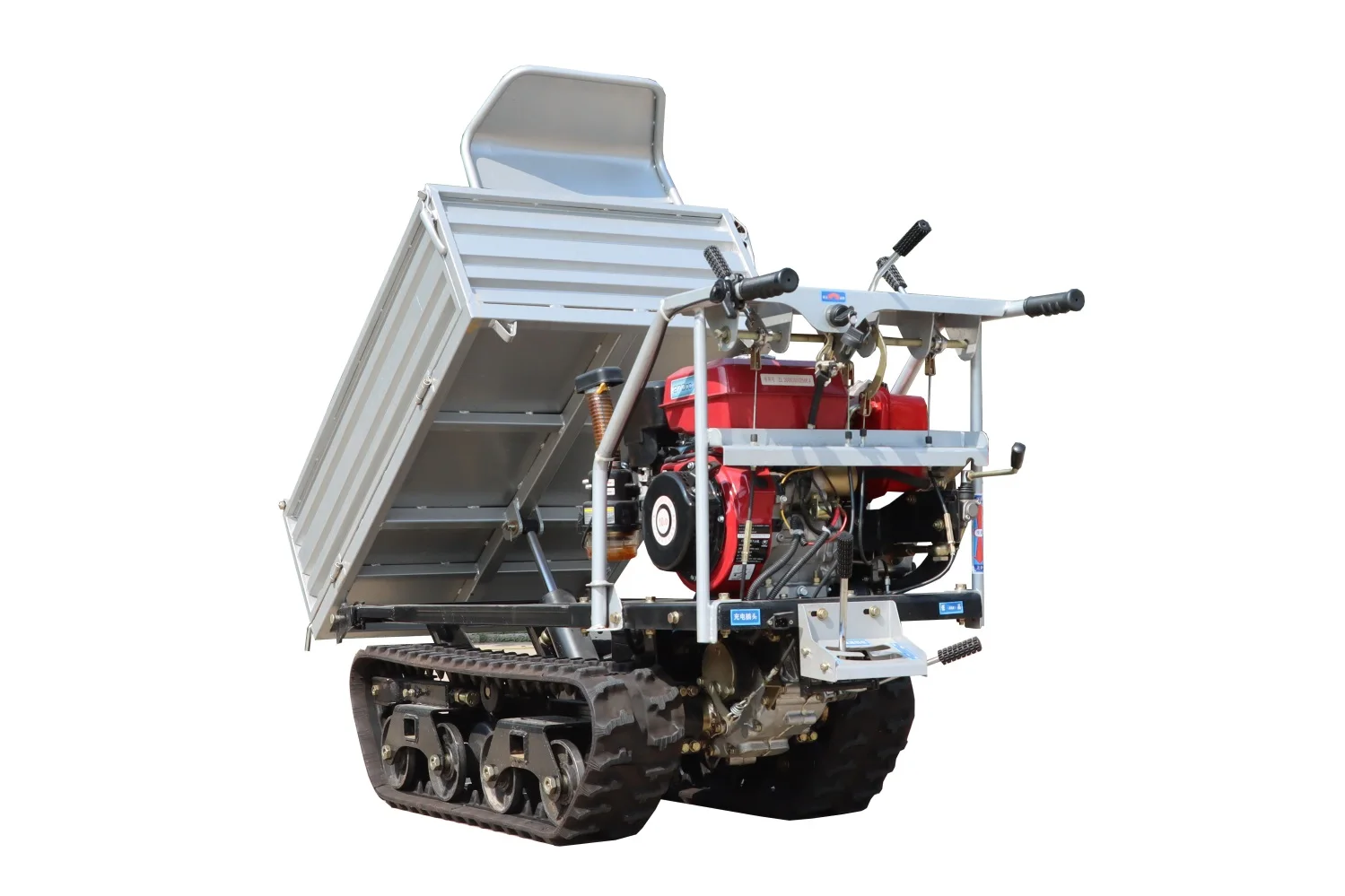

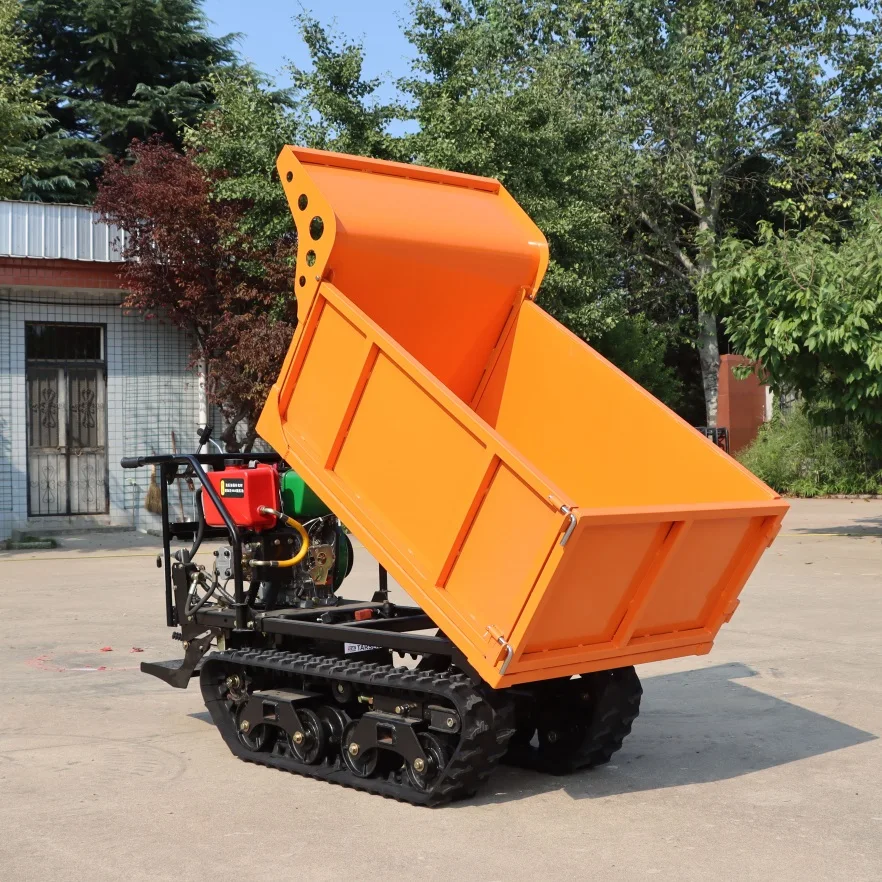

Hydraulic dumper system

high quality hydraulic motor and hydraulic cylinder

Rubber pedrail

the rubber tracks add the steel wire and steel sheets.

Chassis walking system

the chassis system update the foreign technology.

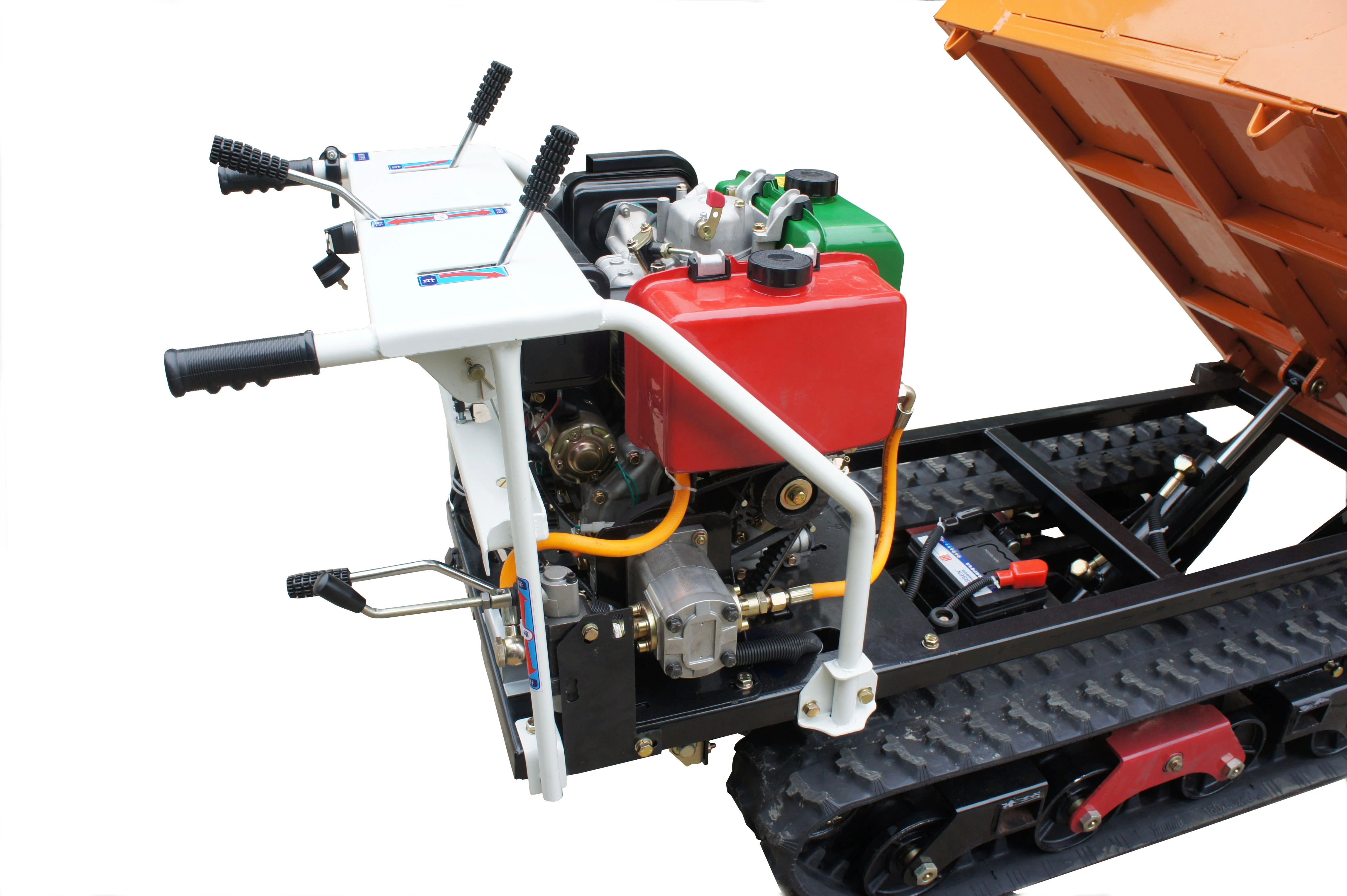

Operating platform

Included Left turn, right turn, clutch, hydraulic dump, throttle control.

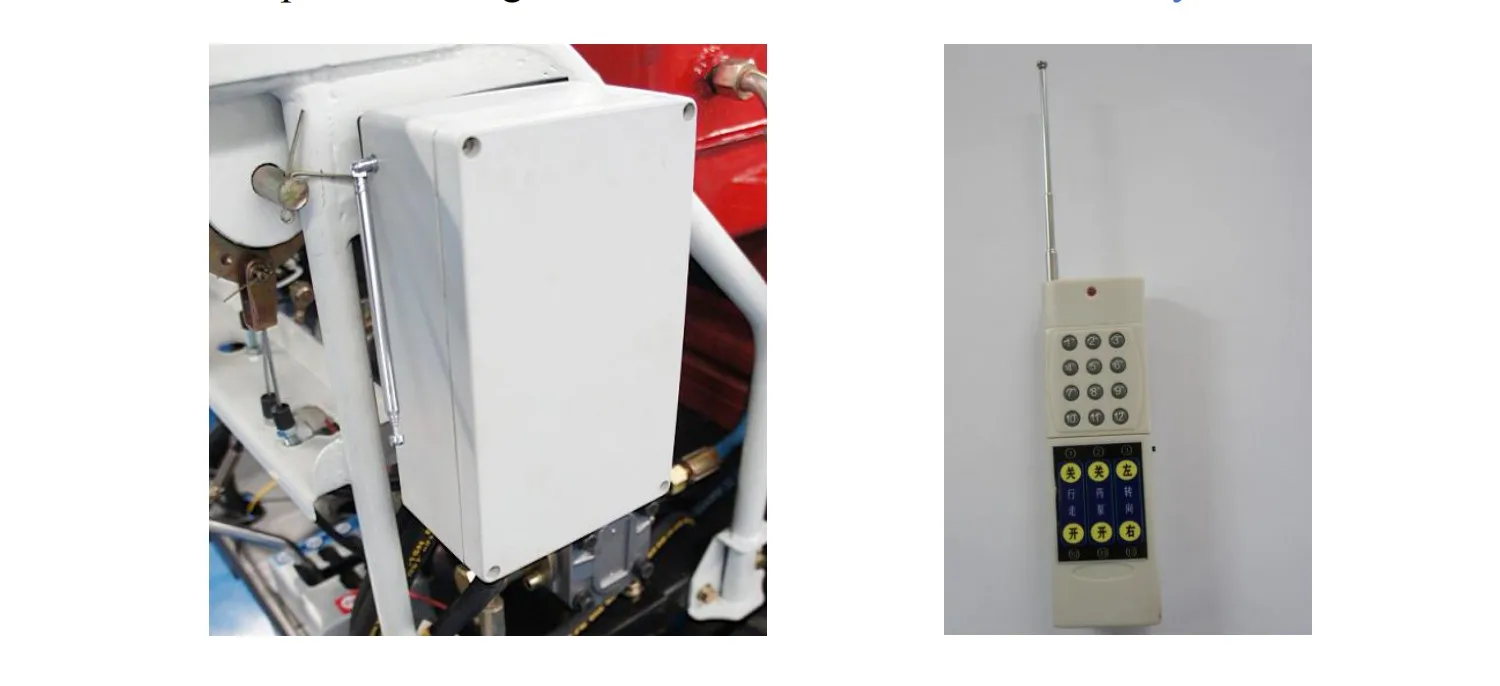

the wireless remote control system

Wireless remote control receiving device   Wireless Remote Controller

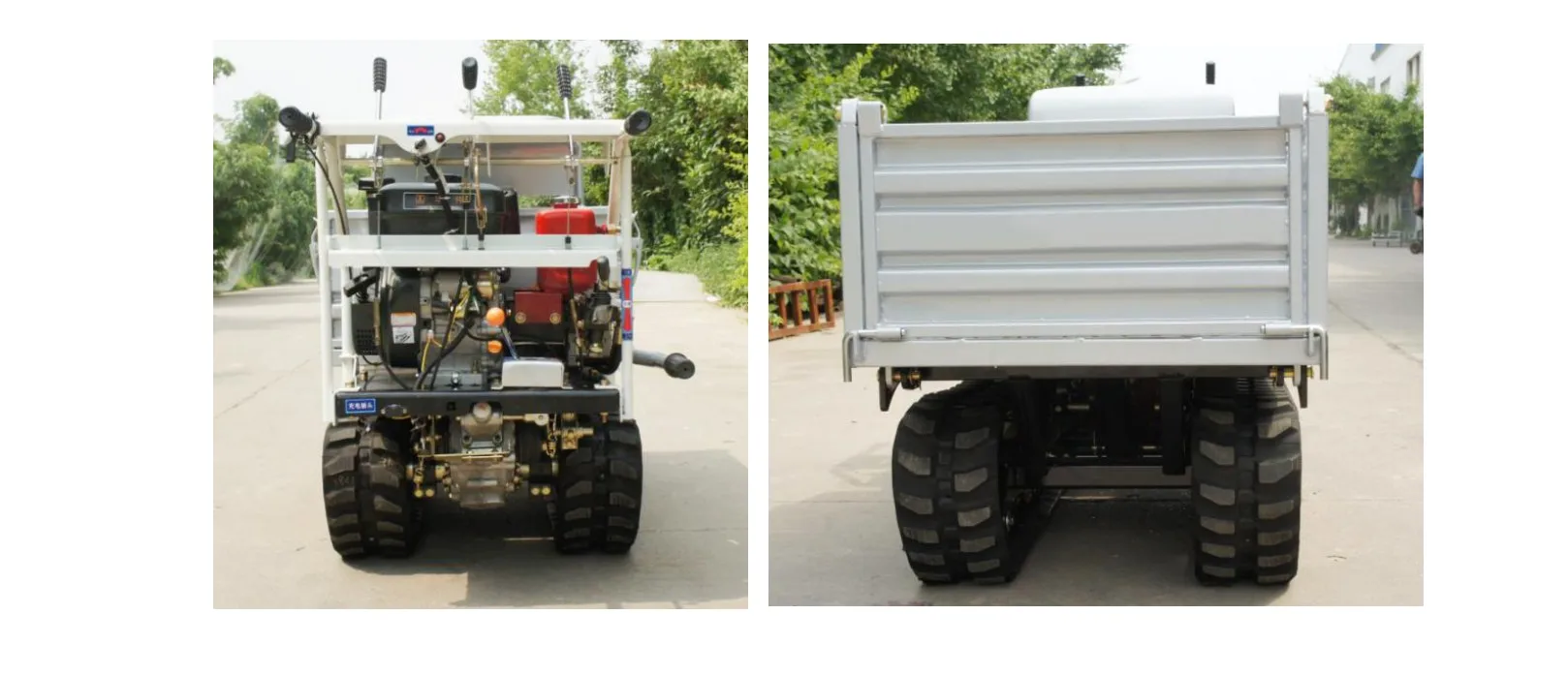

Overall size

the chassis system max width is 68 cm.

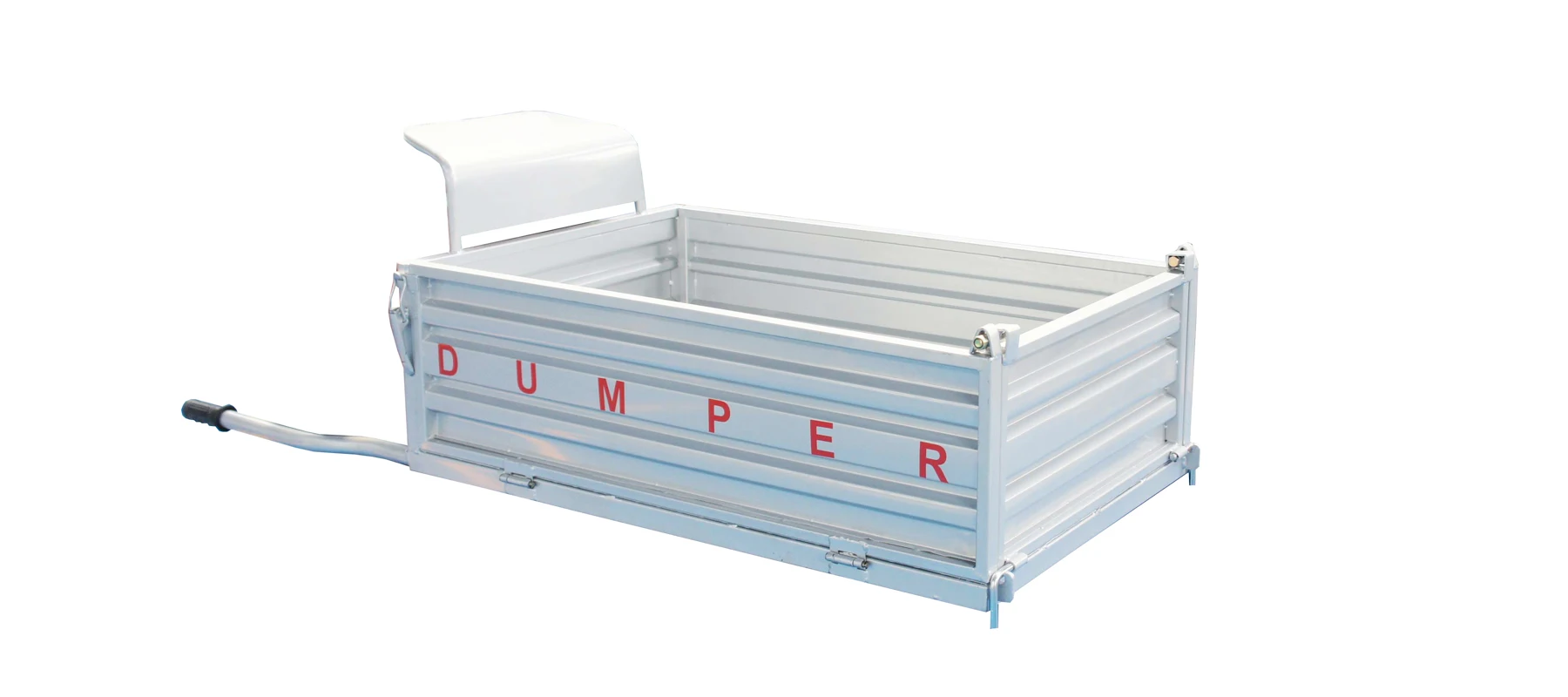

Container shape

have more than 5 kinds of containers for your choose.

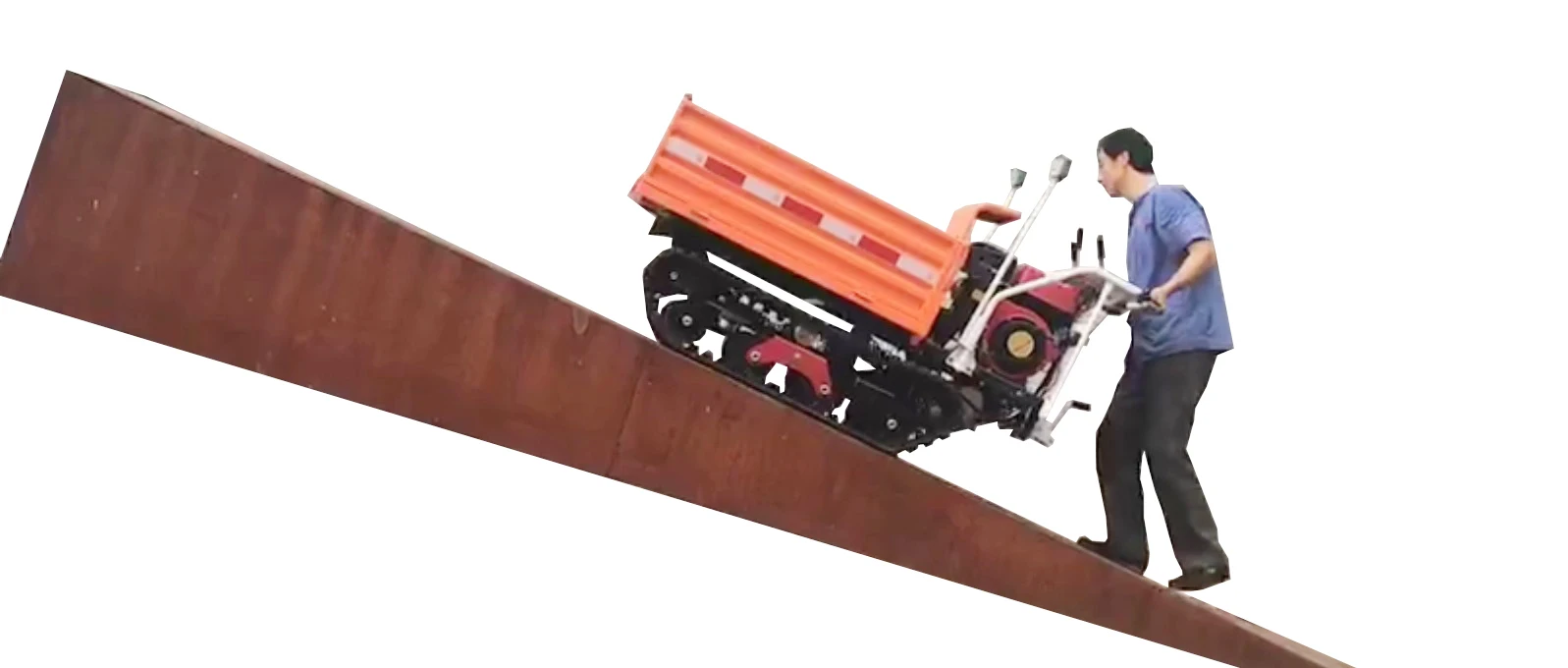

Climbing state

 climbing angle more than 30 degrees with loading weight 500 kg.
