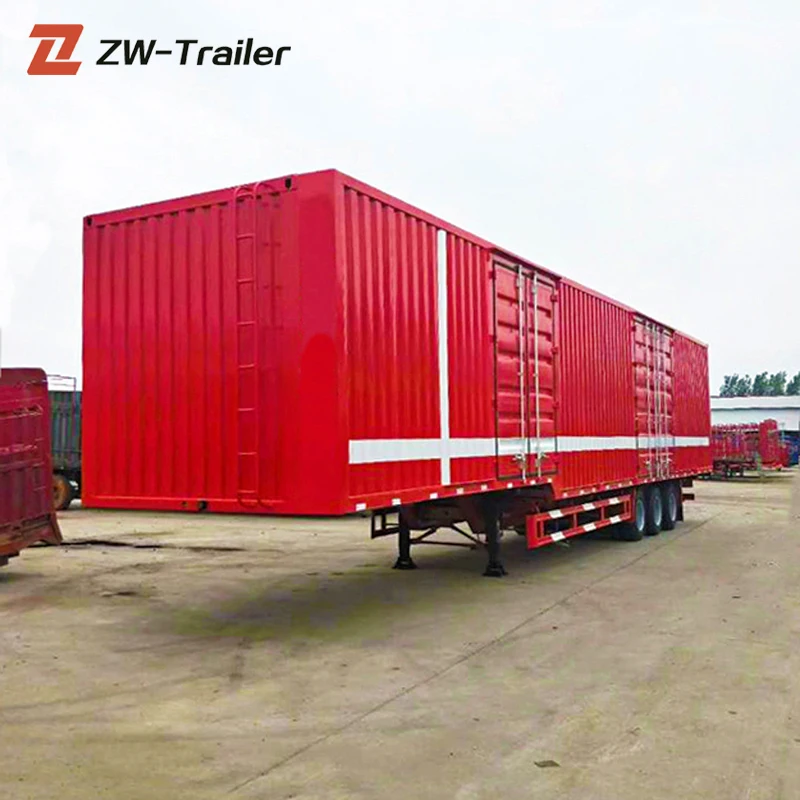

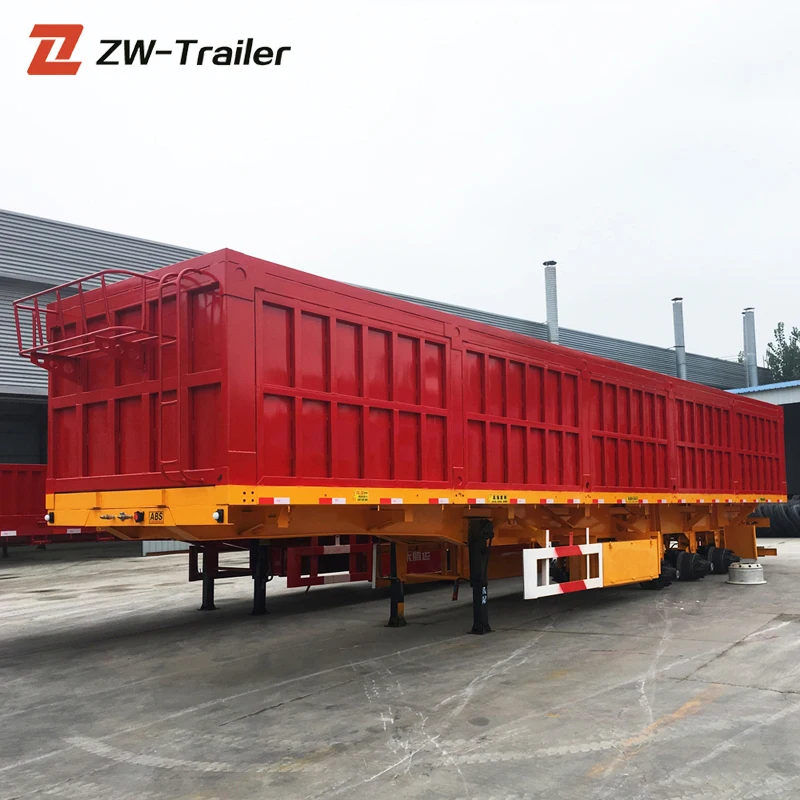

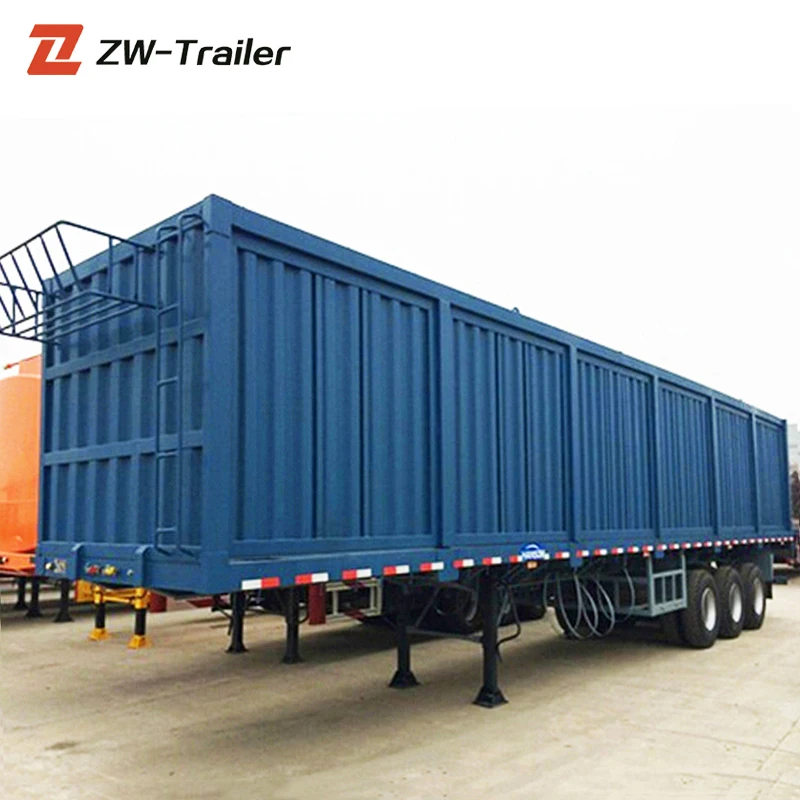

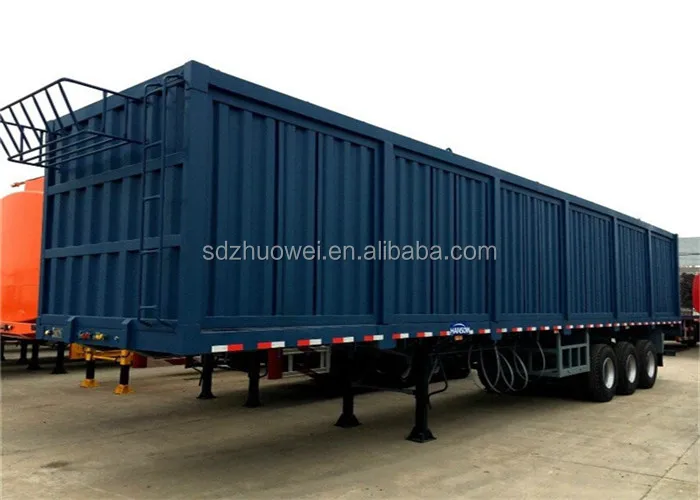

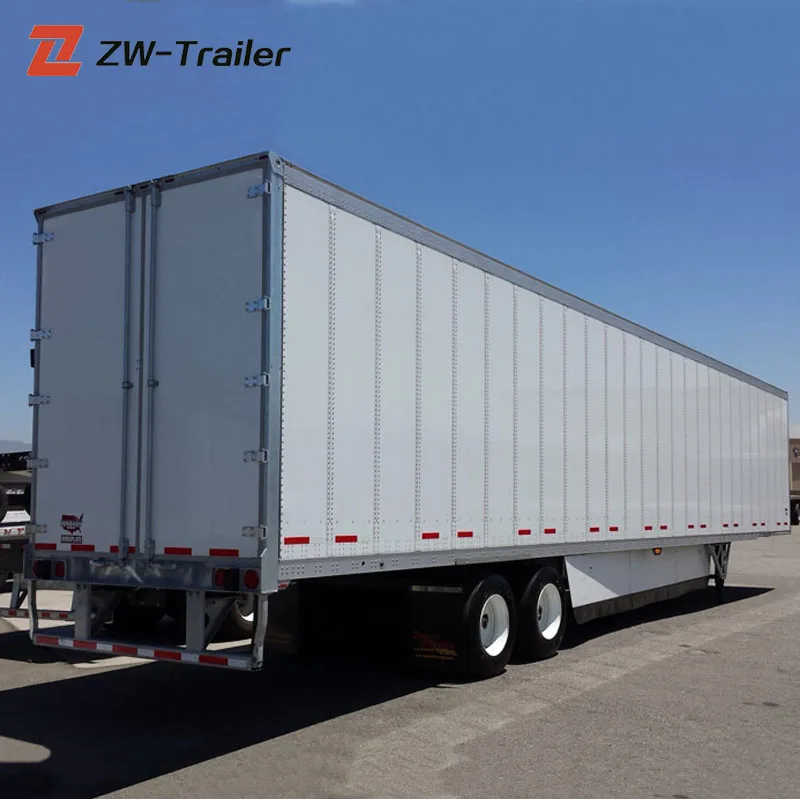

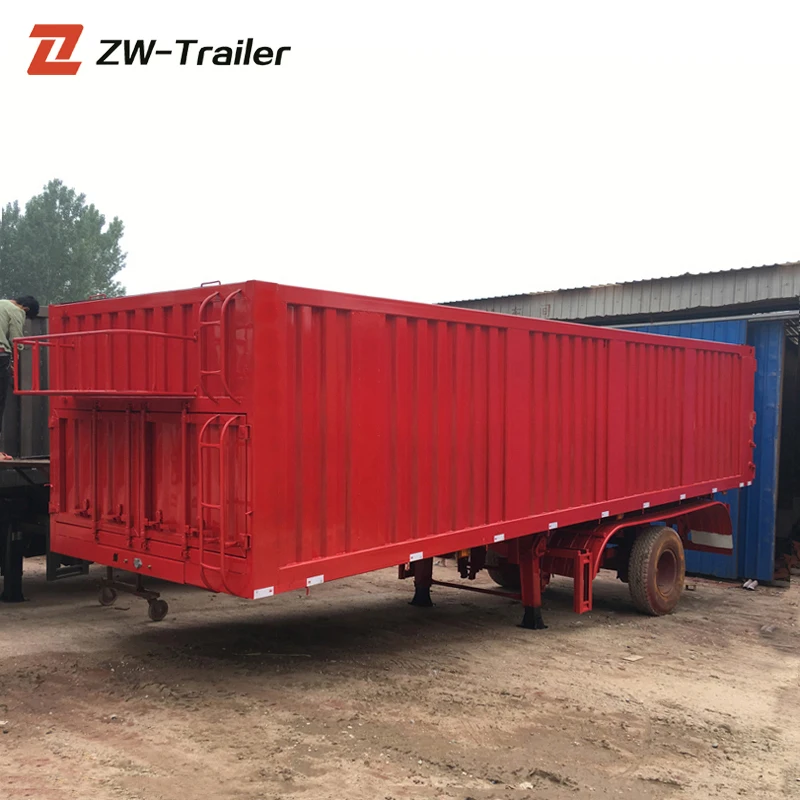

Best Selling 3 Axles 13m 60Ton customized Enclosed Cargo Van Box Truck Trailer

Product Overview

Description

Best Selling 3 Axles 13m 60Ton customized Enclosed Cargo Van Box Truck Trailer

1.heavy duty 2 axles 3 axles box carrying

2. cargo transport semi trailer

3. body trailers and trucks

4. FUWA axles

5. with good cost performance



Weight:
	Tare Weight	8000kg-14000kg
	Loading Capacity	30T-70T
	Axle Weight Load	13T or 16T
Specification:
	Axle number	2- 4
	Axle Brand	Fuwa/BPW/Optional upon choice
	Suspension	Common mechanical
	King Pin	2" or 3.5" traction pin
	Dimensions (LxWxH)	12400~18000×2500~3200×(1500+1800)mm
	Thickness of box	2mm
	Support legs	28T
	Wheel Rim	8.5-20,9.0-20,8.28-22.5,9.0-22.5 steel wheel rim / optional upon choice
	Wheelbase	7180/6680/6260+1310+1310mm
	Steel Spring	10-13 pieces per axle
	Landing Gear	Manual operating, Heavy duty landing gear  (Brand Optional upon choice)
	Floor	3-5 Diamond steel plate
	Accessories	1 Set standard tool box
	Light	Tail lamp with turn signal, brake light & reflector,  side lamp etc.
	Painting	1coat of anticorrosive prime, twice coats of final paint
Tire:
	Tire spec.	12R22.5  Vacuum tire/11.00R20 steel wire tire
	Number of Tire	8 or 12 or 16 pieces
	Spare Tire Carriers	2 pieces
Frame:
	Main beam	The height of the beam is500-550mm; Upper plate:14-18mm;Down plate is 16-20mm; Middle plate is 8-12mm.
Brake:
	Brake brand	Optional upon choice
	Brake Chamber	Six big chamber( Brand Optional upon choice )
	Brake system	Dual Line Brake system (ABS Optional upon choice)

Shandong Zhuowei International Trading Co.Ltd is a very formalized company combined with

producing, techniques researching and sales together.

We produce the box semi-trailer, automobile transportation semi-trailer, low bed semi-trailer,standard bar board semi-trailer,container semi-trailer, stake truck, tank truck and dump truck.

1.Does your company has your own factory?
Yes,we have a factory ourself,which is in this business for few years in China.Our factory is very famous where is manufacturing various trailers in Shan Dong,China.

2.Can you satisfy my special requirement?
Definitely!We can make the trailers based on your requirement.

3.What's your minimum quality?
1 set.

4.How to trust us?
The good faith management is our philosophy,and you are welcome to visit our company at any time.

5.What's your payment term?
We accpet both T/T and L/C
T/T:30% deposit by T/T,70% balance should be paid before shipment.
L/C:100% irrevocable Credit of Letter.
