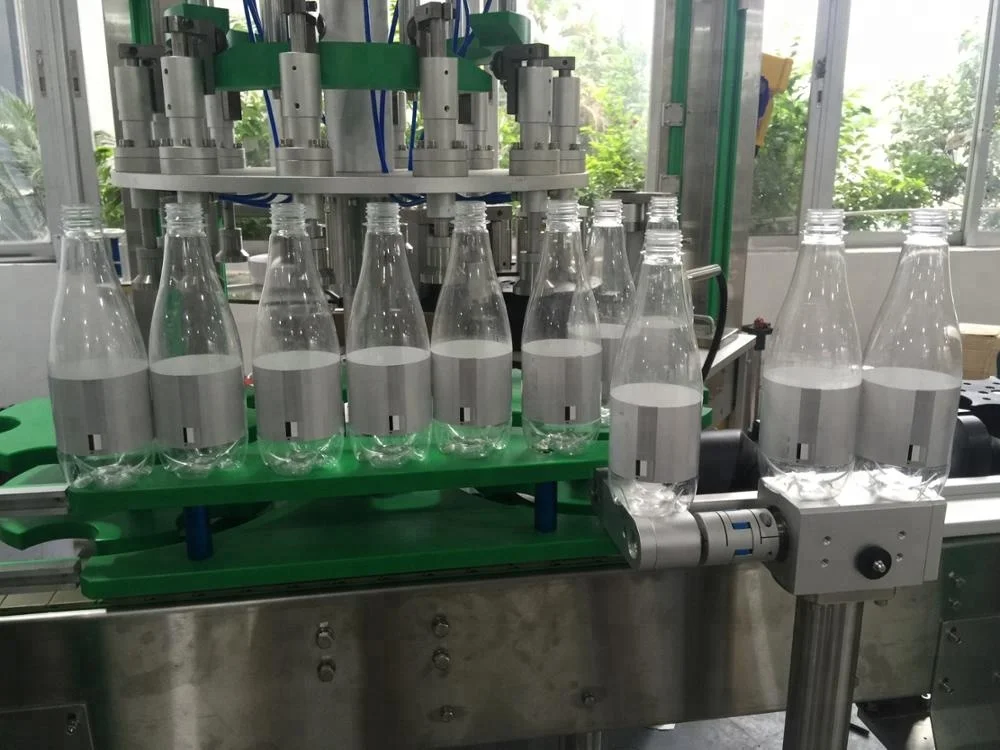

BOPP hot melt glue labeling machine with the capacity of 10,000bph
- Category: >>>
- Supplier: Zhangjiagang Sunswell Machinery Co. Ltd.
Share on (60787499997):
Product Overview
Description
Product Description
1. General description:
BOPP labeling machine can make different kinds of label on the bottles automaticly.
Trade assurance Automatic bopp hot melt glue labeling machine,water bottle labeling
BOPP labeling machineis widely suitable for different material of container and label. The label cost is comparatiely lower, it can meet the requirements of those users who have diverse kinds of the containers. It is the most economical models in cost to make mass production and intergrated operating. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles. Whether from the replacement of star wheel, guide plate or manual speed adjustment to automatic speed control, for example changing the label is only needed to change the program, the products concept that the equipment is used for users and considered for users is embodied in everywhere.
2. Details of each equipment:
Characteristics:
1. The container is located by the plate of up pressure and down holding, the container can be accurately positioned in various locations.

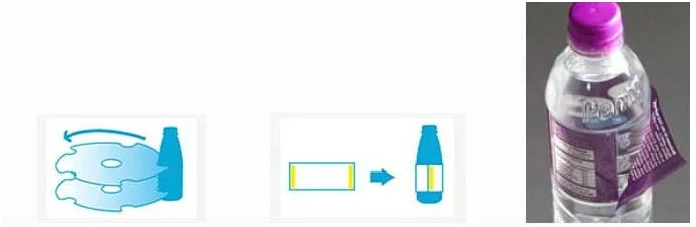

2. Roller gluing, it is glued on the head and tail of the label which decrease the dosage of the glue and makes the glue marks in equality and nice appearance.
3. It is simple and quick to change configuration component different containers and labels.
4. The label station is one for usage one for storage.
5. Exposed surface is used anti-acid/alkali stainless steel wrapped, the unstainless steel material has been strictly dealt with. For example using oxidation, spraying plastic and painting technique, avoiding the pollution of corrosive, easy to clean and maintain.
6.The equipment operation panel of is adopted the LCD touching screen man-machine conversaton. The operation can know the equipments' all kinds of operation parameter at any time, such as speed, production capacity and the temperature of gluewater.
7. It is adopted automatic helicoid conveying bottle device which has large operation space. The container can complete the adjustment of multi gesture at one time. The device of adjusting brush plate is very simple.
8. Focused oil supplying system which is easy to observe and operate.
Equipment operation principle

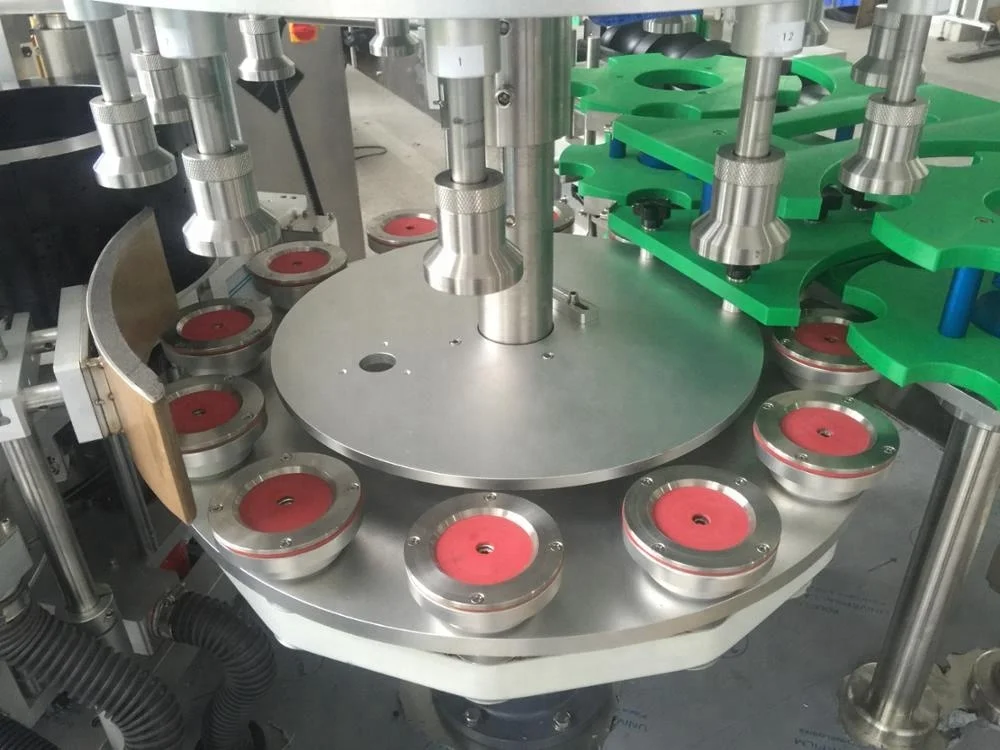

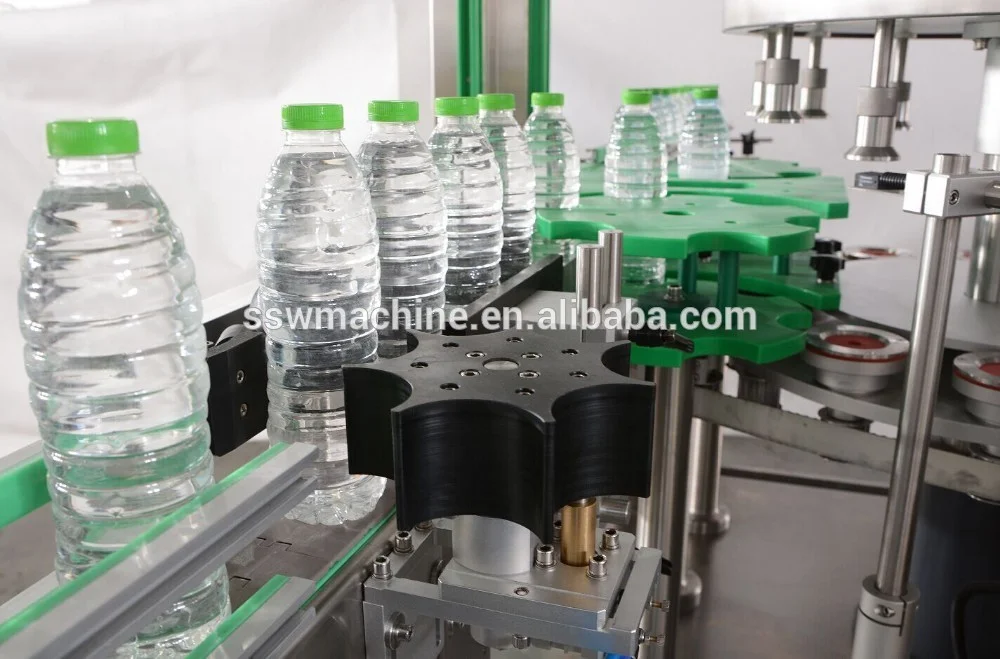

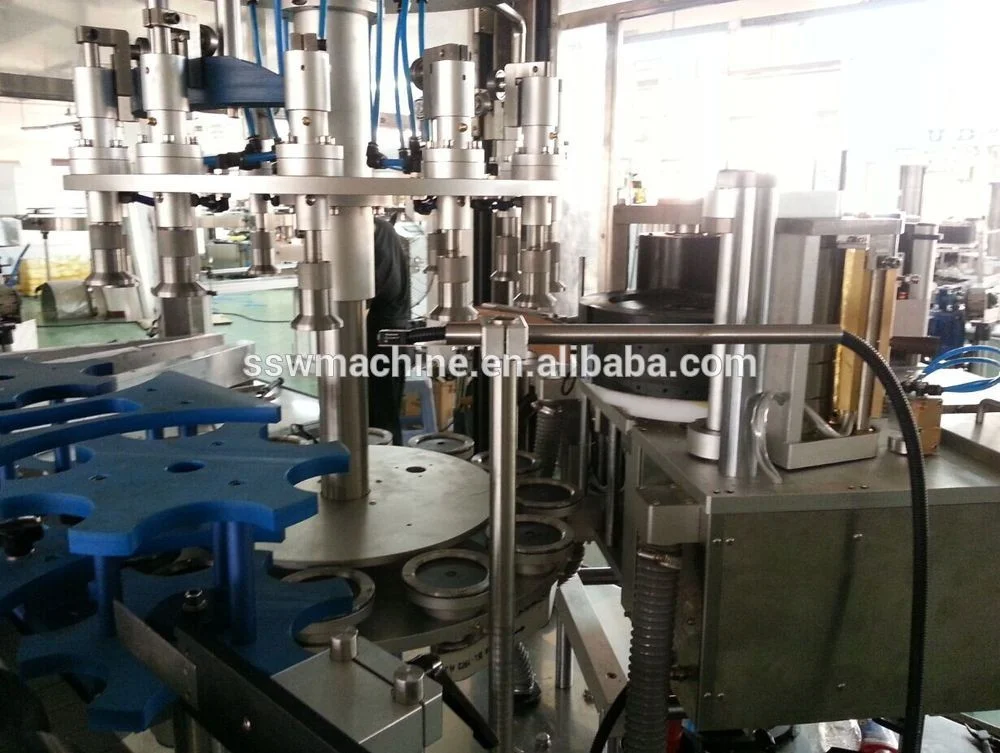

This equipment adopts transporting device of fully automatic helicoid. The containers come to the machine entry by bottle conveyer chain; then come to bottle entry star wheel by separating screw distance. The containers clamped by the star wheel come to the cross of the circled plate, the device of up-pressing bottle and down-holding bottle matches the fixed container, moving on the helicoid plate to complete the labeling process. Then passing from the bottle exit star wheel, complete the whole process of container transportation.
Hot melt glue is conveyed to the glue roller by glue pump in the glue box, the glue will be scraped into a certain thickness film by glue scraper. When the label passing, the glue will attached on it.

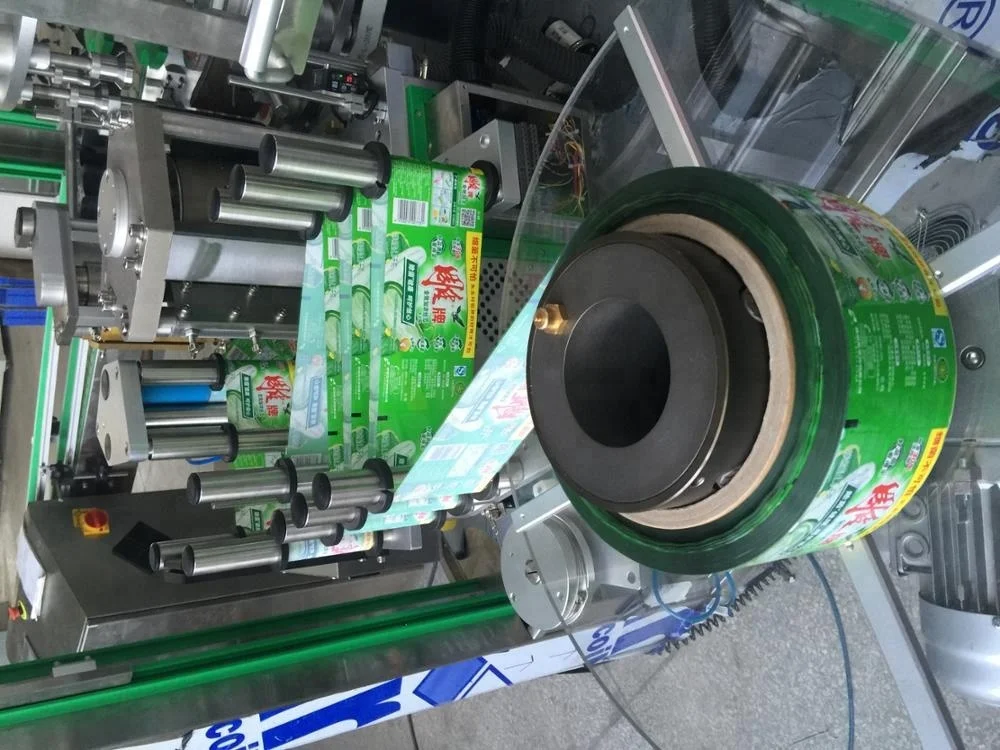

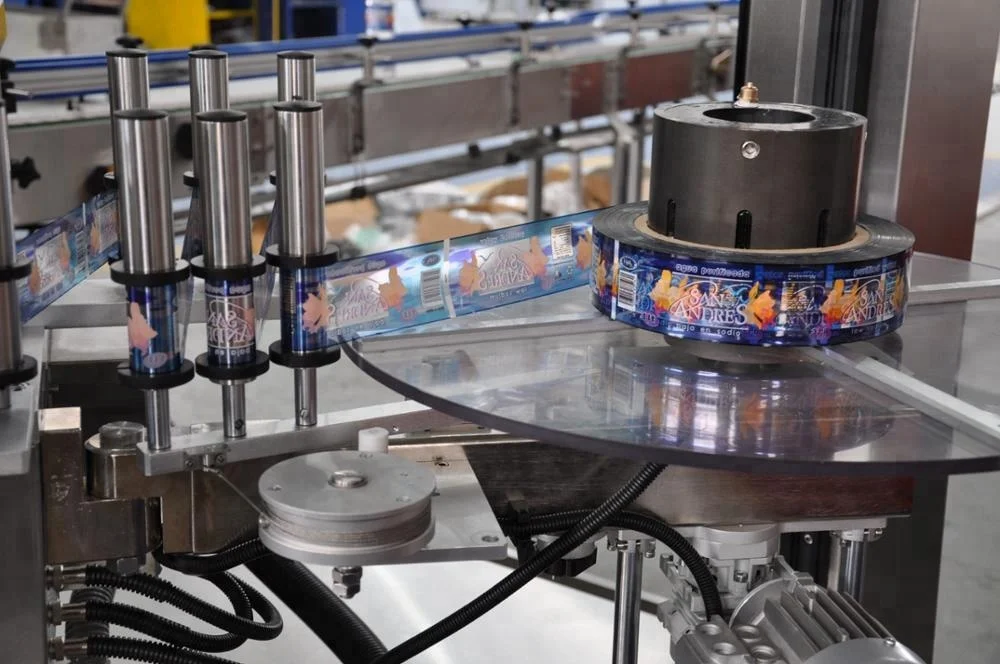

The label will be transported to the label cutting roller from the label plate under the servo motor device.
3. Technology Parameter :
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
