RZ EC770 Coating Thickness Gauge F/N Probe Measure Range from 0 to 1300um
- Category: >>>
- Supplier: Shenzhen XRC Electronics Co. Ltd.
Share on (60787527386):
Product Overview
Description
Product Description
Introduction:
This compact gauge can be used for non-destructive coating thickness measurement of non-magnetic coatings, e.g. paint, enamel, chrome on steel, and insulating coatings, e.g. paint and anodizing coatings on non-ferrous metals.
Feature:
1. 128*128 dot matrix LCD display, standard menu operations;
2. Two measure mode: single and continuous;
3. Two group mode: direct (DIR) and general(GEN), readings will be lost when power off in direct mode, and not be lost in general mode. 80 readings can be stored for each group;
4. Zero point calibration and multi-point calibration(up to 4 points) for each group;
5. User can recall, delete specified readings, or delete group readings;
6. Statistics display: mean, minimum, maximum and standard deviation;
7. Three probe mode: auto, magnetic and eddy current;
8. User can set high or low limit alarm for each group;
9. Power off automatically;

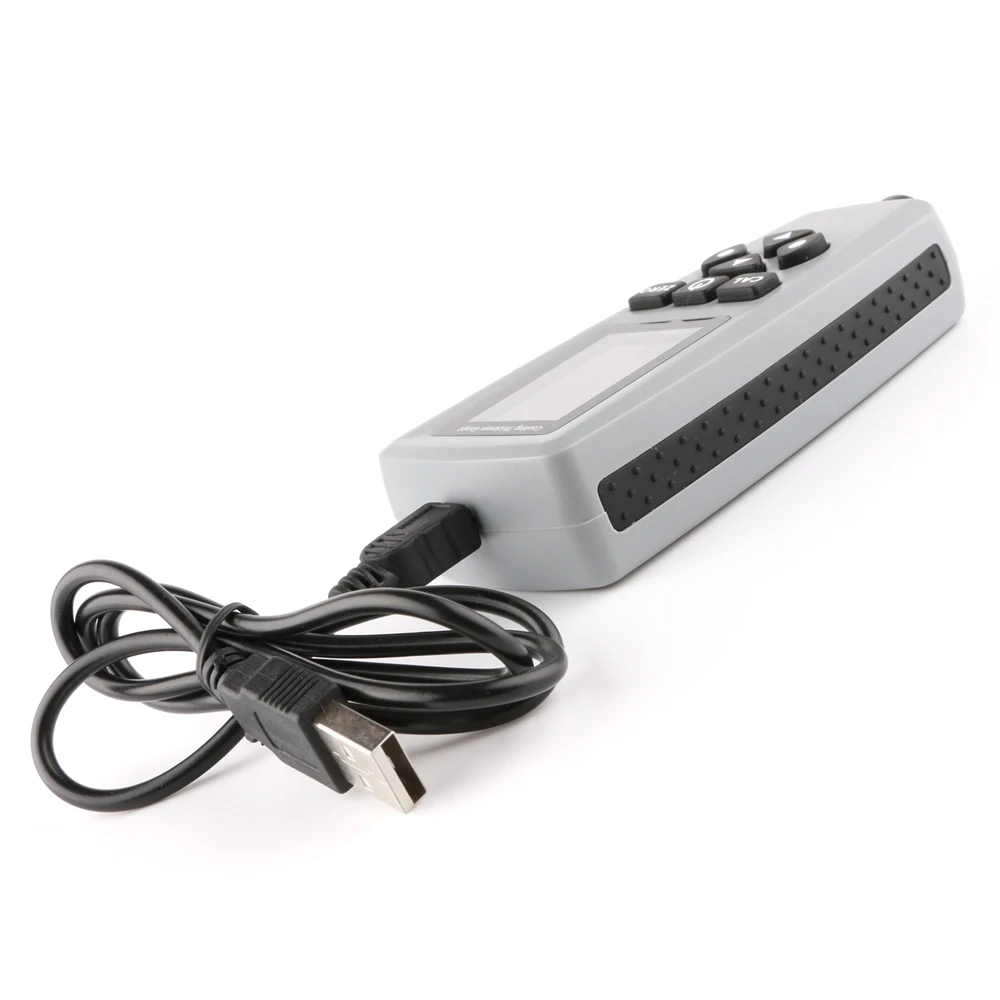

10. USB interface to data transmission;
11. Low battery and error indication;
Specification:
1. Measuring principle: Magnetic induction (F-probe) and eddy current (N-probe);
2. Measuring range: 0 to 1300um (0 to 51.2mils);
3. Accuracy: ± (3% of readings+2um);
± (3% of readings+0.078mils);
4. Resolution: 0um~999um (1um), 1000um~1300um (0.01mm);
0mils~39.39mils (0.01mils), 39.4mils~51.2mils (0.1mils);
5. Calibration: One to four point calibration, zero calibration;
6. Data Group: One direct group (readings not be stored to memory), four general group (readings can be stored), and each group have individual statistics, alarm settings and calibration;
7. Statistics: No. of readings, mean, minimum, maximum and standard deviation;
8. Units: um, mm and mils;
9. Alarm: User can set the high/low alarm, and alarm icon displayed on LCD when over the limit;
10. Minimum curvature radius: convex 1.5mm(59mils) and concave 25mm(984mils);
11. Minimum measuring size: Diameter 6mm(236mils);
12. Minimum thickness of substrate: F-probe: 0.5mm(0.02"), N-probe: 0.3mm(0.012");
13.Computer interface: Download data via USB interface;

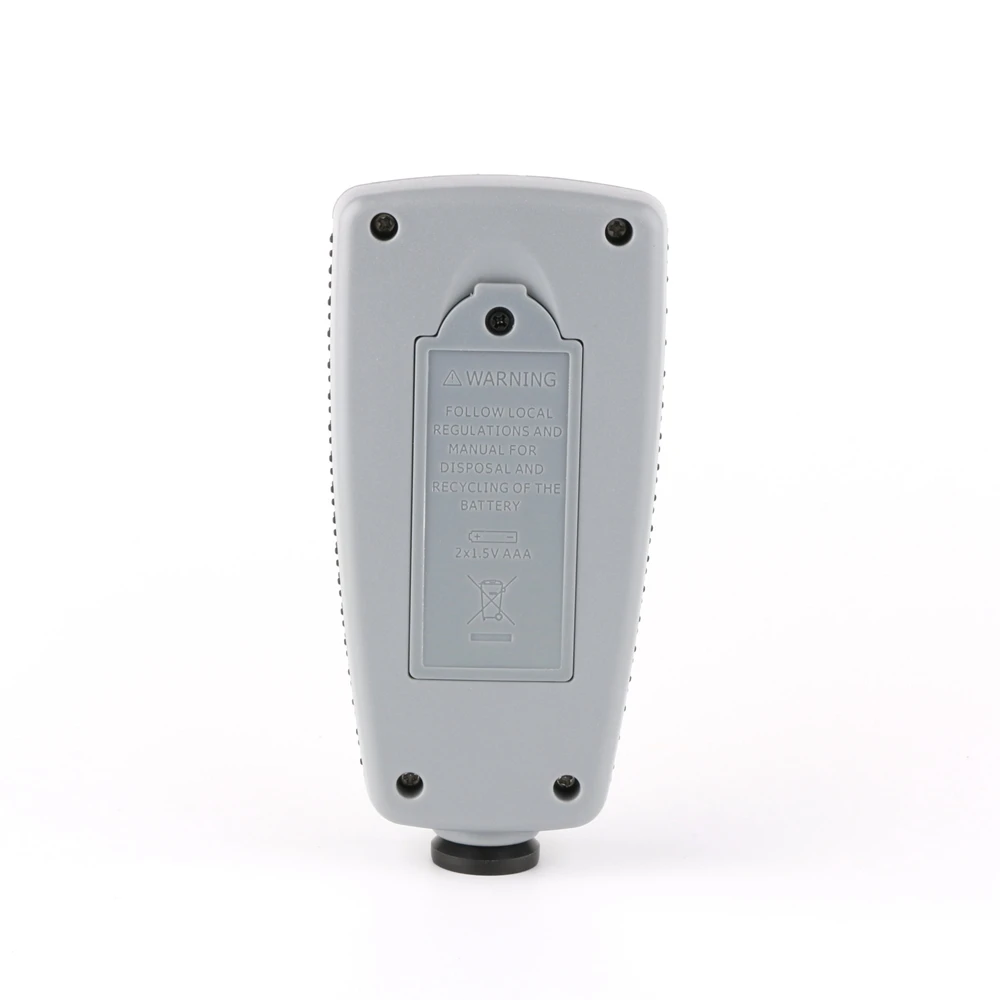

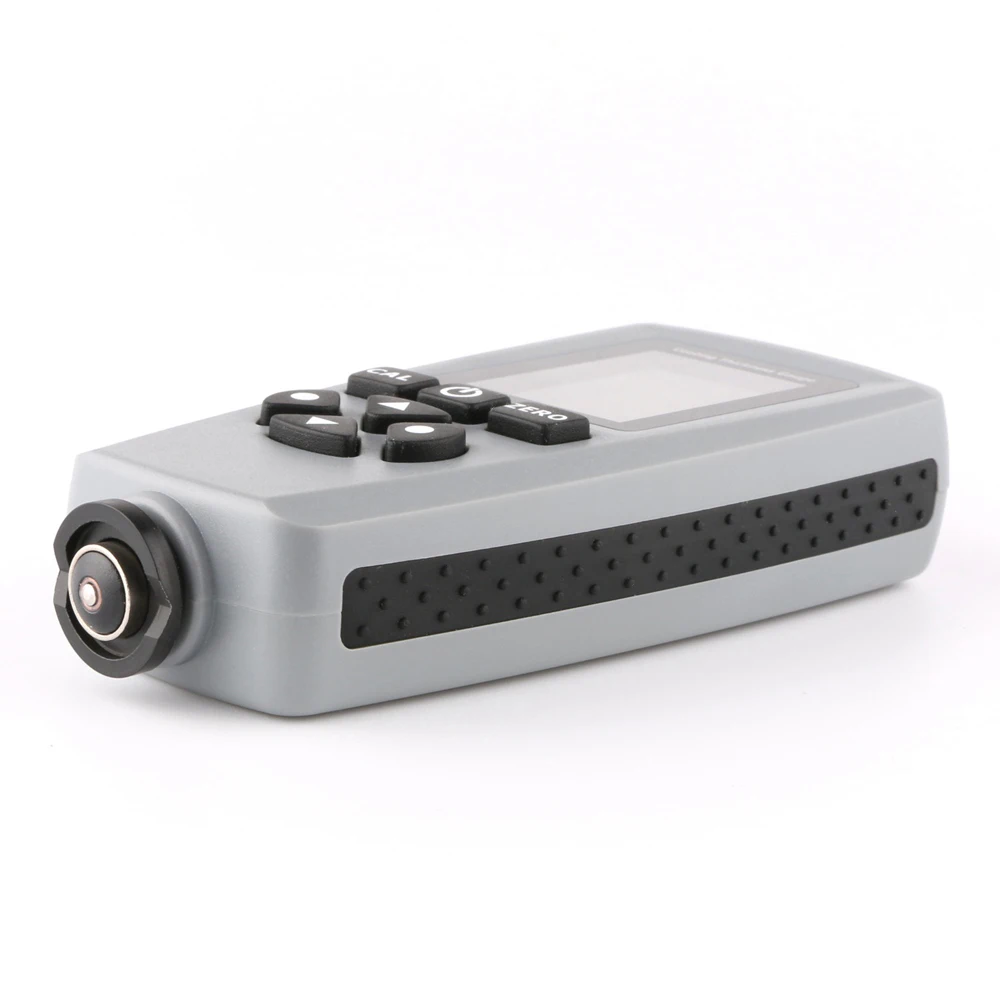

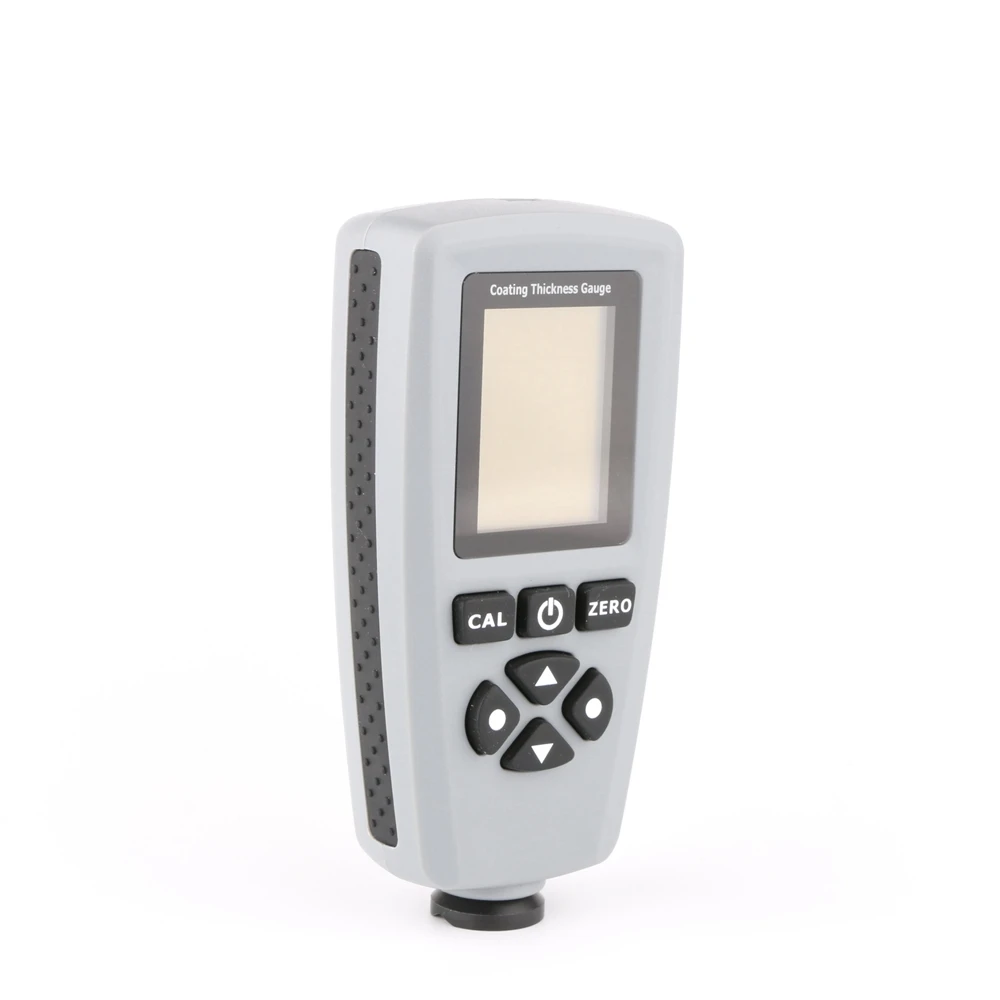

Detail Images

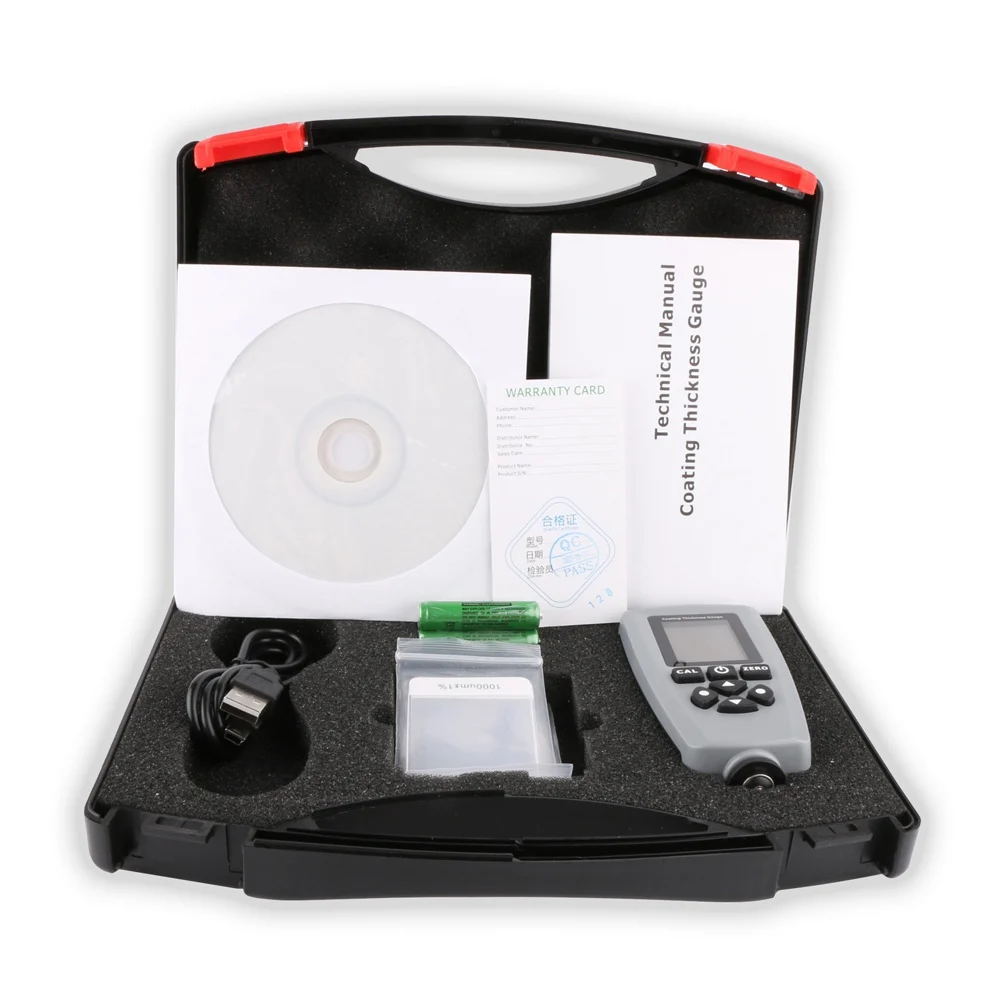

Packaging & Shipping
1 * Coating Thickness Gauge
2 * Pcs of Substrate Material
1 * Bag of Calibration Film
1 * USB Cable
1 * CD
1 * User Manual
Packaging Details:
Unit Type: piece
Package Weight: 0.5kg (1.10lb.)
Package Size: 16cm x 14cm x 4cm (6.30in x 5.51in x 1.57in)
