Australia structural walling system C channel metal stud with big holes and with reinforce rib

Product Overview

Description

Australia structural walling system C channel metal stud with big holes and with reinforce rib

Material: Galvanized or Aluminized zinc

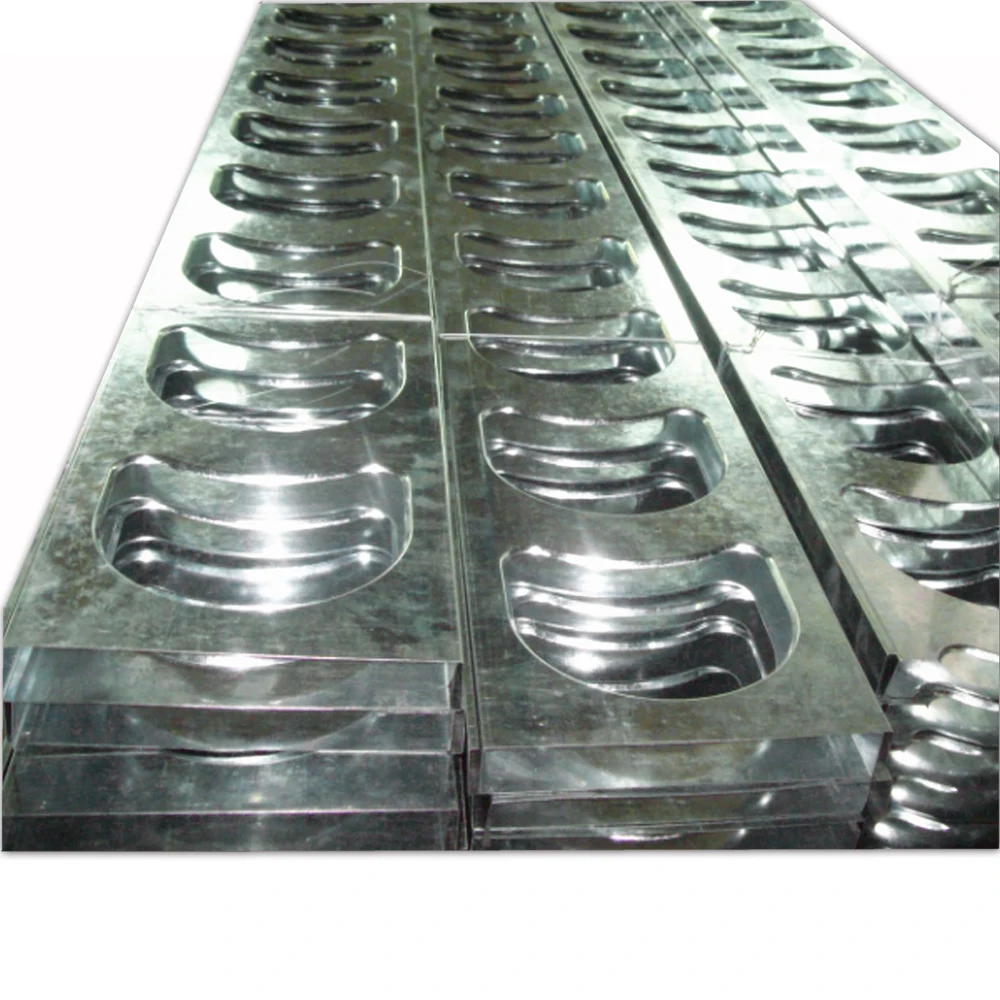

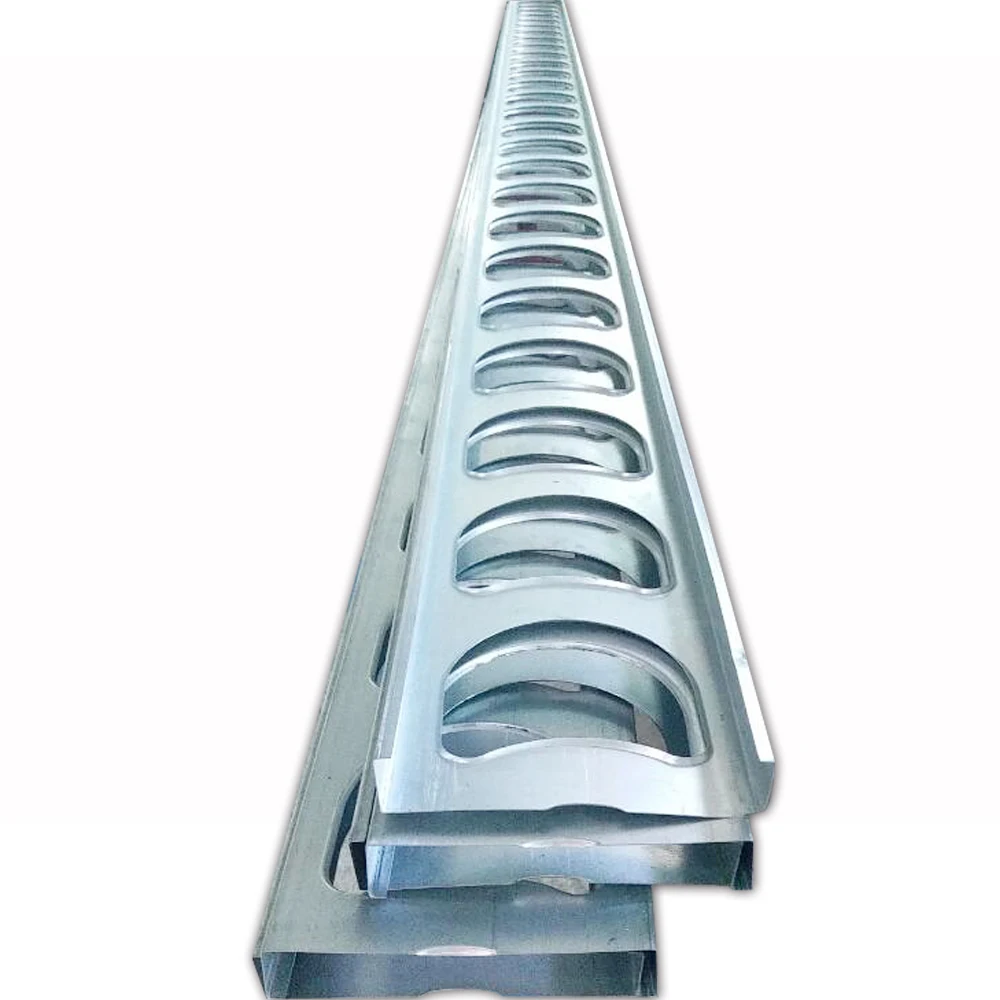

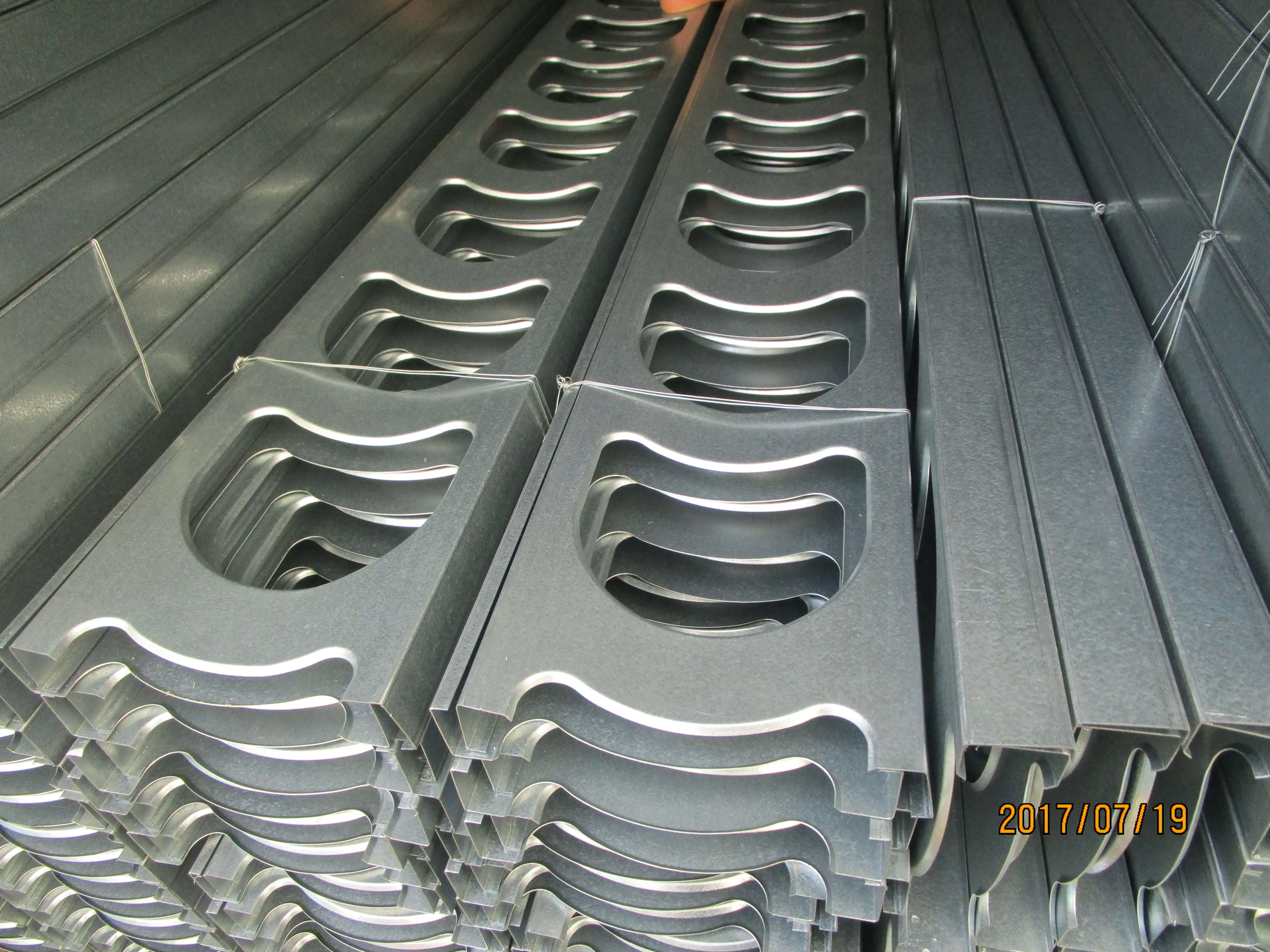

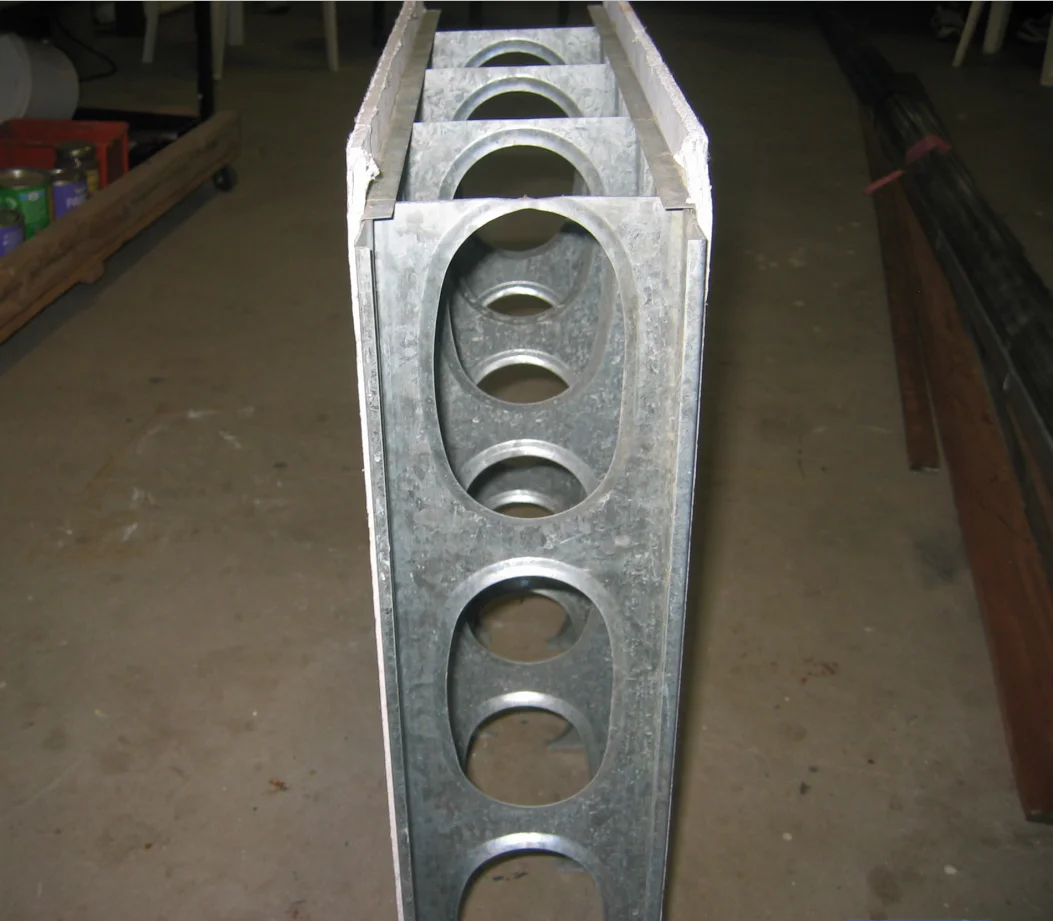

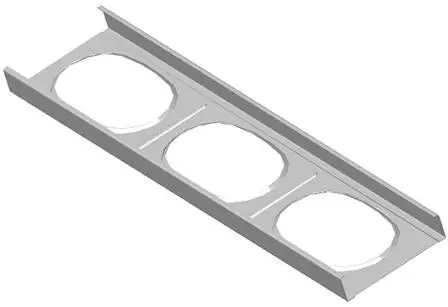

Photo of big holes stud:

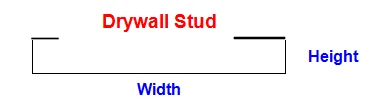

Standard size:



Width(mm)	Height (mm)
120, 150, 200, 250mm	35, 45, 50mm

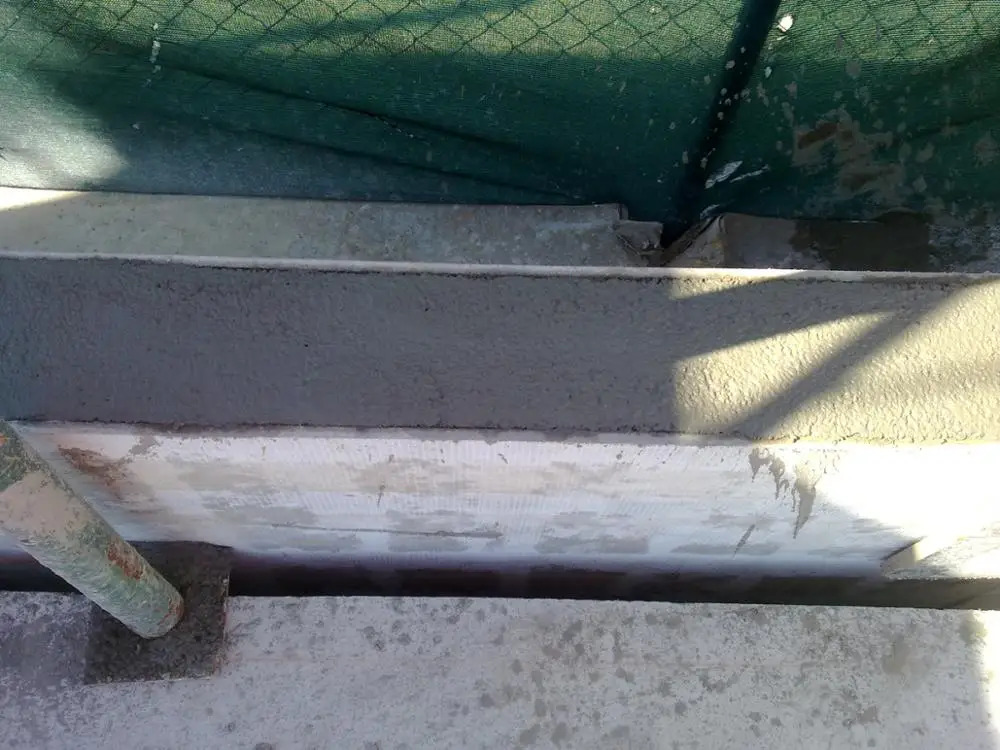

Photo of big holes stud assembled with board:



Feature and advantage of this wall system:

1) Speed of construction

2) Shop-drawn modular system

3) Superior structural capacity

4) Complles with BCA fire and acoustic performance requirements

5) Optimum efficiency in materials handling, not crane dependent

6) Durable, quality wall finish



Applicaiton:

1) Lift and stair cores

2) Sheer walls

3) Boundary walls

4) Blade walls

5) Transfer walls

6) Core walls

7) Retaining walls

8) Columns

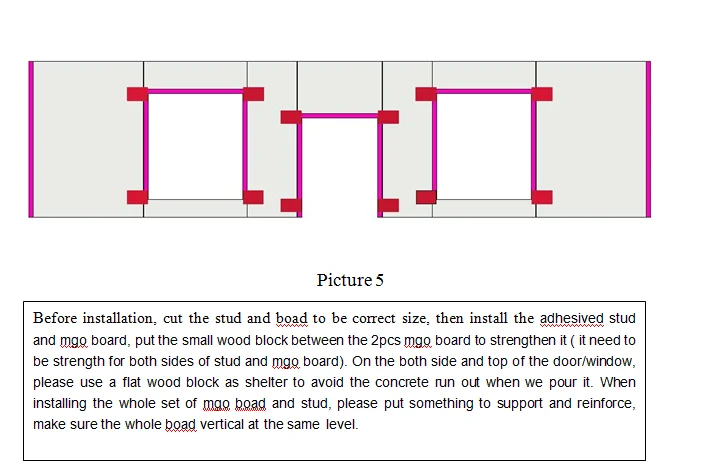

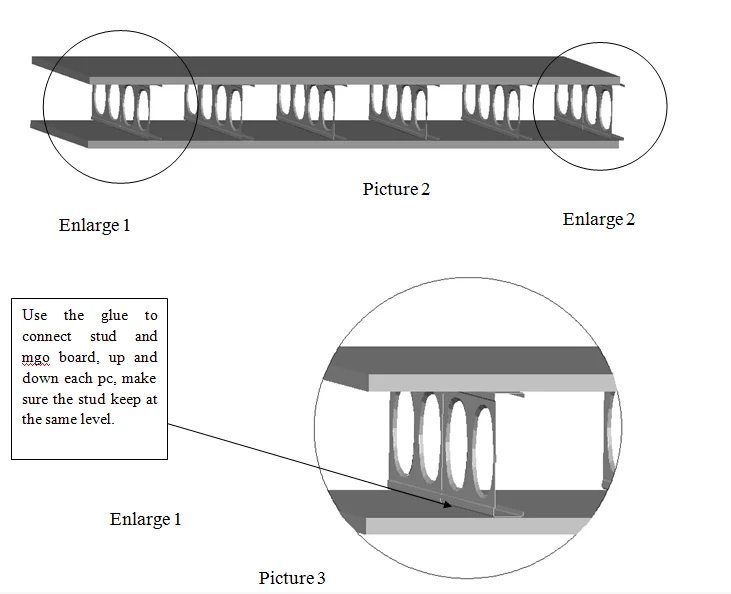

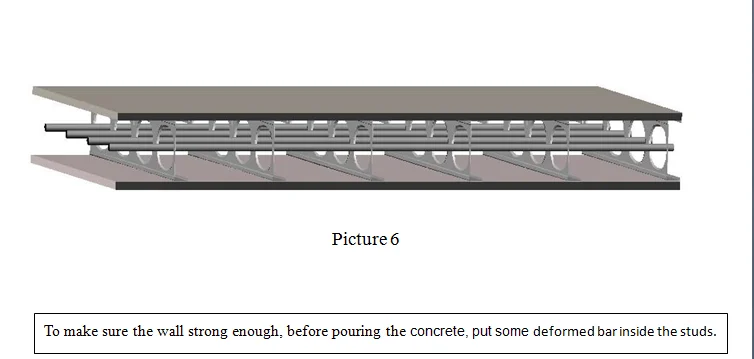

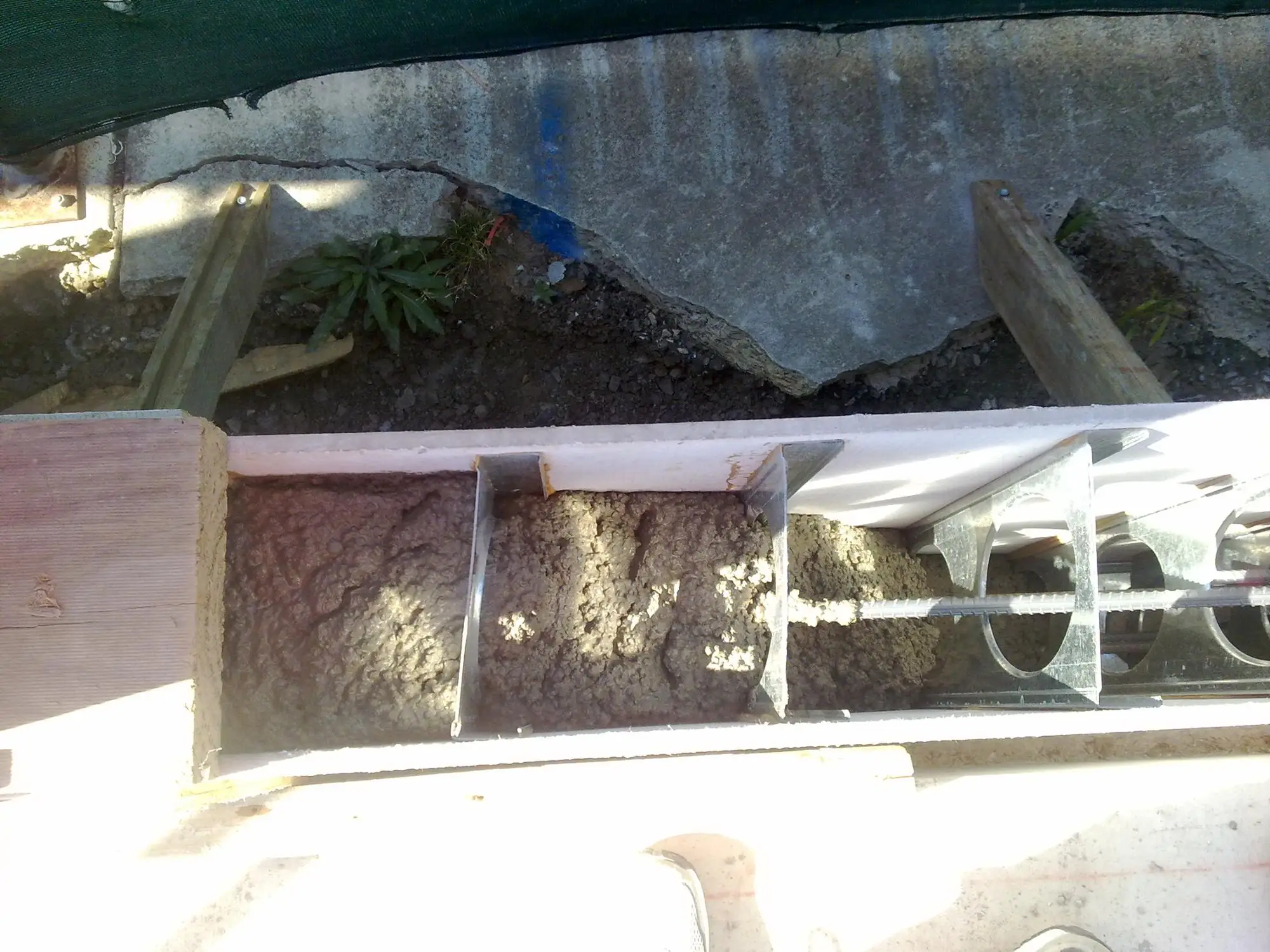

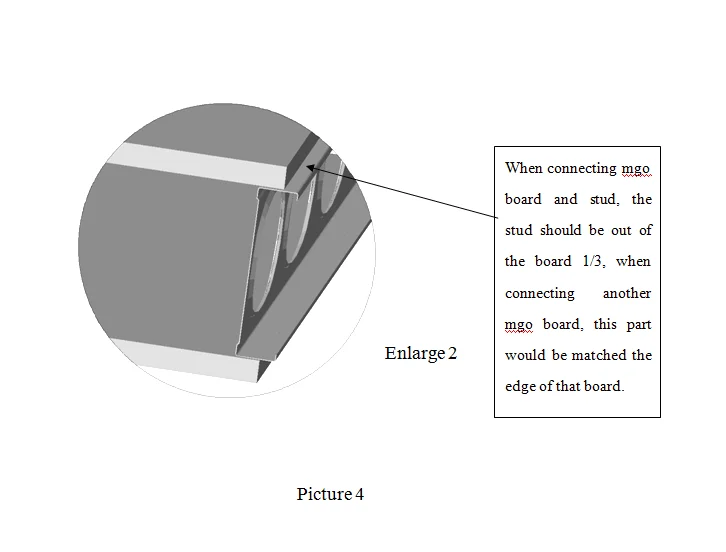

Intallation:

                                  picture 1

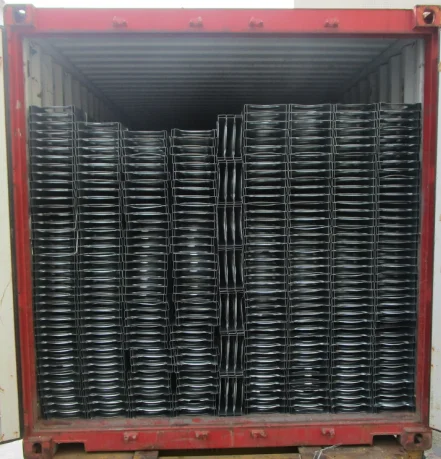

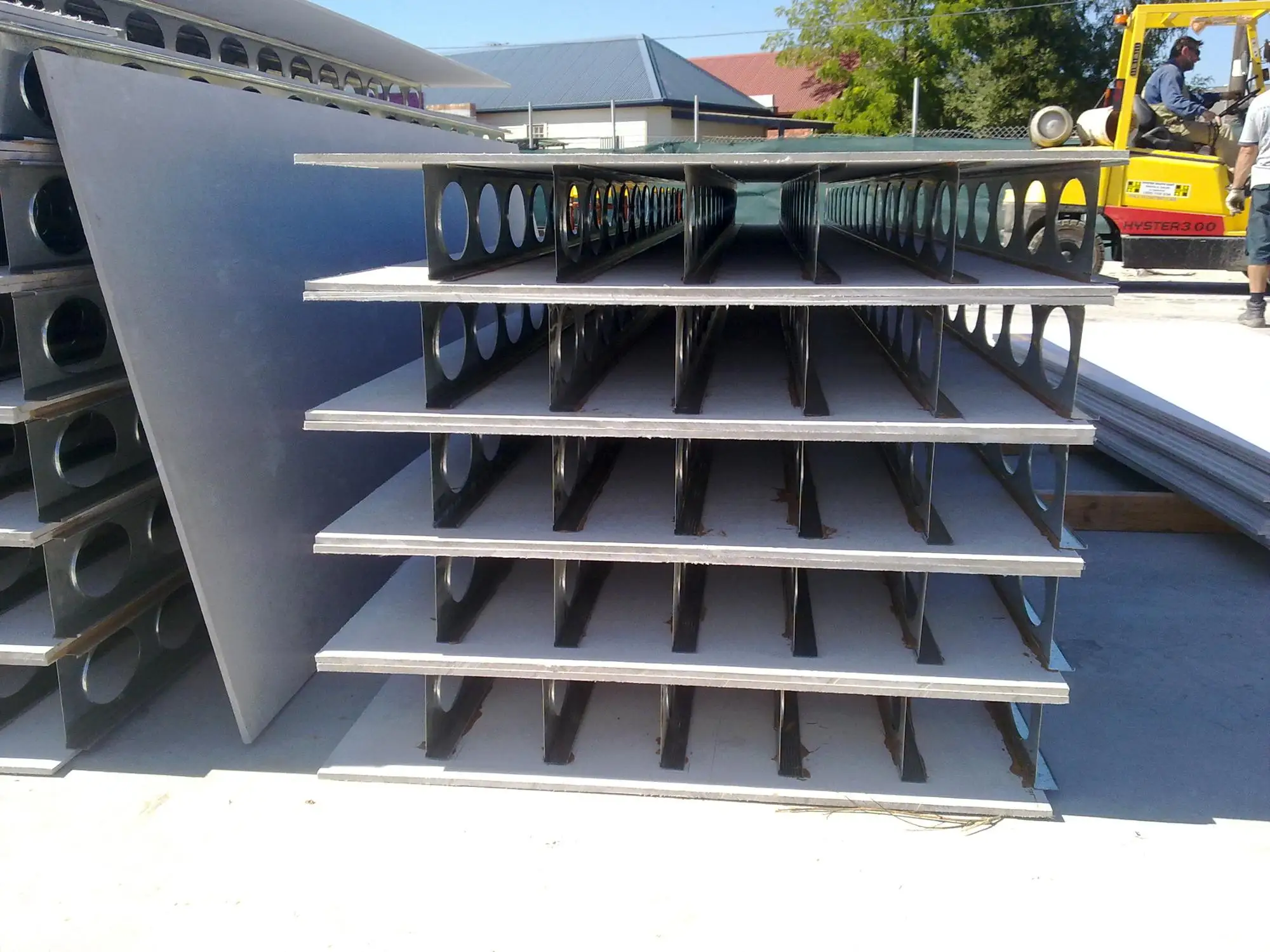

 Loading picture:





Need it, just contact me:
