Product Overview
Description
Products Description

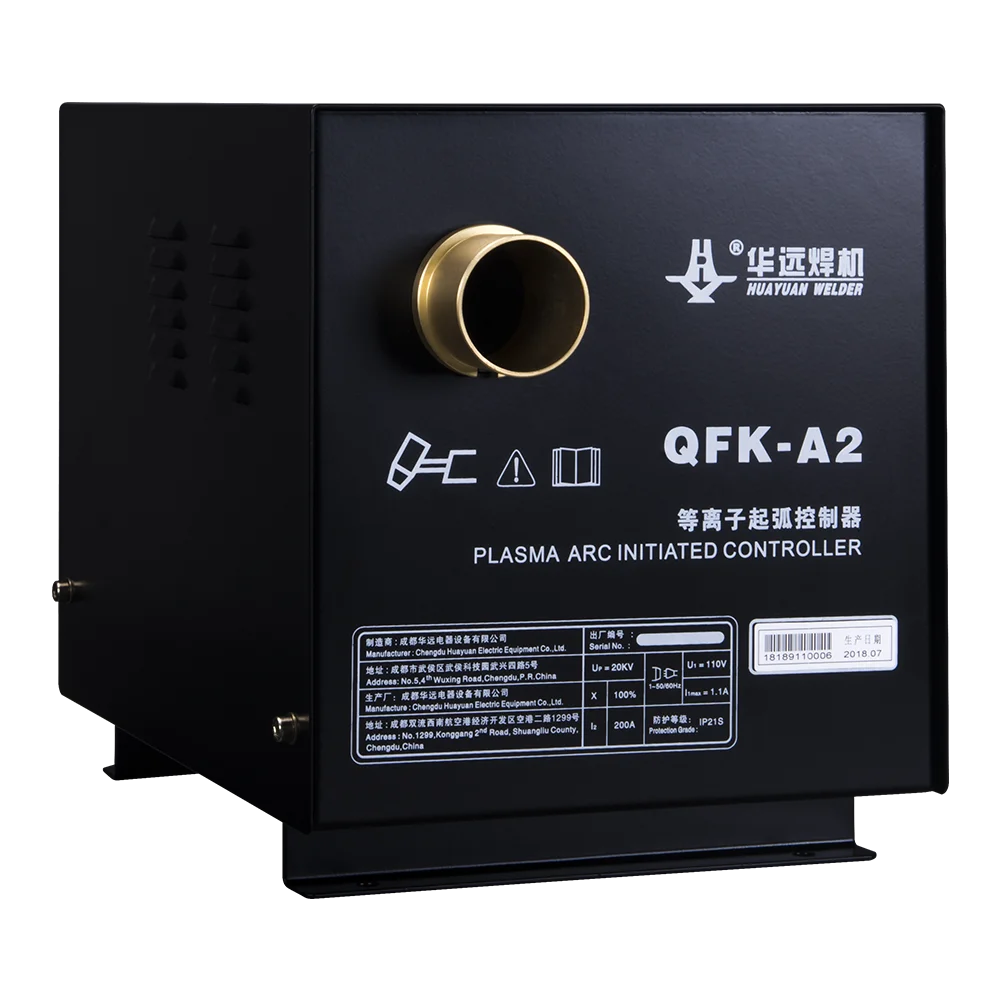

Special design for CNC cutting machine,with small volume,light weight;High tech HF control technology which is separate from the power source to reduce the HF interference;
Gas control separate from the power source, shorter gas circuit,more stable gas pressure with good cutting quality;
100% duty cycle for heavy industry;

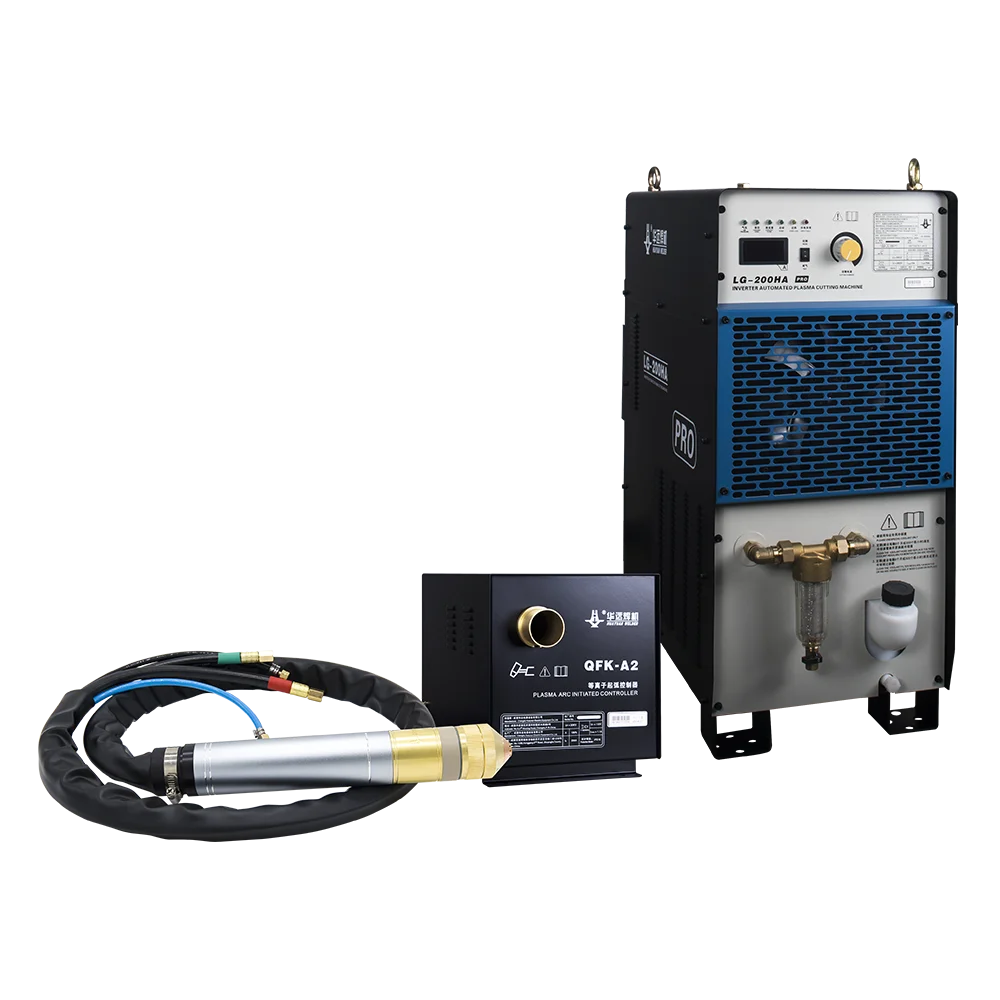

LG-200HA Pro with torch cooling system inside,which is with high-lift pump and high power radiator to reduce the loss of wearing parts.
Gas control separate from the power source, shorter gas circuit,more stable gas pressure with good cutting quality;
100% duty cycle for heavy industry;
LG-200HA Pro with torch cooling system inside,which is with high-lift pump and high power radiator to reduce the loss of wearing parts.

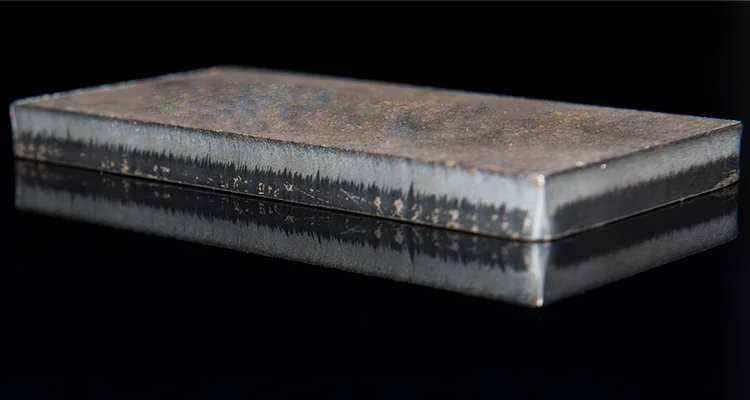

Cutting Sample

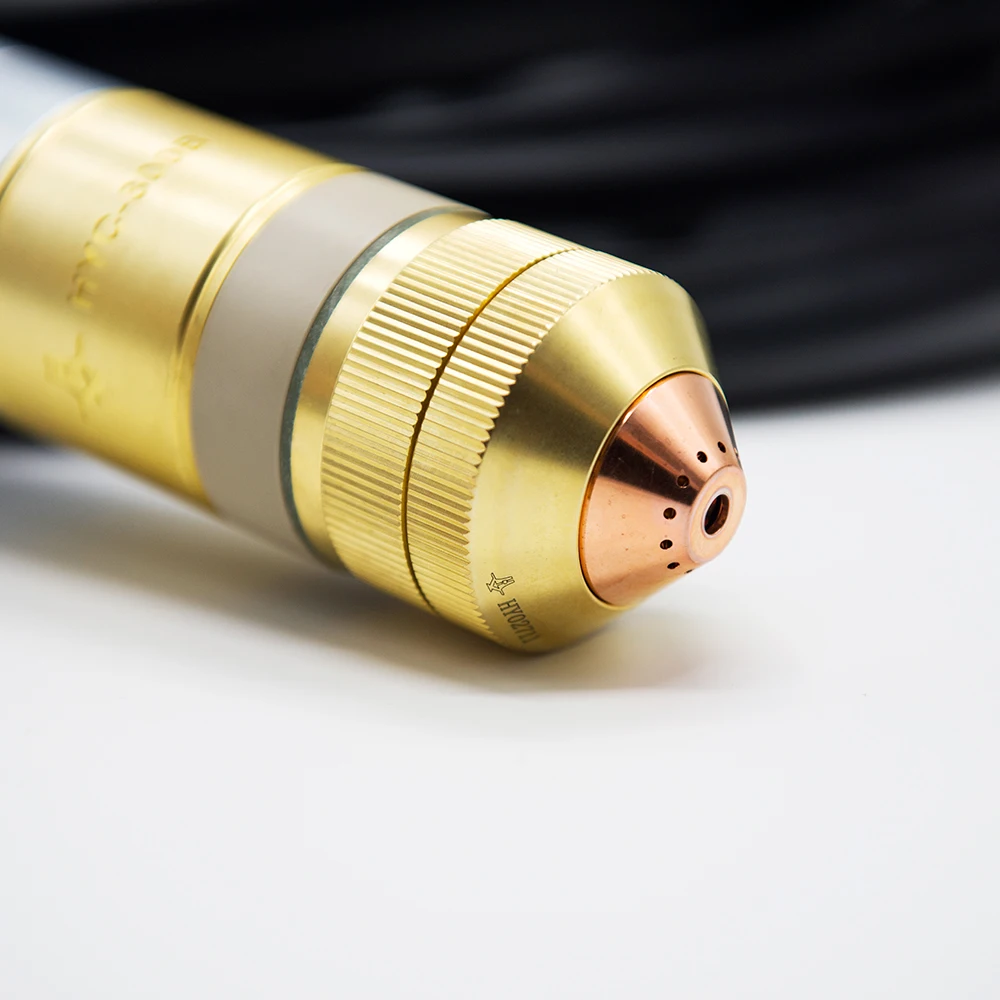

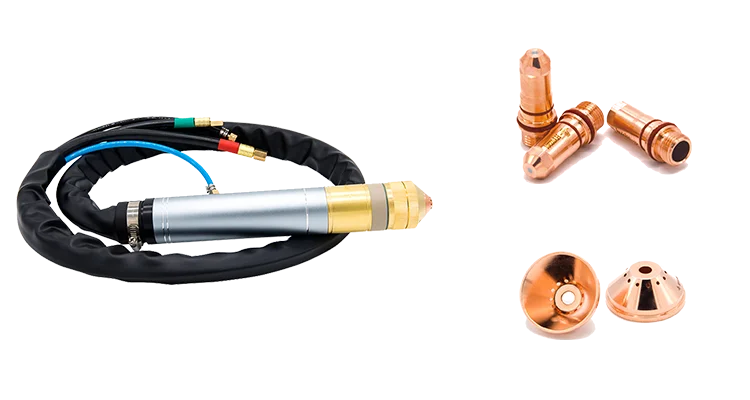

With Huayuan Torch HYC-300B1, get the good cutting quality, vertical cutting.
How to improve cutting Quality
If you want to Improve the cutting quality,and get the cutting quality as above,need to do as follows to improve.
1- Choose goodplasma power source(Huayuan) 2-Choose high quality torch and original consumables
3- Quality and intellegent liquid filter cooler 4- Install the torch correctly
5-Set a proper cutting current 6-Choose proper plasma gas and shileding gas
7-Make the torch vertical with workpiece 8-Conform the cutting direction
9-Set the initial arc striking distance 10-Adjust the cutting speed
3- Quality and intellegent liquid filter cooler 4- Install the torch correctly
5-Set a proper cutting current 6-Choose proper plasma gas and shileding gas
7-Make the torch vertical with workpiece 8-Conform the cutting direction
9-Set the initial arc striking distance 10-Adjust the cutting speed
Specification
Item | Unit | Models | ||
LG-125HA | LG-200HA Pro | |||
Input Power | V/Hz | 3～380±15％ 50/60 | ||
Rated Input Capacity | KVA | 21.7 | 52.3 | |
Rated Input Current | A | 33 | 78 | |
Rated Output Current/Voltage | A/V | 125/130 | 200/200 | |
Rated Opend Circuit Voltage | V | 310 | 360 | |
Rated Duty Cycle | - | 100%（40℃） | ||
Efficiency | - | 90% | 92% | |
Power Factor | - | 0.82 | 0.83 | |
Output Current Adjust Range | A | 30-125 | 40-200 | |
Arc Voltage Output Ratio | - | 1:1 | ||
Arc Strike Mode | - | Non-contact | ||
Plasma Gas | - | Air | Air/N2/O2 | |
Shielding Gas | - | - | Air/N2 | |
Air Pressure | Mpa | 0.4～0.6 | ||
Quality Cut Thickness(Carbon Steel) | mm | 25（580mm/min） | 32（500mm/min） | |
Insulation Grade | - | F | ||
Power Source Cooling Mode | - | Air cooling | ||
Ingress Protection | - | IP21S | ||
Dimension(LxWxH) | mm | 670*320*600 | 875*410*935 | |
Arc Ignition Controller Net Weight | Kg | 4.5 | 7.8 | |
Power Source Net Weight | Kg | 49 | 116 | |
