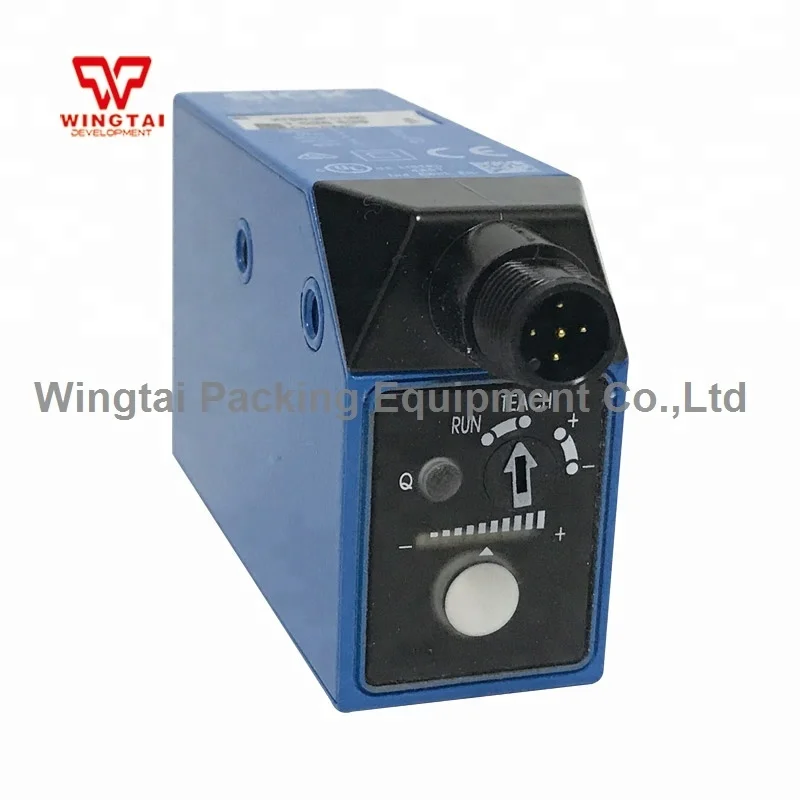

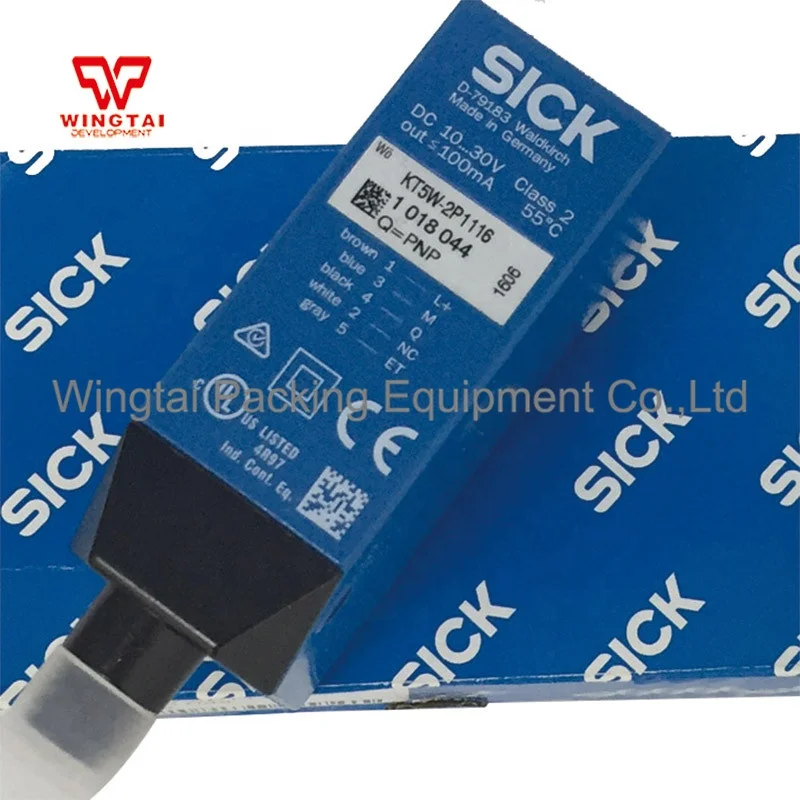

SICK KT5W 2P1116D color sensor/light sensor switch

Dimensions (width x height x depth)

30.4 mm x 53 mm x 80 mm

Sensing distance

10 mm 1)

Induction distance tolerance

± 3 mm

Shell shape (beam exit)

Square

light source

LED, RGB 2)

Axis length

470 nm, 525 nm, 640 nm

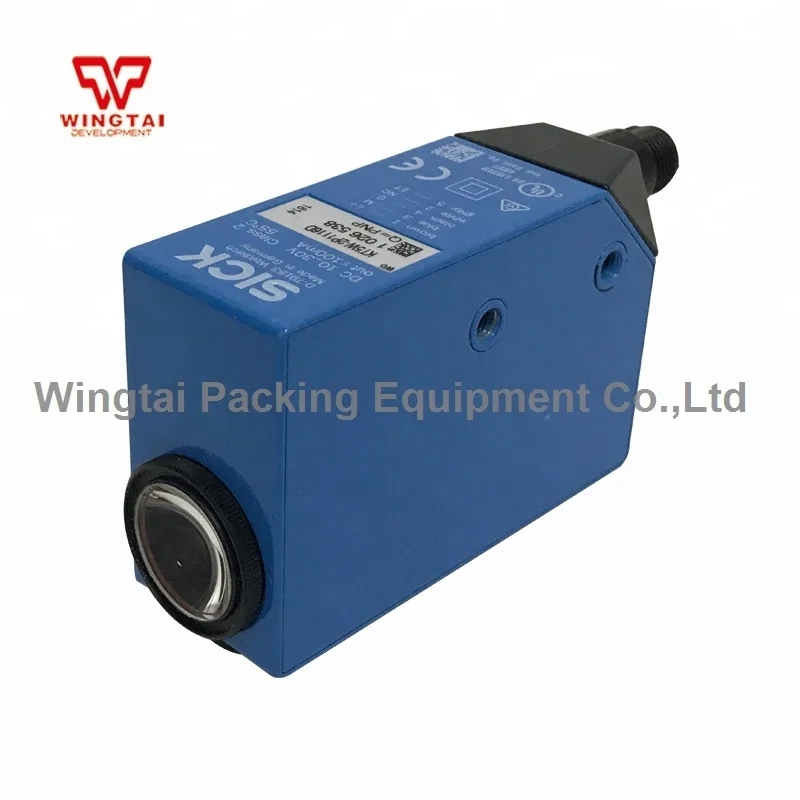

Light exit

Long and short equipment face, replaceable

Spot size

1.2 mm x 4.2 mm

Spot position

Length direction 3)

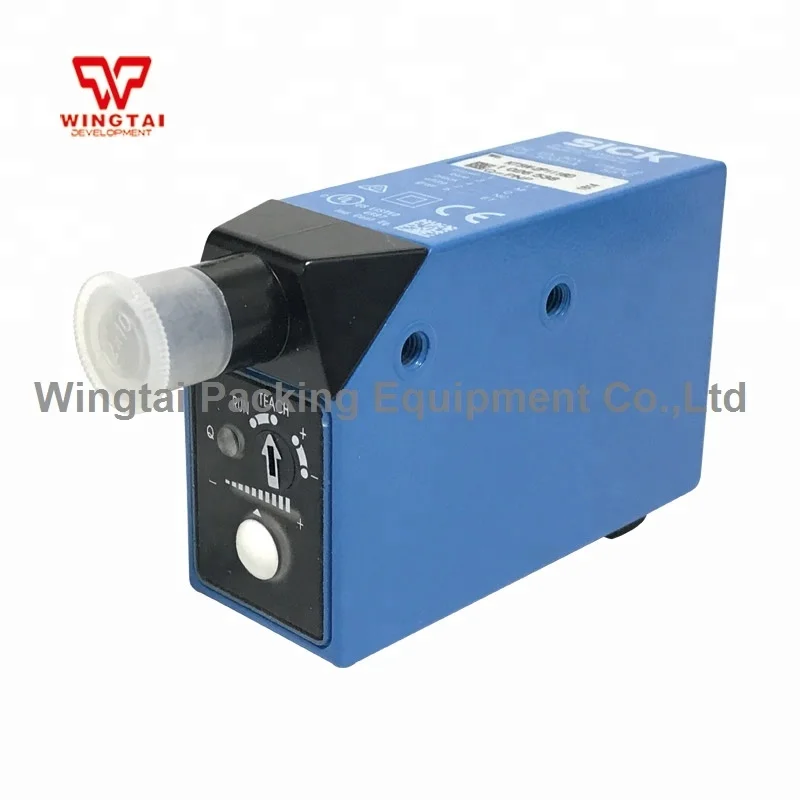

Setting

Teaching button

Teaching function program

2-point teaching function permanently connected with manual fine-tuning

Supply voltage

10 V DC ... 30 V DC 1)

Residual ripple

≤ 5 Vss 2)

Current consumption

< 130 mA 3)

On-off level

10 kHz 4)

Response time

50 µs 5)

Switch output

PNP

Switching output (voltage)

PNP:High level = UV - ≤ 2 V / low level = about 0V

Output current Imax.

100 mA 6)

Teaching function input (ET)

PNP

Teach: U = 10 V ... < UV

Run: U < 2 V

Storage time (ET)

25 ms,Non-volatile storage

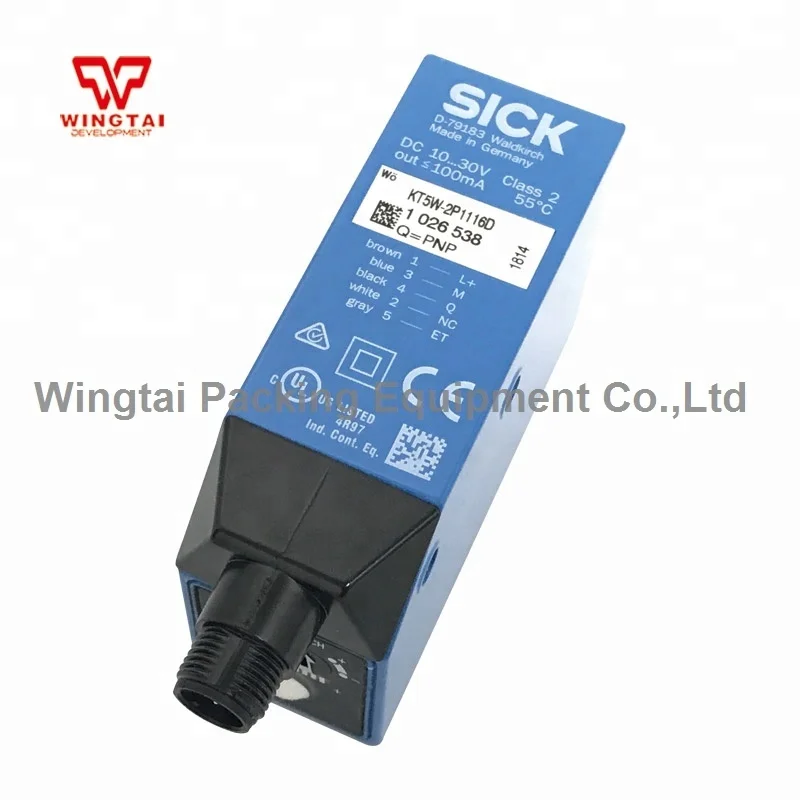

Connection Type

M12 male plug, 5 pins

Protection level

II 7)

protect the circuit

UV interface,With reverse polarity protection

Output Q with short circuit protection

Suppression of interference pulses

Enclosure rating

IP67

Weight

400g

Housing material

Die-cast zinc

Operating ambient temperature

–10 °C ... +55 °C

Storage ambient temperature

–25 °C ... +75 °C

Impact load

According to the IEC 60068 standard

UL File No

NRKH.E181493 & NRKH7.E181493
