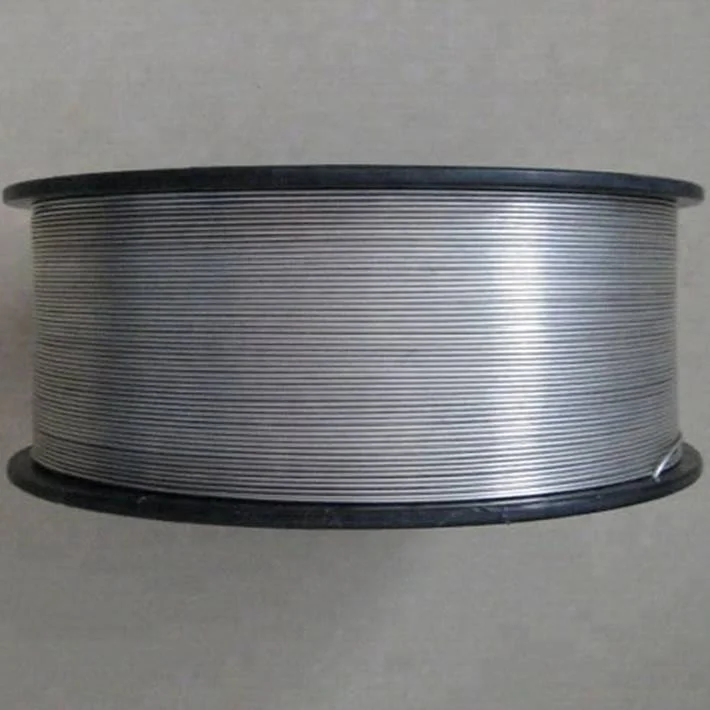

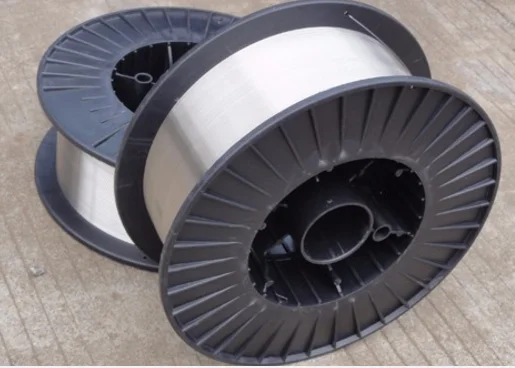

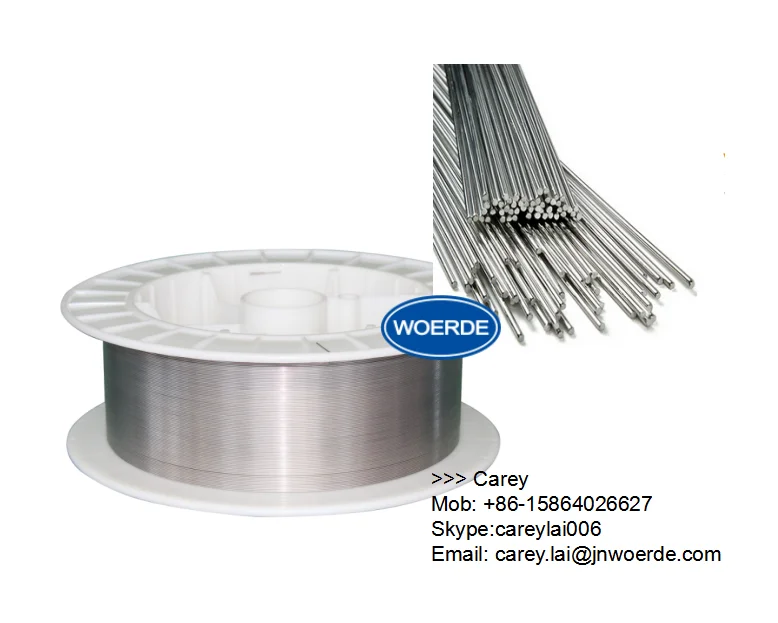

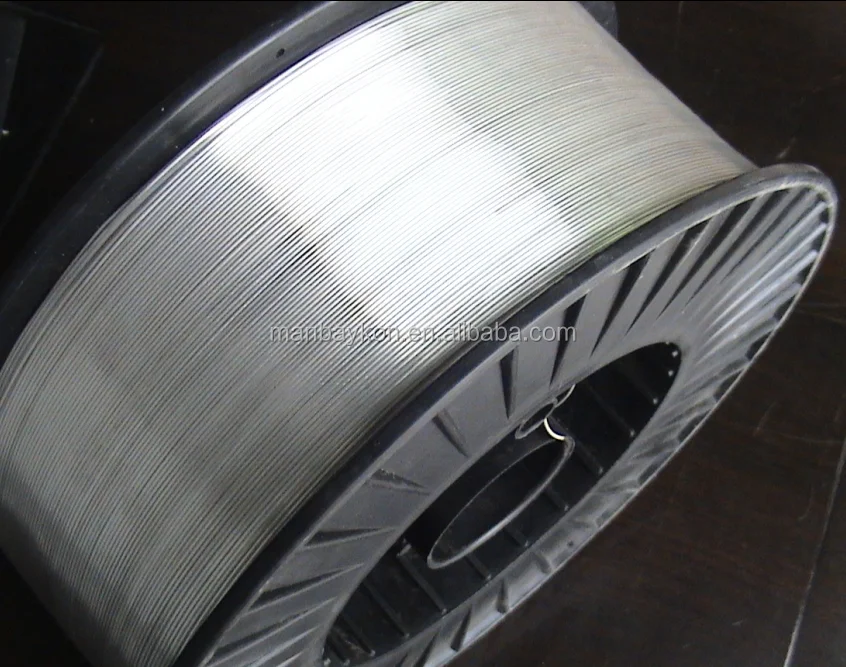

MIG TIG Inconel Alloy Welding Wire Alloy 625 Ernicrmo 3 ( NiCrMo 3)
- Category: >>>
- Supplier: Shandong Manbaykon Import& Export Co. Ltd.
Share on (60787656716):
Product Overview
Description
Product Description
Weling series:
ERNiCrMo-3,ERNiCrMo-4,ERNiCrMo-13,ERNiCrFe-3,ERNiCrFe-7,ERNiCr-3,ERNiCr-7,ERNiCu-7,ERNi-1, ER70S-6.
Specification
Chemical Composition:
| Grade | % | Ni | Cr | Fe | Mo | Nb | Co | C | Mn | Si | S | Cu | Al | Ti |
| Alloy 625 | Min | 50 | 17 | Rest | 2.8 | 4.75 | ||||||||
| Max | 55 | 21 | 3.3 | 5.5 | 10.0 | 0.08 | 0.35 | 0.35 | 0.015 | 0.3 | 0.8 | 1.15 |
Minimum mechanical properties in the room temperature:
| Alloy | Tensile strength Rm N/mm² | Yieldstrength R P0. 2 N/mm² | Elongation(%) | Brinell hardness HB |
| 625 | 760 | 345 | 30 | ≤220 |
ERNiCrMo-3 material is suitable for the welding of nickel based alloys such as Inconel 625 and Incoloy 825, but also for dissimilar welds, e. G. Between stainless and nickel-based alloys and mild steel.
Standard: AWS A5.14 EN18274 ,ASME II, SFA-5.14, ERNiCrMo-3
Size: 0.8MM / 1.0MM / 1.2MM / 1.6MM / 2.4MM / 3.2MM / 3.8MM / 4.0MM / 5.0MM
Form: MIG(15kg/spool), TIG(5kg/box),Strip
Usage: used for welding the INCONEL ALLOY 600/825/25-6MO, and other stainless steel with Mo by the way of gas metal arc welding, tungstun-inert-gas arc welding.
More Products
FeCrAl Alloy: OCr15Al5,1Cr13Al4, 0Cr21Al4, 0Cr21Al6, 0Cr25Al5, 0Cr21Al6Nb,0Cr27Al7Mo2.
NiCr Alloy: Cr20Ni80,Cr30Ni70,Cr20Ni35,Cr20Ni30,Cr15Ni60.
CuNi Alloy: NC003,NC010,NC012,NC015,NC020,NC025,NC030,NC040,NC050,Constantan,6J8/11/12/13/.
Welding wire: ERNiCrMo-3/4/13,ERNiCrFe-3/7,ERNiCr-3/7,ERNiCu-7,ERNi-1, ER70S-6.
Thermocouple alloy: K,J,E,T,N, S,R,B,KX,JX,EX,TX,NX.
Inconel alloy: Inconel 600,601,617,X-750,625,690,718,825.
Incoloy alloy: Incoloy 800,800H,800HT,825,925.
Hastelloy alloy: HC-276,C-22,C-4,HB,B/2/3,X,N.
Monel Alloy: Monel 400,K500.
High-temperature alloy : A-286,Nimonic80A/90,GH131,GH1140,GH36,GH2706,GH2901,GH3625,GH3536,GH4169.
Precision alloy series: 1J33,3J01,3J9,4J29,4J32.4J33,Invar36,4J45.FeNi50.
Thermal spray alloy: Inconel 625,Ni95Al5,Monel400,45CT,HC-276,K500,Cr20Ni80.

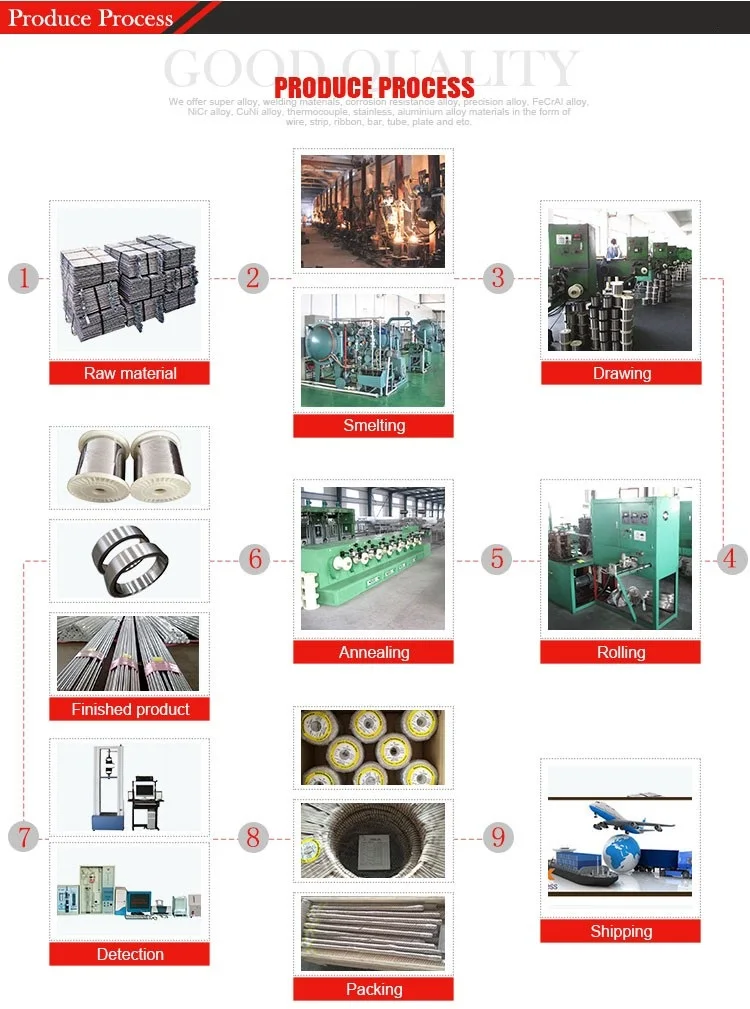

Product Process
Packaging & Shipping
1. TIG ROD: 5KG/tube, 1000kg/pallet --- ERNiCrMo-3
2. MIG WIRE : 15kg/spool, 72cartons per pallet --- ERNiCrMo-3

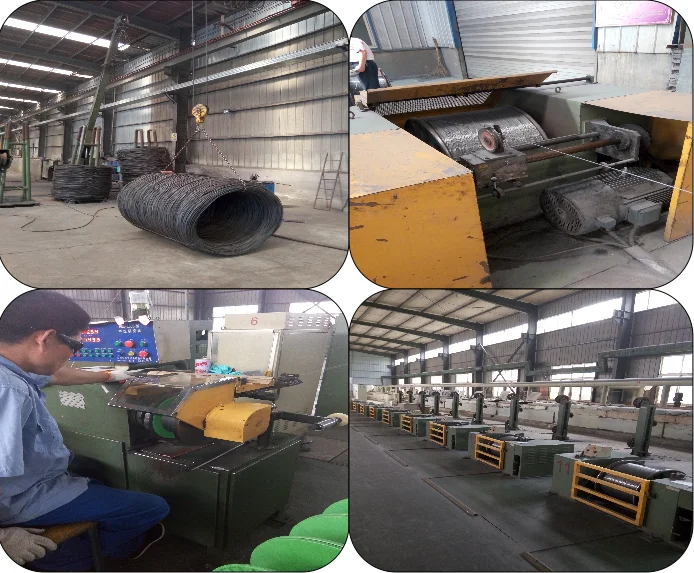

Company Information
