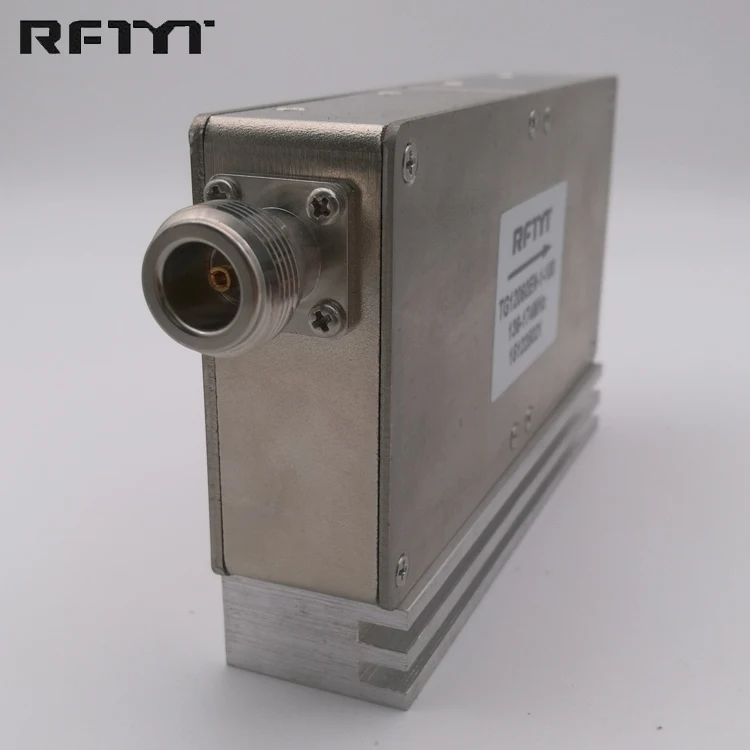

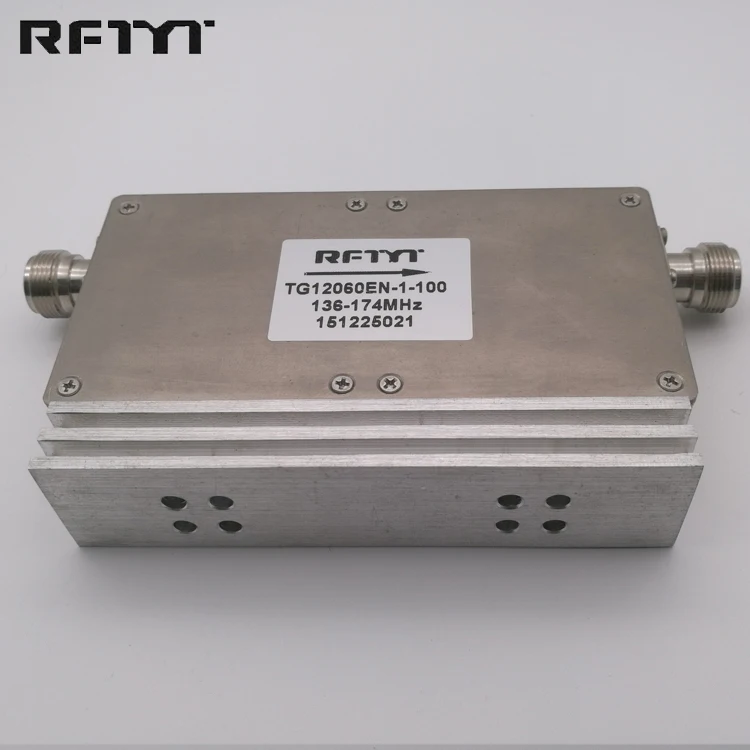

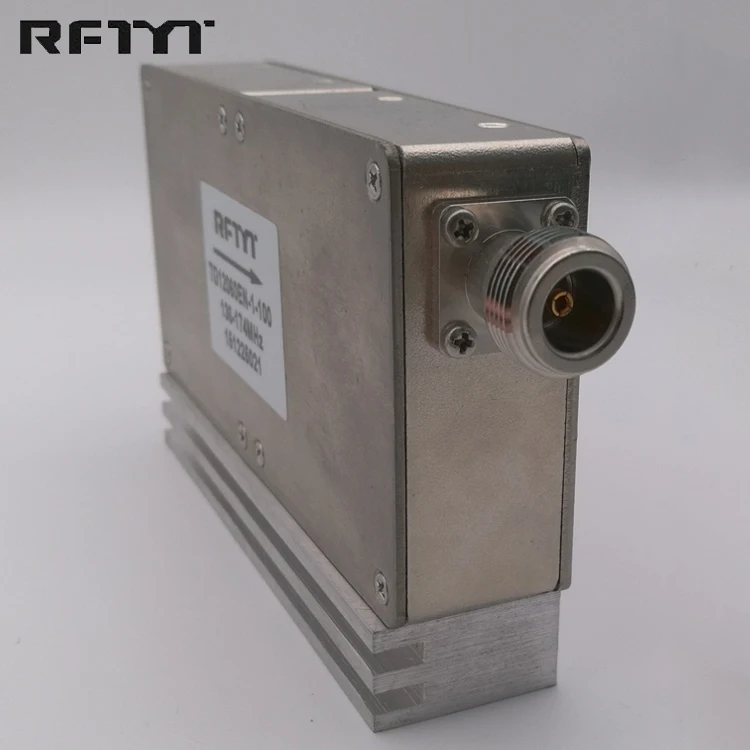

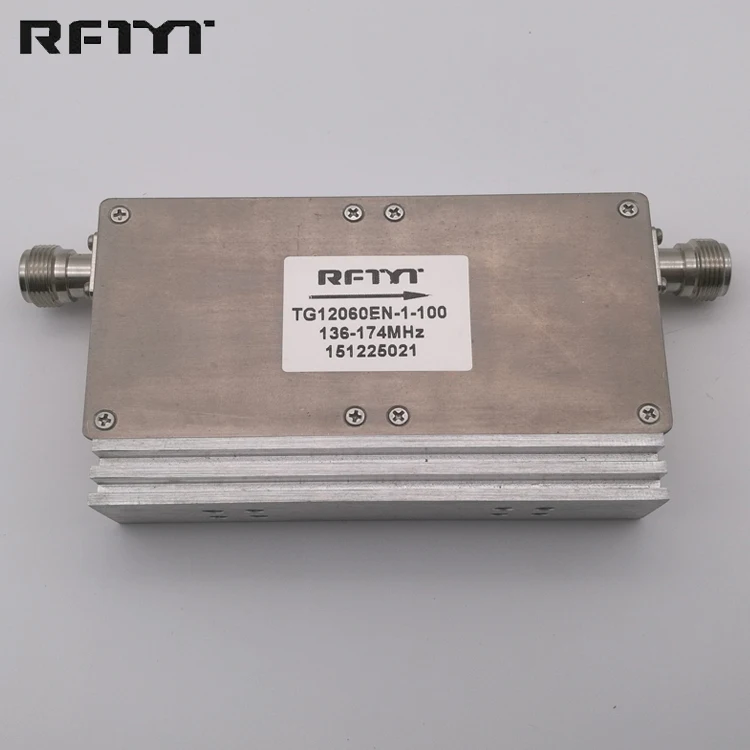

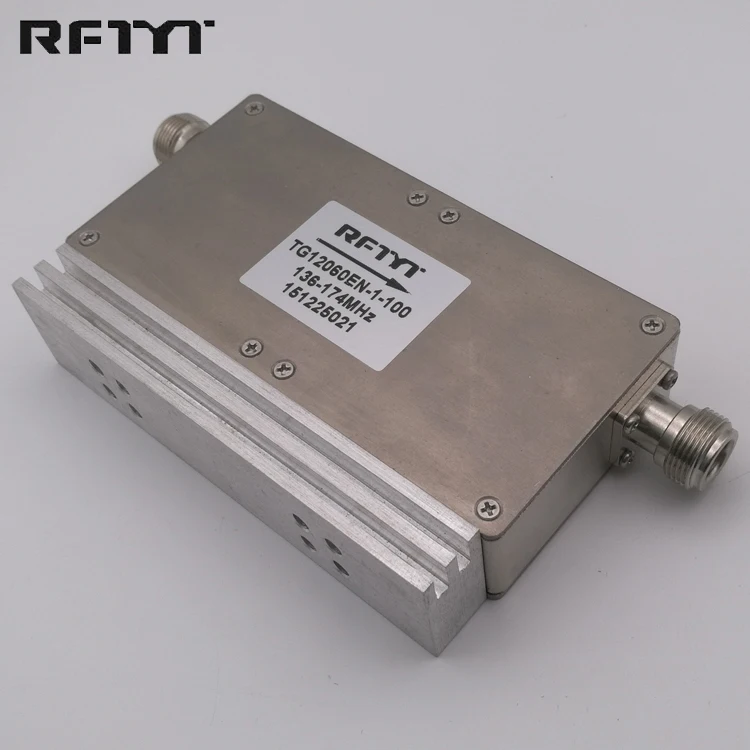

RF Military Standard 136 174MHz Dual Junction Coaxial Isolator

Product Overview

Description

RF Military Standard 136-174MHz Dual Junction Coaxial Isolator





                                                    60MHz-18.0GHz  Dual/Multi Junction Isolator

Model	Frequency Range	Forward Power (max)	Reverse Power	Size	Connector Type
TG23090H	80-230MHz	150W	100W	230.0*90.0*40.0 mm	SMA/N
TG17080H	350-800MHZ	300W	100W	170.0*80.0*40.0 mm	SMA/N

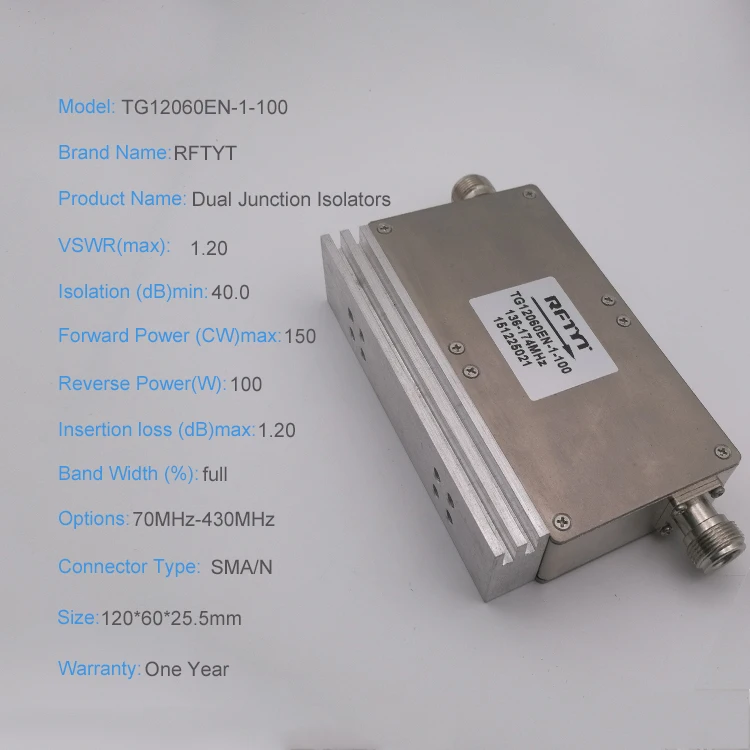

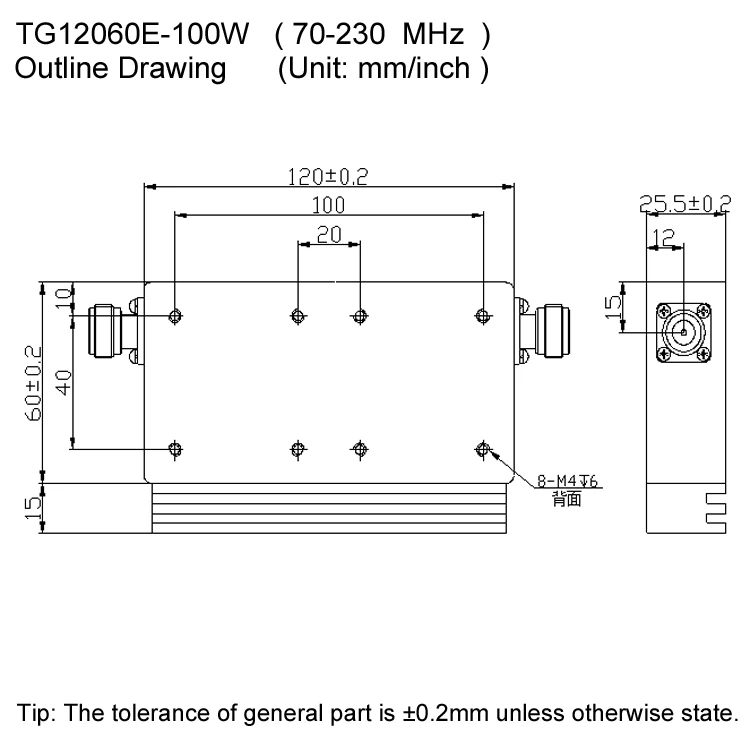

TG12060E	80-230MHz	50W	10-50W	120.0*60.0*25.5 mm	SMA/N
TG10458E	200-300MHz	200W	10-150W	104.0*57.5*22.0 mm	SMA/N
TG12762H	361-366MHz	200W	100W	127.0*62.0*22.0 mm	N
TG9662H	380-500MHz	300W	100W	96.0*62.0*22.0 mm	SMA/N
TG7448E	360-2700MHz	150W	100W	73.8*48.3*22.0 mm	N
WG5032X	350-4000MHz	150W	100W	50.8*31.7*10.0 mm	TAB
WG4027X	800-4000MHz	100W	100W	40.0*27.5*8.6 mm	TAB
WG4020X	800-4000MHz	100W	20W	40.0*20.0*8.6 mm	TAB
TG2619C	8.0 - 12.0 GHz	30W	5W	26.0*19.0*13.0 mm	SMA





For more detail specifications,  please contact us or go to the official website.

 (WWW.RFTYT.COM)







Forms are specify frequency range and other ranges available

(The temperature is generally -30 to 70, which can be customized -40 to 80 or your specified requirement.)
