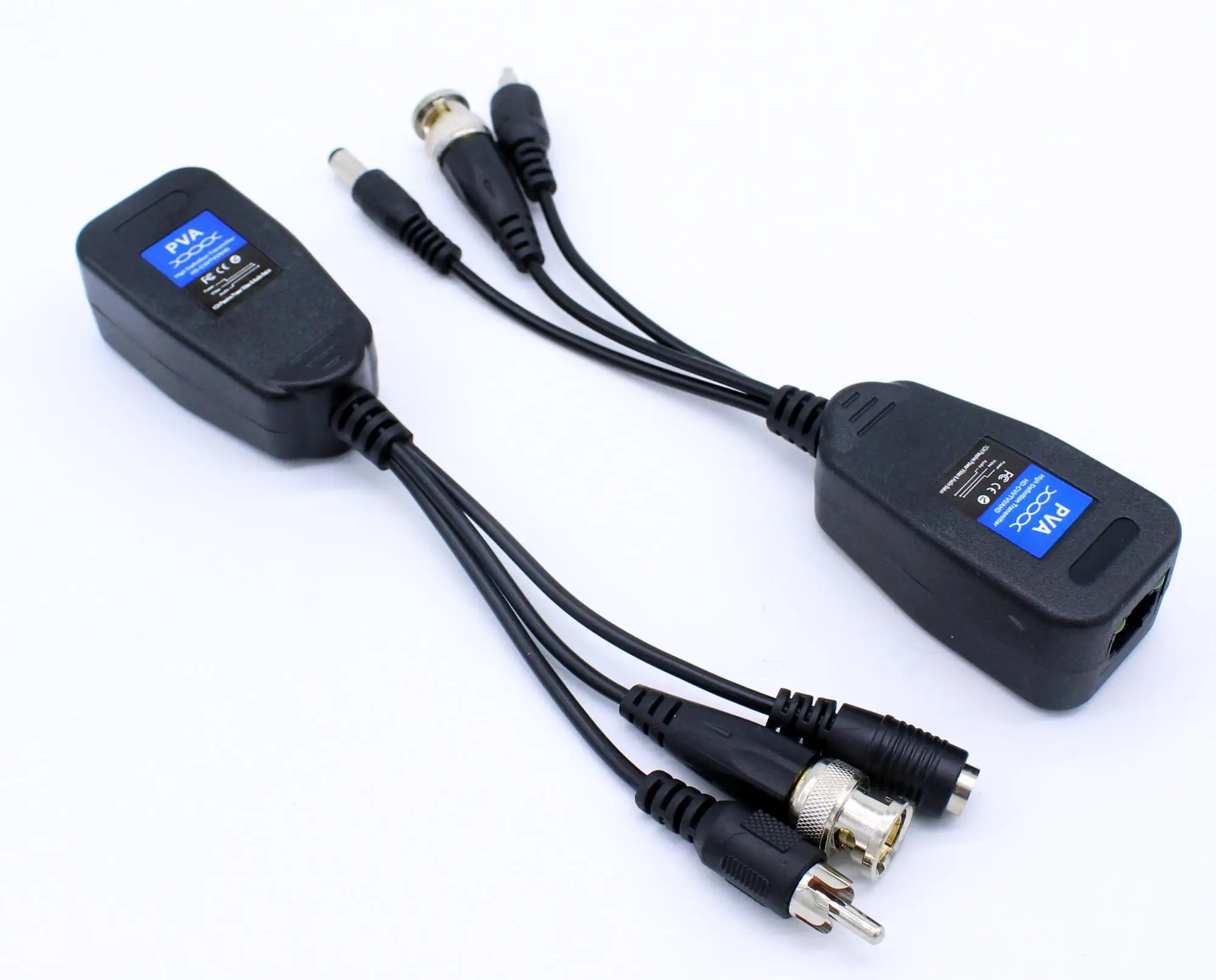

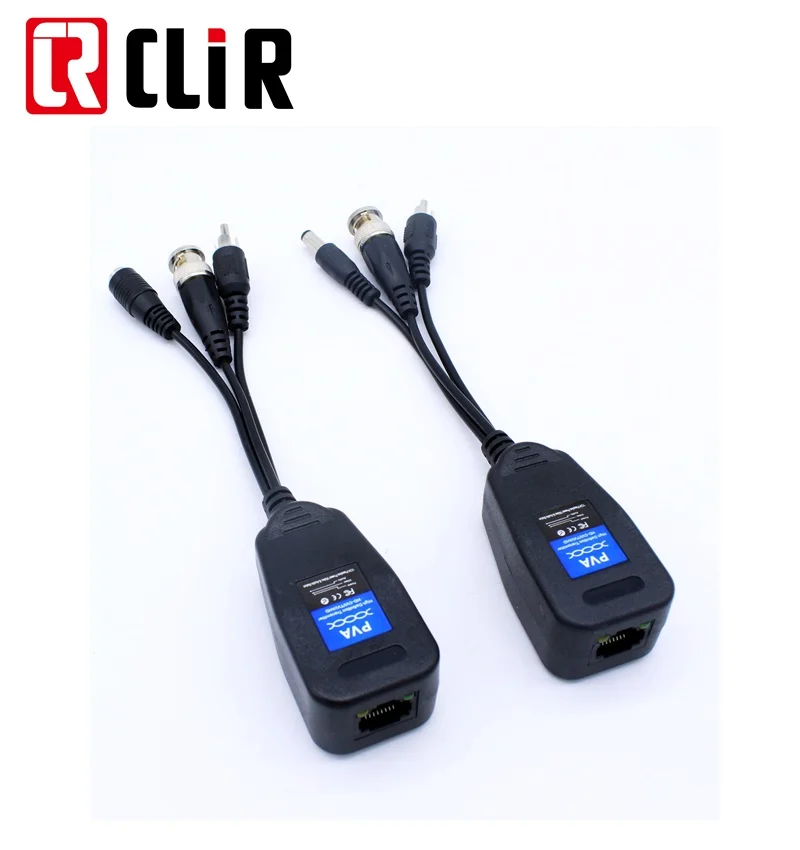

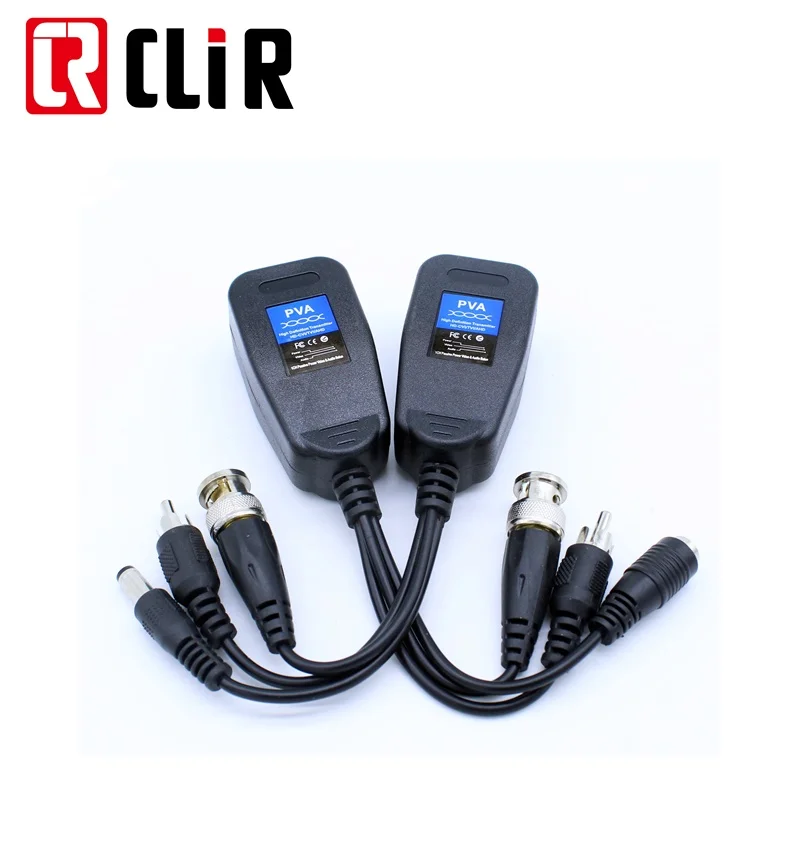

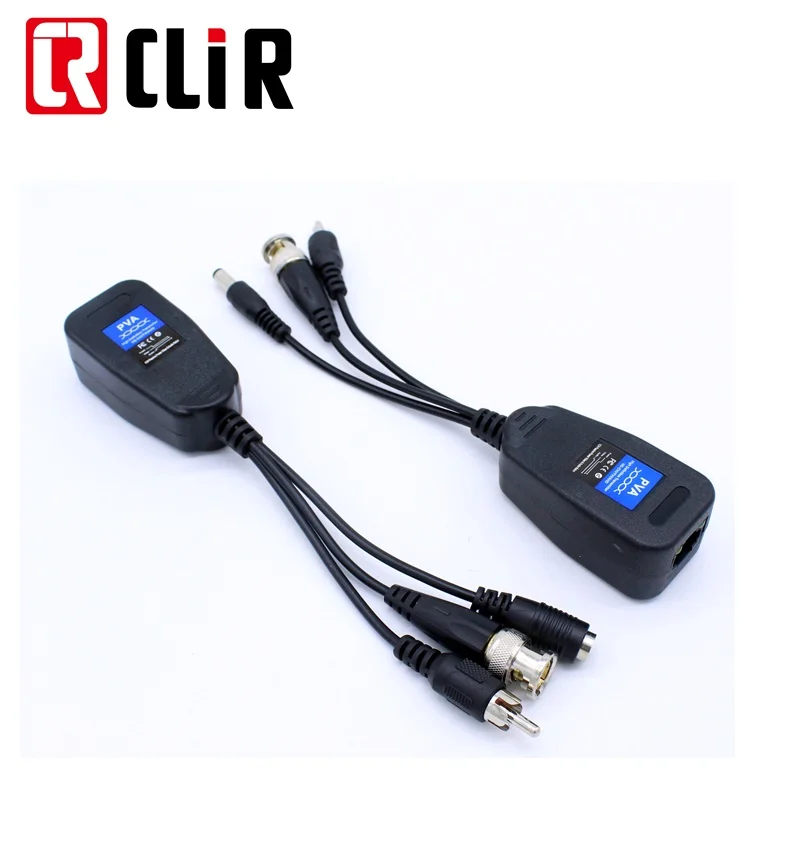

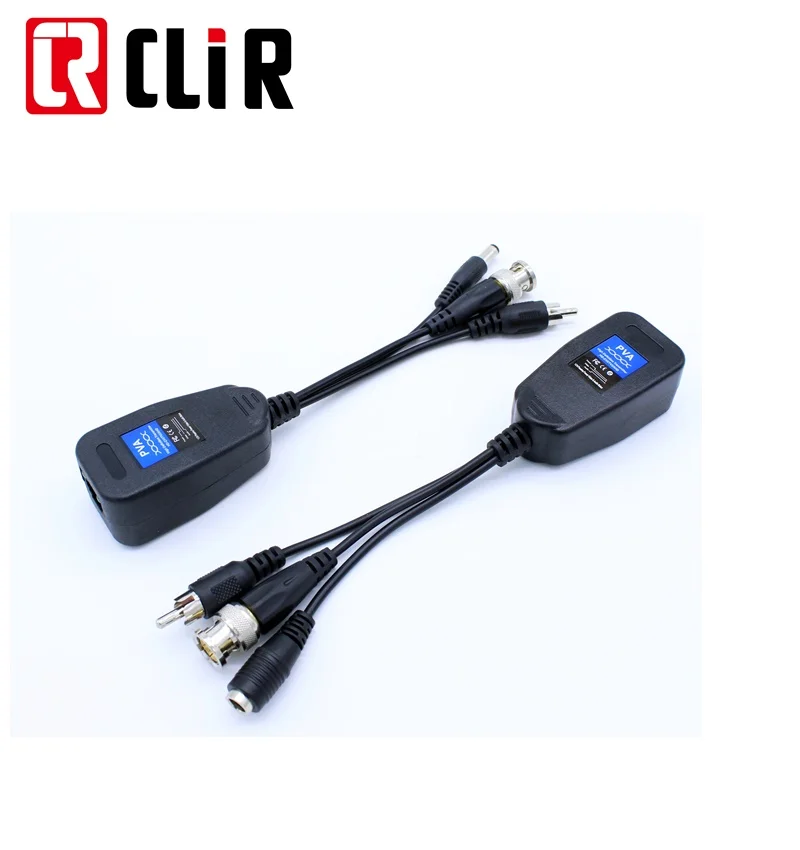

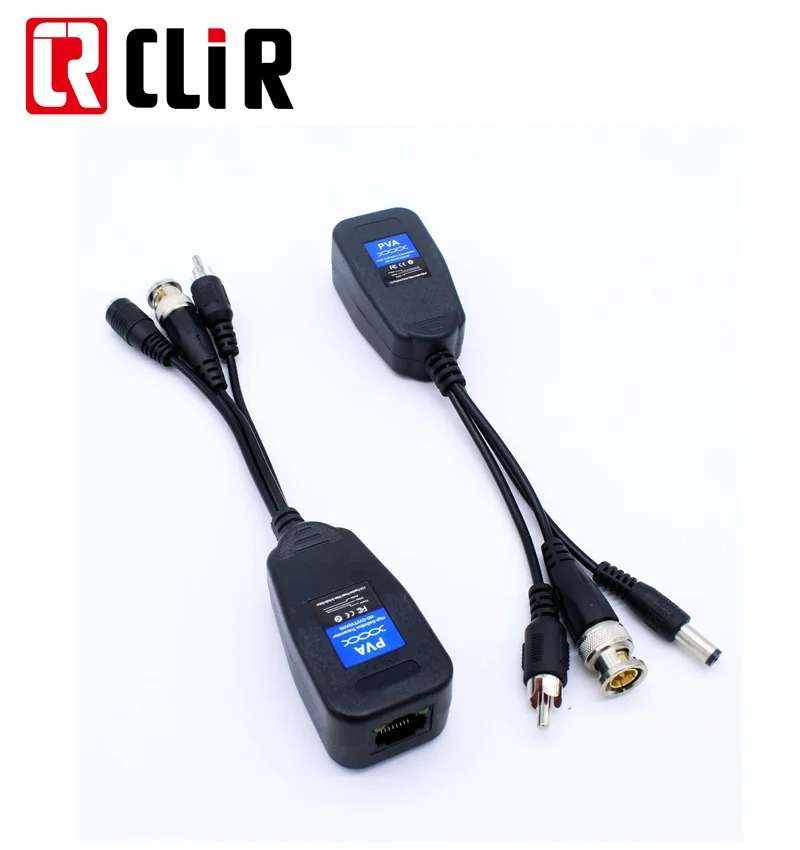

Passive Bnc To RJ45 Converter Power Video Audio HD CVI TVI AHD CVBS PVA Video Balun
- Category: >>>
- Supplier: Shenzhen Clir Technology Limited
Share on (60787674885):
Product Overview
Description
Product Description
| Model | B209A | |
| Video | Transmission Signal | Single Channel HD Passive Balun |
| Compatible Format | AHD/ HDCVI/ HDTVI/CVBS Analog | |
| Resolution | 720p/1080p | |
| Max. Distance 720p | AHD/CVI 300M, TVI 190M | |
| Max. Distance 1080p | AHD/CVI 220M, TVI 190M | |
| Video Format | PAL,NTSC,SECAM | |
| Operating Frequency | DC to 60MHz | |
| Anti-interference | > 60dB | |
| Impedance | Coax, Male BNC 75 unbalanced UTP, screw terminal 100 balanced | |
| Attenuation | 1.5 dB typ Max. | |
| Wire Type | Network Wiring | One Unshielded Twisted Pair 24-16 AWG (0.5-1.31mm) |
| Category Type | 2-pins UTP cat5e/6 | |
| Coaxial Video Connector | Male BNC connector screw terminal/Push pin terminal | |
| DC Loop Resistance | 52 ohms per 1000ft(18ohms per 100m) | |
| Differential Capacitance | 19 pF/ft max (62 pF/m max) | |
| Imperance | BNC Male | 75 Ohms |
| UTP Cable | 100 Ohms | |
| Protection | Surge Protection | Renewable solid state surge protection |
| ESD | 4KV | |
| Coaxial Video Connector | 2KV (common mode) per IEC6100-4-5 | |
| UTP Cable Connector | 2KV (different code), 4KV (common code) per IEC6100-4-5 | |
| General | Housing | ABS engineering plastic |
| Power In/Out | DC 12V | |
| Body Color | Black | |
| Net Weight | 80g | |
| MTBF | > 10000H | |
| Operating Temperature | -10°C~55°C | |
| Relative Humidity | 0-95% (non-condensing) | |
Packaging & Shipping
One day fast shipping
Company Information
Headquartered in Shenzhen, CLIR TECHNOLOGY LIMITED is an industry leading designer, developer and manufacturer of enterprise-level BNC Connectors, Video Baluns, Cables, CCTV Power Supplys, Microphones, CCTV Tester, CCTV camera housing and bracket. The company produces the most advanced and respected offering of CCTV Accessories based on its owned patented algorithms. Being a true manufacturer from board level design to hardware and software development, CLIR is able to control every aspect of the process from end-to-end.
