SZG Series vacuum spray dryer

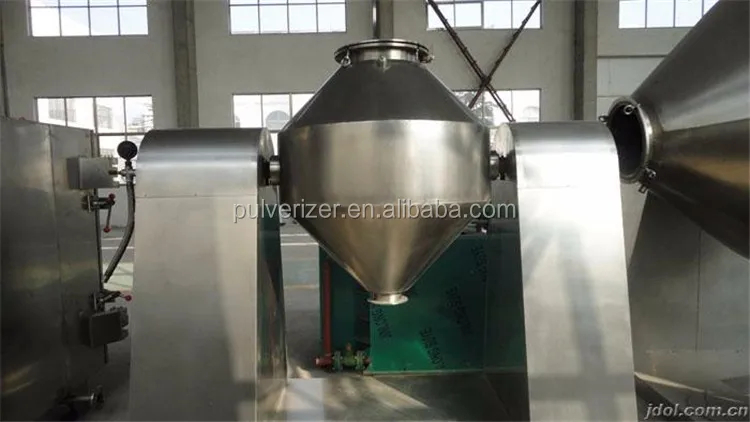

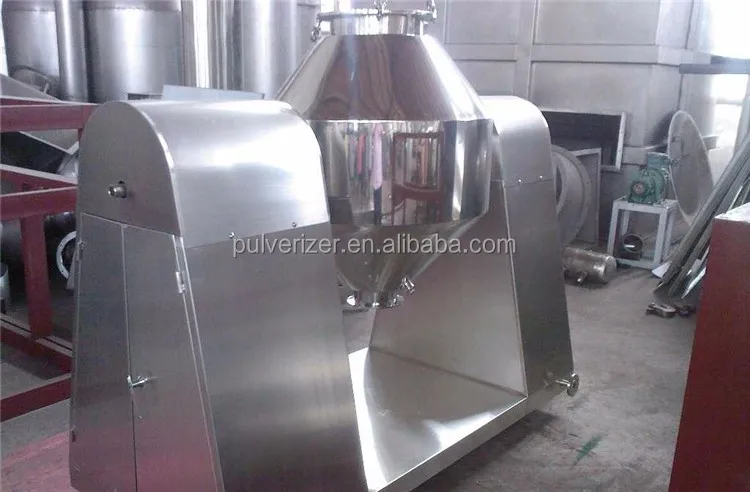

Double cone rotary vacuum dryer is a set of mixing and drying equipment.The vacuum drying device consists of pipeline centrifugal pump,condenser and vacuum pump.(If not need to recover the solvent, the condenser is not necessary)The machine is advanced in design, simple in structure, easy to clean, all the materials can be discharged, and the operation is simple and convenient.It can reduce labor intensity, improve the working environment.At the same time because the material rotates when the container rotates, but the material is not deposited at the wall, so the heat transfer coefficient is high,it not only saves energy, but also the drying material is in good quality.

Main Application

This machine is suitable for the mixing and drying of powder, crystal and granular materials in medicine, chemical industry, food, metallurgy, building materials and other industries.It can also be used to the concentration of the solution and the disinfection and sterilization of the materials.The machine can dry the materials of different humidity to the moisture content of less than 0.5%.The machine is especially suitable for the drying of material:heat sensitive material, easy oxidation, crystallization does not allow to destruct；solvent recovery material；strong stimulation of toxic materials.

Working Principle

The machine makes the material in a vacuum state.It achieves the purpose of drying through the drying jacket. the entire container rotates slowly in the process of drying,the material is keeped to move and to be dried.The vacuum pump will continue to suck the moisture, evaporation of the solvent can be recovered by condenser.

Model	100	350	500	750	1000	1500	2000	3500
Tank volume(L)	100	350	500	750	1000	1500	2000	3500
Loading volume(L)	≤50	≤175	≤250	≤375	≤500	≤750	≤1000	≤1750
Heating area(㎡)	1.16	2	2.63	3.5	4.61	5.58	7.5	11.2
Revolution(rpm)	4 - 6
Motor power(kw)	0.75	1.1	1.5	2	3	3	4	5.5
Occupied area(mm)	2160×800	2260×800	2350×800	2560×1000	2860×1300	3060×1300	3260×1400	3760×1800
Rotating height(mm)	1750	2100	2250	2490	2800	2940	2990	3490
Weight(kg)	800	1100	1200	1500	2800	3300	3600	6400
Design pressure inside the tank(MPa)	-0.1-0.15
Design pressure of jacket(MPa)	≤0.3
Heating medium	Steam, hot water, heat conduction oil
Working temperature(℃)	The tank≤85 The jacket≤140

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	It depends
Weight	It depends
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	It depends
Weight	It depends
Packaging Details	If machine is big, we will fix the machine inside container with steel wires and nails.Machine won't move inside the container.
