16x2 Character STN Positive Transflective Mono lcd display

Product Overview

Description

Main parameters

• We supply Monochrome LCD including Character LCD, graphicd LCD, segment LCD and custom LCD solutions.


• We are 19 years SGS & BV verfied LCD manfacturer with complete LCD production lines.


• We support custom solution for the LCD part or the whole LCD.

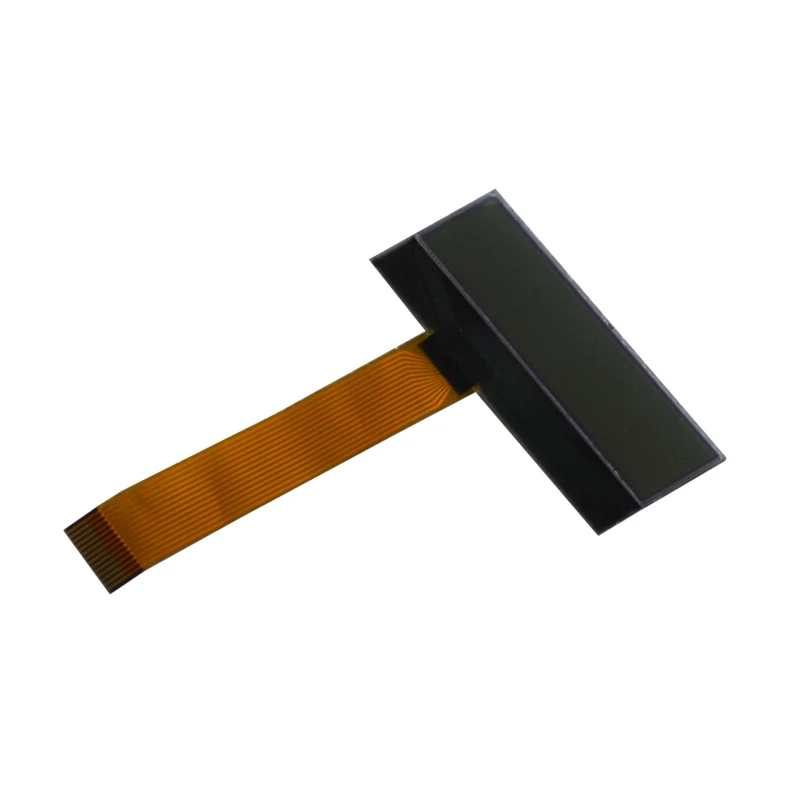

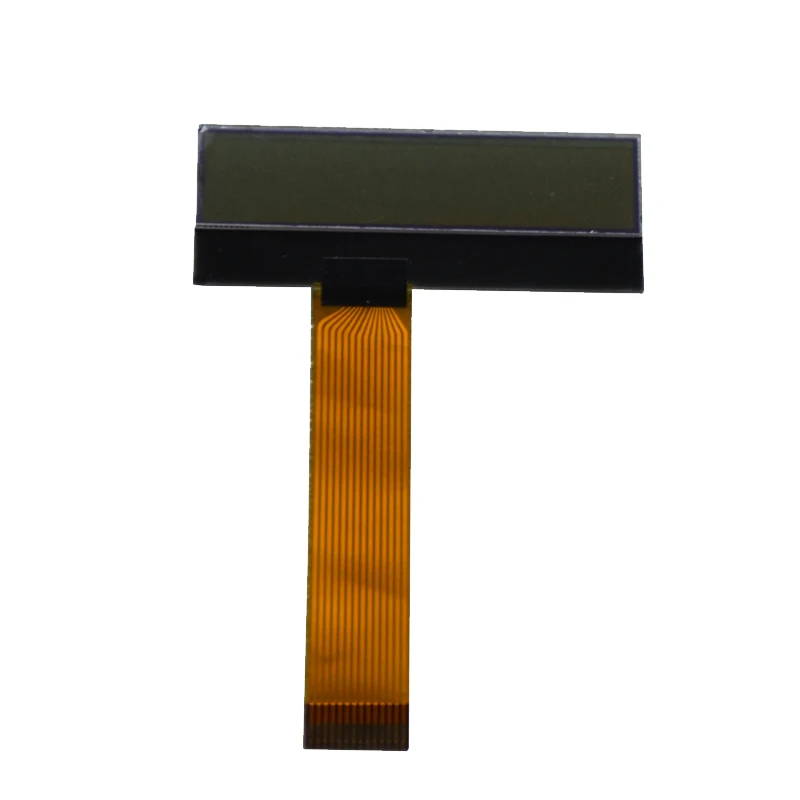

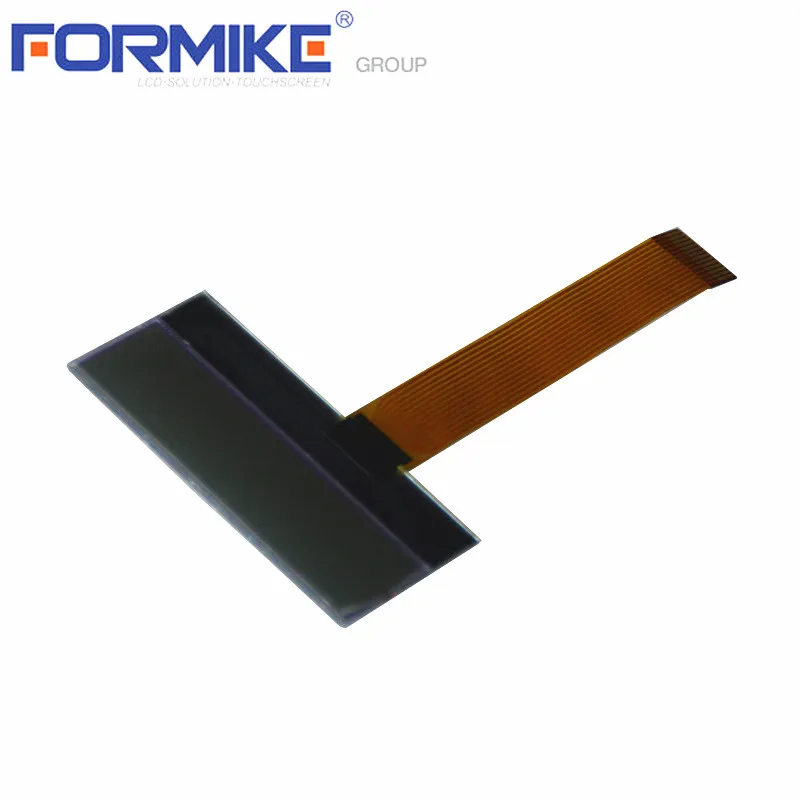

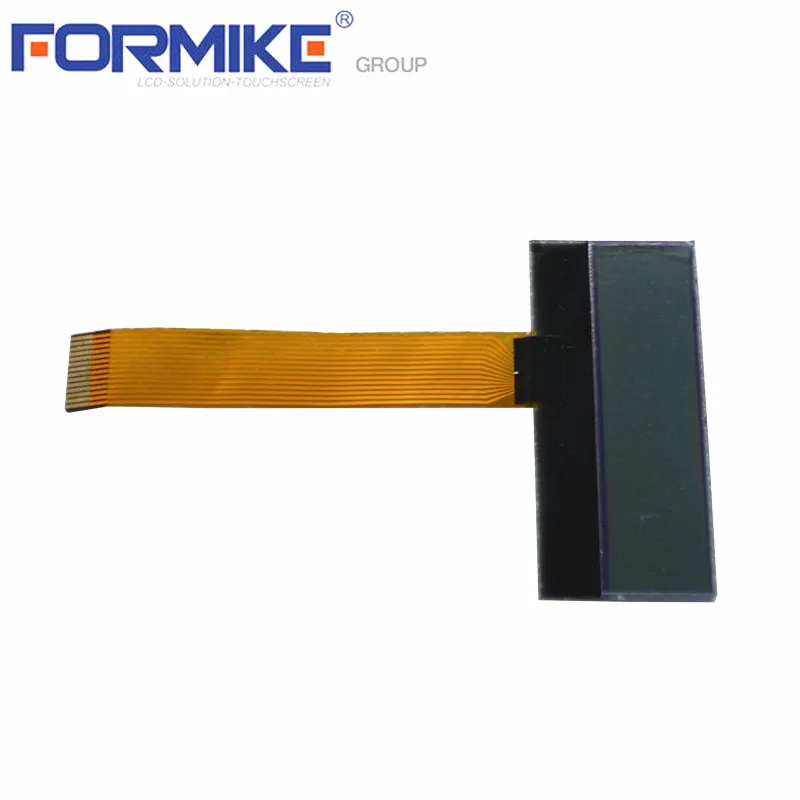

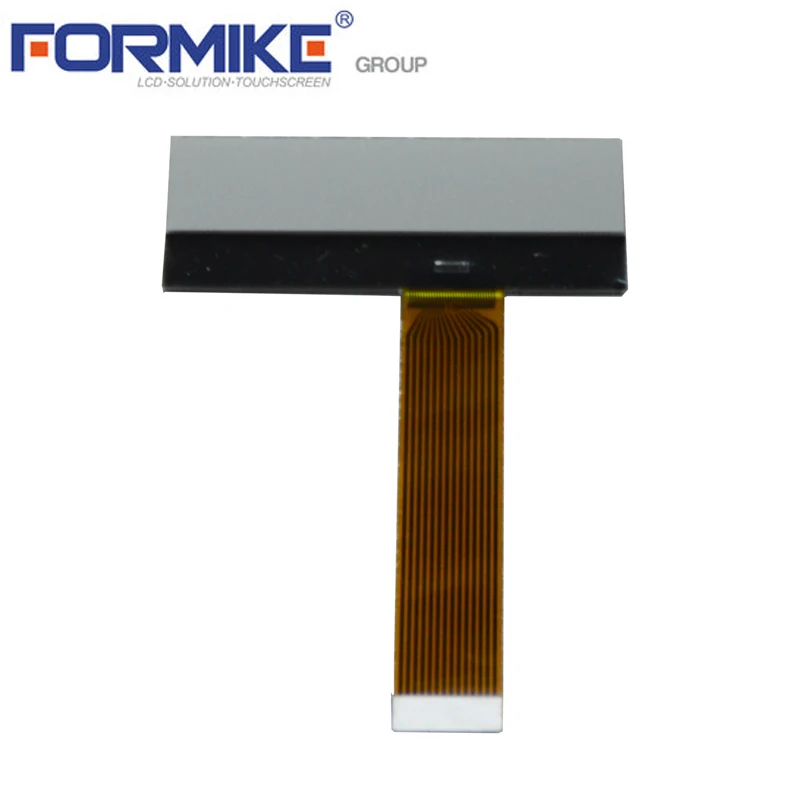

product image

product description

Description	16*2 Character STN Positive Transflective Mono lcd display
Item/Part number	WC1602T8SKN6G
Structure	Monochrome LCD
Display Mode	Positive
Resolution	16 character*2line
Pixel Pitch(mm)	0.6x 0.55 mm
Pixel Size(mm)	0.55 x 0.5 mm
Module Size(mm)	69*103*2.85mm
Viewing Area(mm)	64.5  x 15.0 mm
Viewing Angle(Typ.)	6 o'clock
Blacklight	white
Interface	8/16 bit interface
Operating temperature	-20 ℃ to +70 ℃
Storage temperature	-30 ℃ to +80 ℃
With or without touch panel	without touch panel
Quality control	Strictly tested one by one to make sure all the goods best quality Each item has been checked and in good condition before shipping
Warranty	12 Months
Samples	Available
Advantage	Competitive Price, Fast delivery, Excellent after-sales Service
Payment method	T/T, Western Union
Shipment terms	EXW Shenzhen/Hongkong
Place of Origin	Shenzhen, China
Applications	Household, Medical Treatment, Intelligent Control, Industry, Communication Equipment, Financial Equipment, ect.



Mono lcd type



lcd product range

Monochromic LCDs/LCD Modules

VA,TN,HTN,STN,FSTN,DFSTN LCD Panels and its accessory

Graphic,Character,Alphanumeric and In cell touch modules

COB,COG,TAB Package

Color TFT LCD Modules

0.96inch to 13.3inch color TFT LCD Display

Touch Screen

Capacitive touch screen

Resistive touch screen

0.49inch to 5.5inch

Complete solutions

Complete technical supports
