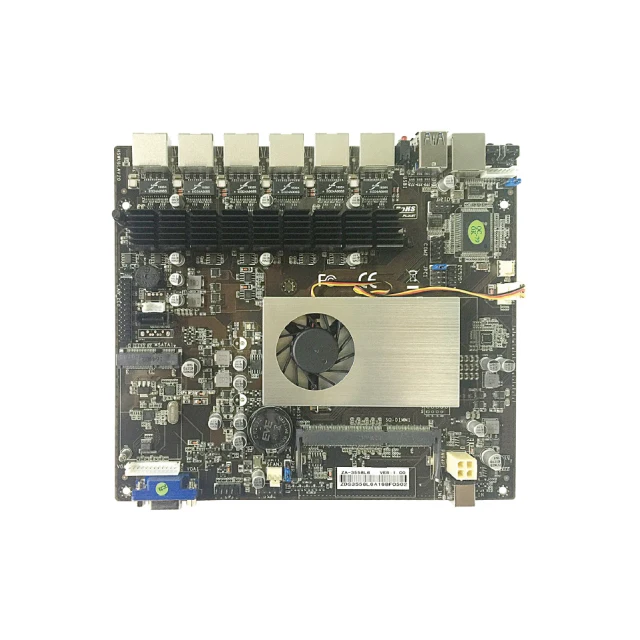

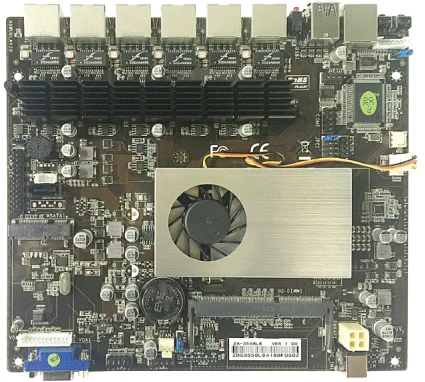

low cost Intel Pentium 3865U(2M Cache,1.7GHz) DC 12V mini itx motherboard with 4gb ram option for industrial pc and server
- Category: >>>
- Supplier: Shenzhen Armortec Technology Co. Ltd.
Share on (60787814381):
Product Overview
Description
FM-3865L6
Intel Pentium 3865U 1.7GHz Processor 6 LAN networking motherboard with VGA cables
Feature:
Support Pentium 3865U(2M Cache,1.7GHz) processor
3588U chipset
Built in Intel Graphics Media Accelerator
1 x single channel DDR3/DDR3L 1333/1600 MHz, LPDDR3 1333/1600memory, Max 16 GB
6x Intel WG82583,10/100/1000M, Ethernet network
Specification:
Model | FM-3865L6 |
Dimension | 200mm x 180mm |
Processor | Support Intel Pentium 3865U(2M Cache,1.7GHz) processor |
Chipset | 3588U |
Display | Intel Graphics Media Accelerator |
System Memory | 1* SODIMM DDR3/DDR3L Slot |
support1333/1600MHz DDR3/DDR3L memory, LPDDR3 1333/1600 MHz Memory up to 16 GB | |
BIOS | AMI 64Mb Flash ROM |
Front I/O | 2*USB Pin Header, support 2*USB2.0 ports |
1*fan connectors: CPU fan connector | |
1*SATA Header | |
1* Set of LAN LED Pin Header | |
1*1X12PIN VGA Pin Header | |

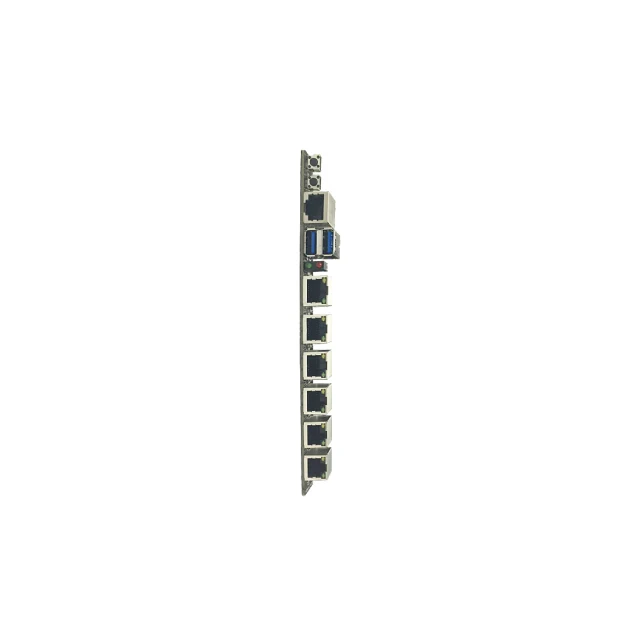

Rear I/O | 1*TJ45COM1 console port |
2*USB3.0 | |
6*LAN | |
Expansion Slots | 1*DDR3 memory slot |
1*MSATA slot | |
Onboard Serial SATA | 1* Standard SATA Header |
Onboard LAN | 6* Intel WG82583 ,10/100/1000M Ethernet slot |
OS | Windows 7, Windows8, Windows XP, Linux |
System monitoring and management | System power management |
Temperature management | |
Network wakeup | |
Operating Temp. | -10~55 |
Operating Humidity | 0-95% (relative humidity; non-condensing) |
Unique performance | None |
Packing List
1 | SATA data cable, power cable |
2 | VGA cable |
Producing Process :
SMT
DPI
AOI
Assembly
Burn- in Room
Packaging
Established in 2011, Armortec Technology Limited has grown rapidly in the industrial motherboard industry, diversifying itself from a manufacturer for industrial motherboard to industrial PC, mini PC, firewall server and industrial motherboards. This has made Armortec the choice vendor for many of the quality-oriented manufacturers that integrate PC assemblies into their non-PC equipment where unique form factor, 24/7/365 operation, strict revision control, harsh operating environments, and 5 to 7+ years product life cycles are required.
Armortec is a company that is fully committed to developing its products, services and consumer relations through extensive R&D, strict Quality Assurance practices, and effective outreach initiatives. Customer loyalty through interaction, focus and feedback are policies that help form the Armortec culture, as well as a commitment to achieve, and a dedication to innovate.
In their efforts, Armortec's global achievements in the industry have received both recognition and respect, proving their level of quality and commitment time and time again. Armortec continue to develop award-winning products, offering a complete range of networking solutions consisting of industrial motherboard, industrial PC, mini PC, firewall servers, NAS PC, ATM PC, POS PC and so on.
Through technological advancements and the power of imagination, Armortec is continuing to grow, endlessly striving to achieve their goal of becoming one of the top 3 industrial PC and mini PC providers in China. While continuing to develop their global market share, Armortec will never cease to promote opportunities to further advance through the world of networking and innovation.
Armortec - Technology Creates Future.
Our Services
1.Warranty: 1 year, the second year and the third year, we can
repair it free. but we will charge for the parts that need to change.
2.We can sell one sample for your test.
3.We can provide OEM/ODM services.
4.We ensure offer great products, services and favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
Question: Can you put my brand name (logo) on these products?
Answer: Yes, We can support OEM/ODM service, the process of customization is following:
1: Provide your specific requirement.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.
Question: How much do I need to pay for your OEM service?
Answer: You should pay extra 500$,but we will return the 500$ to you when your order over 100 pieces.
Question: How did I trust your company?
Answer: We have 12 years export from Alibaba, and our factory have more than 16 years' R&D Manufaturing experiences.
Question: After I get the products, If the products are broken , what kind of After-sales service you support?
Answer: First, please contact us and tell us problems, we can give good solutions to you, Second, you can return the goods, and we repair. We want to make a long time business with you, not one time.
If you have any concern feel free to let me know .
Joy is Here (24 hours, 7 days)
Email:joy.l.han(at) armortec.net
Skype:joy.l.han(at) armortec.net
