KINGNEED TK05SG magnet car vehicle trucks container waterproof anti lost offline sun solar powered 3g gps tracker

Product Overview

Description

KINGNEED TK05SG magnet car vehicle trucks container waterproof anti lost offline sun solar powered 3g gps tracker

Product Highlights

- Big solar panel built in

- Magnet+waterproof design;
- Built in 5000mAh full capacity high quality rechargale battery

- The battery could be replaced.

- Built in drop sensor,anti theft;

- SD offline data storage and Logger function

- Wifi position & Wifi Fence & Wifi upload function

- FREE web based gps tracking platform and public hardware communication protocol

-Support 3G network: WCDMA supports HSDPA/UMTS/EDGE/GPRS/GSM
UMTS850/900/1900/ 2100 MHz , GSM850/900/1800/1900 MHz



 Product Description:

- Built-in Solar panel with more than 100mA charging current with directly sunshine

- Police & Detector’s Best Choice
- 5000mAh REMOVABLE rechargeable Lithium battery
- GPS+GSM+WIFI positioning with Google map tracking
- Offline logger function, build-in Micro SD card and support up to 32G byte data.
- Drop-trigger alarm and SOS alarm build-in

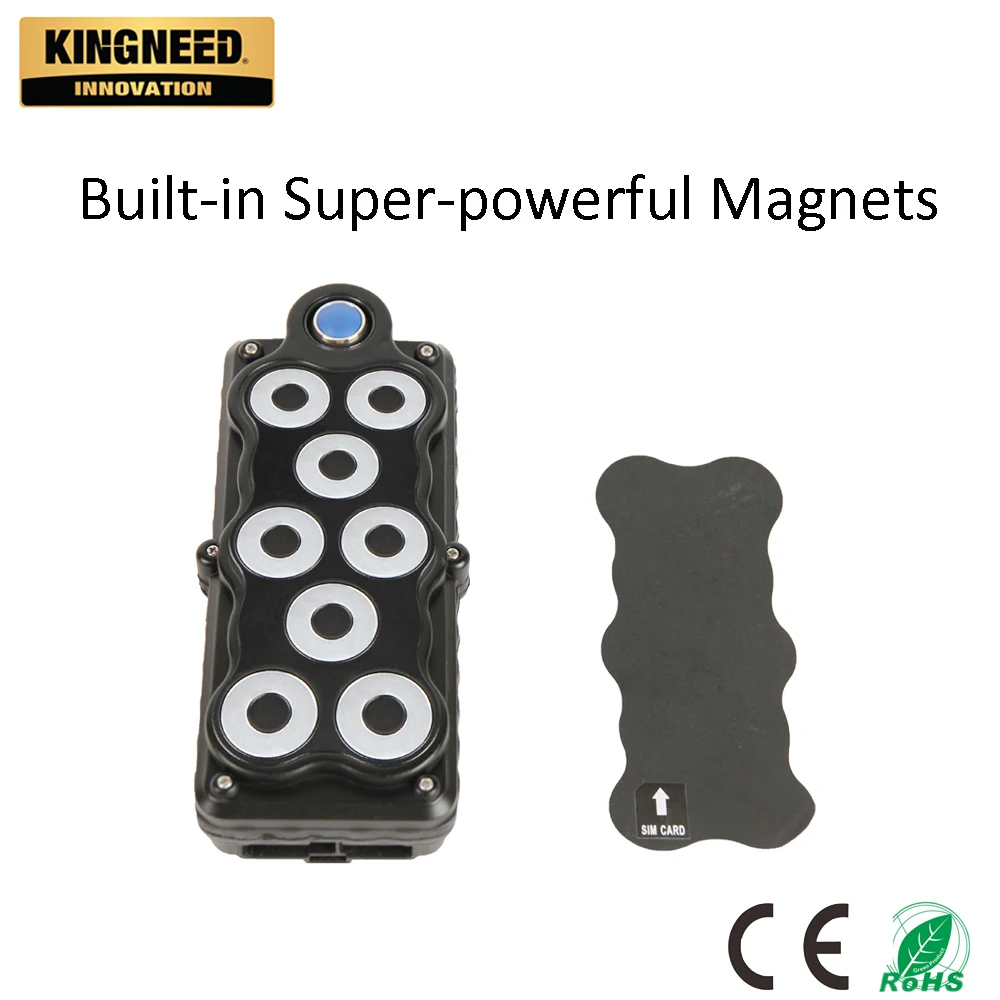

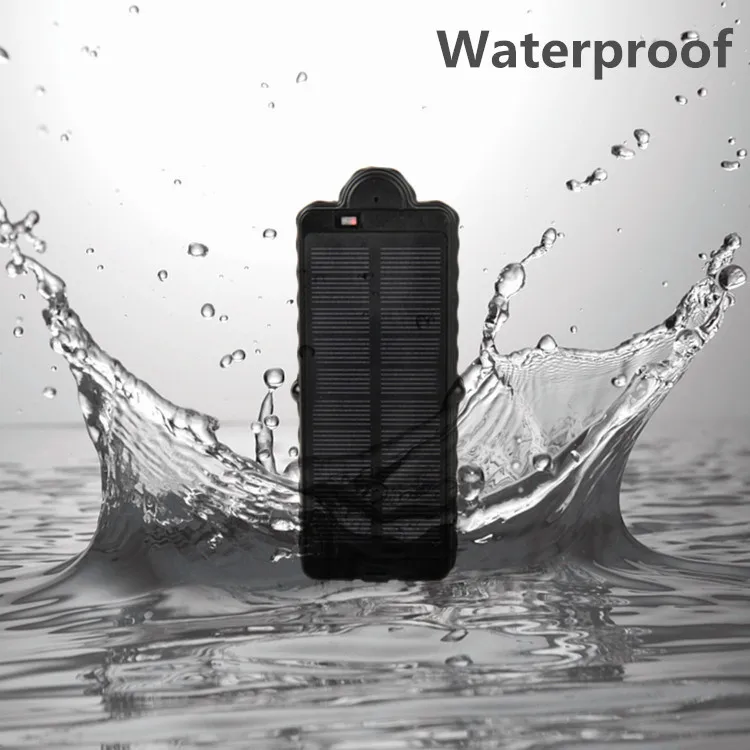

- Weather-Proof design with strong magnets built-in

- FREE web based gps tracking platform and public hardware communication protocol;



Extra wifi position function:

This GPS tracking devices could locate location via the public WIFI signal. No need wifi password. It is best for indoor locating when there is no GPS or Cell Tower signal.



Extra Special Support: No Data Lost -- SD Offline Data Logger Function:
1. Can work as a normal tracker.
2. Can work as a data logger. If you insert TF card, and enable *sdon*, then all logger data will save into TF card only, won't upload to server. When device come back, you can decode all data fromoffline.miitown.com platform, replay the historical route and report on google map on PC.
3. No data lost. If insert both TF and SIM card, not activate *sdon*, the device will keep all the data in TF card when lost GSM connection, then automatically upload to the server when the signal gets back.

Product Specification:
- Size:160*64*37 (mm)    Weight: 323g
- GPRS:MTK 6260A
- Quad band;WCDMA supports HSDPA/UMTS/EDGE/GPRS/GSM
UMTS850/900/1900/ 2100 MHz , GSM850/900/1800/1900 MHzHz
- Antennae: Internal, GPRS Class 12
- Power:Rechargeable, 5000 mAh, Lithium-Polymer Battery
- Built-in Vibration/motion sensing
- GPS: High sensitivity GPS chips
- Antennae: Internal
- Position Accuracy: <5m
- Sensitivity: Tracking: (R)C161 dB, Cold starts: (R)C148 dB, Hot
starts: (R)C156 dB
- Cold start:<27s, Warm Start: <5s, Hot Start: 1s
- A-GPS: AssistNow Online and AssistNow Offline services

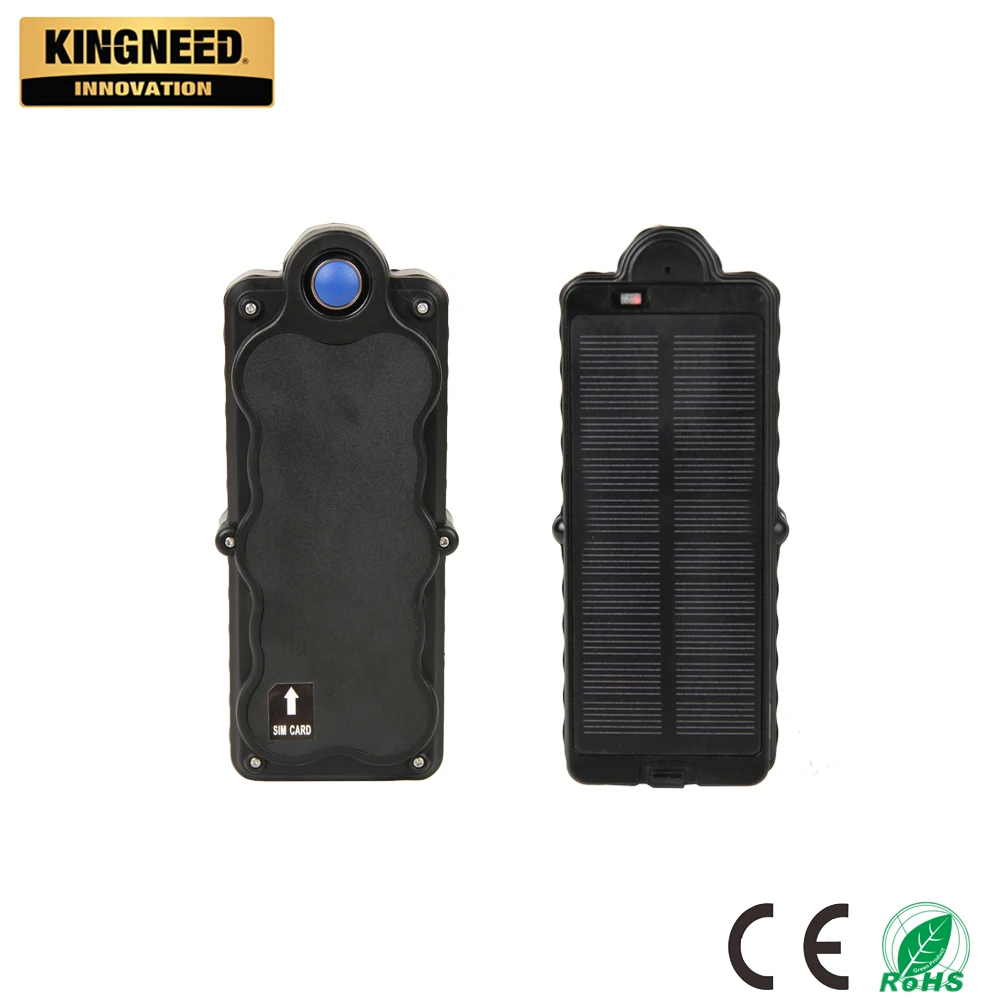

Product Images:



















FREE Web& IOS & Andriod APP tracking system





Compatible with third party platform:

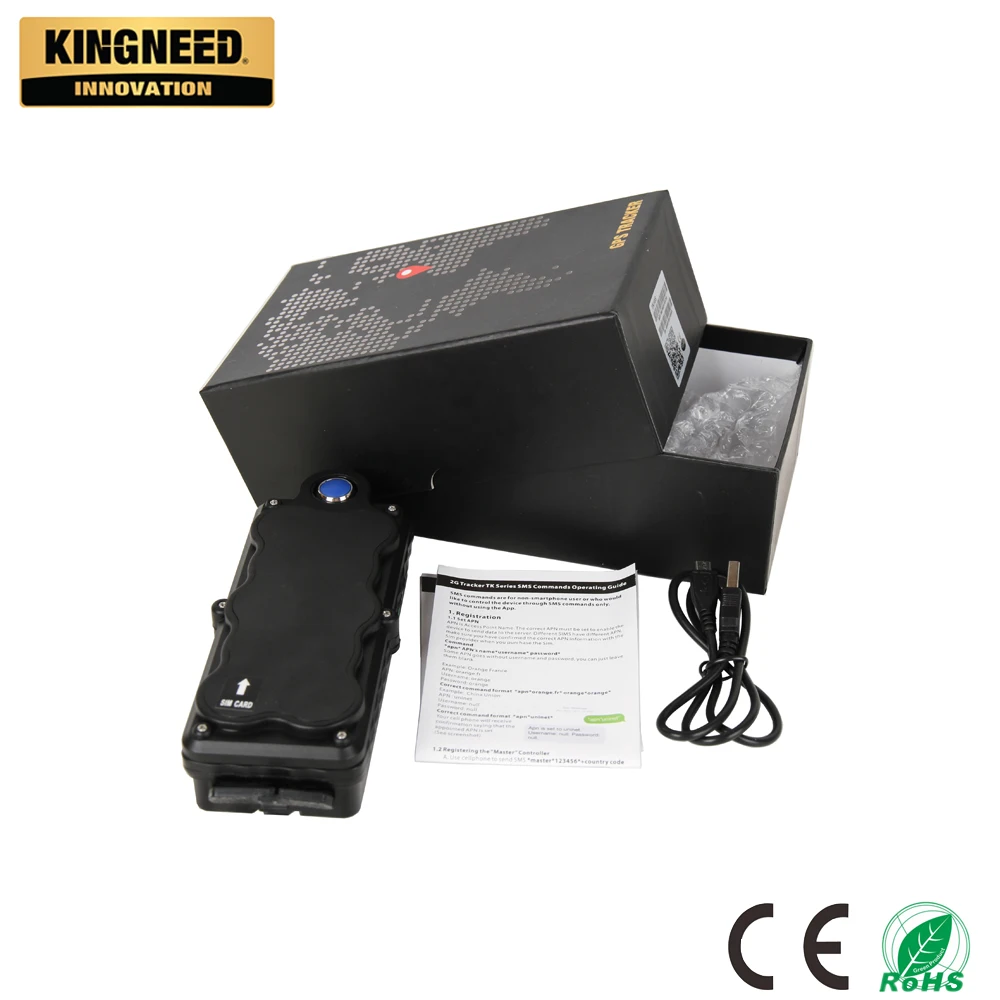

Package Accessories:

*GPS tracking unit*1
*USB cable*1

*English user manual *1

*Black gift box*1



Package Photo:





Fast guide to test the tracker
Step 1. Get an active SIM card with both GSM, SMS and GPRS data service.
Make sure the SIM card can send SMS and have GPRS function;

Step 2. Insert the SIM card, and make sure install the cover properly.
Because only when you install the cover, then the screw will be fit strongly and the device will have power supply.

Step 3. Check Installation.
Call the tracker SIM card, and see whether it's with signal. If it can ring, but won't pick up the phone, it means the SIM card is with signal, and you can go next.

Step 4. Set the APN.
It's very important for this step.  E.g. your APN is internet, and no login user and password, then you just need send *APN*internet* (don't allow cap letter here!), it will reply to you whenever the APN is wrong or correct. However, only when you set the right APN, it can be combined with our web platform. Therefore, if you didn't get any reply, then please kindly check whether your SIM card is with active GPRS or GSM SMS service, or whether your SIM card is fit well.

Step 5. Set the master number.
It's very important also. The right command is *master*123456*+45XXXXXXXX*,eg, if you use your own mobile phone is 004511111111,then the master command will be: *master*123456*+4511111111*

Step 6. Login into web tracking platform or APP(both IOS and Android are supported)
After set the right apn and master number, then you can go to our web platform: www.miitown.com, input the master number and default password 123456 to login in.

You could download IOS and Android APP by the QR code in the home page of our tracking website www.miitown.com, the login user name is your master number and default password is 123456

Please pay attention, default password is 123456, user name start with country code 00.Eg,00451111111, not +4511111111 . after this step, then you could see your gps device location now.

AT the same time, you can send *locateaddress* and your phone will receive the detailed address include street name.
