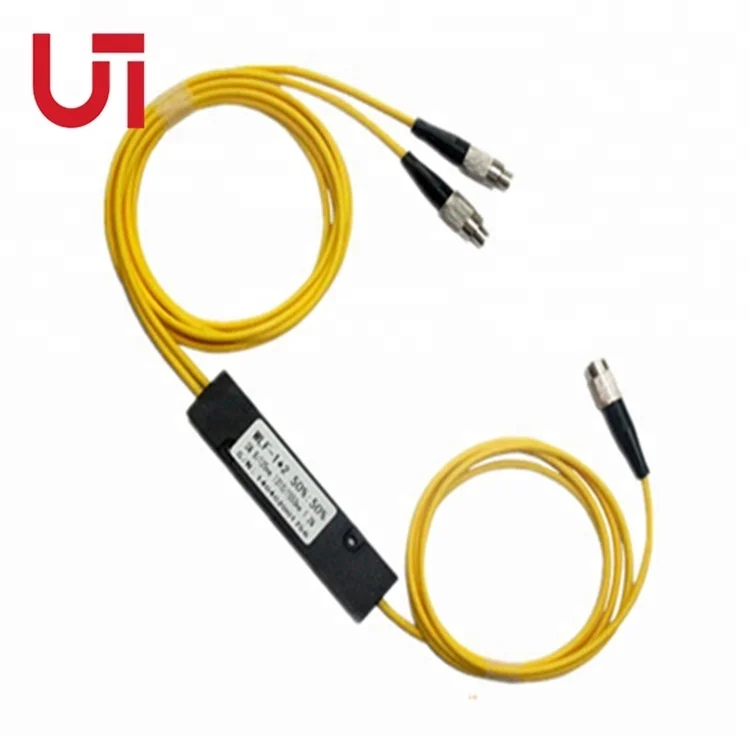

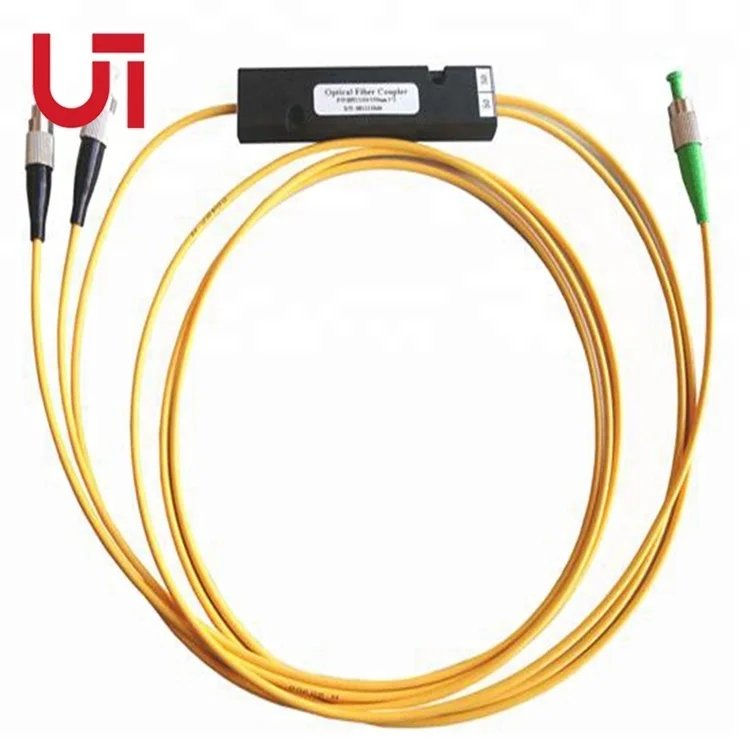

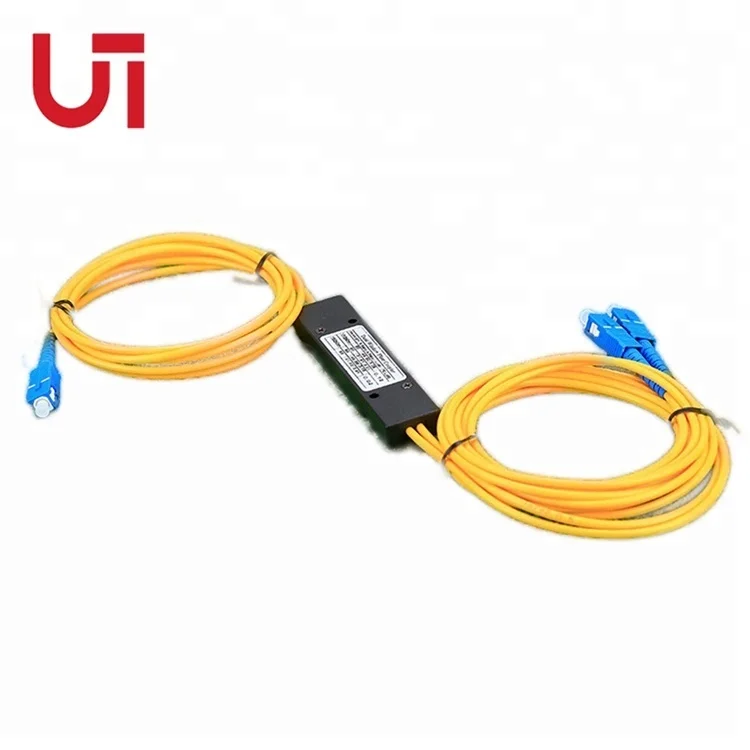

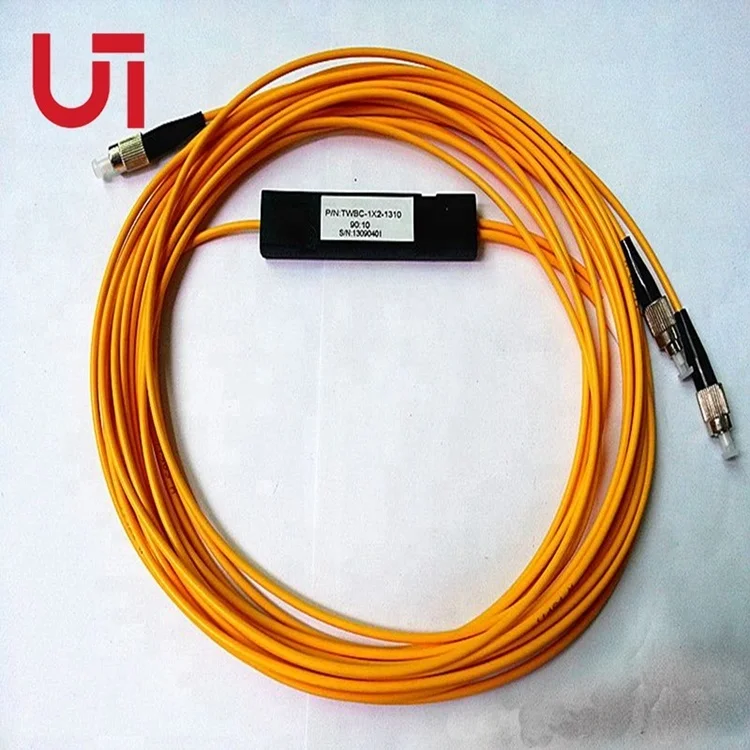

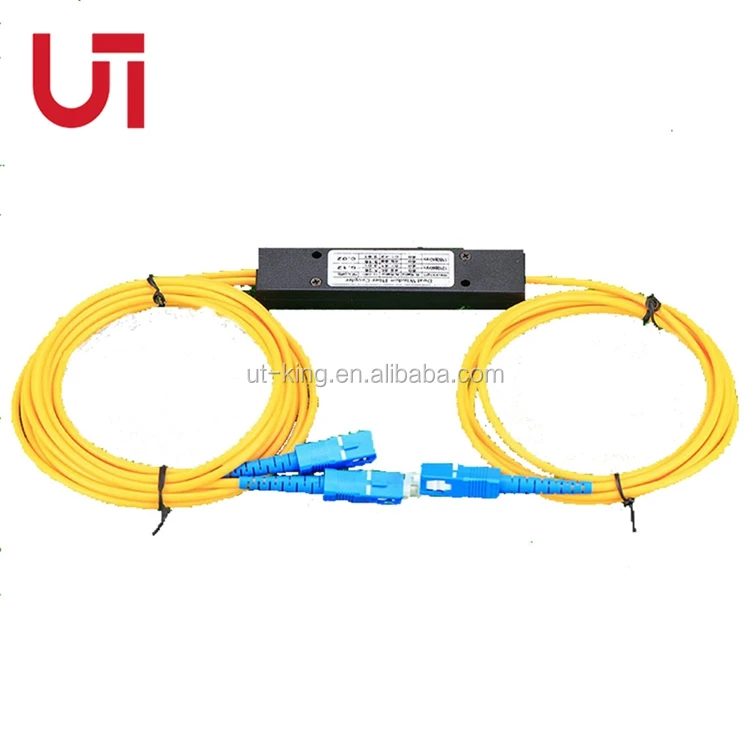

1*2 FBT Splitter Ratio 50:50 1310/1550nm Dual Window Abs Box Type SC FC LC UPC APC SM 1*2 Fused Fiber Coupler
1*2 FBT Splitter Ratio 50:50 1310/1550nm Dual Window Abs Box Type SC FC LC UPC APC SM 1*2 Fused Fiber Coupler
1*2 FBT Splitter Ratio 50:50 1310/1550nm Dual Window Abs Box Type SC FC LC UPC APC SM 1*2 Fused Fiber Coupler
1*2 FBT Splitter Ratio 50:50 1310/1550nm Dual Window Abs Box Type SC FC LC UPC APC SM 1*2 Fused Fiber Coupler
1*2 FBT Splitter Ratio 50:50 1310/1550nm Dual Window Abs Box Type SC FC LC UPC APC SM 1*2 Fused Fiber Coupler
1*2 FBT Splitter Ratio 50:50 1310/1550nm Dual Window Abs Box Type SC FC LC UPC APC SM 1*2 Fused Fiber Coupler

1*2 FBT Splitter Ratio 50:50 1310/1550nm Dual Window Abs Box Type SC FC LC UPC APC SM 1*2 Fused Fiber Coupler

Share on (60787890532):


Price:$4.00 - $5.00

Quantity:


Product Overview

Description

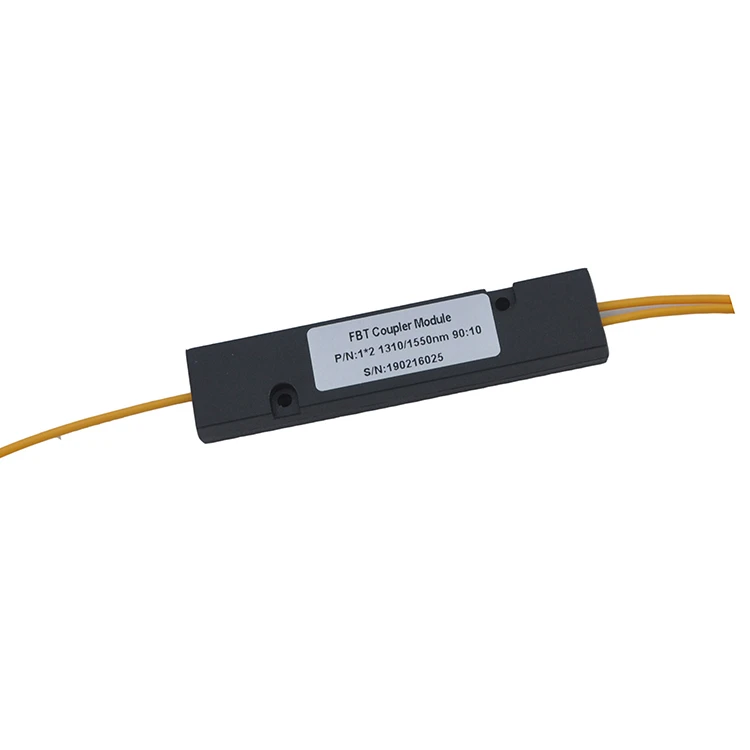

Optical Fiber Splitter 1*2 fused coupler

【About Product】
1.Fiber Optic FBT splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology.
2. It features small size, high reliability, cheap cost and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
3.UT provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet
GR-1209-CORE and GR-1221-CORE
4.UT offers both tree and star type inline couplers/splitters with Rack mount box.
5. They provide a reliable solution to split/combine signals. The splitting ratio ranges from 1x2 to 1x32 ports for tree couplers, and from 2x2 up to 2x32 for star couplers. Available in single, dual, and tripple wavelength windows(1310/1490/1550nm).

【Product Feature】
Low Excess loss
Low PDL
Environmentally stable
Good Thermal Stability

【Application】
Long-haul Telecommunications
CATV Systems & Fiber Optic Sensors
Local Area Network

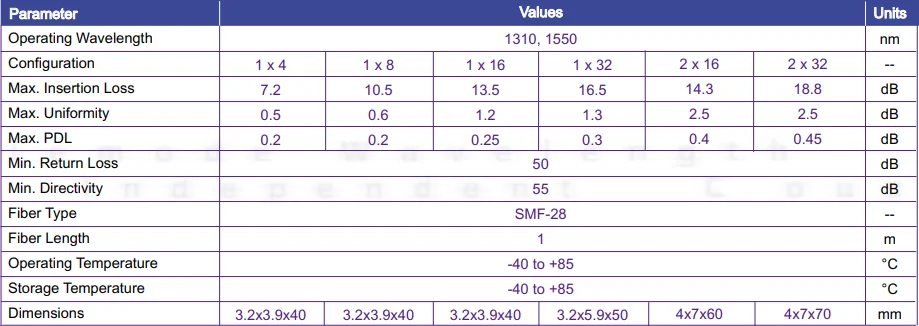

Parameter
Specification
Operating Wavelength (nm)
1260 ~ 1650
Type
1x4
1x8
1x16
2x4
2x8
2x16
1x32
2x32
1x64
Insertion Loss (dB) Max. *
<7.3
<10.4
<13.5
<7.6
<11.2
<14.5
<16.2
<18.2
<20.5
Uniformity (dB) Max.*
<0.8
<1.0
<1.5
<1.0
<1.5
<2.0
<2.0
<2.5
<2.5
PDL(dB)Max.*
<0.2
<0.2
<0.3
<0.3
<0.3
<0.4
<0.3
<0.4
<0.3
Directivity (dB) Min *
55
Return Loss (dB) Min *
55(50)
Operating Temperature (°C)
-5~ +75
Storage Temperature (°C)
-40 ~ +85
Fiber length
1m or custom length
Fiber Type
Corning SMF-28e fiber

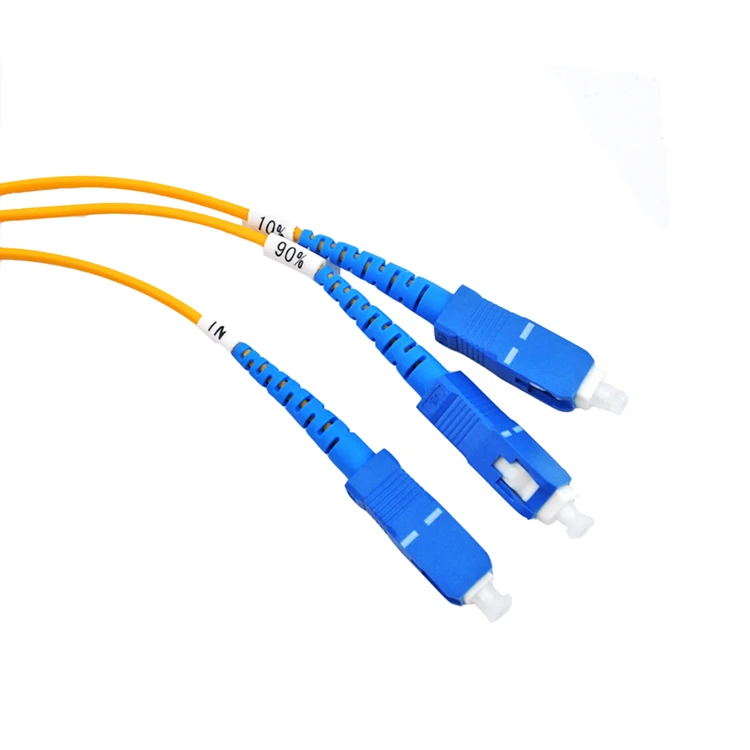

Connector Type
Custom specified
Power Handling (mW)
300















1. Can we get a lower price? Any Discount?
Yes, price is not a problem, everything could be negotiated based on the quantity.

2. Can I get a free sample?
Yes,send inquiry,you will get free sample.

3. We are new in this PON fields, can you help me and recommend me some items?
Yes, of course. It is our pleasure to help you with it.
You only need to offer us more details about your application.

4. What is your MOQ?
No MOQ for any sample test.

5. OEM/ODM Service is available?
Yes, we have strong ability to offer customers ODM&OEM products of highest quality.
And it will require the MOQ.

6. For Trade Terms, such as payment and leadtime.
* Payment Terms: We mainly support T/T bank transfer,Paypal and Western Union
* Price Terms: EXW FOB CIF Shenzhen
* Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent
* Leadtime: Sample order 3-7work days; Bulk order 15-25work days(after your payment)

7. How about the Warranty?
There are 1 Year for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
