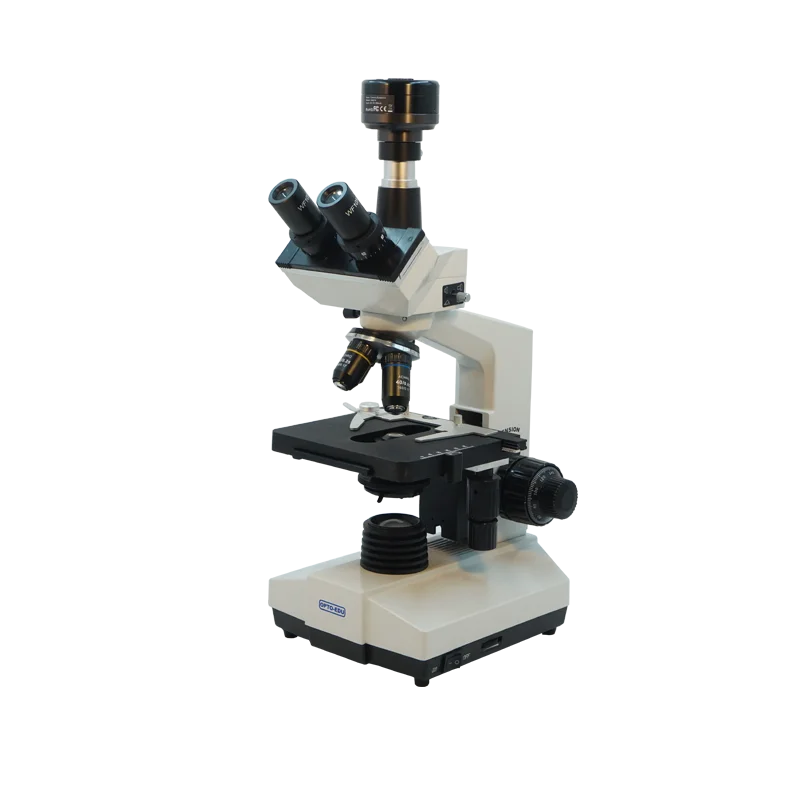

OPTO EDU A59.4902 B High fps digital microscope color ccd camera Camera for Fluorescence microscope
- Category: >>>
- Supplier: Opto-Edu (Beijing) Co. Ltd.
Share on (60787964631):
Product Overview
Description

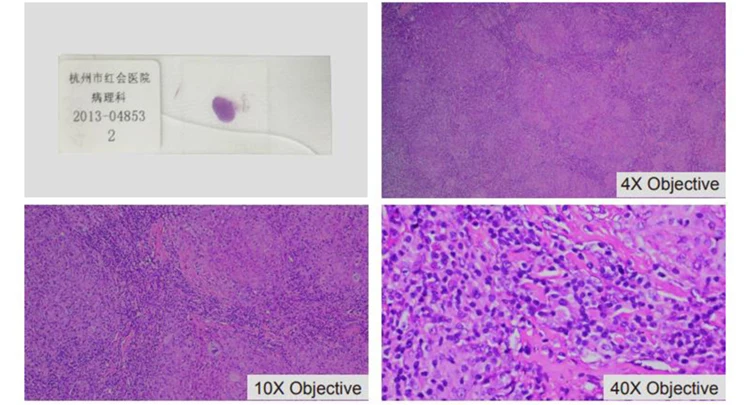

Product Application

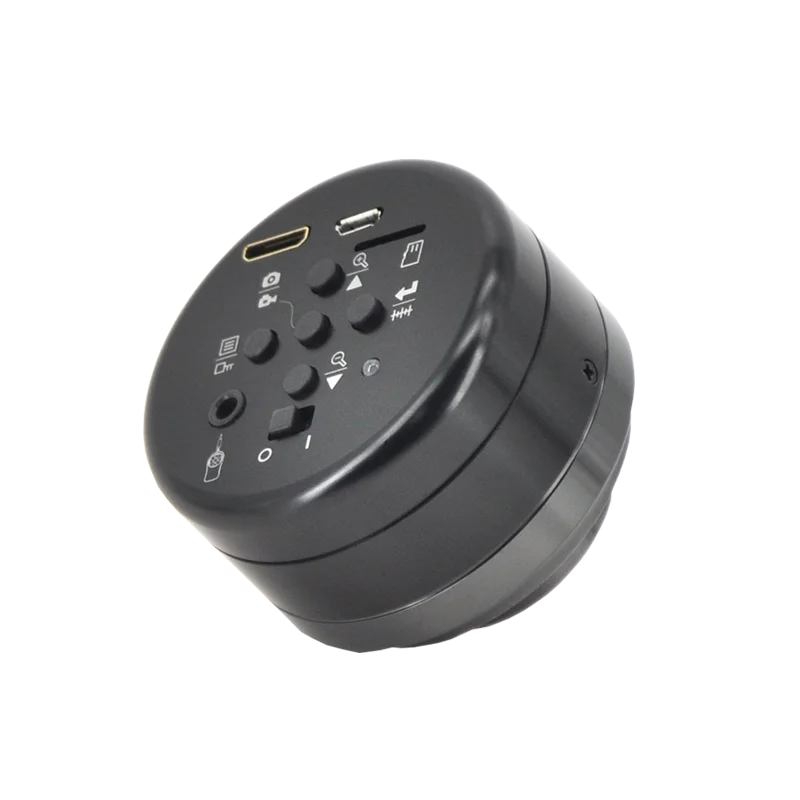

Details Images

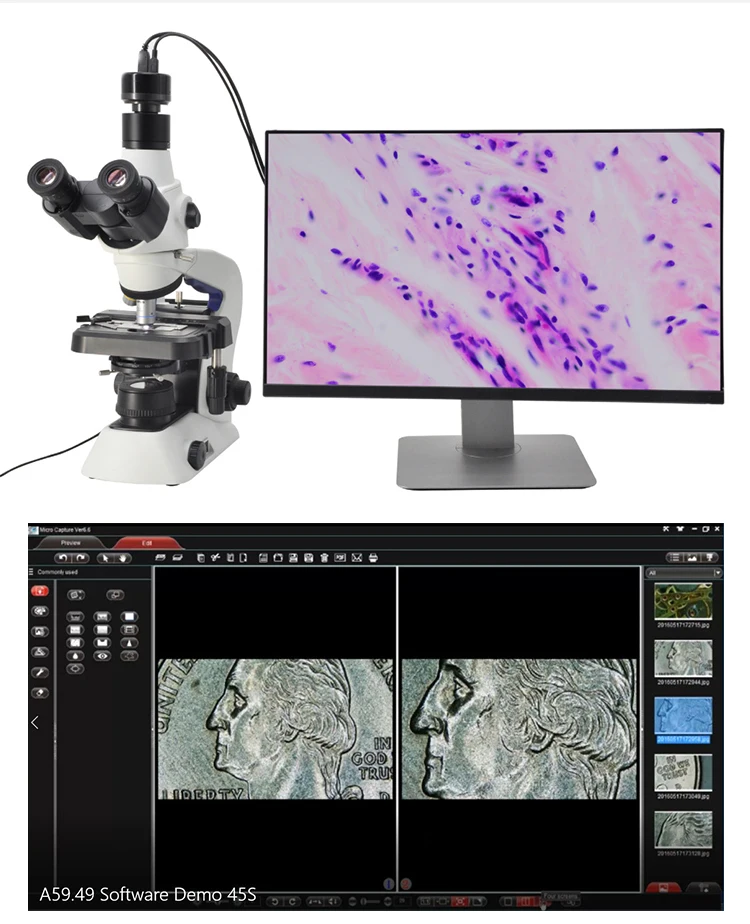

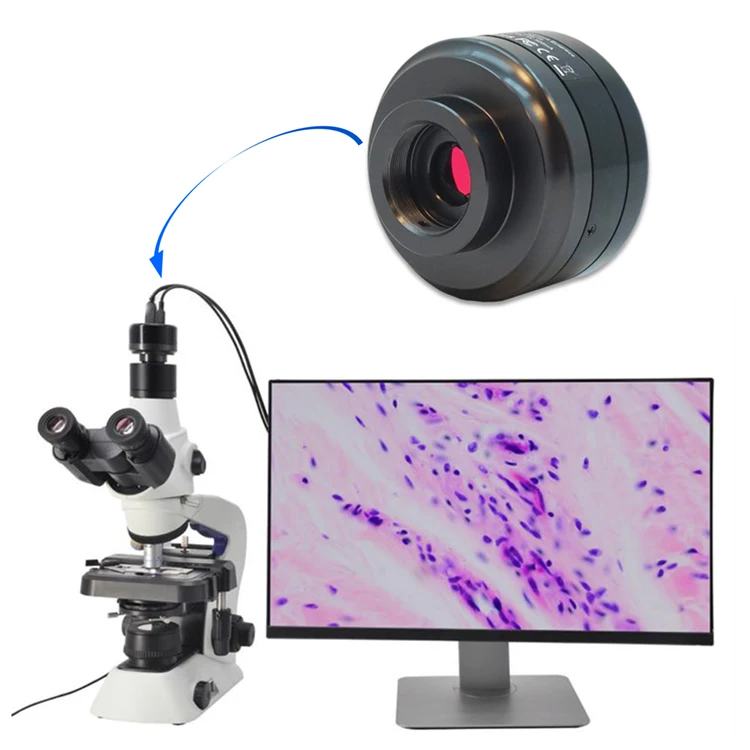

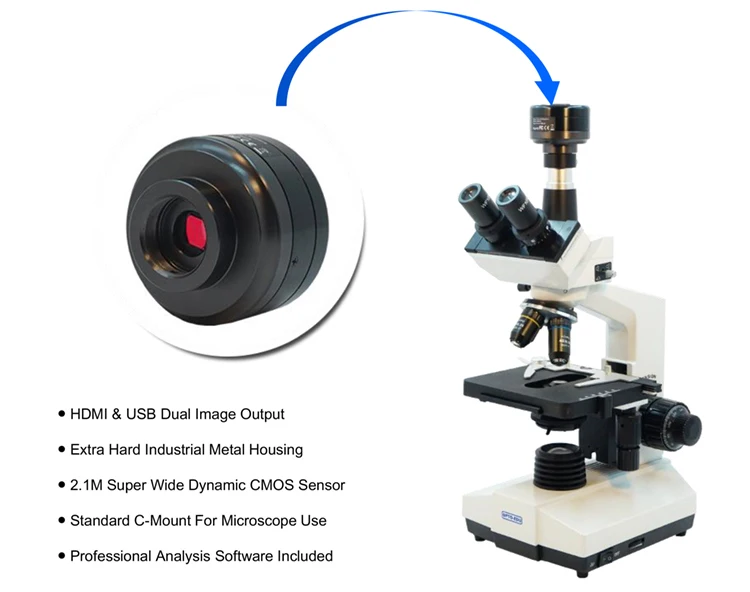

A59.4902-B digital eyepiece, combines USB and HD output, with professional imaging software, high quality 2.1M pixel HD color image sensor, it is ideal tool to show real time micro image on your HD monitor or PC, easily capture image, record, and manage the pictures.
Large depth of field, wide field of view, long operation distance.

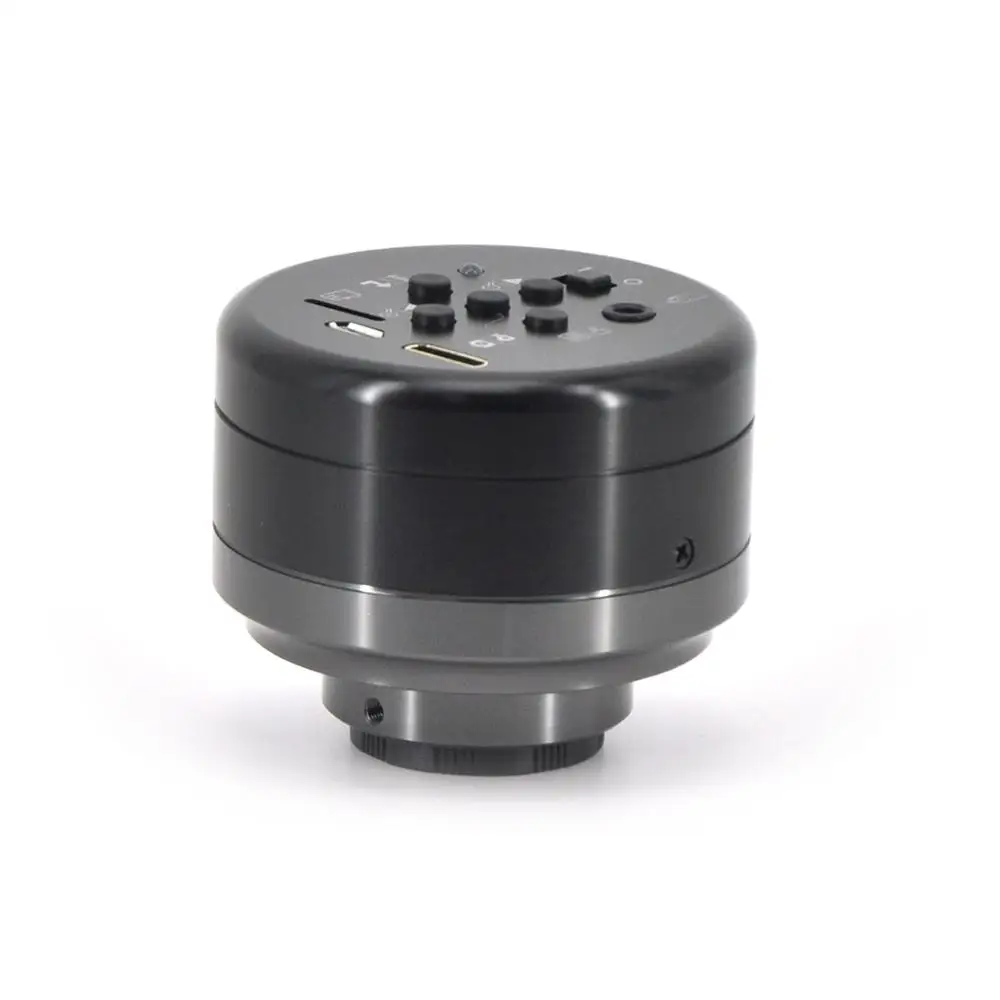

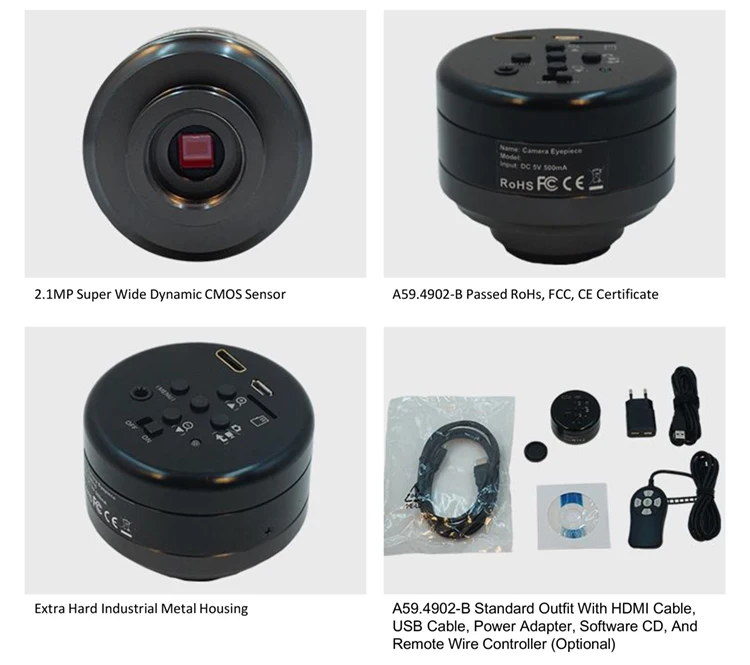

Industrial metal housing, Extra-hard and wear- resistant.
Dual output HD & USB to support photograph/record and real time storage of SD card image, with USB 2.1M, HD 1080p/30fps.
Adopt advanced HDR image processing technique under HD mode to largely reduce light reflection of the observation object surface.
High quality USB 2.0 & HD cable support plug & play for high speed data transfer.
Professional analysis software support OEM different language version.9.
Industrial metal housing, Extra-hard and wear- resistant.
Dual output HD & USB to support photograph/record and real time storage of SD card image, with USB 2.1M, HD 1080p/30fps.
Adopt advanced HDR image processing technique under HD mode to largely reduce light reflection of the observation object surface.
High quality USB 2.0 & HD cable support plug & play for high speed data transfer.
Professional analysis software support OEM different language version.9.

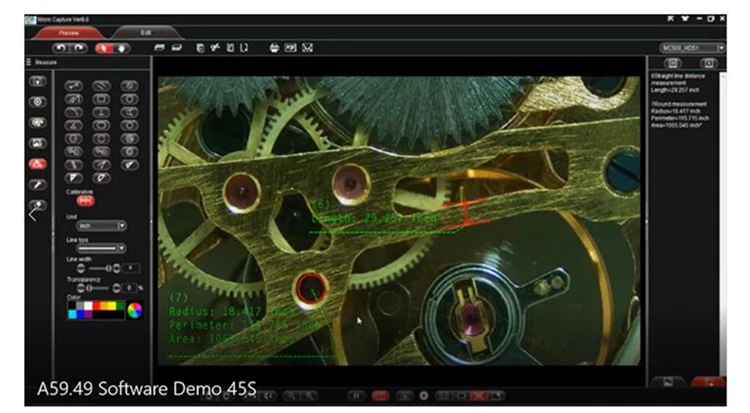

Dynamic and still annotations, powerful measure functions for choice in (PC).

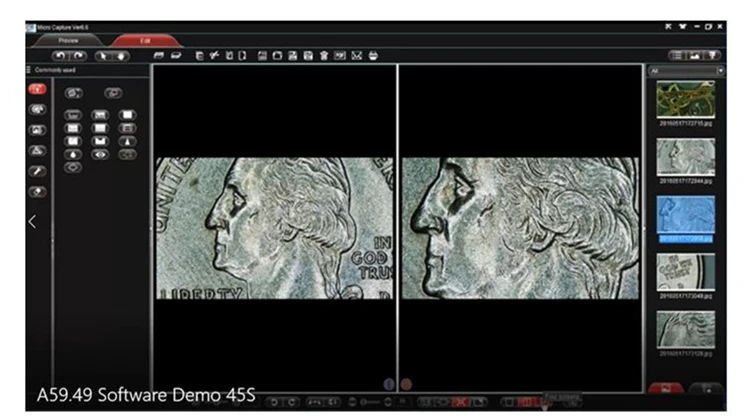

2 split and 4 split screen to compare and analysis different images at same time in (PC).
2 split and 4 split screen to compare and analysis different images at same time in (PC).
Products Description
Hardware Configuration | ||
Imaging Sensor | SONY CMOS IMx291 super wide dynamic CMOS sensor | |
Expose Mode | Rolling shutter | |
The Maximum Resolution | 2.1M 1920 x 1080(2,073,600 Pixels) | |
Sensor Optical Format | 1/2.8“ (6.058mm(H) x 4.415mm(V)) | |
Pixel Size | 2.9μm x 2.9μm | |
Dynamic Range | 128dB | |
ADC | 12-bit, 8-Bit R.G.B to PC | |
SNR Max | 30dB | |
Spectral Characteristics | 380-650nm | |
Exposure Capability | Real-time auto, Single auto, Manual adjustment | |
White Balance | Real-time auto, Single auto, Manual adjust R G B separately | |
HD Output Resolution | 1920x1080P60, 1920x 1080P50, 1920x 1080P30, 1920x 1080P25, 1920x 1080I60, 1920x 1080I50, 1280x 720P60, 1280x 720P50, 640x 480P60(Auto adjust according to displayer) | |
Record Format | Snapshot Picture Format: JPG Resolution: 1920x 1080 | |
Record Video Format: MOV Resolution: 1920x 1080P30, 1280x 720P120, 1280x 720P60 | ||
Record Route | TF Card(Maximum support 128G, support hot plug ) | |
Interface Parameter | ||

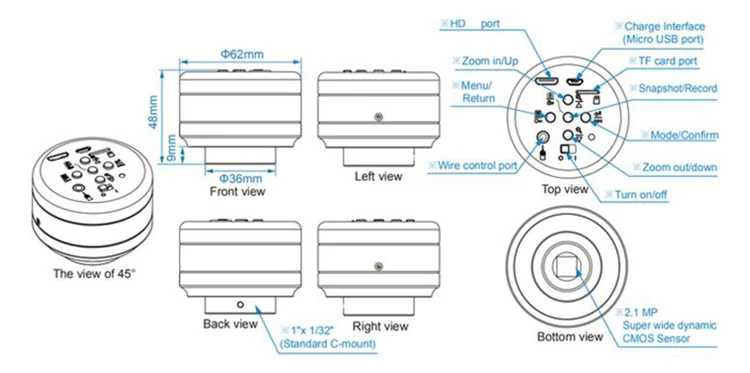

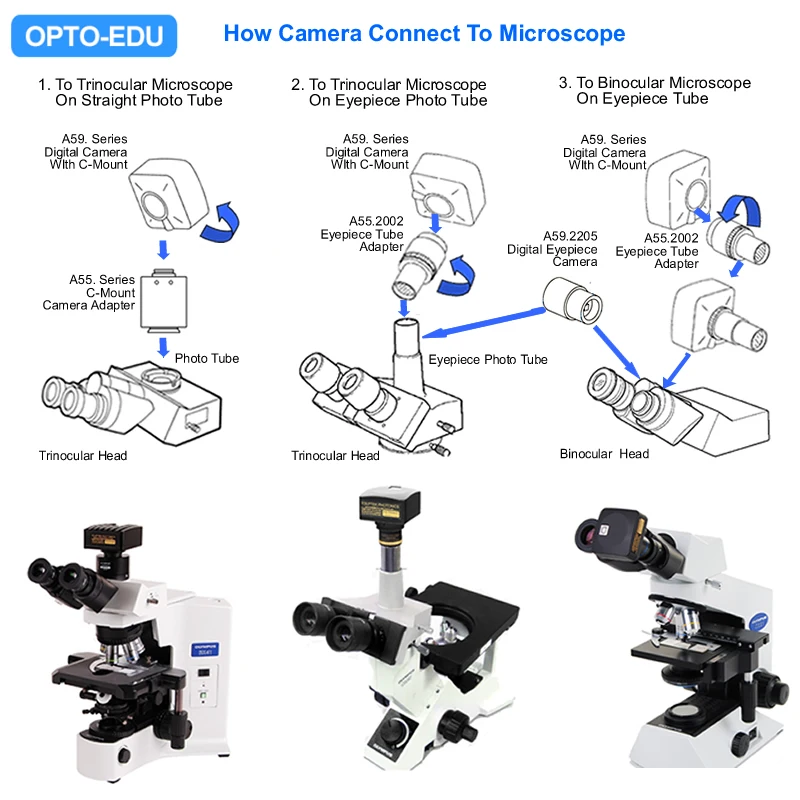

Camera Interface | C mount thread (1“x1/32) | |

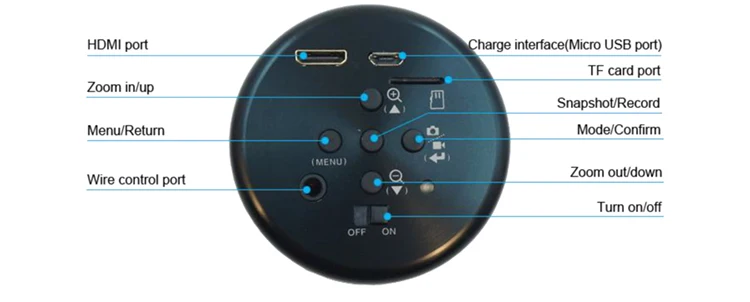

Wired Picture Interface | HD TYPE C Mini HD | |
Charger Interface | Micro USB, DC5.0V (Maximum current 1A) | |
Software Environment | ||
Displayer | Recommend 16:9, at least 1080P HD displayer | |
Operating Environment | ||
Operating Temperature | 0℃~ 40℃ | |
Storage Temperature | -20℃~ 60℃ | |
Operating Humidity | 30~60%RH | |
Storage Humidity | 10~80%RH | |

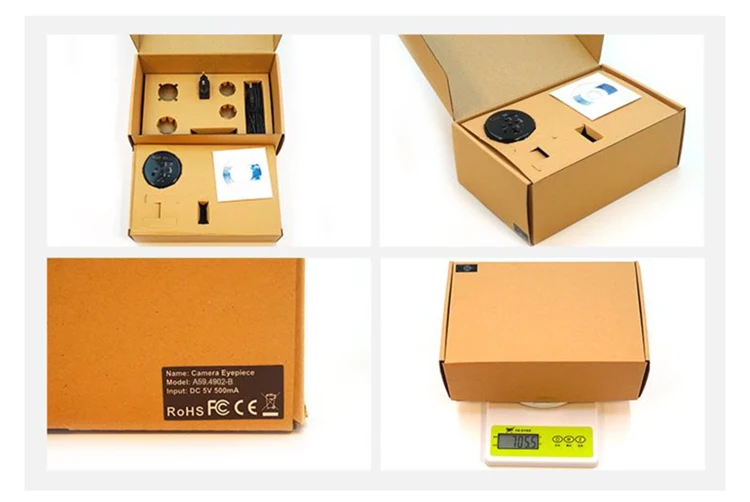

Product Packaging
