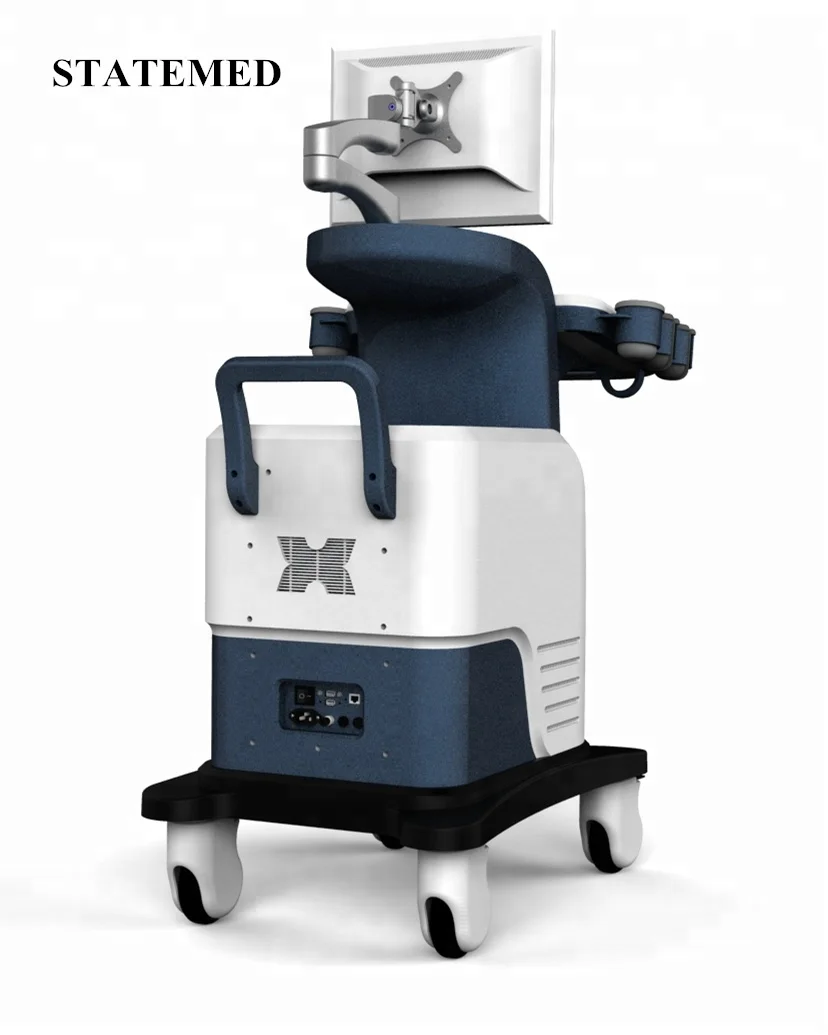

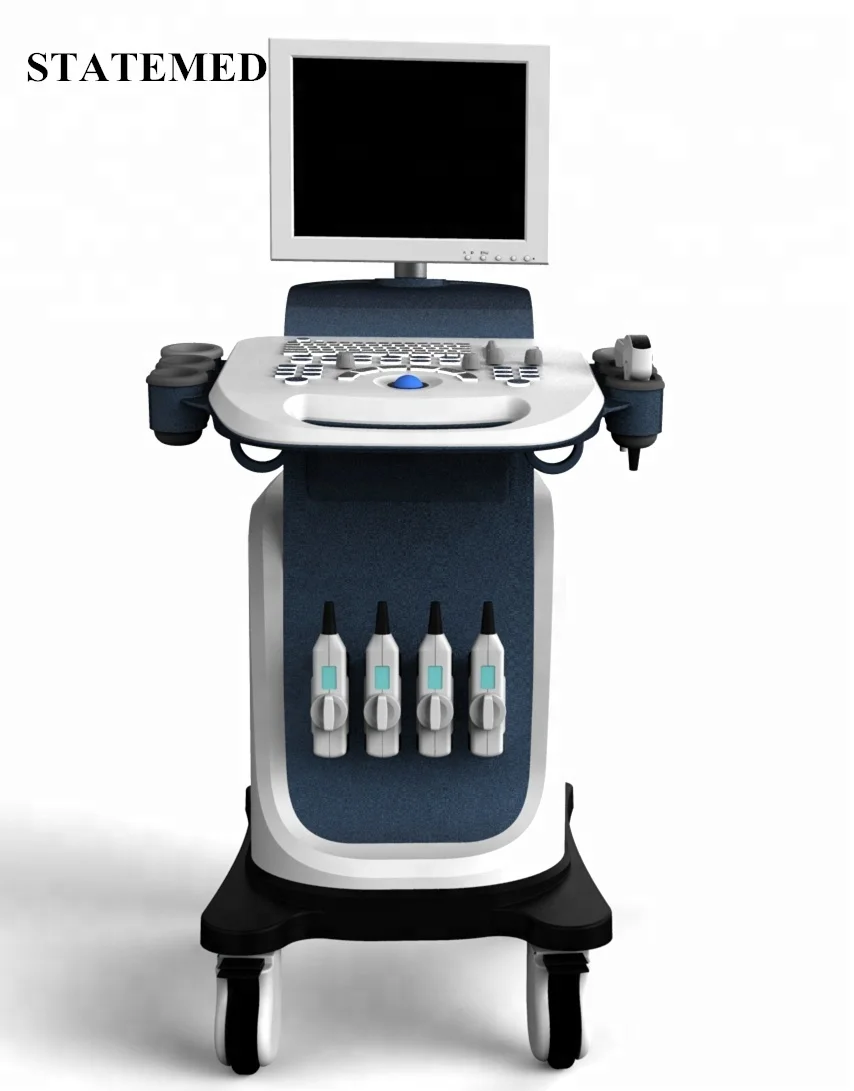

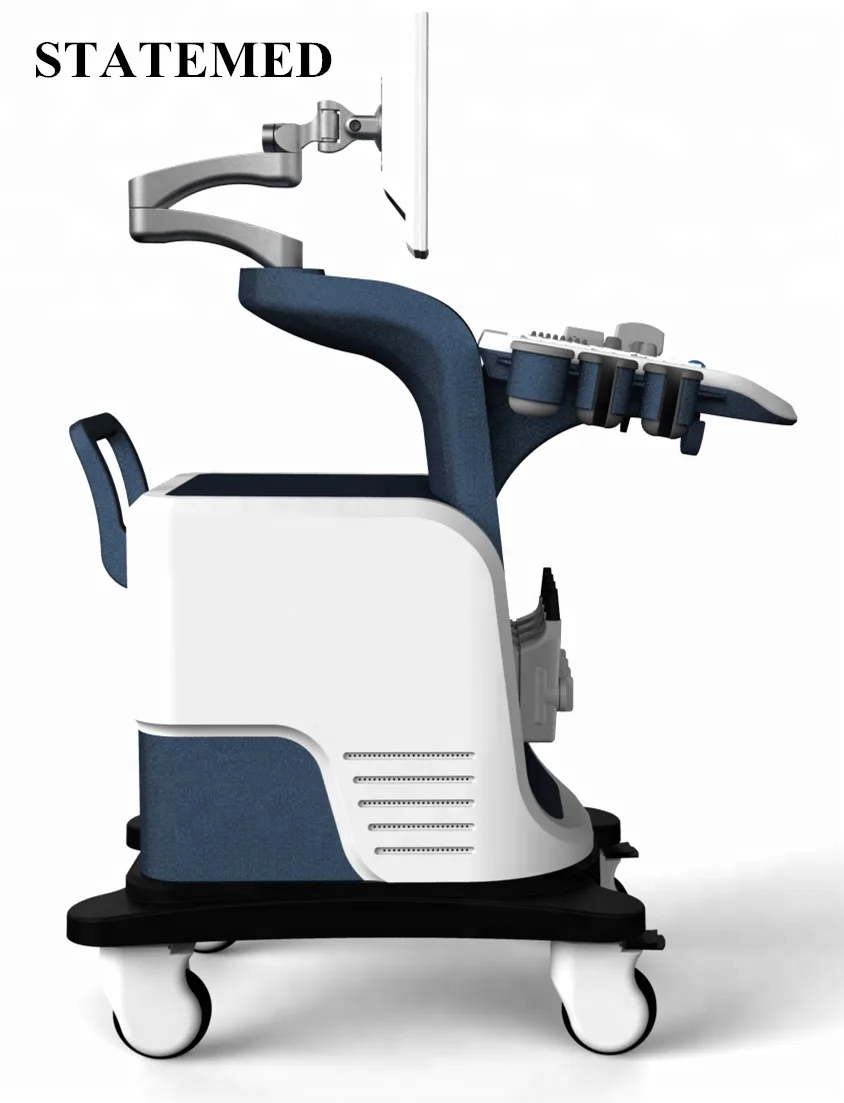

Color Doppler Ultrasonic Diagnosis System cheap portable 4d color doppler ultrasound

Main Functions

Scanning mode

Convex array, lumen, high-frequency linear array, phased array

Element

128

PC platform

WIN XP

Standard probe

2.0/2.5/3.5/4.5/5.5MHz convex

Option probe

2.0/3.0/3.5/4.0MHz phased array transducer

5.0/7.0/8.5/10/12MHz linear transducer

4.0/5.0/6.0/7.0/8.0MHz transvaginal transducer

4.5MHz 4D volume transducer

Dynamic range

B,B/B,M,B/M,CFM,CMF/B,PDI,B/PW, total eight mode,( optional 4D)

Application mode

abdomen, gynecology, obstetrics, superficial organ, urologist, heart and user defined model 1-4, total ten models

Image mode

digital beam forming, tissue harmonic imaging

Acoustic output

Mechanical index and thermal index real-time display

Acoustic power

Step is adjustable, real-time display

Gray scale

256 scales

Depth display

≥250mm

B/D dual-purpose

linear array: B/PWD; convex array: B/PWD

Pseudo color processing

16 kinds of pseudo color encoding can optional

Gain adjusts

8 segments TGC, B/M/D/C is independently adjustable; TGC curve can show and hide automatically

Image magnification

picture in picture zoom in and zoom part function

Image processing

Edge enhancement: Multilevel adjustable

Frame average: Multilevel adjustable

Line average: Multilevel adjustable

Focus Optimization: Multilevel adjustable

Gray Restrain: Multilevel adjustable

Gamma correction: Multilevel adjustable

Contrast: Adjustable

Brightness: Adjustable

Self-motion optimize function

Built-in multiple check type, according to different inspection organs, preset best image check condition, reduce the adjusting operation keys

One-click optimization function

preset several parameters adjusting focus on a button, a key to realize image fast optimization

Measurement and calculation

B mode routine measurement:

Distance, circumference, area, volume, angle, ratio, and stenos rate.

M mode routine measurement: Heart rate, time, distance, speed, ratio, etc.

Gynecology measurement: Uterus, cervix, endometrial, ovary, follicular.

Obstetrics measurement:

EGA, ETD, fetal weight estimation, AFI index, OB report (including OB tables).

Cardiology measurement: LV measurement.

Urology measurement:

Prostate volume, displacement volume, bladder capacity, and residual urine output.

PW measurements: Time, speed, Heart Rate, RI, PI, etc.

Other measurement: Slice volume measurement, hip joint angle measurement.

Image storage

Image storage, video storage, cine loop, disk storage capacity≥160G

Patient data

Medical record management, report inquiry and printing, image video output( HDD ,USB,Optional DVD-RW),built-in ultrasound workstation

Reporting system

automatic report generation system, and can be full screen characters in both Chinese and English editor;

Output interface

SR323,USB,DICOM interface

Optional

1.3D/4D imaging technology

2. Sound velocity imaging technology optimization

3.Color Doppler Energy(CDE)

4.Pulse Wave Doppler imaging(PW)

5.Continuous Wave Doppler Imaging(CW)

6.Color Doppler resolution enhancement

7.Panoramic imaging,space compound imaging

8.Adaptive speckle noise suppression techniques

9.Ergonomic design,All-round display angle adjustment

10.Imaging optimization technology;Compound enhance technology

11.Imaging processing technology

11.Multi-beam parallel processing technology

12.Tissue harmonic imaging

13.Four activated ports,15/17'HR medical monitor

14.One Touch Optimize under different modes

Designation

Performance

Displayer

15 inch LCD color display

Perimeter and area  measured deviation (%)

≤±20%

M mode time display error (%)

≤±10%

Input power

≤320VA

Gross weight

about 79 kg

Host weight

about 65 kg

Host appearance size

920×510×1280 (length × width × height)(mm³)

The outer packing size

1050×690×1140 (length × width × height)(mm³)
