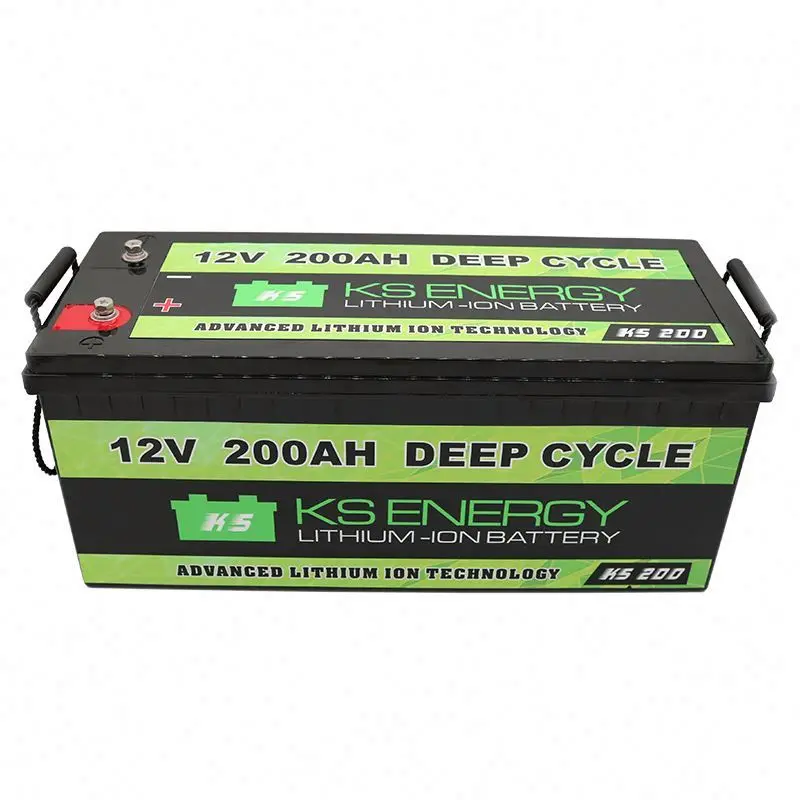

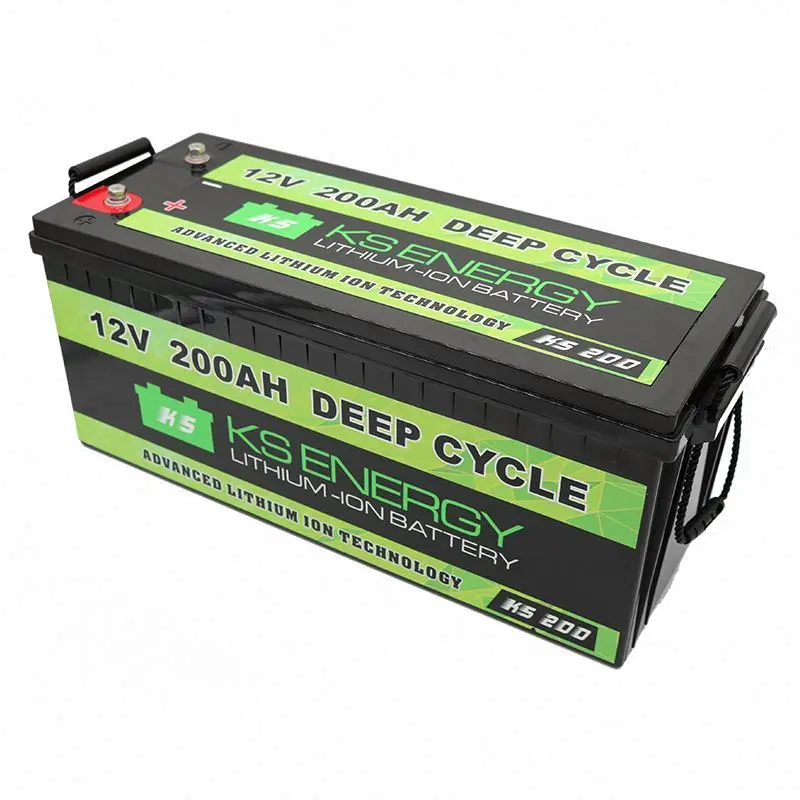

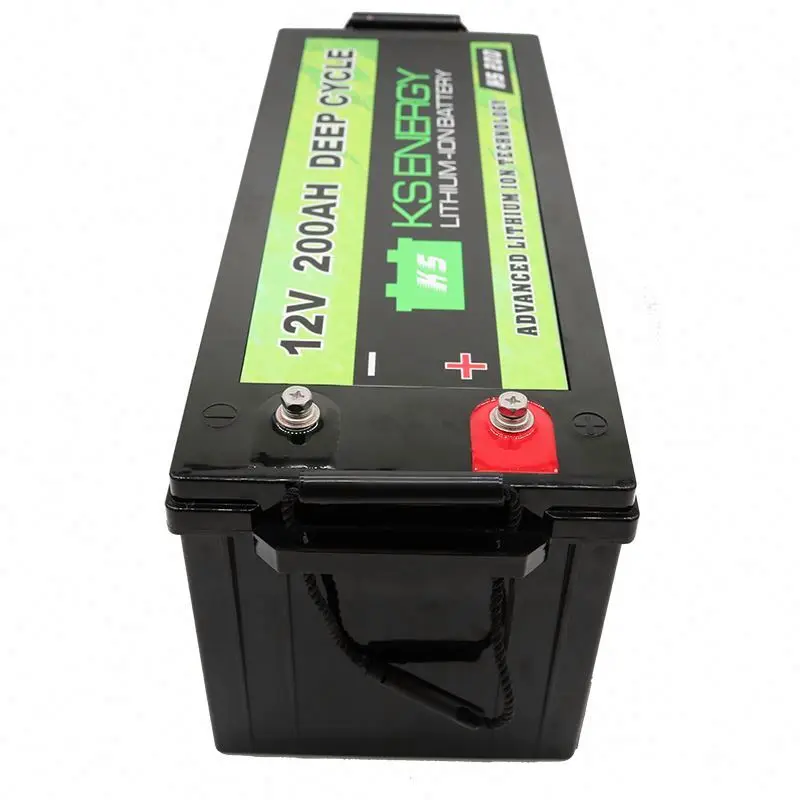

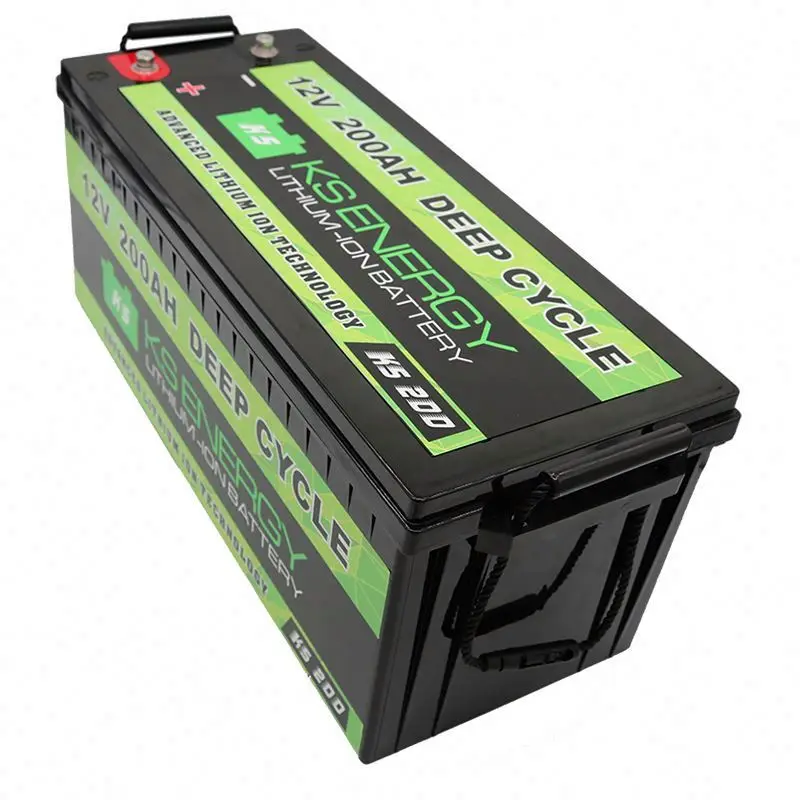

12v 200ah lithium battery for caravan/mobile home battery with 3000cycle 12v lifepo4

Share on (60787998968):


Price:$457.00 - $499.00

Quantity:


Product Overview

Description






You May Like


lifepo4 battery 12v 100ah.jpg


     12v 40ah                          12v 50ah                       12v 60ah                   12v 80ah


 lithium battery 12v.jpg


         12v 100ah                     12v 120ah                      12v 200ah                 12v 300ah














Product Description


12v 200ah lithium battery for caravan/mobile home battery with 3000cycle 12v lifepo4


12V lithium ion battery is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance and application advantages compared with conventional battery.

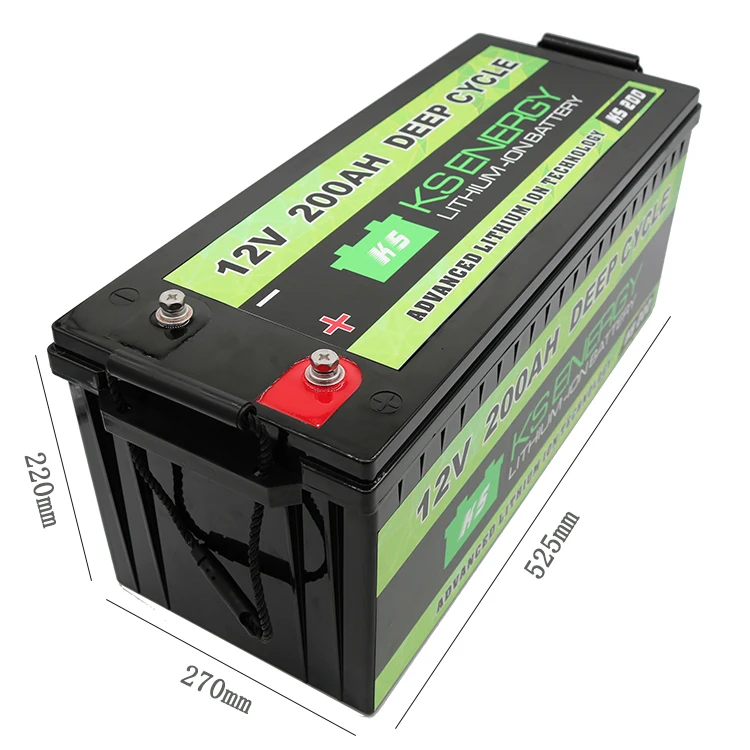

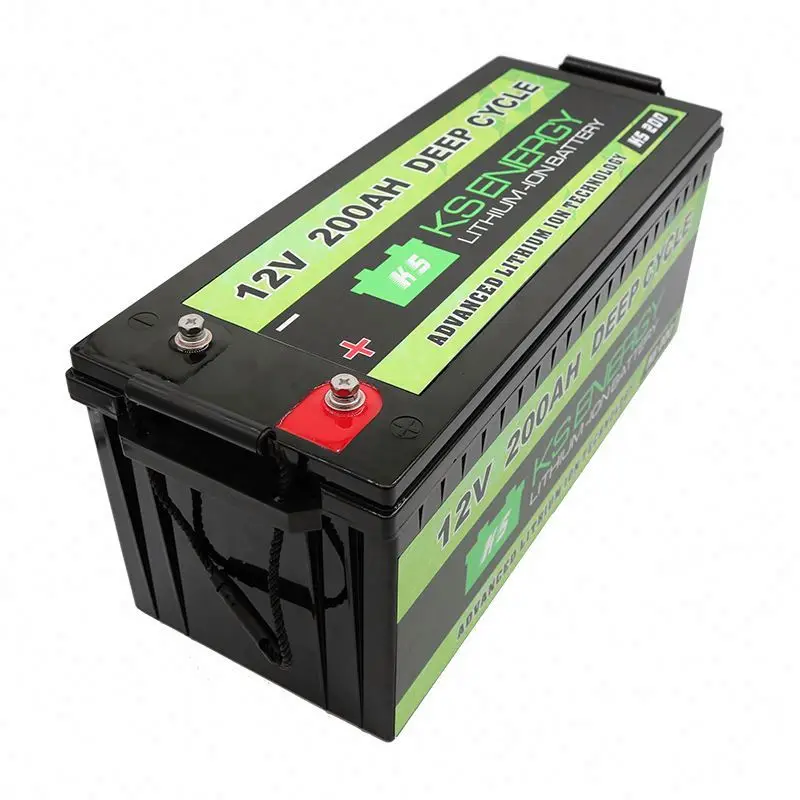

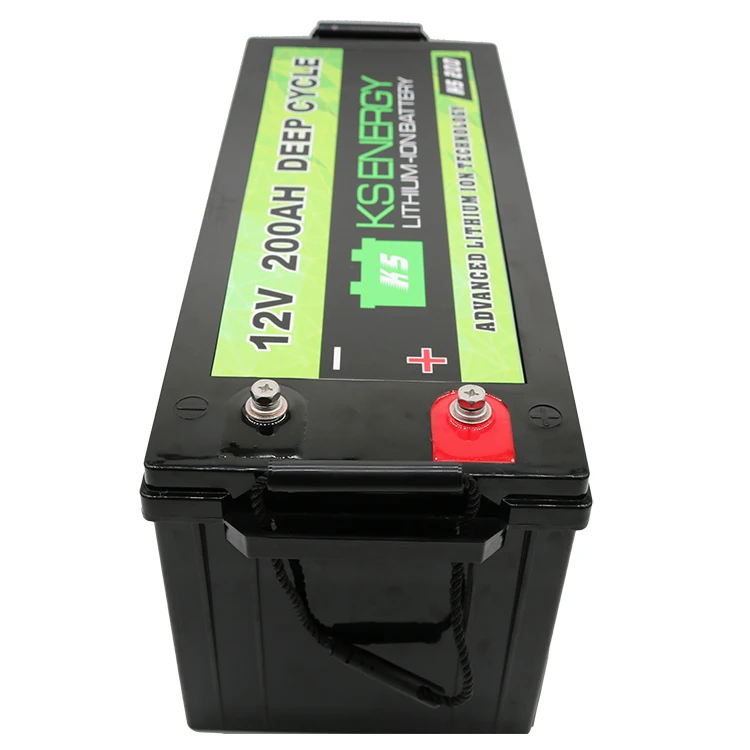

Lifepo4 12v 200ah  (7).jpgLifepo4 12v 200ah  (1).jpgLifepo4 12v 200ah  (6).jpg





Basic Specification













































































































ItemsItemsMODEL : KS200
Cell TechnologyLiFePO4
Battery Module Capacity (kWh)2.56
Battery Module Voltage (Vdc)12.8
Battery Module Capacity (AH)200
Battery Module Cell Quantity in Series (pcs)4S
Battery Module Charge Voltage (Vdc)14.6
Battery System Charge Current (Standard)50A
Battery Module Charge Current (Normal)50A
Battery Module Charge Current (Max.)60A
Battery Module Discharge lower-Voltage (Vdc)10V
Battery System Discharge Current (Standard)50A
Battery Module Discharge Current (Normal)100A
Battery Module Discharge Current (Max.)250A
Efficiency98%
Depth of Discharge100%
Dimension (L*W*H, mm)520*240*220
Weight28.5KG
CommunicationOption of CANBUS OR RS485
Protection ClassIP65
Operation Cycle LifeOver 4000 times
Operation Life10+ years
Operation Temperature0-50°C
Storage Temperatureminus 20 -- 60 °C
Products certificatesTÜV (IEC62619), CE
Transfer CertificatesUN38.3 , MSDS






ADVANTAGES


lithium battery.jpg





1.It is high integrated with less installation space.


2.Long life cycle, >3000 times at 80% DOD.


3.It without heavy metals and environment friendly.


4.Maintenance free,there is no memory effect.


5.Internal BMS with full protection,battery has high voltage protection with higher reliability.





12V SPECIFICATION


12v lithium battery.jpg





SAFETY


Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.



lithium ion battery.jpg








APPLICATIONS lithium battery 12v.jpg





1.Energy Storage
   --Solar-Wind Power System / City Grid (On/Off) / Community and Family
2.Back-up System and UPS
   --Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
3.Other Applications
   --Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
   --RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
   --LED Backup / Engine Starting Battery,etc.





WHY CHOOSE US ?


1.Experience--More than 12 years Specialized in lithium battery, Gold Supplier on Alibaba.
2.Certification--CE,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
3. Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
4. Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
5. Fresh battery-- All battery is fresh Production.


 lithium ion battery .jpg











Company Information


KS ENERGY is focused on manufacturing, R&D and sales for safe Lithium battery and solutions. With the registration and certification of CE, SGS, ROHS.  Striving to grow into a global leading lithium battery supplier, KS ENERGY has been working hard on researching and developing new process technology to make our lithium battery more affordable and able to meet the rapidly growing market demands.


lithium battery supplier.jpg





Welcome To Visit


factory





Through years development and experienced international sales team in Shenzhen, KS ENERGY green solar and lithium battery products have been sold to clients all over the world.


Lithium battery Exhibition.jpg





Since 2006, KS ENERGY has maintained a corporate philosophy that is characterized by entrepreneurship, innovation, competition and transcendence. Today KS has established a solid foundation in two major industries: photovoltaic and Lithium, with its four production bases in Shangdong, Zhejiang, Sichuan, Guangdong.


Lithium battery factory.jpg











Our Services


KS ENERGY partners with customers to provide complete energy storage solutions that enable the rapid development and delivery of innovative products that meet demand in both existing and emerging markets.


--Professional pack module design on cylindrical and Prismatic design.


--Fast Production and Delivery time.
