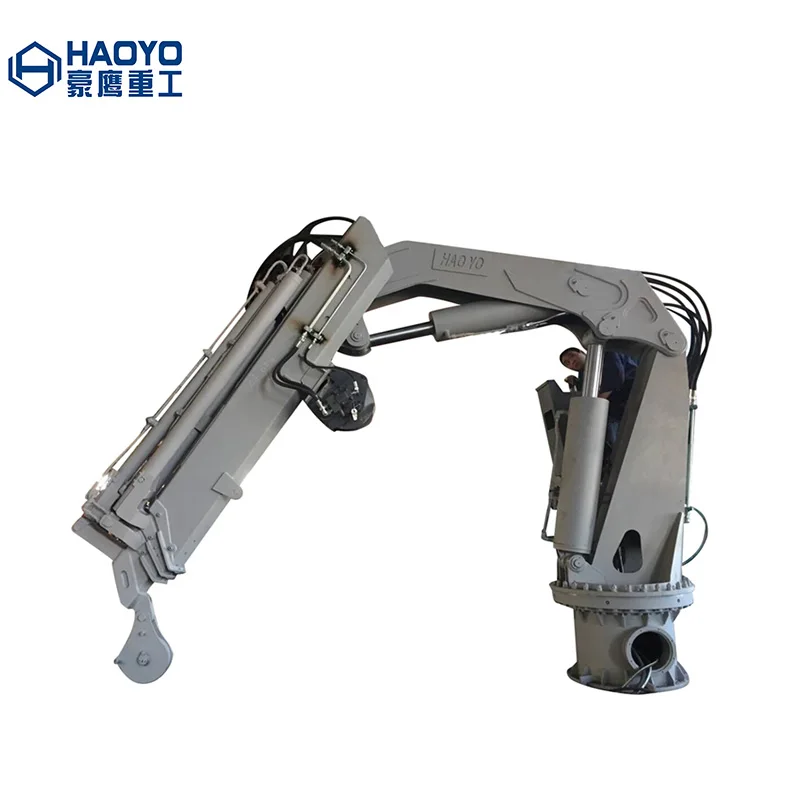

Hot Mini Lifting Knuckle Marine Telescopic Crane For Sale
- Category: >>>
- Supplier: Shanghai HAOYO Machinery Co. Ltd.
Share on (60788003022):
Product Overview
Description
Foldable Knuckle Boom Deck Crane Manufacturer
Product Name | HAOYO 360 degree Hydraulic Folding Boom Marine deck crane for sale |
Working condition | -25°~40° |
Power supply | 380v 50HZ 440V 60HZ |
Control model | cabin room, remote control and both |
Safety protection | Overload protection system Main lifting motor with thermal protection Hooks with latch Rubber buffers Protective earthing |
Brade | Rock |
Thread | coarse, fine |
Used | building industry machiner |
Product Details
MODEL | Outreach(M) | Lifting capacity(kg) | Lifting moment(kNm) | Total Moment(kNm) | Pedestal Diameter (mm) | Dead Weight (t) |
CF2700 | 1.5-5 | 1745-500 | 25.6-25 | 25.6-25 | 27.2 | 230-260 |
CF4501 | 3.4-11 | 1180-230 | 38.9-24.2 | 44.9 | 450 | 560-760 |
CF6500 | 3.5-9.2 | 1600-480 | 55.7-43.8 | 58.7 | 450 | 530-670 |
CF8500 | 2.5-10.6 | 3450-620 | 85-65.5 | 93.7 | 450 | 700-1060 |
CF8501 | 3.5-13.8 | 2100-250 | 72-33.8 | 79.3 | 450 | 810-1230 |
CF11001 | 3.7-14 | 2550-390 | 93.4-54 | 104.8 | 450 | 820-1270 |
CF12000 | 4-14.3 | 2850-470 | 113-64.3 | 116.6 | 596 | 1080-1520 |
CF15500 | 4-14.3 | 3600-600 | 140.2-84 | 144.1 | 596 | 1190-1710 |
CF18500 | 4.1-14.3 | 4350-940 | 174.1-1 | 196.8 | 620 | 1820-2400 |
CF23500 | 4.1-16.4 | 5400-900 | 217-144.2 | 235.9 | 620 | 2190-3230 |
CF29002 | 4.1-21.1 | 6200-560 | 245.4-115.5 | 282.9 | 620 | 2360-2890 |
CF 32080 | 4-13.7 | 7700-1900 | 299.6-255.5 | 340 | 620 | 2740-4065 |
CF32002 | 4.1-20.4 | 7440-725 | 301-145.6 | 352 | 709 | 2360-2890 |
CF41002 | 4.1-20.8 | 9160-1015 | 370.2-207.7 | 431 | 709 | 2740-4065 |
Packing & Delivery
Certificates
About Us
More Products
FAQ
1.What's type of the crane you want (stiff boom crane,telescopic boom crane,foldable boom crane,knuckle boom crane)
2. Crane SWL requested (________T)
3. Max. working radius of the crane (_______M)
4. The crane will be used on ship, offshore platform or fixed platform (motor 380V or 440V)
If you have any other special request for the crane, please advise us.
