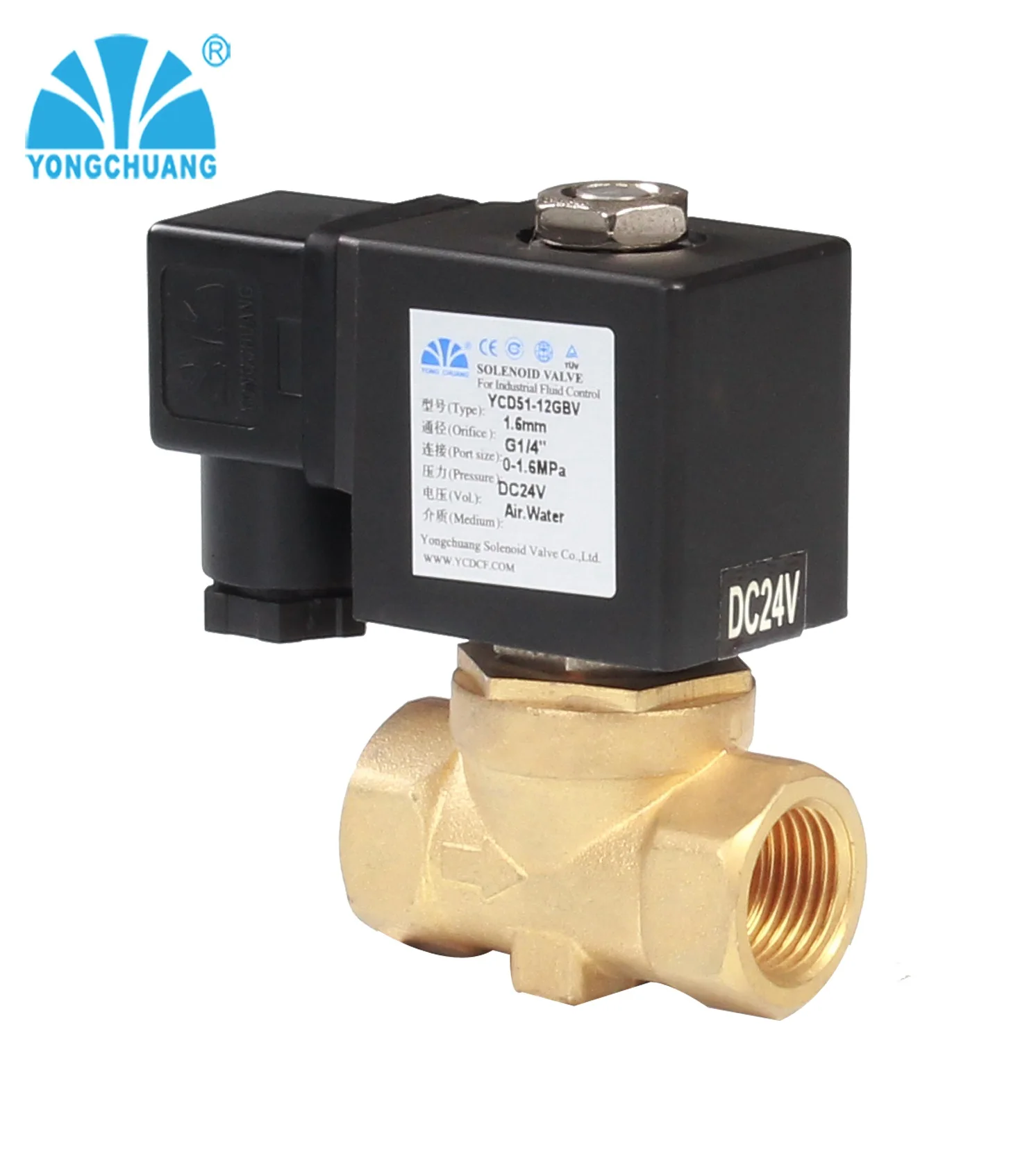

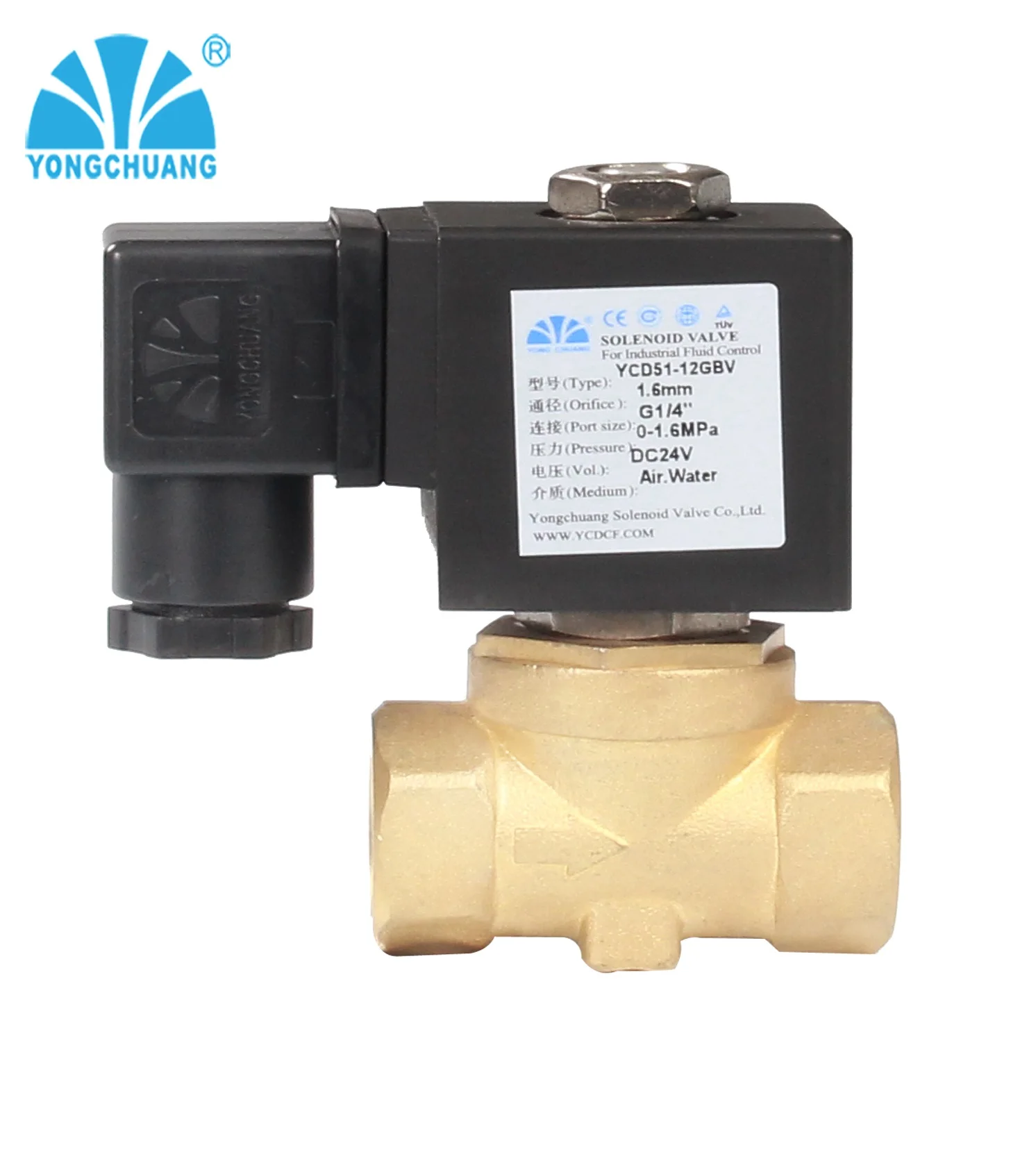

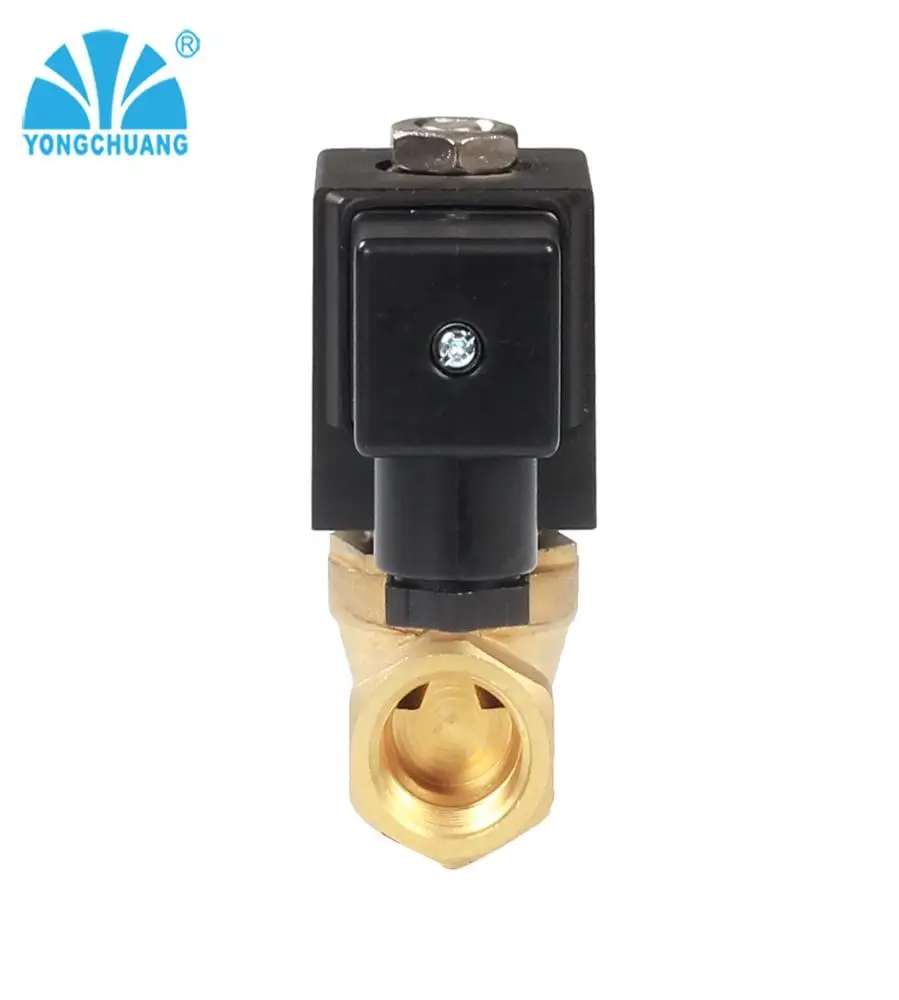

CE approved compact design water air solenoid valve
- Category: >>>
- Supplier: Yuyao Yongchuang Solenoid Valve Co. Ltd.
Share on (60788003072):
Product Overview
Description
| Ctic | 1)Pilot operated diaphragm construction with less power consumption. 3)Lifespan can be at 1million cycles |
| Medium | Air,water,steam,oil,etc. |
| Temperature | NBR: -10°C to 80 °C EPDM: -10°C to 120 °C FKM:-10°C to 150 °C |
| Pressure | 0.3-1.6Mpa |
| Port size | 1/4'-/12' |
| Port thread | G,NPT |
| Orifice | 12mm |
| Voltage | DC-12V,24V AC-24V,120V,110V,220V/50HZ |
| Tolerance | ±10% |
| Coil | S11B,24VA(AC),15W(DC),IP65,100%ED S91B,22VA(AC),17W(DC),IP65,100%ED
|
| | |
| Material | Body-brass Seal- NBR,EPDM,FKM Amature tube-stainless steel 304 Plunger-stainless steel430F Stop-stainless steel 430F Springs-SS304 Shading rings- stainless steel 304 |
|
