Hydrostatic Pressure Resistance Test DW1360

Product Overview

Description



Application

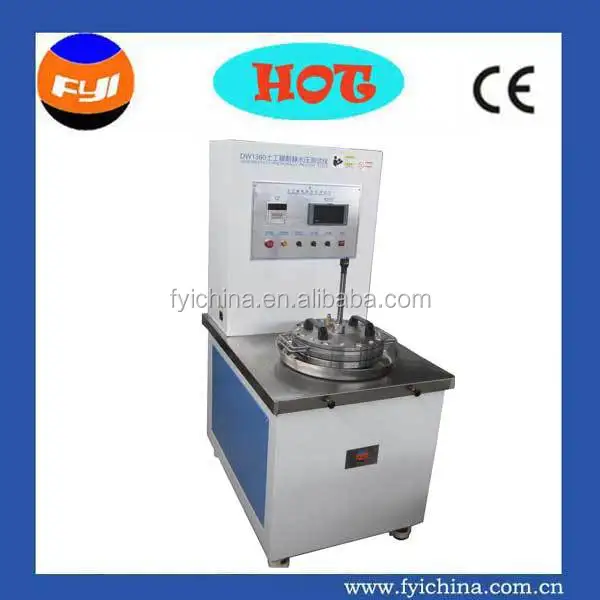

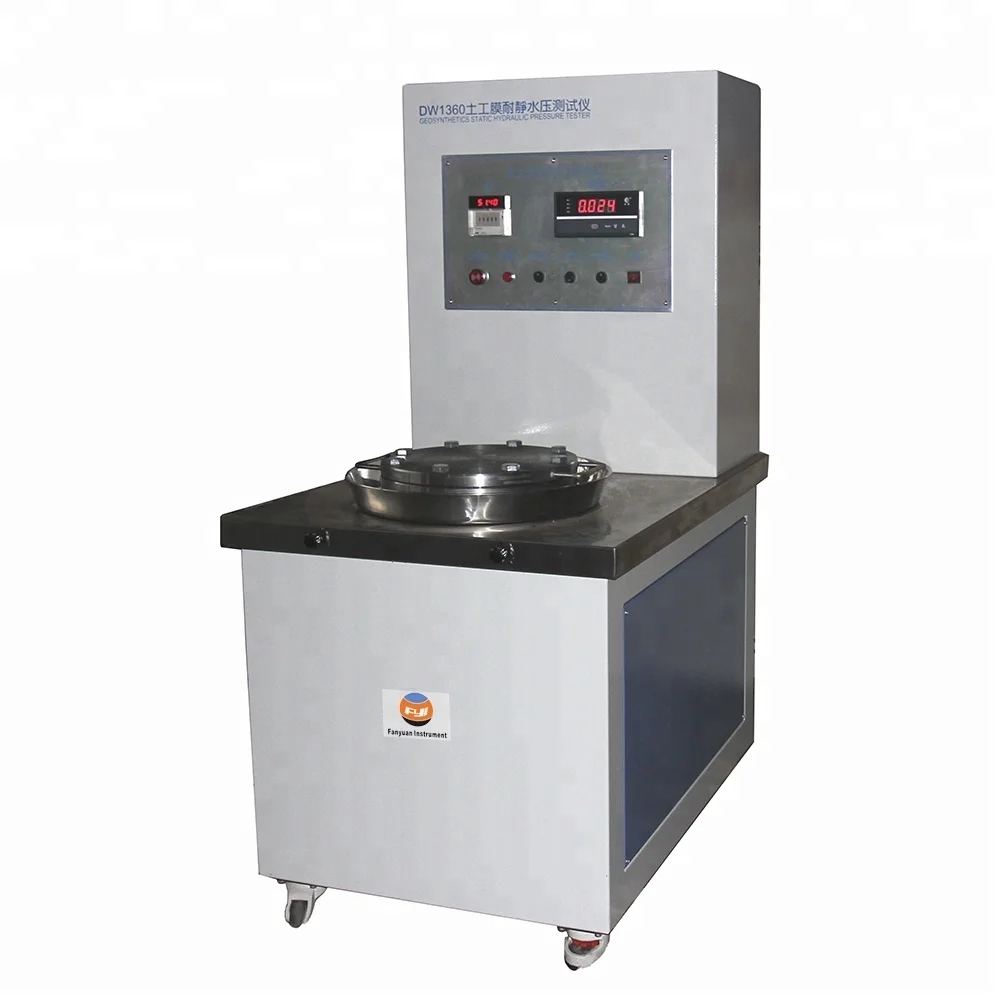

DW1360  Hydrostatic Pressure Resistance Test is used to determine the resistance to hydrostatic pressure and the permeability coefficient of geomembrane, geocomposites consisting of one or two layers of non-woven geotextile and one layer of membrane and other waterproof membrane materials under specified hydraulic pressure differences.



Related Standards

STANDARDS

GB/T 19979.1,GB/T 19979.2

JTG E50 T1142

Note: this  Hydrostatic Pressure Resistance Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.



Features

1        2 test item: resistance to hydrostatic pressure and permeability coefficient;

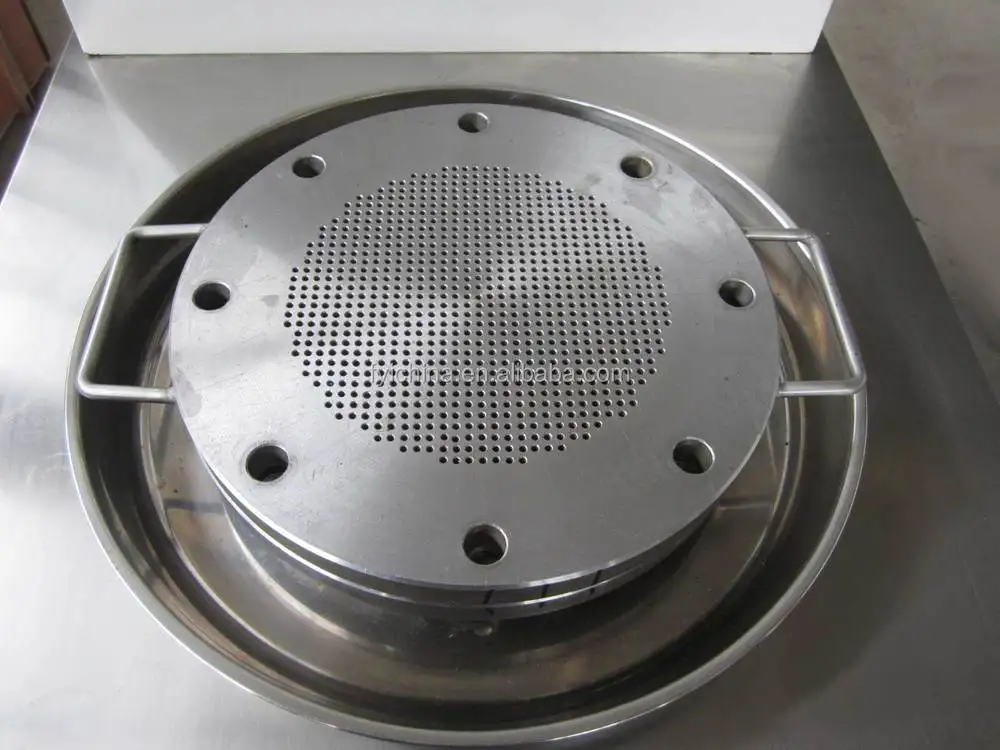

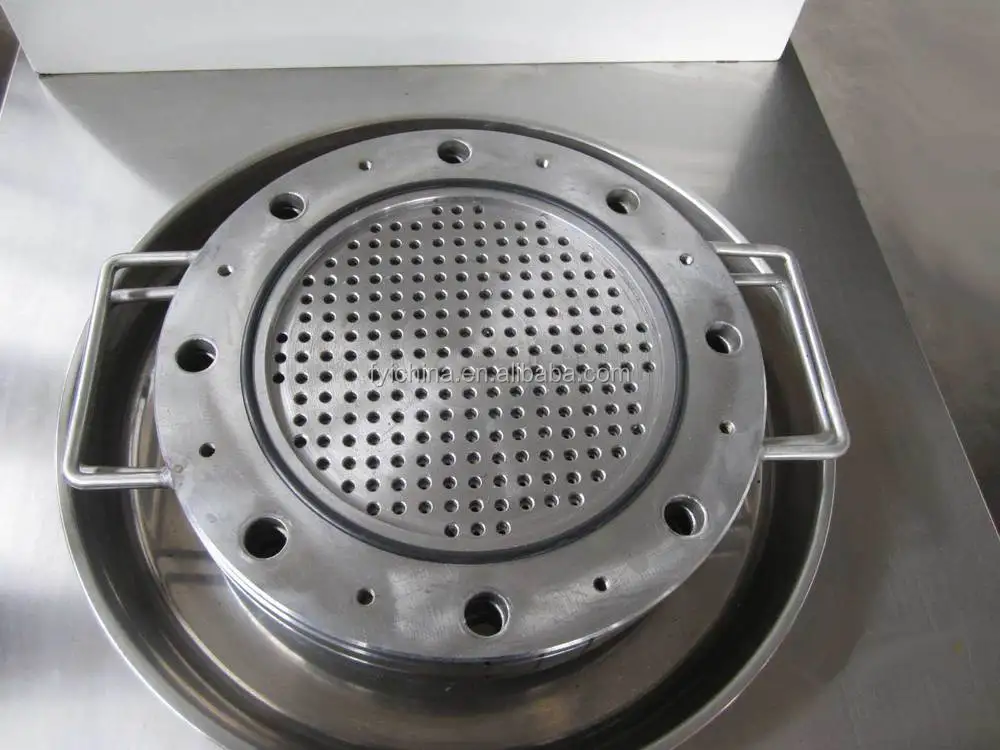

2        2Cr13 stainless steel clamps and porous board;

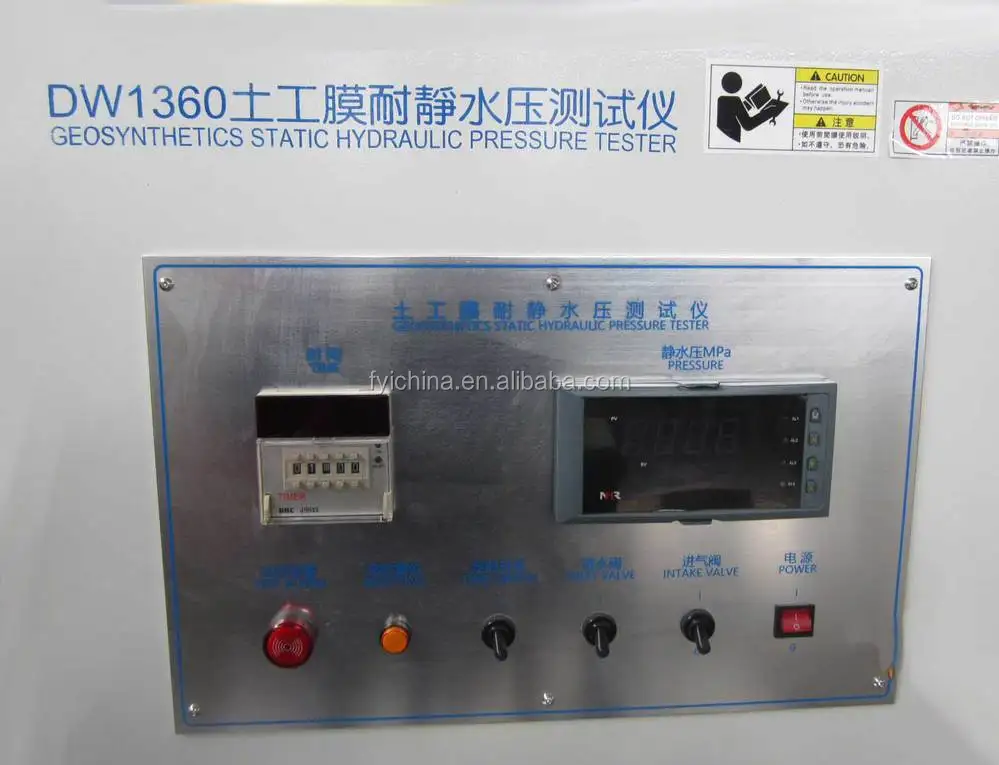

3        Three time units: hour, minute and second, selectable;

4        Pressure mode: Hydraulic pressure and air pressure;

5        High-precision pressure measuring device;



Details Pictures





Key Specifications of Hydrostatic Pressure Resistance Test

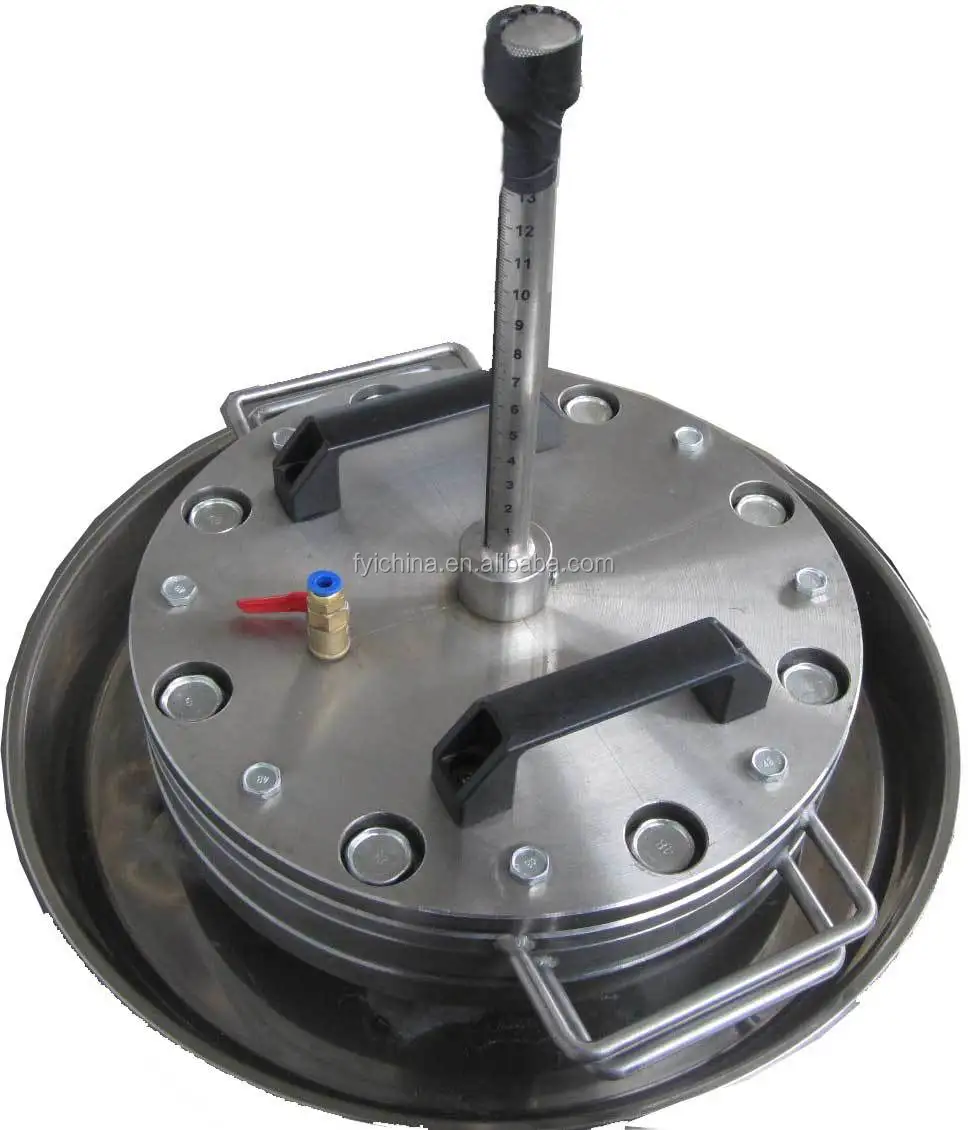

Capacity of permeated water collection tube	15ml
Readability of permeated water collection tube	0.1ml
Inner diameter of catchment	200±5mm
Diameter of holes on porous board	3±0.05mm
Space between holes on porous board	6mm
Pressure measuring range	0~2.5Mpa
Pressure measurement resolution	0.01Mpa
Accuracy of pressure control	±2%
Power supply	AC 220V 50Hz
Dimensions	600×850×1360mm (L×W×H)
