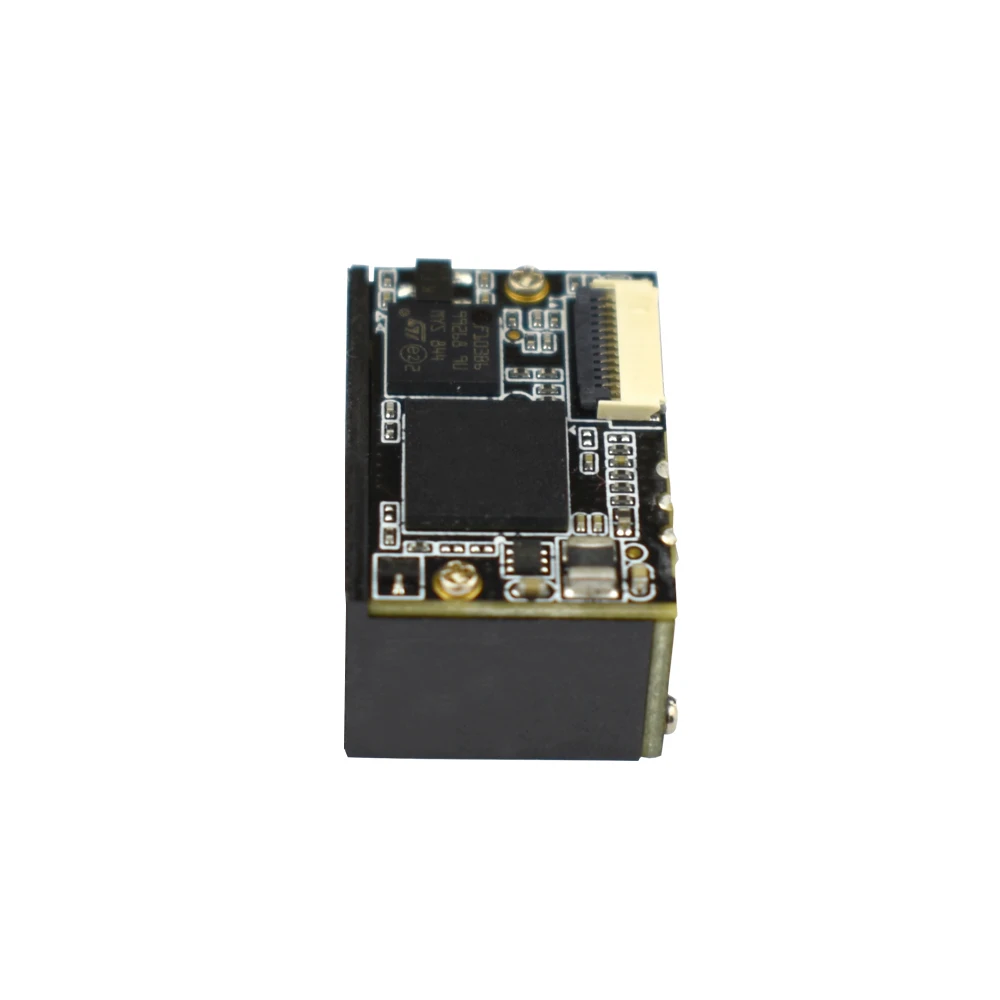

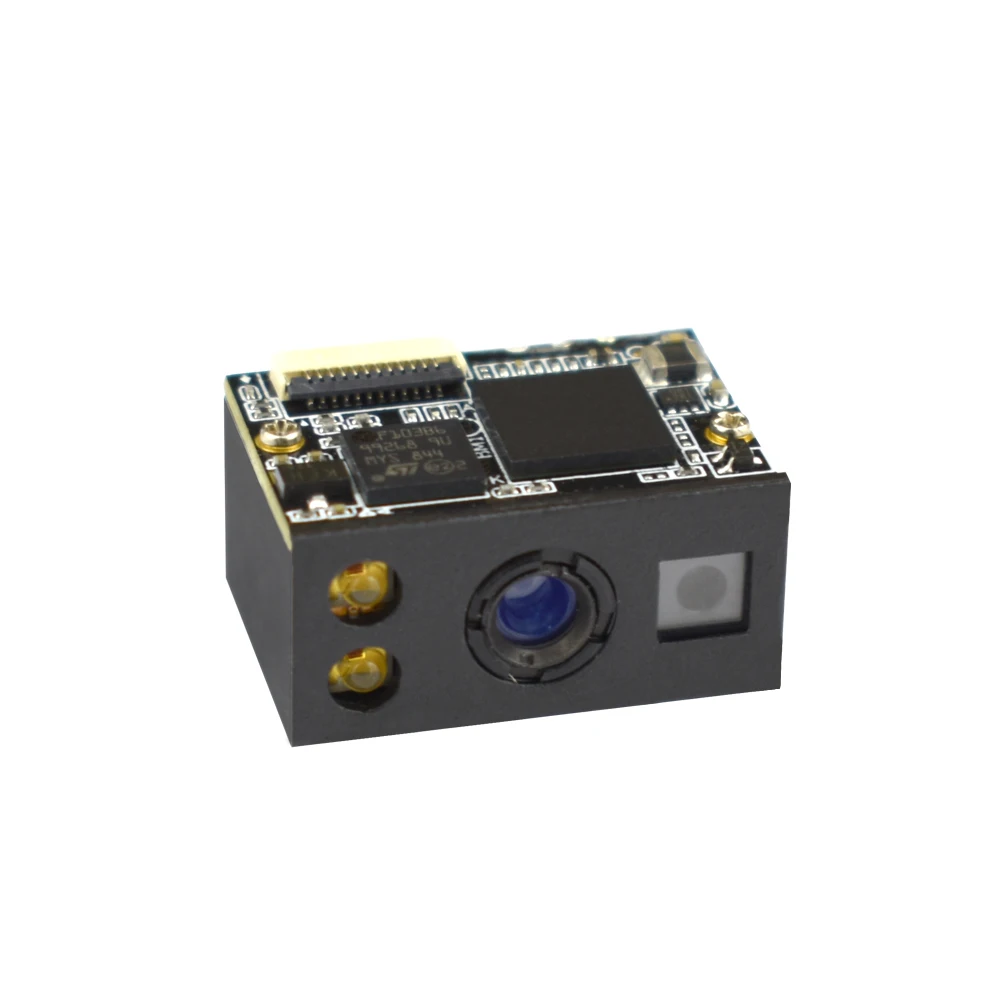

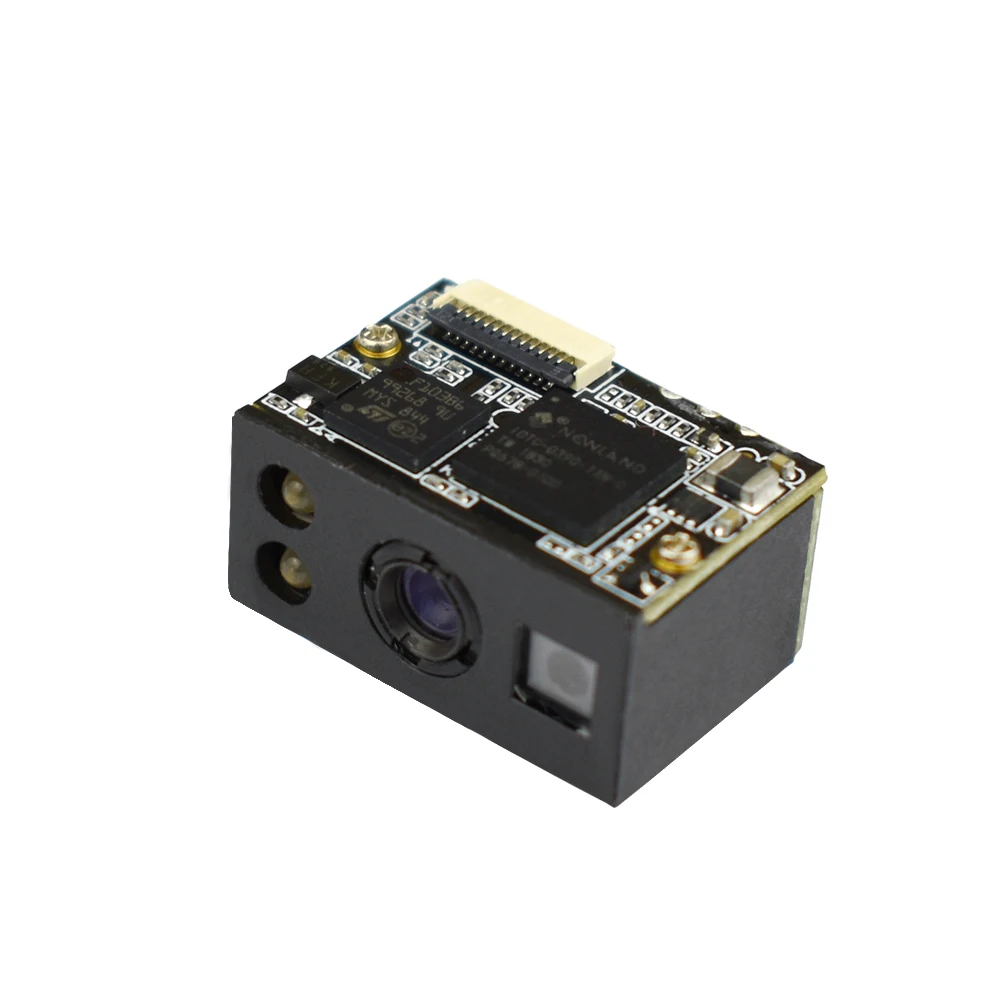

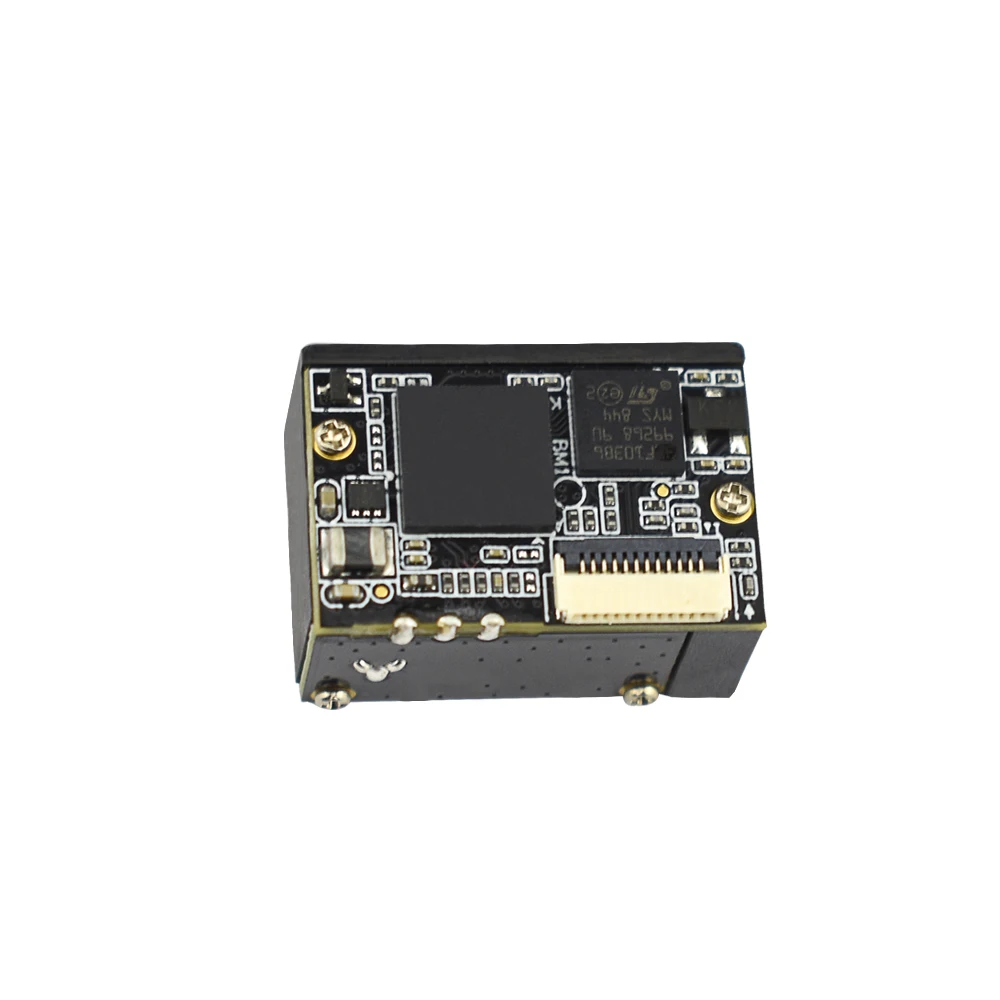

Mini Hot 1D 2D Code Automatic Sensing Equipment Small Bar Code Scanning Module

Product Overview

Description

Mini Hot 1D 2D Code Automatic Sensing Equipment Small Bar Code Scanning Module





 It boasts the following features:

 1. 2D Barcode Decoder Chip

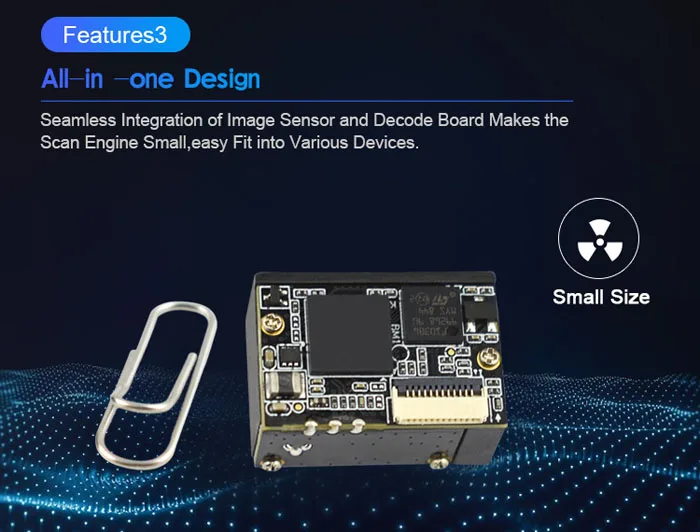

 2. Two-In-One Design. Seamless integration of CMOS image sensor and decoder  board.

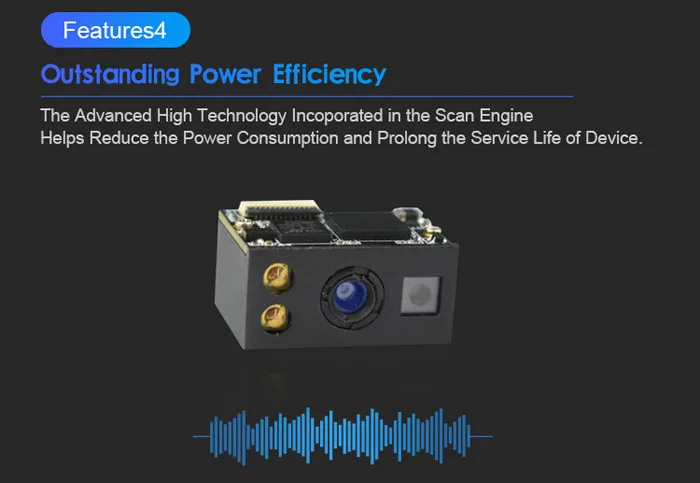

 3. High Performance & Ultra-Low Power Consumption.

 4. All-Round Scanning Capability. It can read barcodes on virtually any medium - paper, plastic cards, mobile phones and LCD displays.

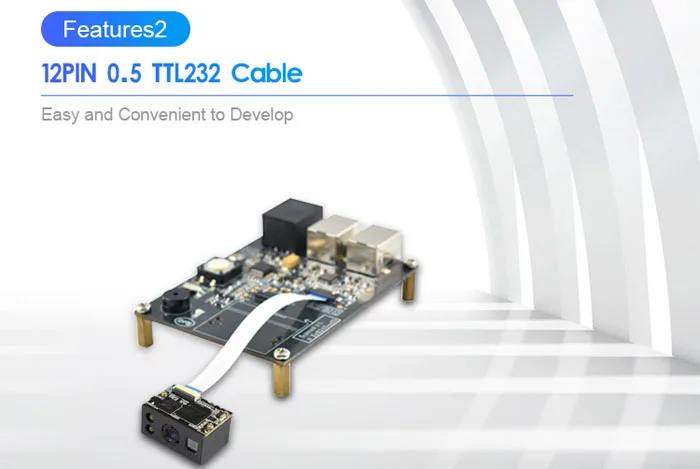

Interface	TTL-232, USB (optional)
Image Sensor	752×480 CMOS

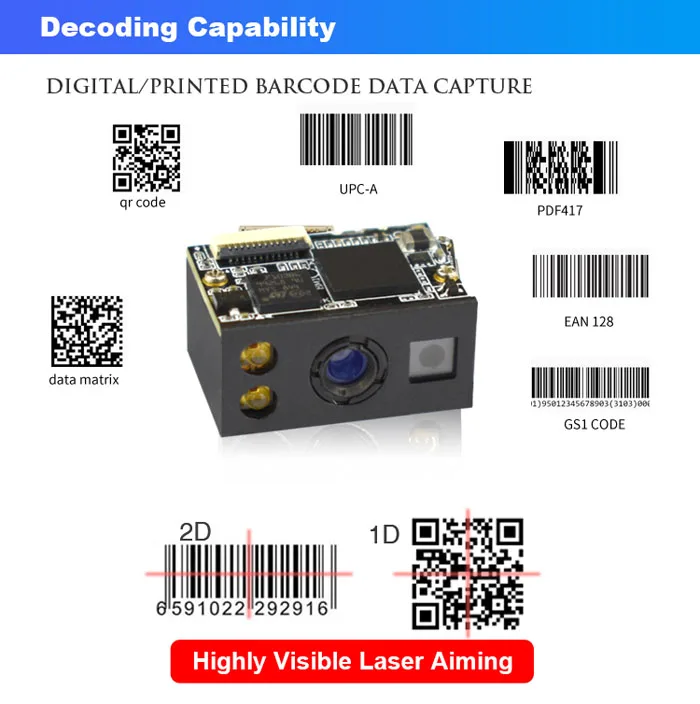

Symbologies	2D: PDF 417, DataMatrix (ECC200,ECC000,050,080,100,140), QR Code   1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5,ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc.
Illumination	Red LED 625±10 nm
Resolution	≥ 5mil
Ambient Light	0 ~ 100,000 LUX
Power Consumption	0.76 W
Operating Voltage	3.3±10% VDC
Current @ 3.3 VDC	Operating Current 230 mA Standby Current 4mA (USB communication not supported); 7mA (USB communication supported) Sleep Current <5 uA

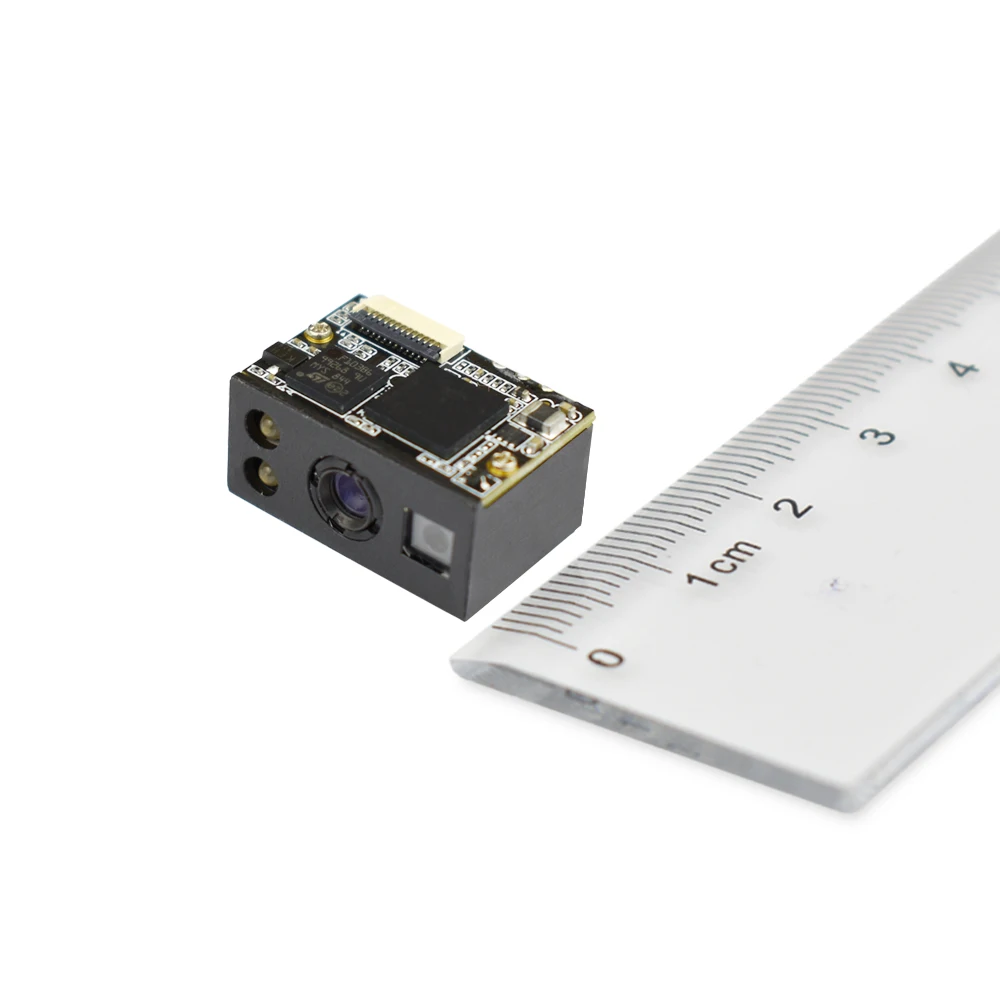

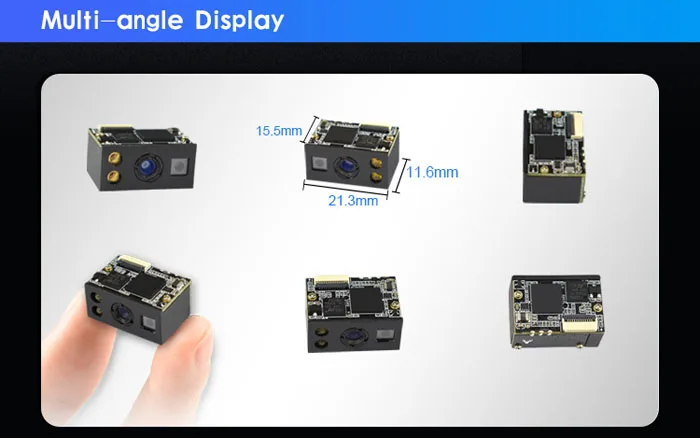

Dimensions	21.17(W)×14.6(D)×11.52(H)mm
Weight	5.0g
Operating Temperature	-20℃~ +60℃





Related Products:

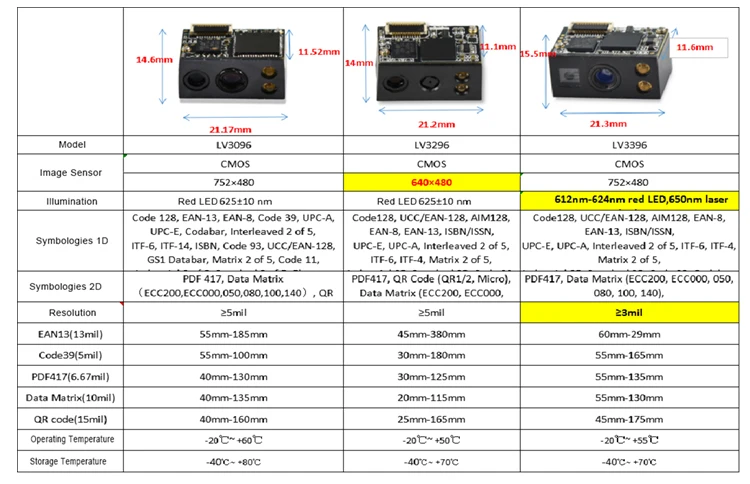

3 Series of 1d 2d Barcode Scanner Module:
