Degaulle Hot Sale Directly Swimming Pool Heat Pump Water Heater Guanzhou
- Category: >>>
- Supplier: Guangzhou Denor Swimming Pool Equipment Co. Ltd.
Share on (60788117004):
Product Overview
Description
Degaulle Hot Sale Directly Swimming Pool Heat Pump Water Heater Guanzhou
Guangzhou Denor Swimming Pool Equipment Co.,Ltd is a modern high-tech enterprise,specializing in villa swimming pool,parent-child swimming pool and large swimming pool construction since 1998. All our product quality and produce of swimming pool heat pump according to the ISO9001 international quality standards.
| Model | DGL-50C | DGL-100C | DGL-120C | DGL-150C | DGL-200C | DGL-250C | DGL-300C |
| Number of horses(P) | 5 | 10 | 12 | 15 | 20 | 25 | 30 |
| Heating capacity(KW) | 20.3 | 40.3 | 47.2 | 59.8 | 80.6 | 100.2 | 120.8 |
| COP | 5.2 | 5.3 | 5.4 | 5.4 | 5.3 | 5.4 | 5.4 |
| Rated voltage(V/HZ) | 380V/50HZ | ||||||
Rated curret (A) | 6 | 12 | 13.8 | 17.5 | 23.1 | 30 | 34.6 |
| Rated power(KW) | 3.8 | 7.6 | 9.1 | 11.5 | 15.2 | 19 | 22.8 |
| Max water Temp(℃) | 42℃ | ||||||
Max pressure (MPa) | 2.8 | ||||||
| Refrigerant | R22/R417A | ||||||
| Noise(dB A) | ≤65 | ≤68 | ≤68 | ≤68 | ≤70 | ≤70 | ≤70 |
| Dia of outlet(mm) | 32 | 63 | 63 | 63 | 90 | 90 | 110 |
| Net weight(KG) | 110 | 280 | 320 | 420 | 560 | 650 | 840 |
| Machine size(cm) | 75*75*105 | 145*72.5*105 | 145*70.5*135 | 150*80*151.5 | 185*100*195 | 200*110*208 | 230*110*208 |
| Packing size(cm) | 75*75*125 | 145*72.5*125 | 145*70.5*155 | 150*80*171.5 | 185*100*215 | 200*110*228 | 230*110*228 |
| Notice: | Outdoor air temp(DB/WB):24℃/19℃,water temp(in):26℃ | ||||||

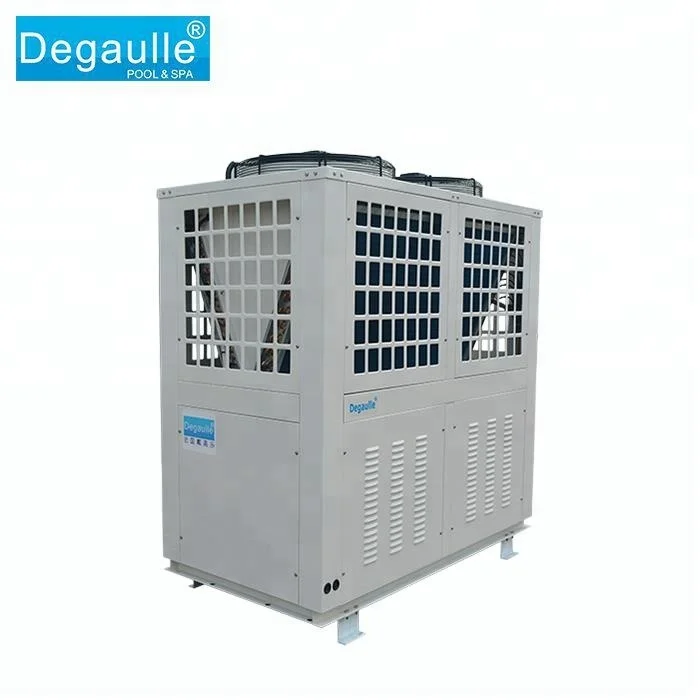

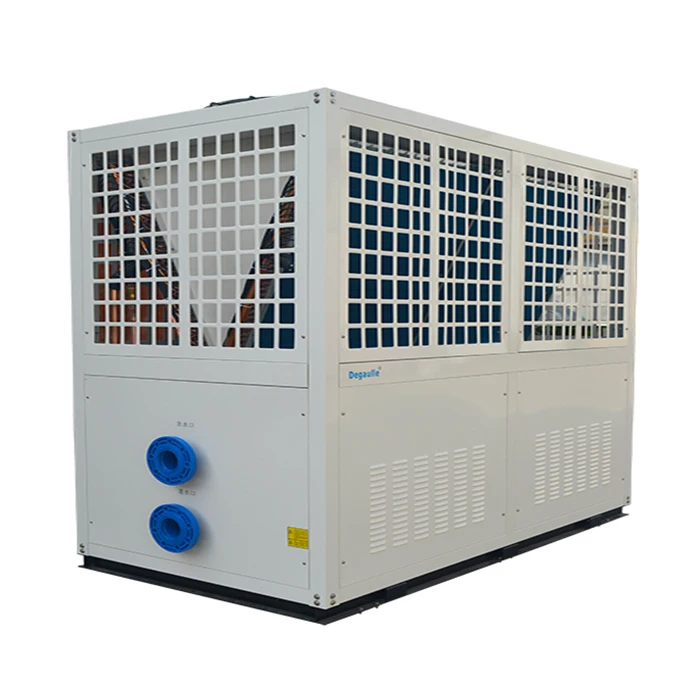

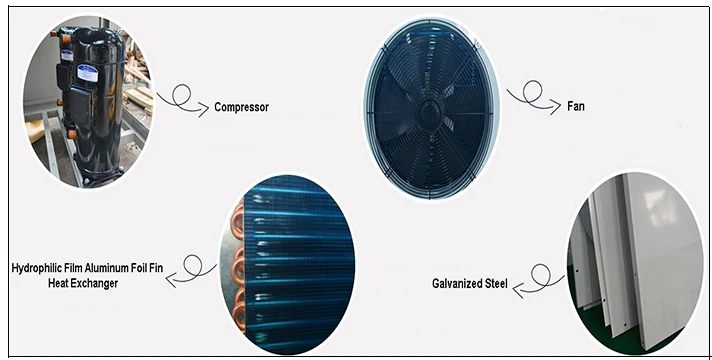

Swimming Pool Heat Pump Details Shows
Our swimming pool heat pump is with intelligent digital control board, the evaporator is used of efficient anti-corrosion aluminum foil to ensure that the system dfficient and durable, the fan with large diameter and low speed improve efficiency and reduce the frost and noise, the compressor use high-quality parts which are effficient operation,reliable technology and longer life.

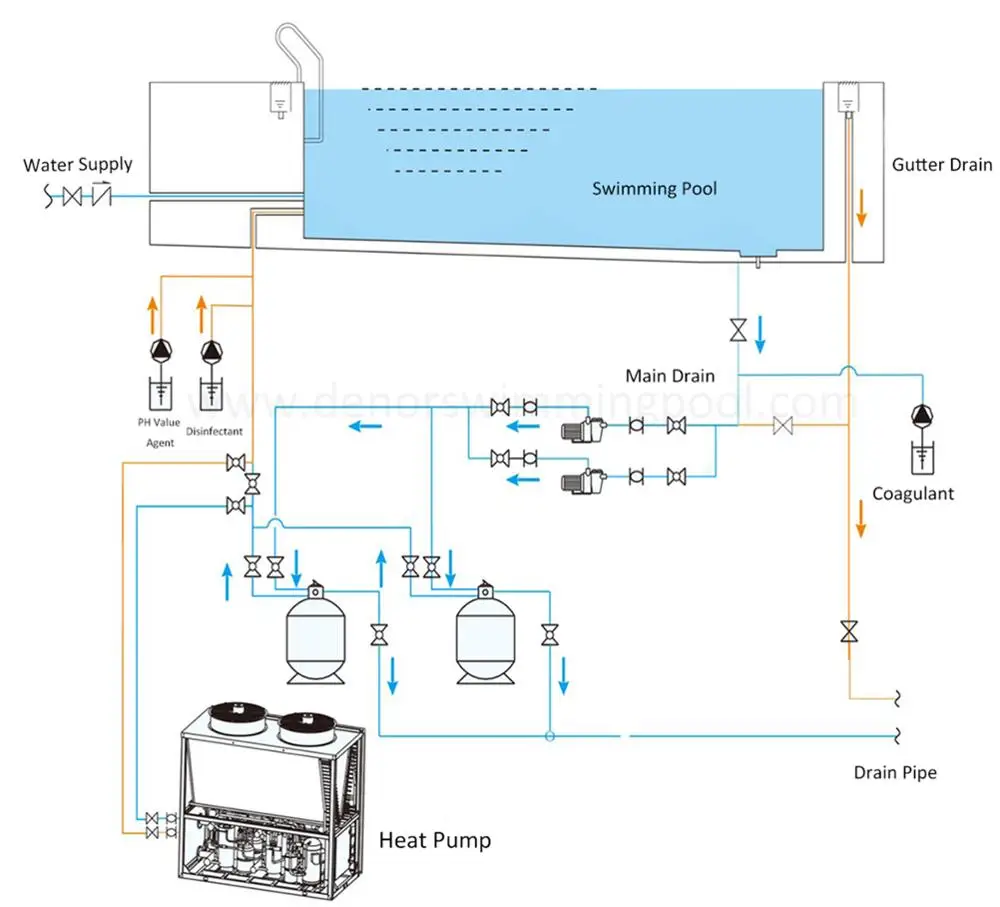

Swimming Pool Heat Pump Working Principle
Swimming pool heat pump collect heat from air by 20℃below the refrigerant and compress heat into high temp and hih pressure refrigerant, and then passed through the heat tranfer to be heated water, electricity is the tranport of porters, so that the swimming pool heat pump efficiency(COP) reaches 400-500%.And the swimming pool heat pump compress with 90% of heat from electricity, 60% of heat from natural gas and fuel, 35% of heat from coal.Our swimming pool heat pump more energy efficient than solar energy.Also our swimming pool heat pump is the most environmentally friendly and energy-saing heater.

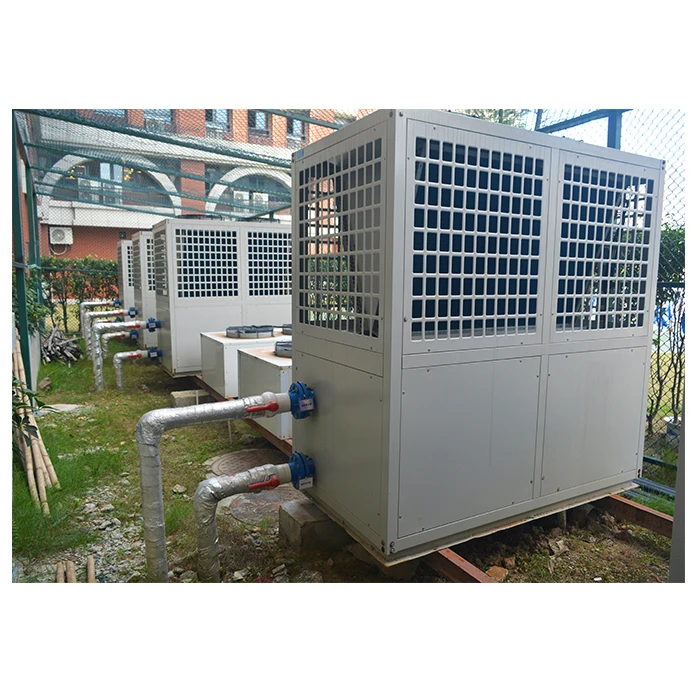

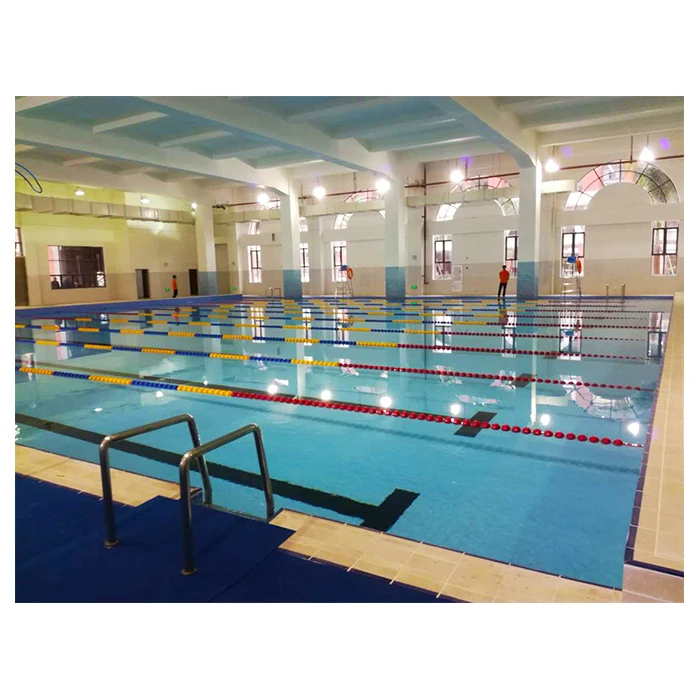

More Swimming Pool Heat Pump Projects
Now our swimming pool heat pump has sold more than 30provinces,autonomous regions, Europe, Southest Asia, the Middle East and other Countries,and our swimming pool heat pump has been served thousands of swimming pools around the world.

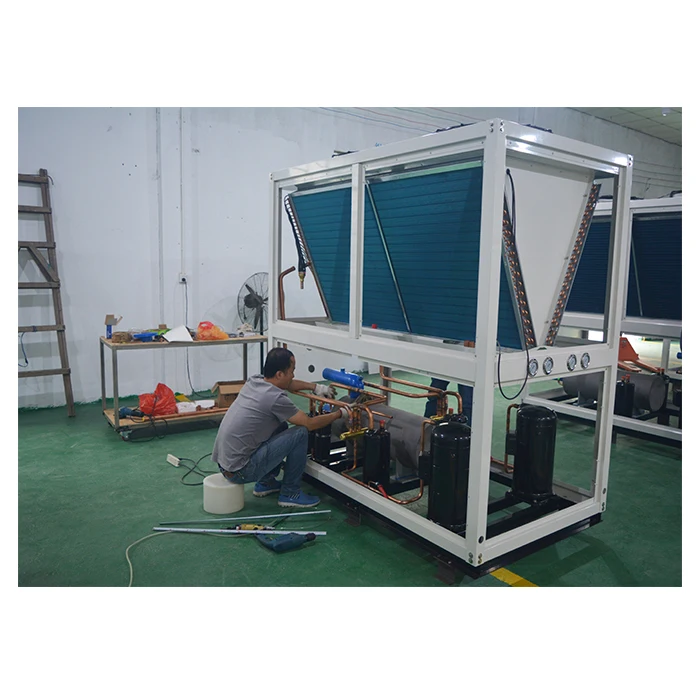

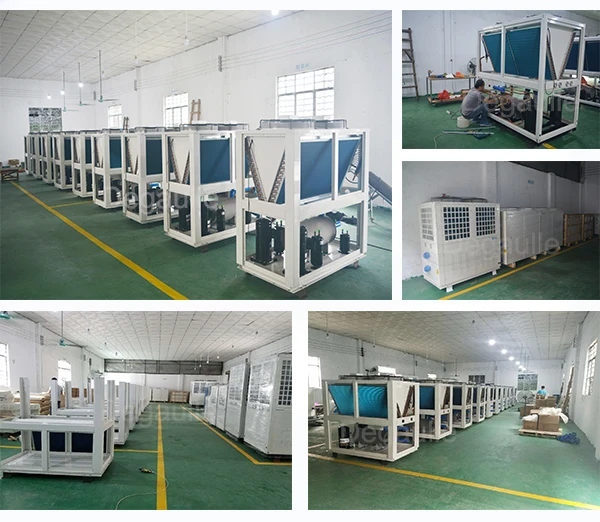

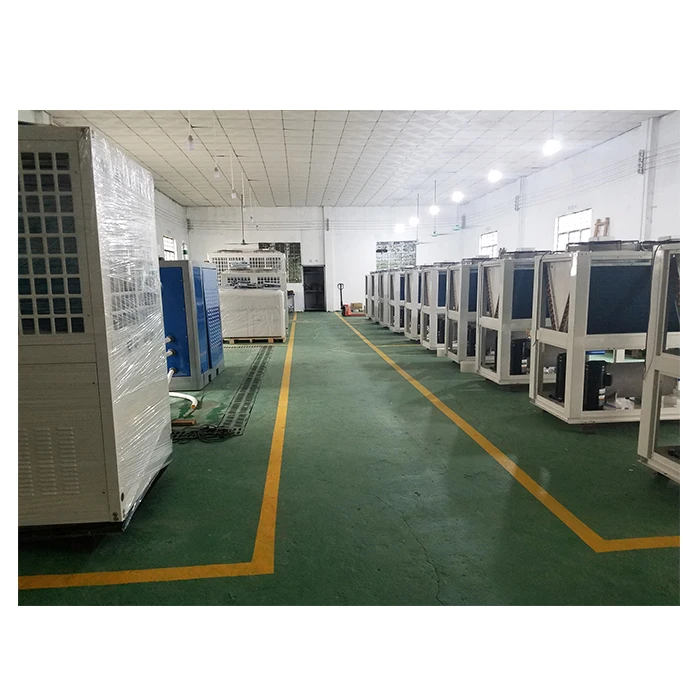

Degaulle Swimming Pool Heat Pump Factory
Guangzhou Denor Swimming Pool Equipment Co.,Ltd,specialize in swimming pool heat pump for more than 20 years,which the swimming pool heat pump is safe,reliable,high-efficiency,electricity-saving,enviroment-friendly,all-weather use,durable and simple installation.Sure,it is with easy,safe and reliable intelligent operation,then it is wide application.
Our Experience Room

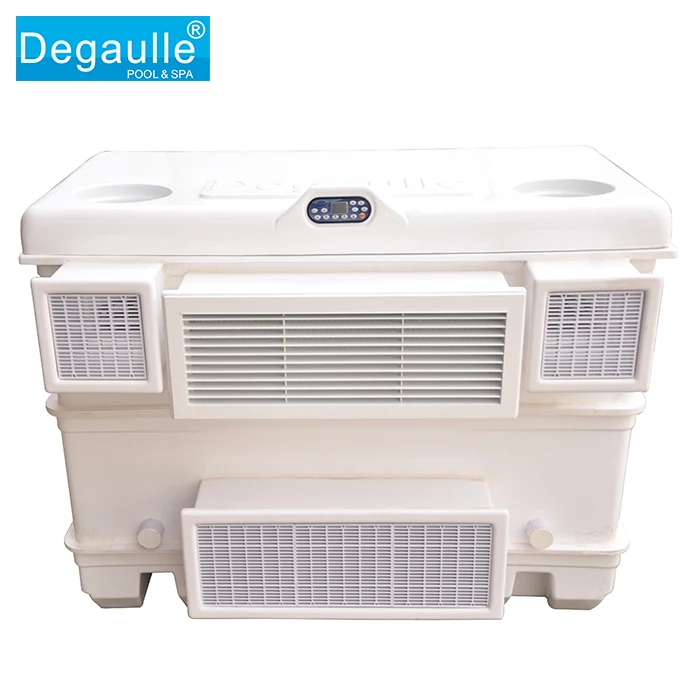

Guangzhou Denor Swimming Pool Equipment Co.,Ltd,specialize in swimming pool heat pump, endless swimming pool, training pool machine, FX260 SPA filter, Pipeless pool filter, Oxygen SPA bathtub and sauna room for 20 years.
Some Certification Of Degaulle
