Plastic HDPE Geocell for retaining wall
Plastic HDPE Geocell for retaining wall
Plastic HDPE Geocell for retaining wall

Plastic HDPE Geocell for retaining wall

Share on (60788118570):


Price:$4.70

Quantity:


Product Overview

Description


Geocell Description

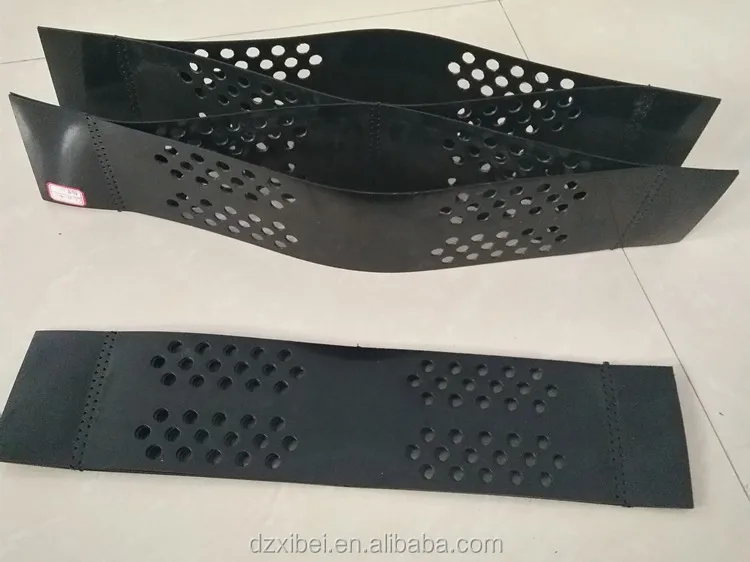

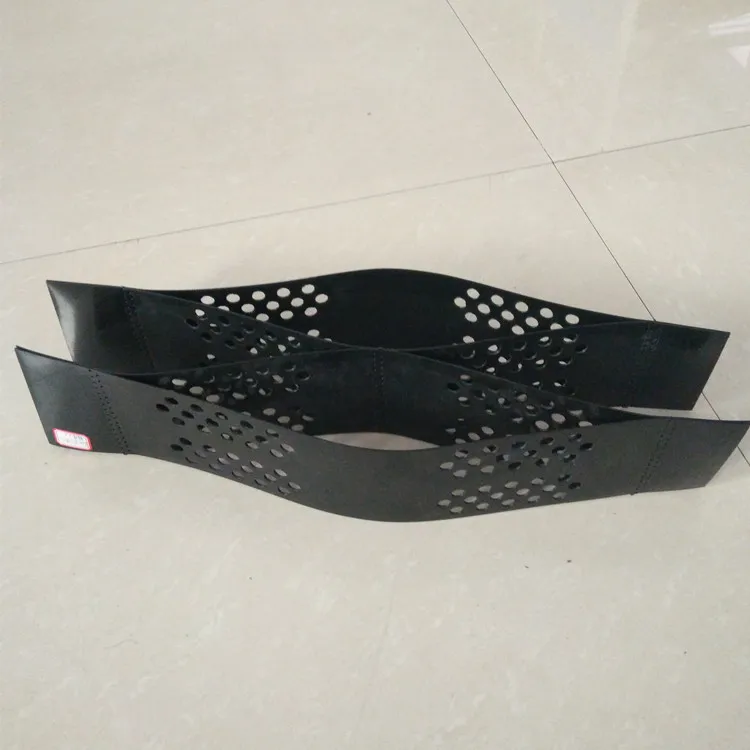

The geocell is a three-dimensional mesh cell structure formed by reinforced HDPE sheet material and welded by high strength. Generally made by ultrasonic needle welding. Hole punching can be performed on the board according to the needs of the project.

\t
                                                                         Parameter of hdpe  Geocell
\t
Specification
\t
Geocell height , mm
\t
Welding distance,mm
\t
Thickness of sheet, mm
\t
Tensile strength of welding point , N/cm
\t
Tensile strength of connection of cells, N/cm
\t
Yield strength of each sheet
\t
GS-50-400
\t
 50
\t
400
\t
≥1.1
\t
≥100
\t
≥120
\t
≥20
\t
GS-75-400
\t
75
\t
400
\t
≥1.1
\t
≥100
\t
≥120
\t
≥20
\t
GS-100-400
\t
100
\t
400
\t
≥1.1
\t
≥100
\t
≥120
\t
≥20
\t
GS-150-400
\t
150
\t
400
\t
≥1.1
\t
≥100
\t
≥120
\t
≥20
\t
GS-200-400
\t
200
\t
400
\t
≥1.1
\t
≥100
\t
≥120
\t
≥20
\t
(1)Welding distance is from 330mm to 1000mm.
(2) Width of geocell can be made according to the customer's demand. and other speial standards will carry out by agreement or contract.
Feature of geocell

(1). Geocell can be stretched freely and can be folded. It can be stretched into a network during construction, filled with loose materials such as soil, gravel and concrete to form a structure with strong lateral limitation and large rigidity.
(2).light weight, wear resistance, stable chemical properties, resistance to photo-oxidation aging, acid and alkali resistance, suitable for different soil and desert soil conditions.
(3).high lateral restraint and anti-slip, anti-deformation, effective to enhance the bearing capacity of the roadbed and dispersion load.
(4).change the geometry of the geocell height, welding distance and other geometric dimensions to meet different engineering needs.
(5).Easy expansion and small transportation volume;Convenient connection and fast constructions

Geocell Application
\t
Geocell is used to stable the roadbed of railway.
\t
Geocell is used to stable the roadbed of highroad.
\t
Geocell is used to bear the load of dike or tetaining wall.
\t
Geocell is used to the improve shallow riverway.
\t
Geocell is used to  support pipeline and sewer.
\t
The prevention of landslide by using geocell as a heavy-duty hybrid force retaining wall.
\t
Geocell is used as independent wall, wharf and breakwater.
Packing & Delivery
\t
(1).Package is nude or add the tray .
(2). Delivery is 15 days~25 days.
