10 кВт низкооборотный генератор с постоянным магнитом

Product Overview

Description

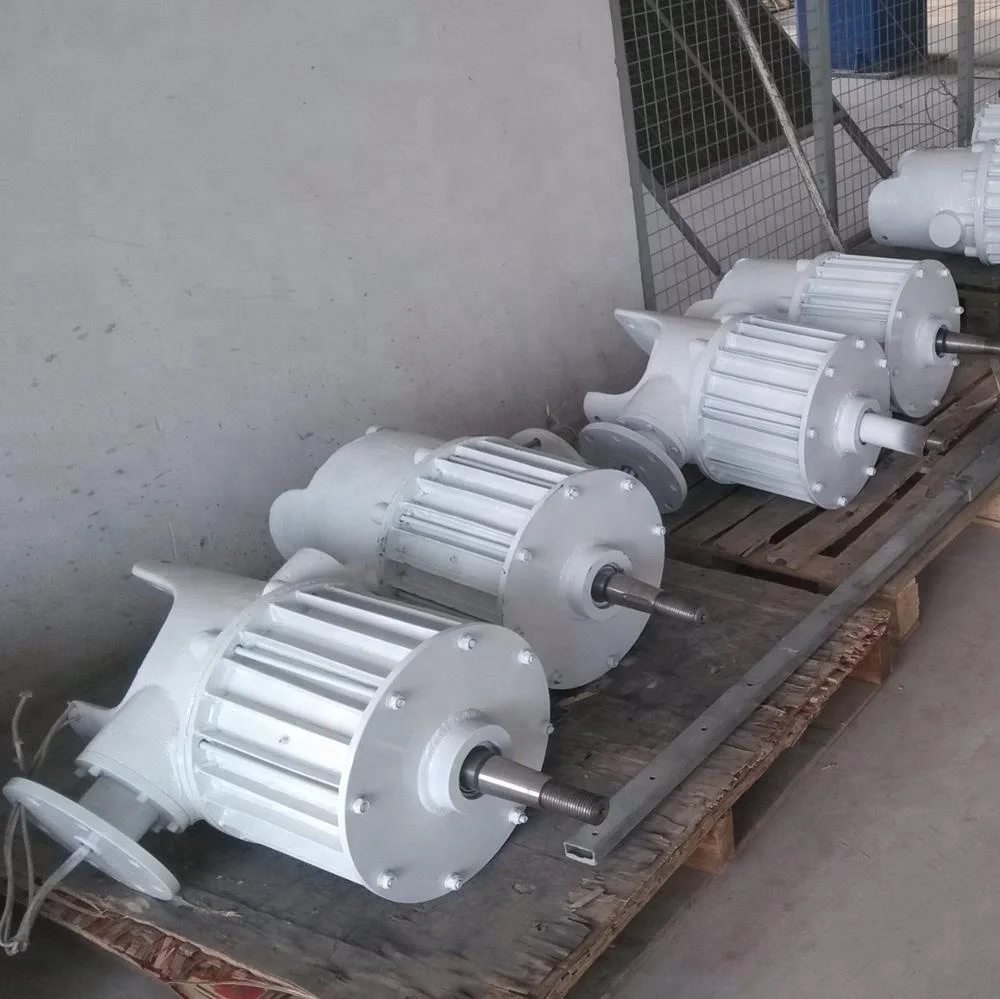

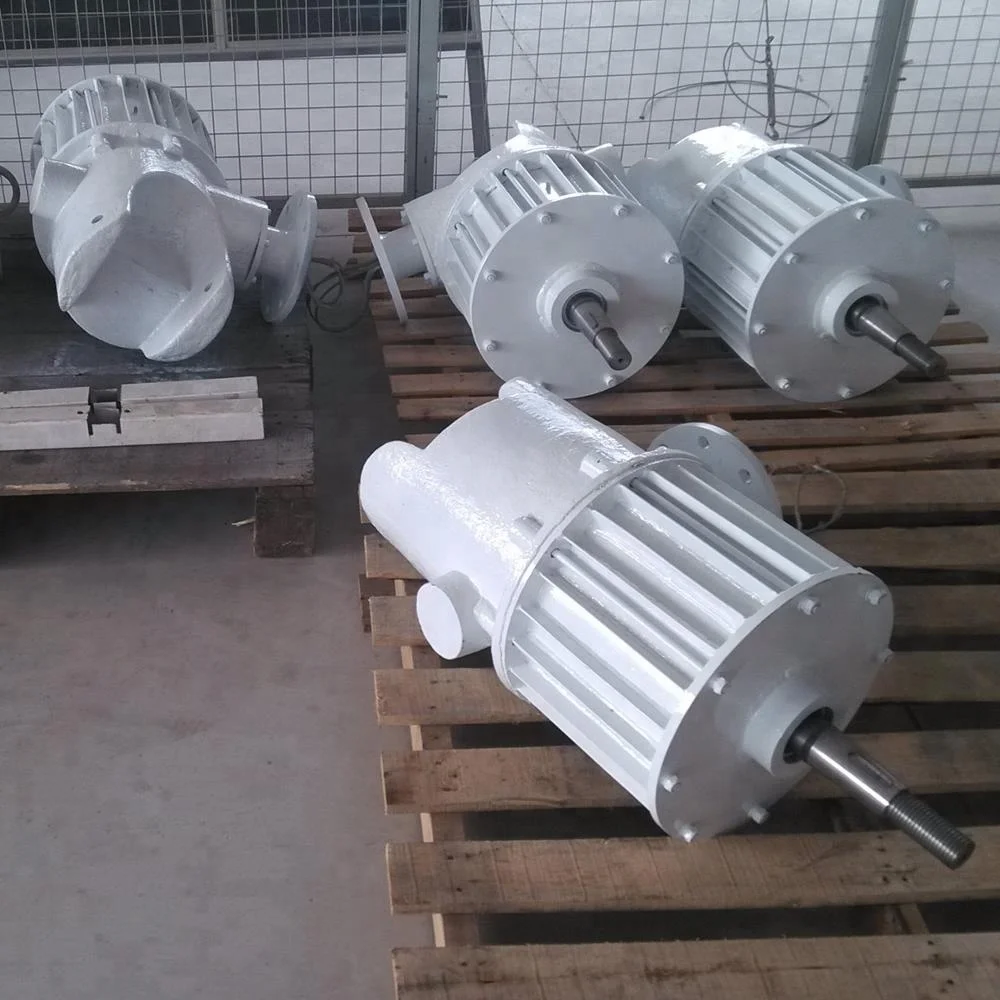

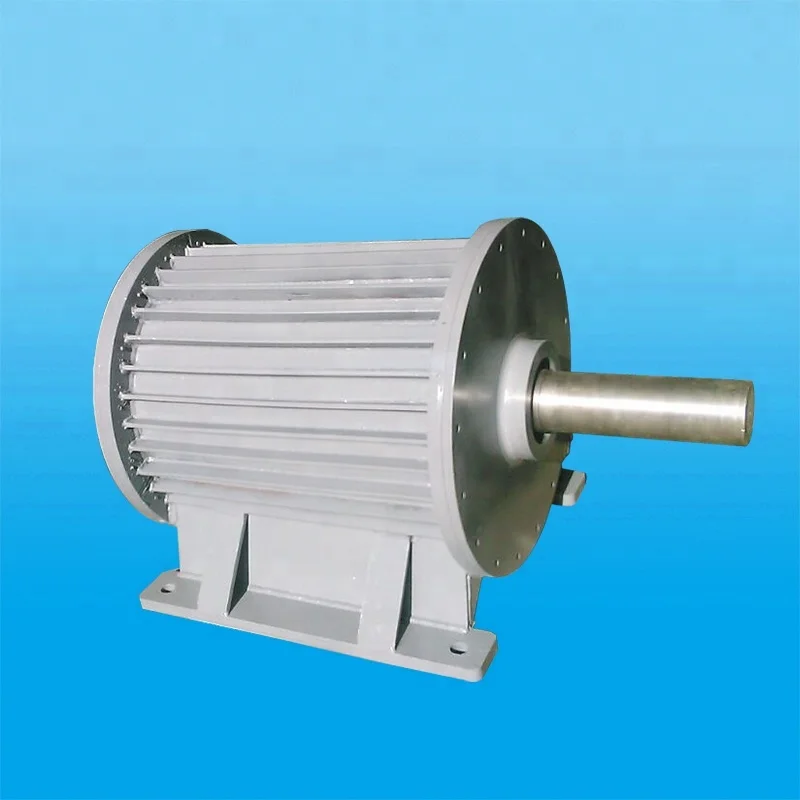

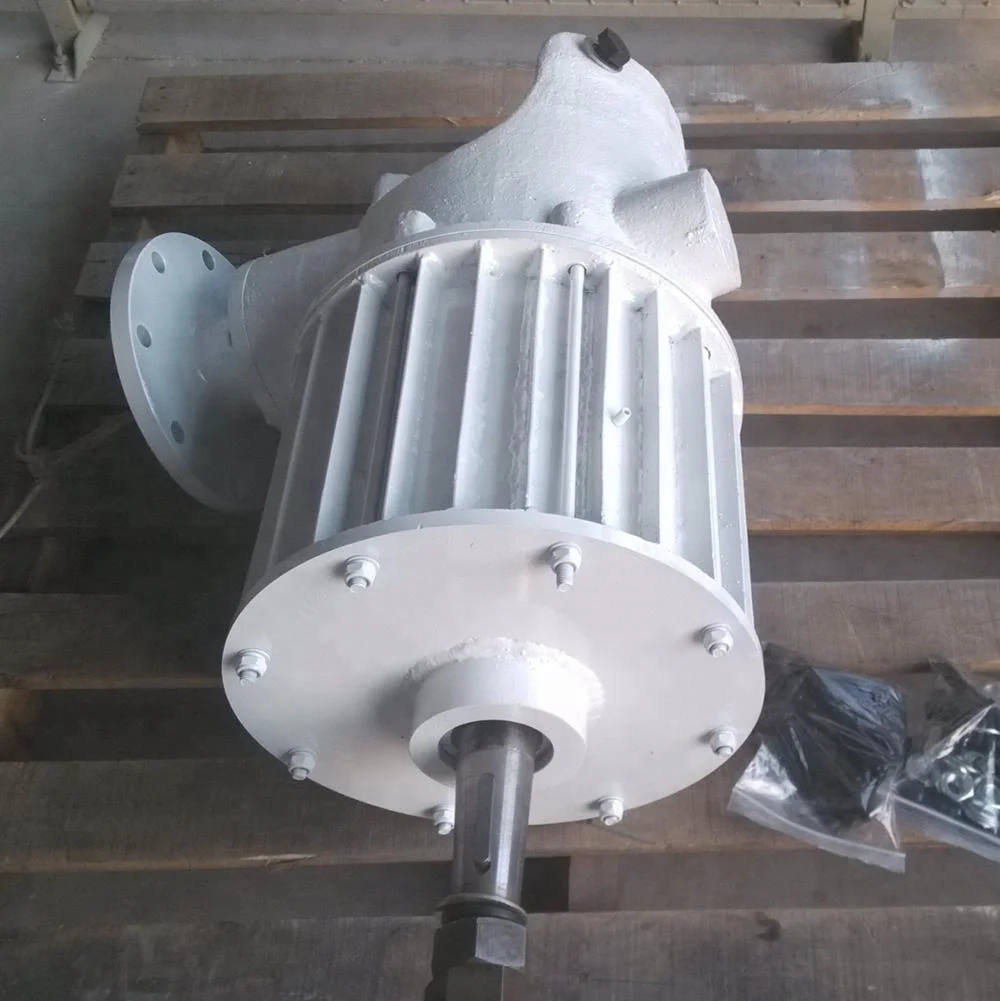

10kw Low Rpm Permanent Magnet Generator Motor

Features:

1.Our products adopt NdFeB as magnets, which is called the king of magnetic, to            ensure the product is effective in 20 years;
2.High electric conductivity coil: low capacity;
3.Swirl vane design: peaceful, exquisite, light and handy.



Product Parameters



Model	LS-10KLM
Rated Power(w)	10kw
Max Power(w)	13kw
Rated Voltage(v)	96V/120V/220V
Rated rotated speed(r/m)	170r/m
Top net weight(kg)	320kg
Output Current	AC
Rated Torque(N*M):	1123.5 Nm
Generator	3 phase permanent magnet synchronous generator
Insulation Class:	F
Service Life:	More Than 20 years
Bearing	HRB or for your order
Shaft Material	Iron
Shell Material	Carbon Steel
Permanent Magnet Material	Rare Earth NdFeB
Protection Grade	IP54
Lubrication	Lubrication Grease
Working temperature	-40℃ - 80 ℃

































Our services:
1. Provide professional generator technical support
2. Generator type, model, capacity selection professional support
3. Provide OEM service, customized service

Packing

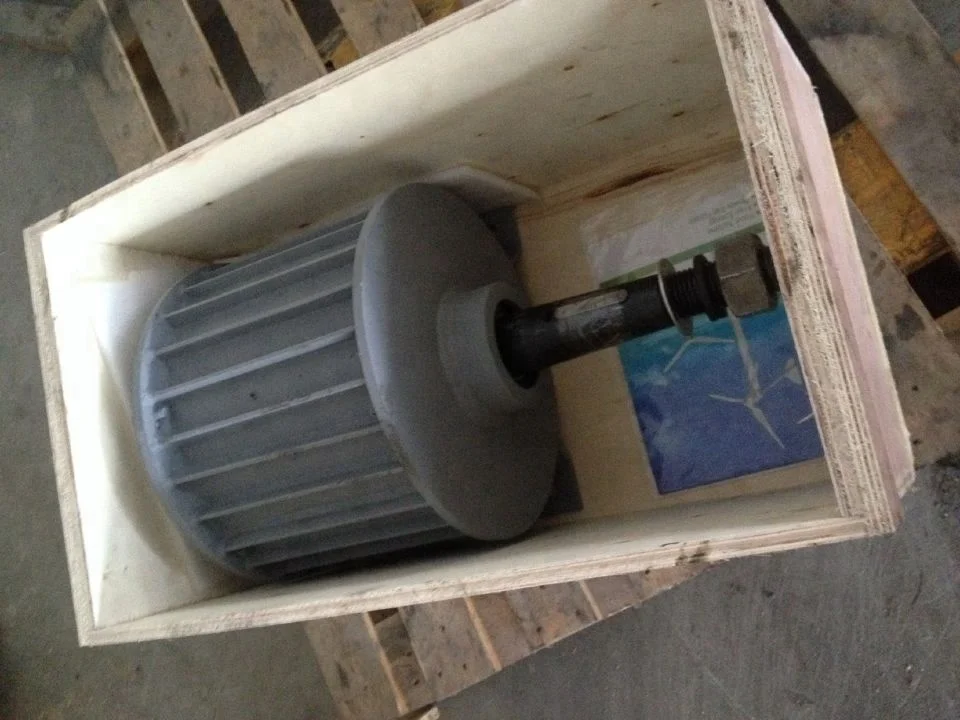

Normally use plywood carton for the packing. The packing also can be by pallet as the customers' request.



Delivery

The shipment can be by air, by express or by sea as the customers' request.





Shanghai Laisa New Energy Technology Co., LTD is locating in NO.3568 Caoying Road, Qingpu District, Shanghai city, China. Our company is mainly devoted to 100w-100kw small wind turbine, solar system and some new energy products’ research, design, integration, sales, project construction and services. At present, our products have been sold to the Europe and America, Italy, Saudi, Brazil and other 63 countries. Our products are applied in the wind and solar hybrid street light, yachting, remote villas, farms schools, portable mobile tents and supporting stands and so on. Our products have won a high admiration at home and abroad. What’s more, all products have certificated with ISO and CE.









24 hours service                                                  Attn: Chris
