All kinds of artificial leather and fabric, nonwoven fabric, spun-bonded cotton, thermoplastic film, chemical plastic piece. such as nylon, polyster, ABC, PC, PVC, PE, PP, PS, etc. Application Apply to lace clothing, ribbon, decoration products, handkerchief, tablecloth, curtain, bedspread, pillowcase, quilt cover, tent, raincoat, disposable operating coat and hat, disposable mask, non-woven fabric bags and so on.
Technical specification
Commodity
Ultrasonic lace sewing machine
Power Source
220V 50-60HZ
Inout Power
1500-2500W
Output Frequency
20KHZ
Working Speed
0-20M/minute
Roller Size
YN-60
Width: 23-60MM, Diameter: 50-60MM
YN-100
Width: 50-100MM, Diameter: 50-60MM
YN-200
Width: 100-250MM, Diameter: 50-100MM
Dimension
1200*600*1200MM
Weight
90-120kg
Basic components 1. New type PC intellectual ultrasonic generator; 2. 20KHz ultrasonic transducer unit; 3. Bottom mould fixed suspension structure; 4. Double-motor speed adjustment system; 5. Manual roller lifting system; 6. Double-barreled framework and heavy support board. Characteristics 1. Built-in PC chips, multi-circuit ultrasonic protection system to make the machine run safely; 2. Strong ultrasonic power with three adjustable gears (maximum, medium and minimum), meets the welding requirements of different materials andthicknesses; 3. The performance of the machine reaches international level with automatic frequency tracking system and ultrasonic soft-starting technology; 4. Variety of roller patterns, other roller designs available according to customer requirements; 5. Four times faster than sewing machines, minimal operator training required. Functions 1. Trimming: Straight or curvilinear edge cutting and edge treatment for melting,so smooth, no rough edges; 2. Sealing: Two or more layers of fabric stitched together without thread replacing the sewing needles, good welding strength; 3. Hole making: Cut out the various patterns of holes, and treatment of side melting; 4. Slitting: Single or more cutting of the material at the same time, and treatment of side melting without burr; 5. Forming: Simultaneous cutting,sealing and embossing to make production in one time.

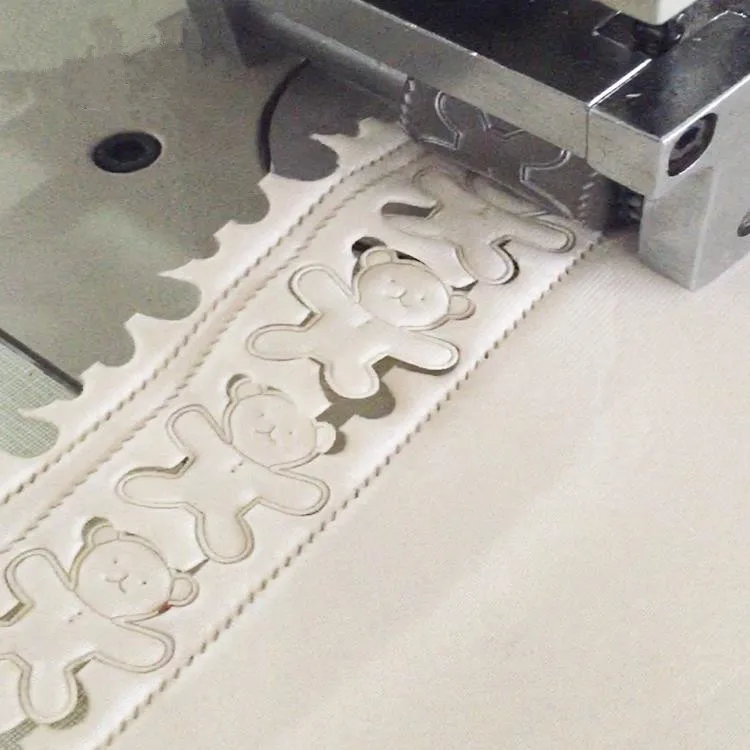

sample photo
For making different kinds of lace

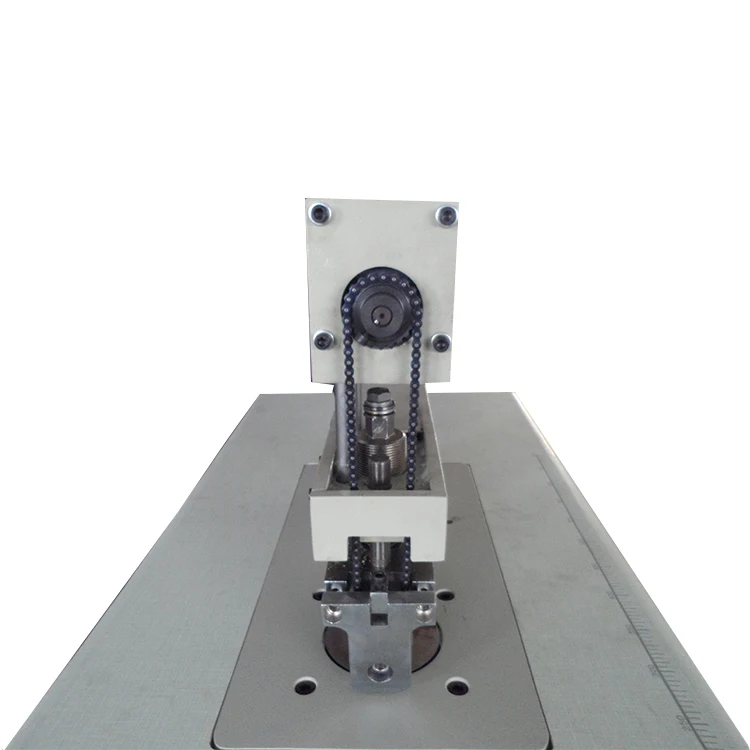

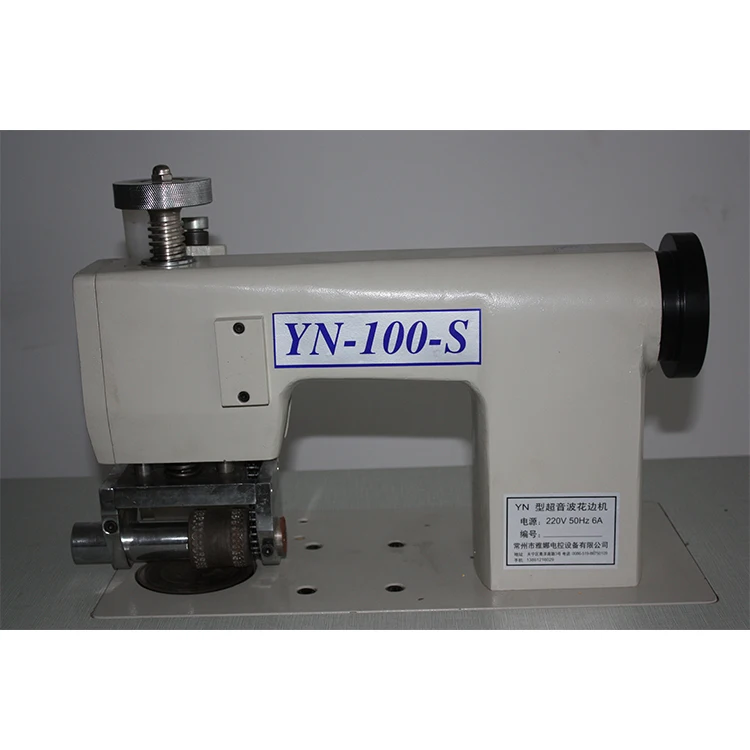

detailed images
