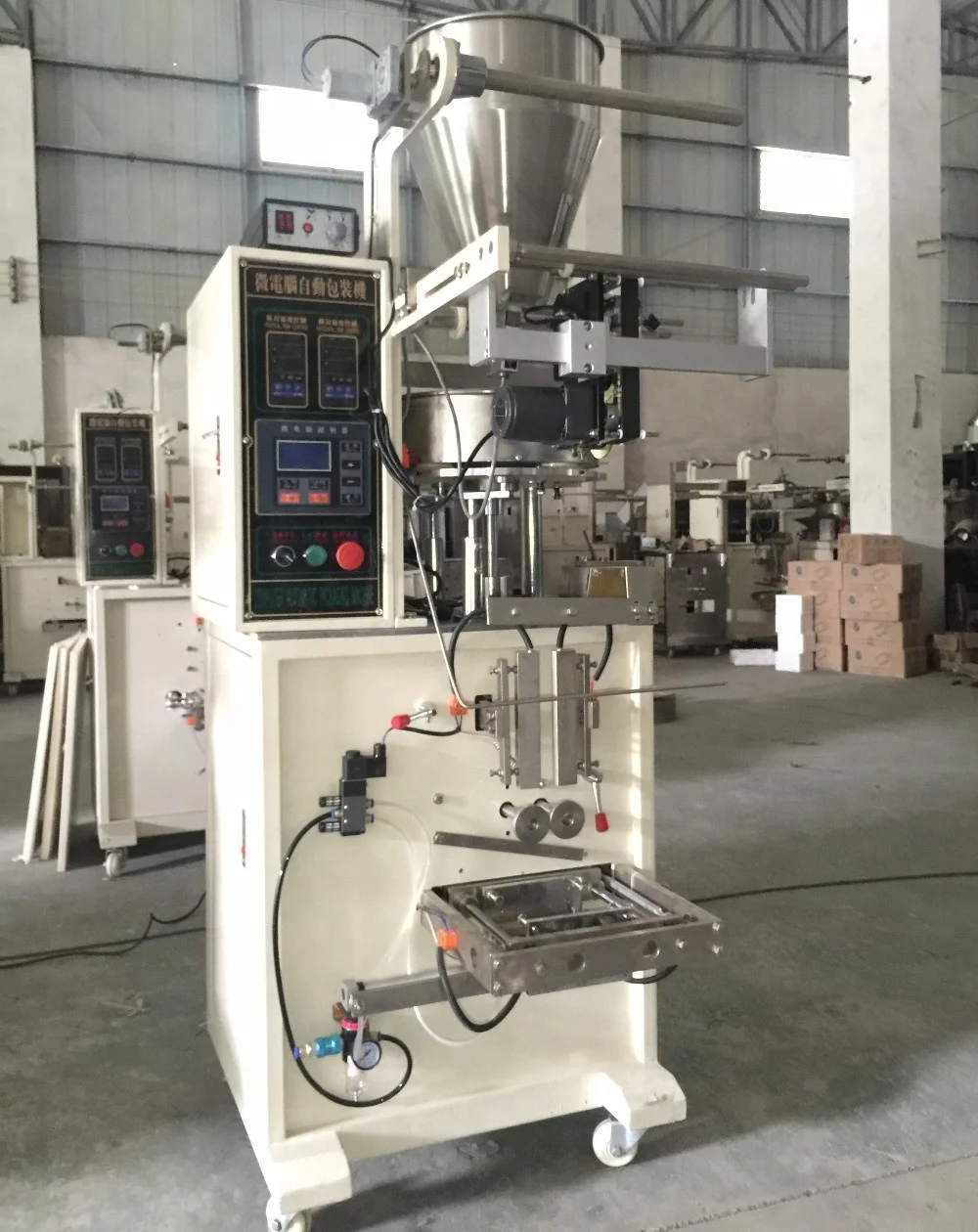

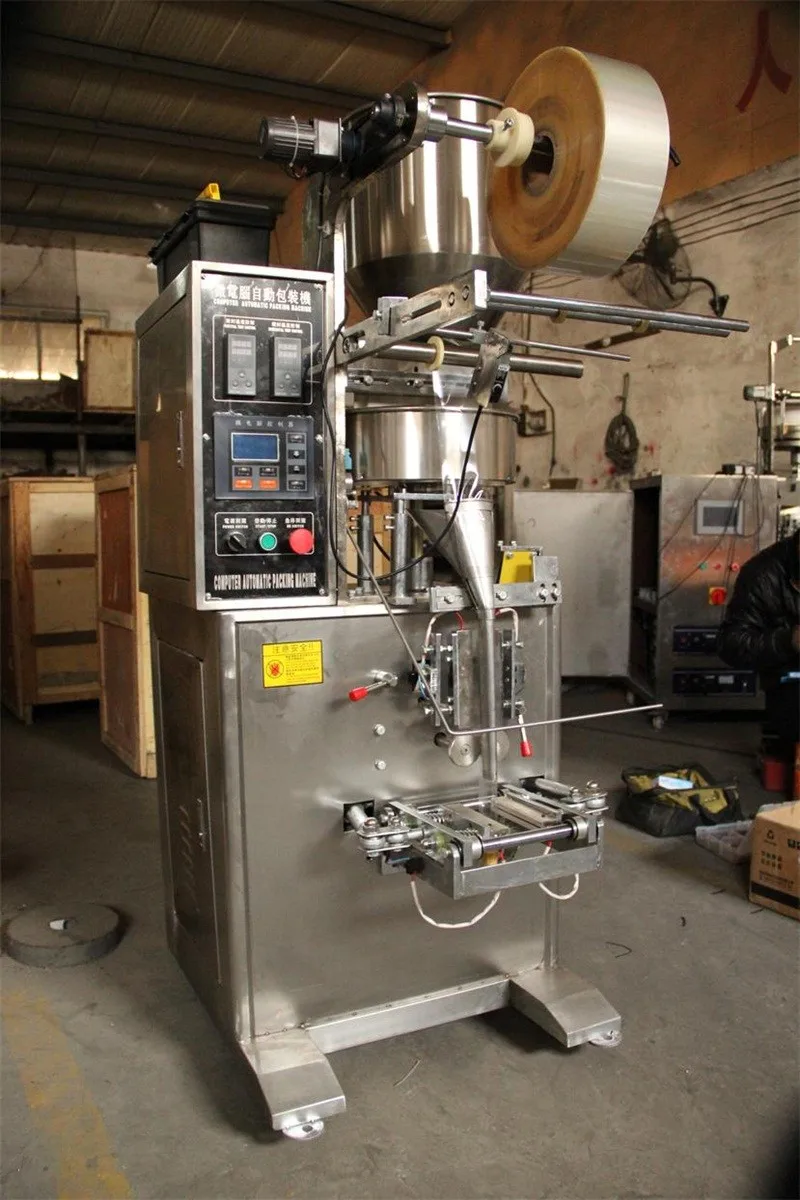

automatic sugar sachet fill and seal machine
- Category: >>>
- Supplier: Ruian Honetop Machinery Co. Ltd.
Share on (60788192207):
Product Overview
Description
FAQ
Dear sir,Please kindly response questions of machines before inquiry:
1.What's product to pack and size?
2.What is the target weight per bag(gram/bag)
3.What's bag type,Please show photos for reference if possible?
4.What's bag width and bag length?(WXL)
5.The speed is required?(bags/min)
6.The room size for putting machines
7.The power of your country(Voltage/frequency)
Q :How long of the warranty period?
whole machine 1year. In warranty period, We will send the part free to replace the one that is broken
Q :What’s the Payment terms?
Our payment is T/T and L/C.40% is paid by T/T as deposit.60% is paid before shipment.
Q :Can you provide oversea service?
We will dispatch engineer to install the machine if you need, buyer should afford the cost in buyer's country and round-trip air tickets. The compensation for engineer is 100USD/DAY.
3.What's bag type,Please show photos for reference if possible?
4.What's bag width and bag length?(WXL)
5.The speed is required?(bags/min)
6.The room size for putting machines
7.The power of your country(Voltage/frequency)
Q :How long of the warranty period?
whole machine 1year. In warranty period, We will send the part free to replace the one that is broken
Q :What’s the Payment terms?
Our payment is T/T and L/C.40% is paid by T/T as deposit.60% is paid before shipment.
Q :Can you provide oversea service?
We will dispatch engineer to install the machine if you need, buyer should afford the cost in buyer's country and round-trip air tickets. The compensation for engineer is 100USD/DAY.
SPECIFICATIONS FOR PACKAGING MACHINE HTL-400A | ||||
Packing specification | Bag size range | Width 30-150mm,Length 30-200mm | ||
Packing weight | 1gr - 300gr depend on products density | |||
Packing weight | 30-60 bags/min | |||
Main performance parameters | Total power | 2.5 kw | ||
Compressed air Consumption | 0.36 | |||
Air pressure | 0.6 | |||
Main specification | Touch Screen | Yes | ||
Photoelectricity Sensor | Yes | |||
Machine size | Date Robbon Printer | Yes | ||
Machine size | Machine Dimensions | (L)1200*(W)900*(H)2150mm | ||
Machine Weight | 320kgs | |||
Product Description
Honetop granule packing machine is suitable for granules in the food, chemical and other industrial. Such as: puffed granules,tea,peanuts, popcorn,melon seeds, rice, pepper, sugar,salt, biscuits with small quantity within 1g - 300g (we also can customize bigger quantity) etc.
Kinds of Granule Packing
Suits to pack small candy, tea, nuts, sugar, small biscuit, rice, small cookies, coffee beans, cereals, small chocolate, small popcorn, grain etc granule products.
Kinds of laminated material films

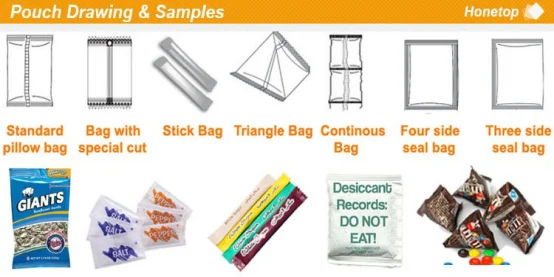

Pillow sachet, 3 side seal sachet, 4 side seal sachet, stick sachet etc
2. Optional English or other languages screen display, easy and simple operation.
3. High-sensitivity photoelectric color tracing and digital input of cutting position get more accuracy.
4.Bag-making equipment can be changed according to specific requirement of customers and products.
5. Packaging speed and length of bags can be set to some extent without further adjustment and parts changing packaging speed and length of bags can be set to some extent without further adjustment and parts changing.
6.The section where the material contact is stainless steel as the body of machine is optional for complete or partial stainless steel and all out equipments have passed the CE Standard.
7. Good visibility with side-open protective platens, operate safely.
Mechanical technical data
Details Images

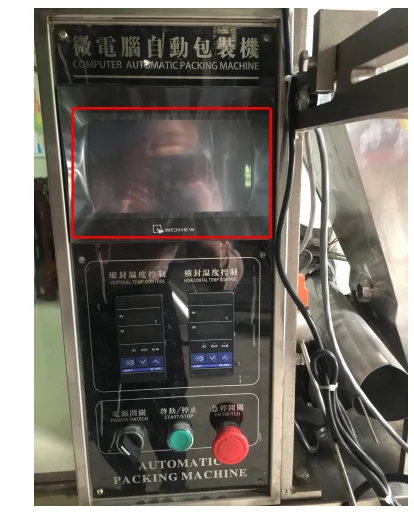

Touch screen
Language: Standard English and Chinese. Any language can be customized.
PLC (for option): Imported PLC microcomputer with interface and frequency control enables bag parameter setting more convenient
and easier.

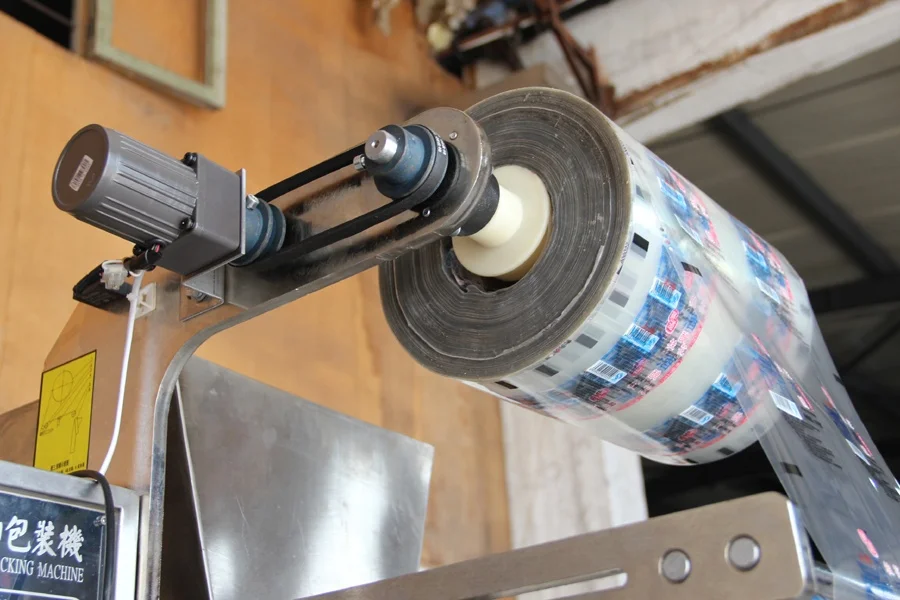

Film Roller
The film can be replaced easily on the film roller.
Various films adaptable:
Various films adaptable:
OPP/CPP. PET/PE. PET-AL/PE

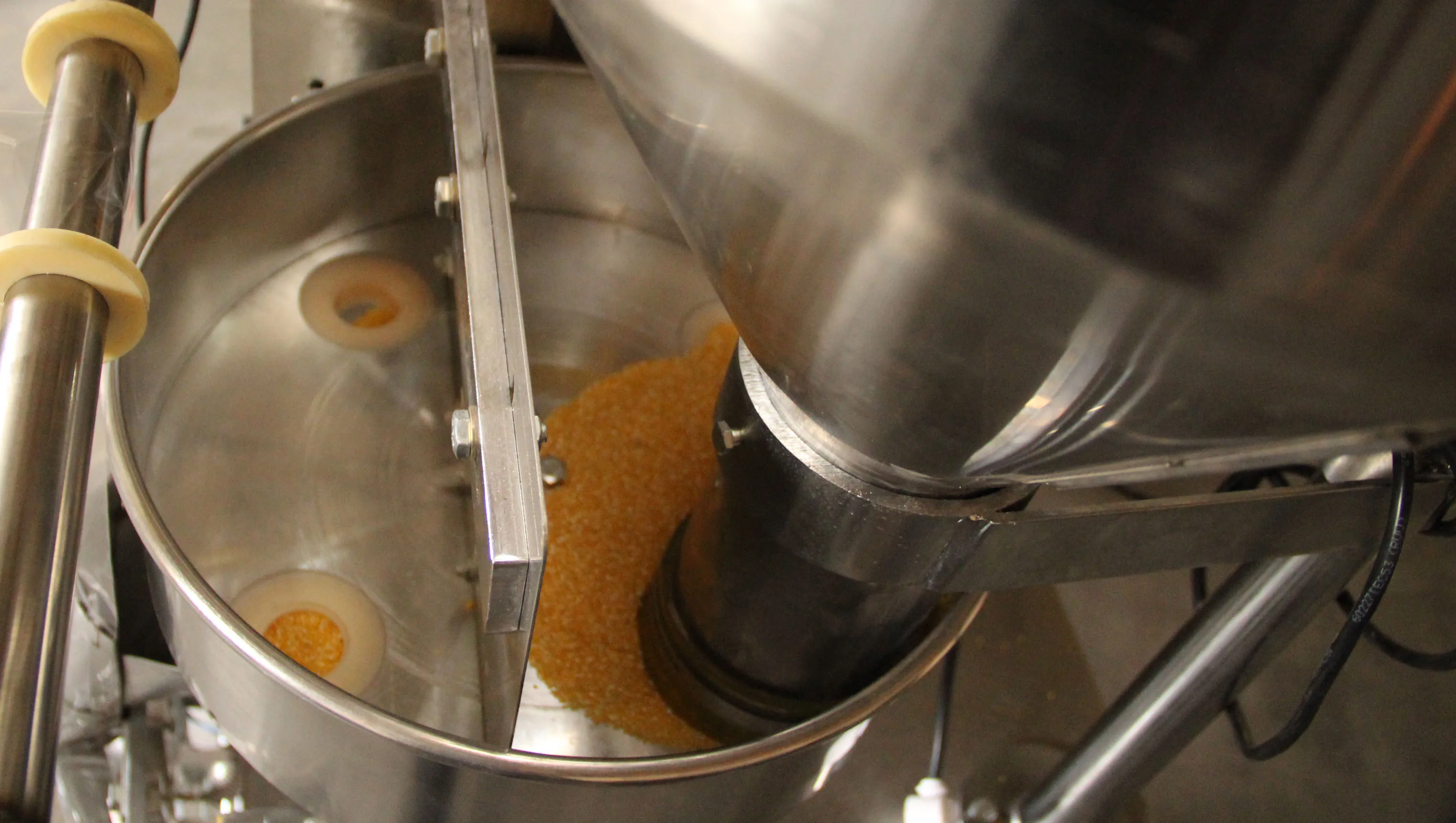

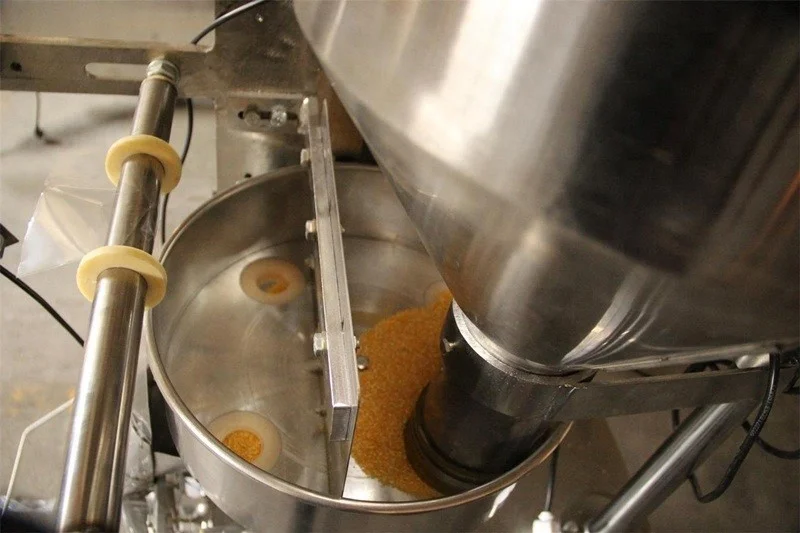

Measuring cup
#304 stainless steel measurement parts will measure the weight of each bag automatically.

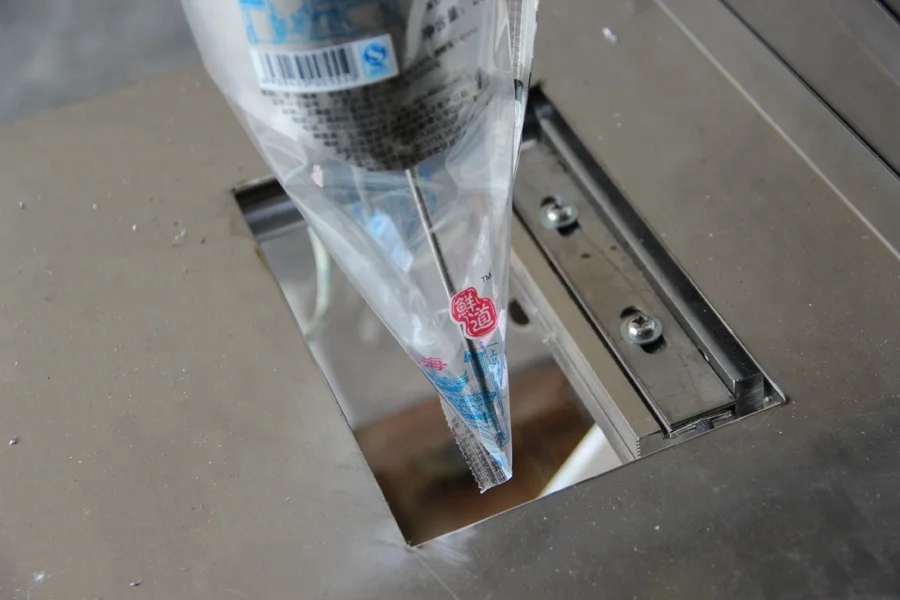

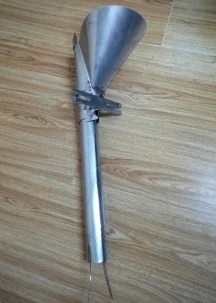

Bag Former
#304 stainless steel bag former is for shaping the film into a bag.
Different bag width needs different bag former.
Different bag width needs different bag former.

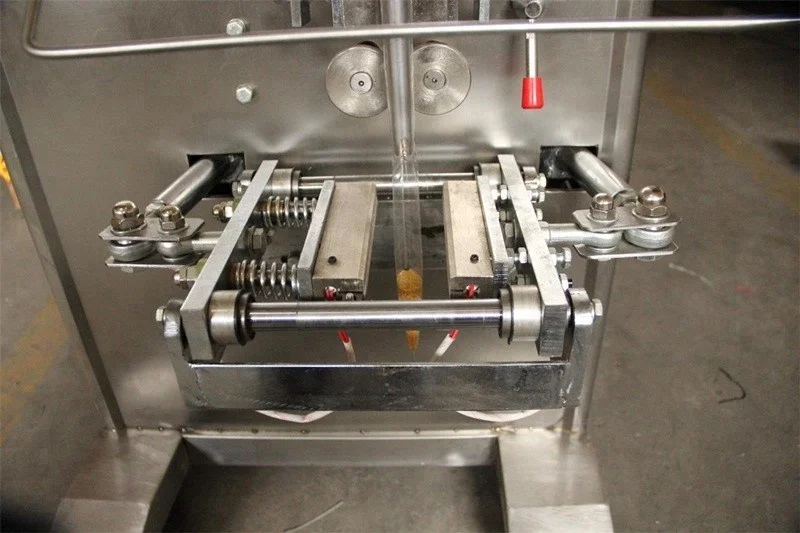

Sealing Cutting knife
High speed of fine and clean cutting and sealing bags.
Positioned stop function avoides sticking blades and wasting materials.
According to customer needs,the bag types can be changed：back seal, three sides seal, four side seal.
Positioned stop function avoides sticking blades and wasting materials.
According to customer needs,the bag types can be changed：back seal, three sides seal, four side seal.
Product category
Why Choose Us
1.Our company
Ruian Honetop Machinery Co., Ltd.
2.Our Clients
Shanghai China 2012
Shanghai China 2013
Shanghai China 2014
Quality Control
1.How we test
2.Our Certificate
Packing & Delivery
1.Packing ways
1.To oil machine and fix machine in the wooden tray avoid machine moving during shipment.
2.Use film to wrap whole machine aviod the seawater dropping on machine.
3. To pack whole machine into wooden case aviod machine collision.
1.T/T and Western Union are accepted
2.30% deposit before production and 70% balance before shipment
3.All banking charges outside China are on buyers
2.30% deposit before production and 70% balance before shipment
3.All banking charges outside China are on buyers
1.1.Upon receipt of payment , delivery date will be in 3-20 working days
2.By Air, by Sea or by Express (DHL etc)
3.Shipment cost will depend on the destination, shipment way and the weight of the goods
Our Service
Pre-Sales Service:
1.Provide packing solution according requirements
2.Doing test if customers send their products
3.View our Factory
After-Sales Service:
1.Installing service we will send our engineer to your factory if you need. you need to afford the round trip flight ticket and cost which happen at your place and engineer fee .
2.Training services: Our engineer will train your workers to install machine ,how to use machine and basic skills to fix machines.
3.Trouble shooting service: We will solve problems by phone ,video.If need to change spare parts,We will send spare parts to fix.
if still can't fix problems,Then we send engineer to come. In guarantee period, if spare part broken, we will send you the parts free and we will pay the express fee.
2.Doing test if customers send their products
3.View our Factory
After-Sales Service:
1.Installing service we will send our engineer to your factory if you need. you need to afford the round trip flight ticket and cost which happen at your place and engineer fee .
2.Training services: Our engineer will train your workers to install machine ,how to use machine and basic skills to fix machines.
3.Trouble shooting service: We will solve problems by phone ,video.If need to change spare parts,We will send spare parts to fix.
if still can't fix problems,Then we send engineer to come. In guarantee period, if spare part broken, we will send you the parts free and we will pay the express fee.
