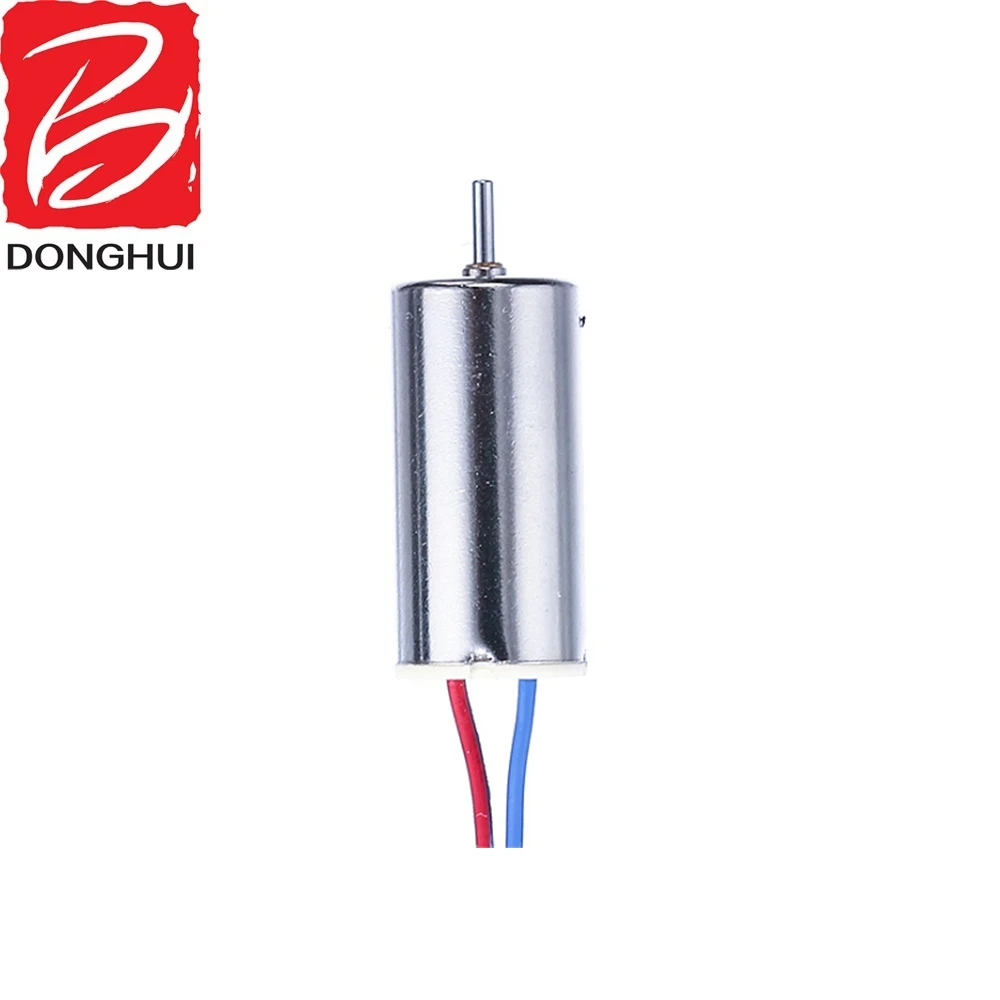

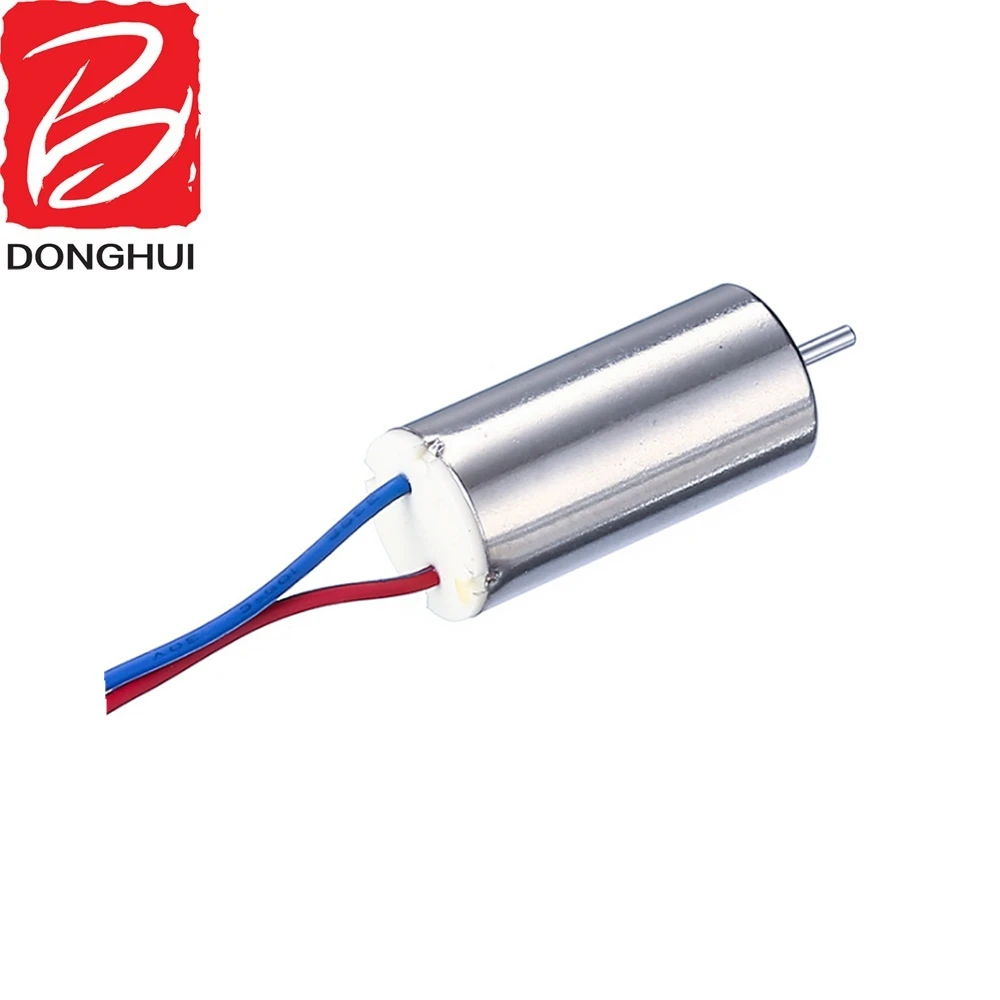

3.7v 8.5mm quadcopter drone motor DCL 8523
- Category: >>>
- Supplier: Shen Zhen Xin Dong Hui Technology Co. Ltd
Share on (60788202884):
Product Overview
Description
Product Description
3.7v 8.5mm quadcopter drone motor DCL-8523
Specification:

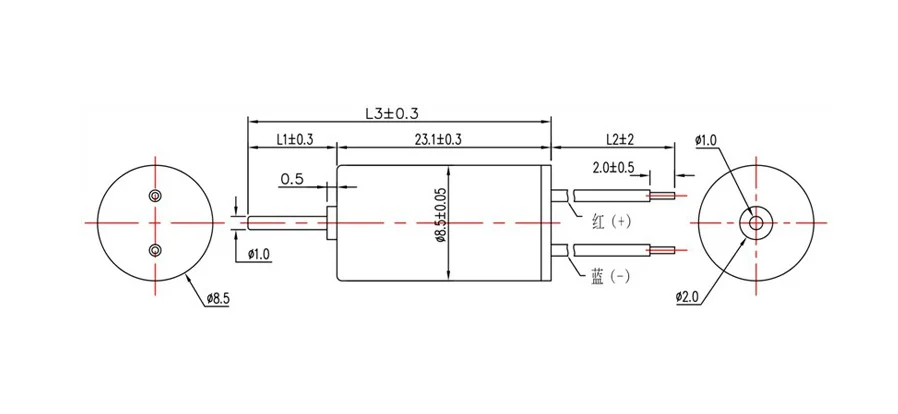

| Size | D8.5mm*L23mm |
| Voltage | 1.5V,3V,3.7V,4.5V |
| Unload Speed | 8000-50,000rpm |
| Torque | ≤1mNm |
| Stall Current | ≤3A |
| Efficient | 85% |
| Application | Remote Control Toys ,Aircraft,Mini Household Appliances,Vehicle Electronics |
Motor's voltage,speed, current,torque,screw length,shaft length can be customized
Model | Voltage (V) |
Unload Speed (rpm) |
Unload Current (mA) |
Load Torque (mNm) |
Load Speed (rpm) | Load Current (mA) |
DCL8523-001 | 3.7 | 43000 | 150 | 0.95 | 30000 | 2200 |
DCL8523-002 | 3.7 | 38950 | 139 | 0.8 | 25750 | 2678 |
