Camera standard cable pre buried system SMPTE 311M

HD camera connectors are made up of a large number of stainless steel parts and ceramics. They are very precise and must be assembled and assembled in specialized workshops using specialized equipment. The unique design of the interface board unit converts the opto-electric composite structure of the high-definition camera connector into a structure in which the optical fiber and the electric wire are separated. The optical fiber adopts a standard SC/UPC flange connection, and the electric wire also adopts a mating terminal of the same color butt joint.

In this way, the HD camera connector that had to be machined in a dedicated workshop was converted into an SC/UPC flange connection that could be cut in the field. It is very convenient for the pre-embedded construction of SMPTE311 camera standard optical cable for stadiums, concert halls, studios, theaters, etc.

Packaging including

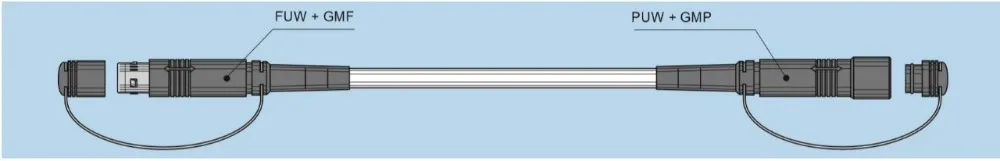

SMPTE311 OPTICAL CABL

SMPTE311 camera standard optical cable (pre-buried through the tube, without cable connectors on both sides)

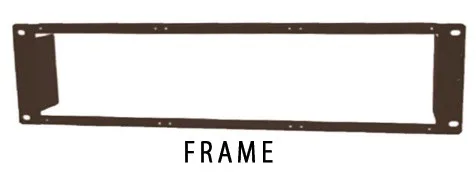

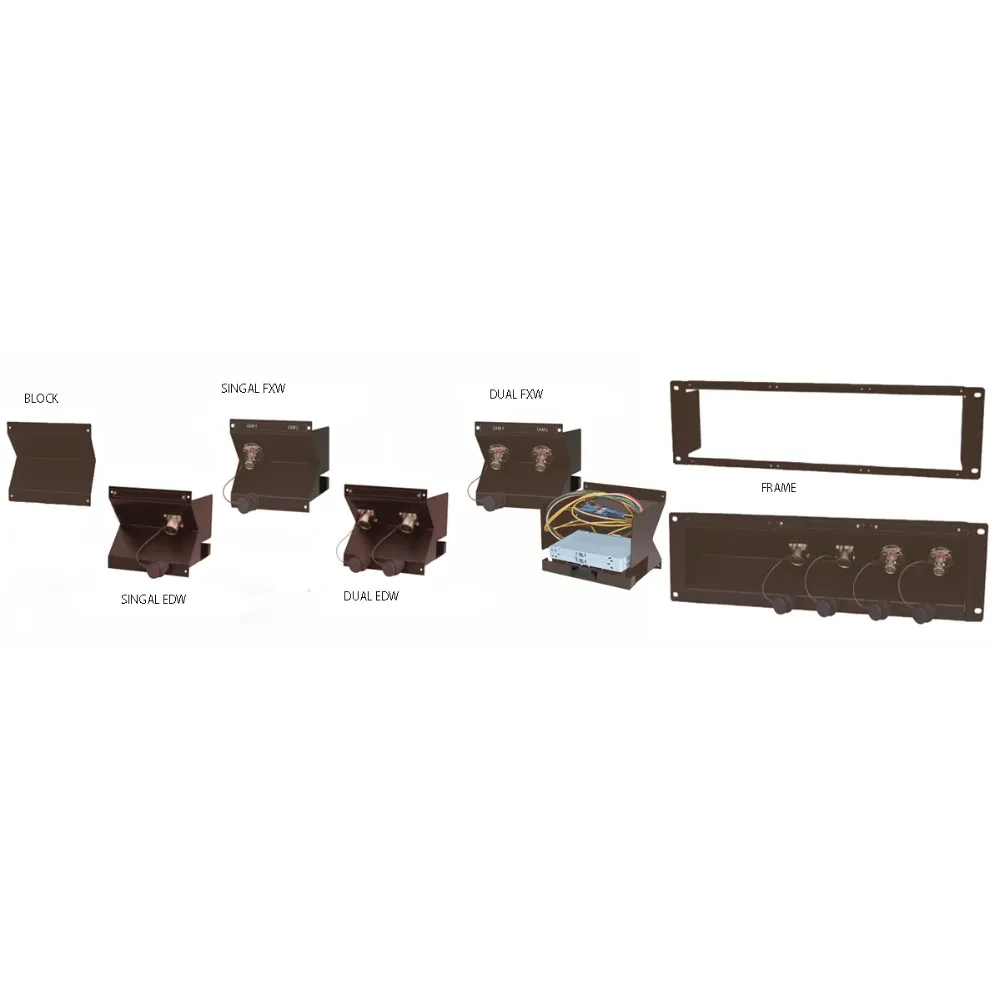

FRAME

The frame, 19" 2U height, 3 unit width, can be installed with up to 6 fiber optic cable interfaces.

BLOCK

One unit width for use with the DVS6208-1 camera cable pre-embedded system

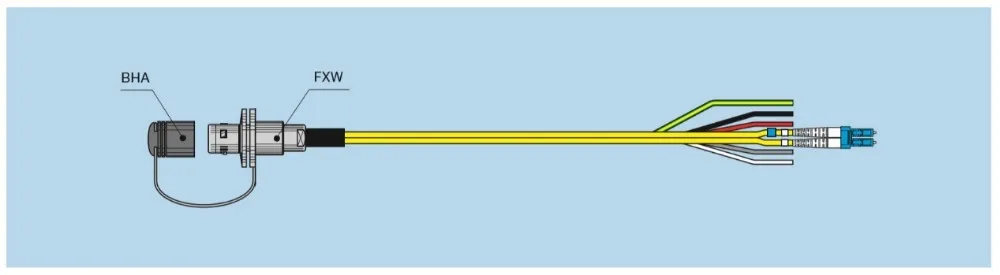

FXW SINGLE

Used in conjunction with the DVS6208-1 camera cable pre-embedded frame, each 1/3 frame width. It includes a FXW camera standard cable holder and splice tray that can be terminated with a pre-embedded camera cable.

DUAL FXW

Used in conjunction with the DVS6208-1 camera cable pre-embedded frame, each 1/3 frame width. It includes two FXW camera standard cable holders and splice trays that can be terminated with two pre-embedded camera cables..

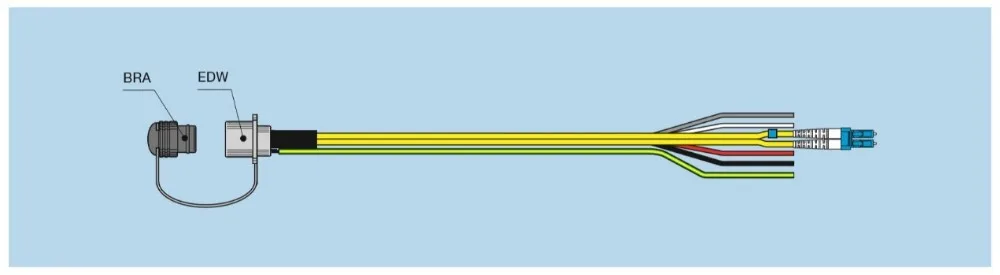

SINGLE EDW

Used in conjunction with the DVS6208-1 camera cable pre-embedded frame, each 1/3 frame width. It consists of single  EDW camera standard cable holders and splice trays that can be terminated with two pre-embedded camera cables.

DUAL EDW

Used in conjunction with the DVS6208-1 camera cable pre-embedded frame, each 1/3 frame width. It consists of two EDW camera standard cable holders and splice trays that can be terminated with two pre-embedded camera cables.

CLEANING ACCESSORY(OPTION)

One-touch fiber cleaner, 2.0MM is designed for SMPTE311 camera standard cable cleaning. It is easy to use and can easily remove dust, oil and debris from the end face without wiping.
