Wireless RFID Control Keypad Work With Alarm System

Product Overview

Description

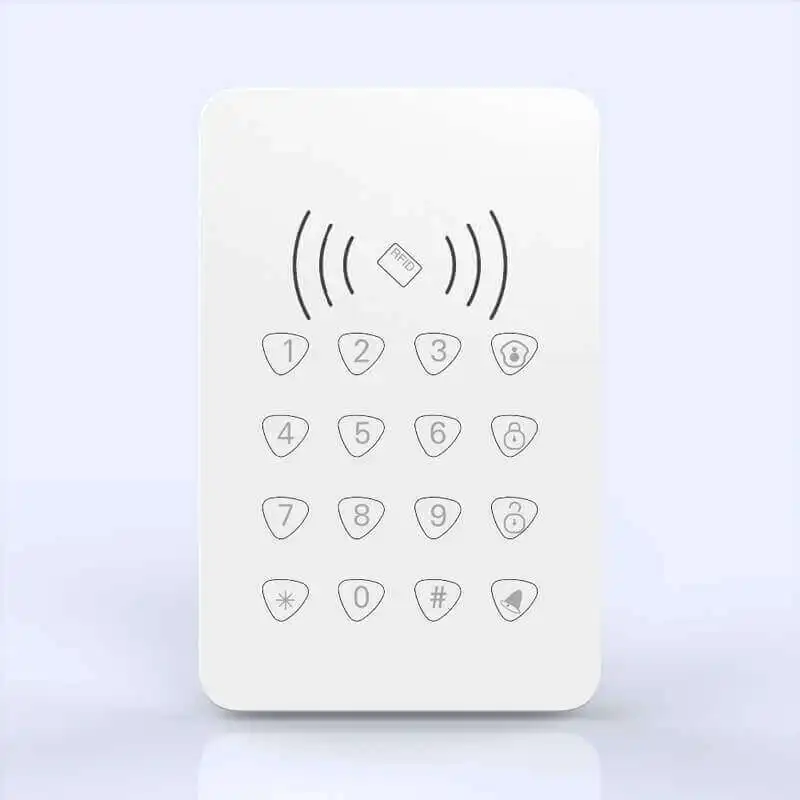

Wireless RFID Control Keypad Work With Alarm System

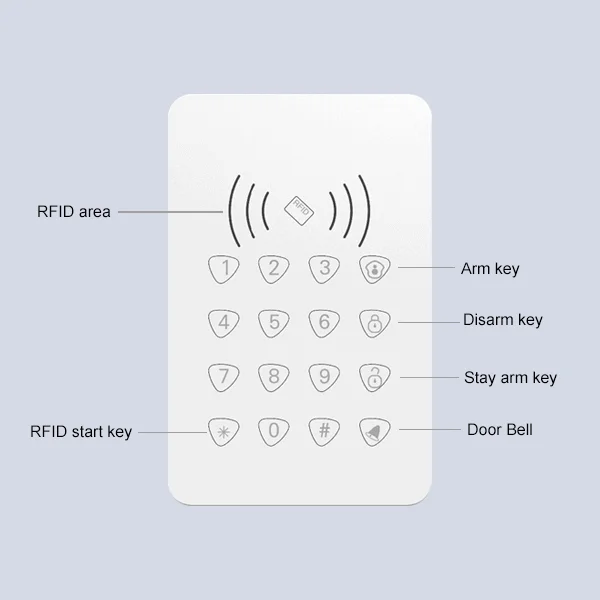

GS-KP1 has touch keypad design, and supports RFID tags. Using the RFID tags, user can quickly arm and disarm the alarm panel with password. It’s powered by AA batteries, communicates with alarm panel through 433 MHz/868 MHz wireless frequency.

To disarm the alarm system simply enter the password and then press the Disarm Key, alternatively pass an RFID Tag (purchased separately) across the Keypad’s RFID reader for quick and easy one step operation.



Furthermore, it supports doorbell function, press “doorbell” icon, the alarm system will make “Ding dong” door bell sound.





Main Features



• Power Input: AAA LR03 1.5V Battery x 4
• Power Output: No
• Standby Current: 10uA
• Working Current: <20mA
• Low Battery Reminding: Yes
• Transmitter: eV1527
• Transmission range: <=80 meters (open area)
• Transmission frequency: 433 MHz / 868MHz
• Max. No. RFID: 60 RFID tags



Specfication



• Wireless RFID Touch Keypad
• Radio-frequency identification (RFID) function
• Store 60 pcs RFID tags
• LED indication light to show status of Arm/Disarm/Home Arm
• Compatible with our wireless alarm panels
• Password protection for home owner
• 3 pieces AAA battery powered
• Battery low voltage SMS reminding function
• Operating frequency 433M Hz or 868MHz
• Transmit distance < 80m (in open area)

Picture Review
