Complete rice milling plant the price of rice planting machine kubota

Product Overview

Description



Work principle



Grain flows evenly into rotating grinding wheel plate from hopper at effect of gravity. Grain pusher throws grain inside machine to be in the grinding room between cone surface and grinding wheel. Inside grinding room, grinding wheel grinds and cuts, skin and kernel are separated. Skin (or bran) is discharged out of grinding room under effect of fan blower absorbing force. The left goes to kernel outlet by wind from bran removing system and pulled out. Kernel flows to machine bottom, and the poker at the grinding wheel base pushes kernel to kernel outlet and flows out of machine.

Production capacity of the machine is determined by grinding wheel granularity fineness, machine RMP, grinding room gap, pressure and resistance force. Grinding room pressure is adjusted by controlling feeding and discharging outlet flow volume and length of poker. Grinding room resistance is adjusted by changing drag knife positions. Bran removing effect is adjusted by changing wind adjusting board position which changes air flow of bran removing system.



General description

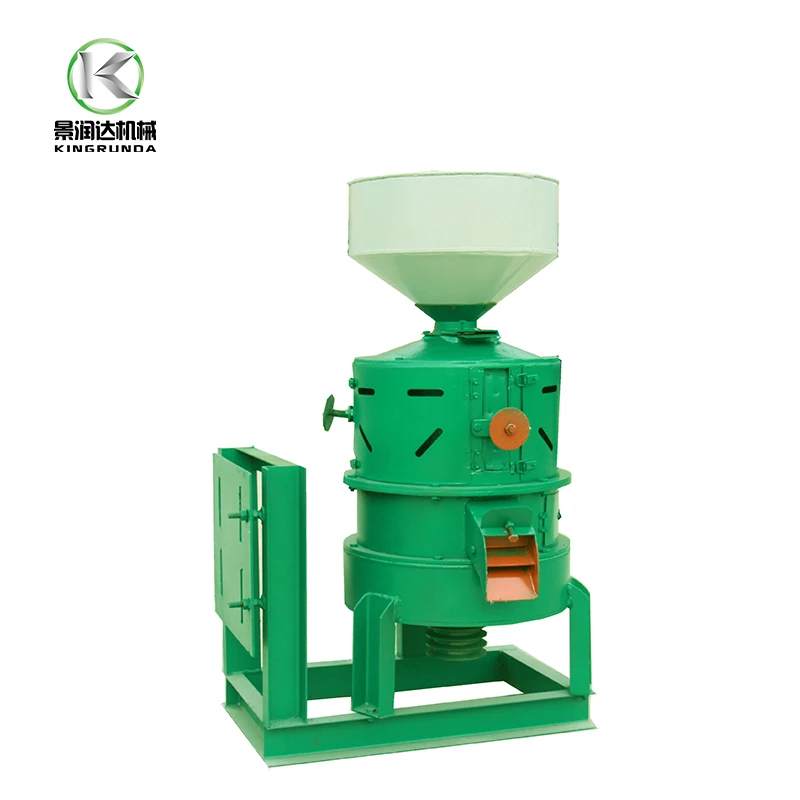

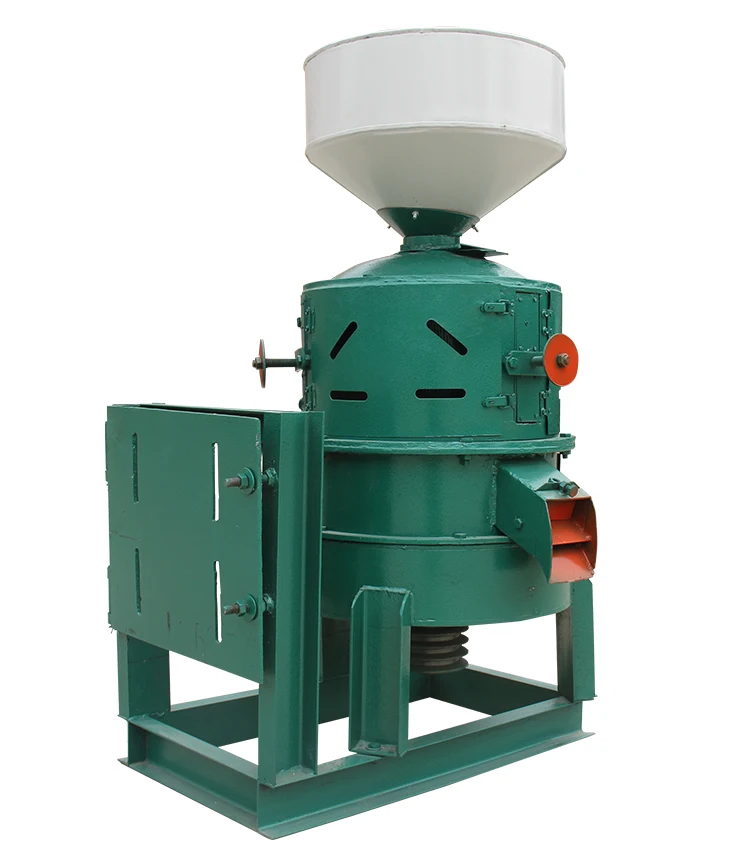

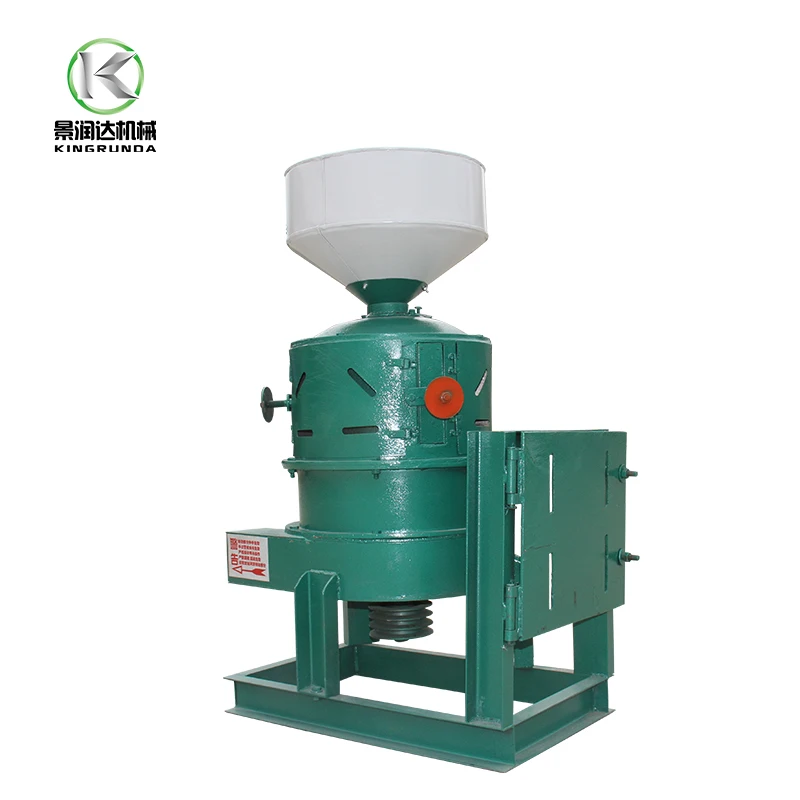

6FH-330 is the most economic rice milling machine. Suitable for starting business from small scale. It is cheap, strong, reliable, very good choice for low investment.



Features



1.Machine can excellently remove skin for wheat, corn and wheat.

2.Only require one time to peel, easy to operate.

3.lowest power consumption, big capacity.

4.Small space required, easy for maintenance.







Basic technical parameter
Motor power	7.5kw, III phase
Outer dimension	L1200xW620x1090Hmm
Grinding wheel size	330x280x205mm
V-belt pulley	160*100mm
V-belt	2280
Grinding room bottom gap size	14±1mm
Grinding room gap	11±1mm
Weight	310kg
Bearing	6208
Main shaft speed	850~1000R/M



Different material configuration for reference
Grain Item	Wheat	Millet	Sorghum/beans
RMP (r/minute)	1000-1200	1000-1200	850-1150
Grinding room gap (mm)	12-14	10-12	10-14
Grinding wheel granularity fineness	30	36	30
Bran sieve hole width	1	0.7	1
Drag knife	rubber knife	rubber knife	rubber knife



Different grain capacity for reference
No	Grain	Capacity (kg/h)
1	Wheat	200~400
2	Millet	300~400
3	sorghum	350~450
4	corn	400~500
5	barley	200~400
6	beans	200~400
