1500x150x60 mm granite straight edge 00grade
1500x150x60 mm granite straight edge 00grade
1500x150x60 mm granite straight edge 00grade
1500x150x60 mm granite straight edge 00grade
1500x150x60 mm granite straight edge 00grade
1500x150x60 mm granite straight edge 00grade
1500x150x60 mm granite straight edge 00grade

1500x150x60 mm granite straight edge 00grade

Share on (60788294839):


Price:RUB 34,190.47

Quantity:


Product Overview

Description


Product Description

 granite measuring ruler

Physical Property of Jinan Black Granite:


Specific Gravity: 3.03 g/cm3
Shore Hardness: > 70Hs-80Hs
Tensile strength: 211Kg/cm2
Compressive Strength: 245-254Mpa
Linear Expansion Coefficient: 4.61´10--6/°C
Elastic Modulus: 30-50Gpa
Water Absorptivity: ≤0.13%



granite measuring ruler

Salient Features :

Made from close-grained Granite having uniform color and texture having hardness between 5.6 to 7 on Moh's scale, sound and free from flaws fissures and large inclusions of softer minerals.
Made generally as per GB117-2015. Also available on request conforming to DIN-876-1972, BS-817-1988, JIS -B-7513 and US Federal specification GGG-P-463-C.
metallic threaded inserts, metallic T-slots, Plates with two or four ledges also can be supplied against specific request at extra cost.
Rexine cover provided for top working surface with each Plate.
steel stand with leveling screws are available on request at extra cost.
Granite Lapping Plates square and rectangular available on request.
Also available in Grade 00 as per DIN 876.
Sizes offered from 200x300mm to 8000x2000mm
Other sizes are also offered on request.

granite measuring ruler

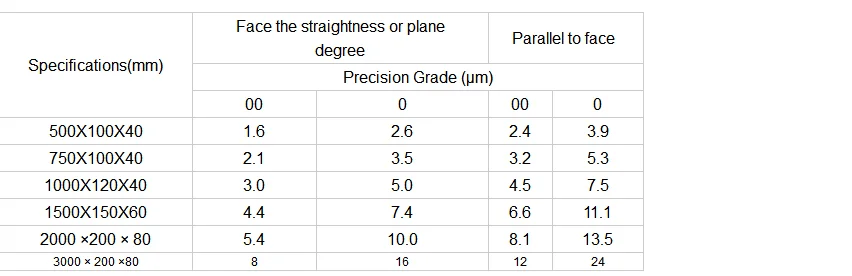

Inspection accuracy


Certifications


product plant


FAQ

FAQs

1.Can I order one piece granite surface plate?

if you want small size less than 800x800,it's would delivery by air express. mos times express cost is higher than granite cost. so we don't suggest you buy one small size from us.

2. if your granite surface plate have certifications? ?

Yes , each of granite surface plate has it's certification.if you need we can send sample for you



3. How much does granite surface plate weight??

(Lengthx width xHeight )mmx3x1000= weight granite kg

4. why dose granite have color steaks,spots and seams ?

Seams and color streaks occur occasionlly&naturally in granite stone. it is not uncommon for granite plates of large sizes to include cosmetic non-conformities,which we endeavor to keep to a minimum. we can assure you that such visible disconformities are carefully examined before,during and after the manufacturing process for actual or potential problems due to non-conforming material. Our goal during this inspection process is to insure that we are following our own internal quality standards.

5. Can you put my company name and logo on your product ?

How should I clean my precision granite products

6.Why I get the granite accuracy is not good ?

Due to different temperature granite accuracy wil be change , before you use it,please put it in a uniform temperature space over 24hours, it's request temperature (20 ±5 )℃
