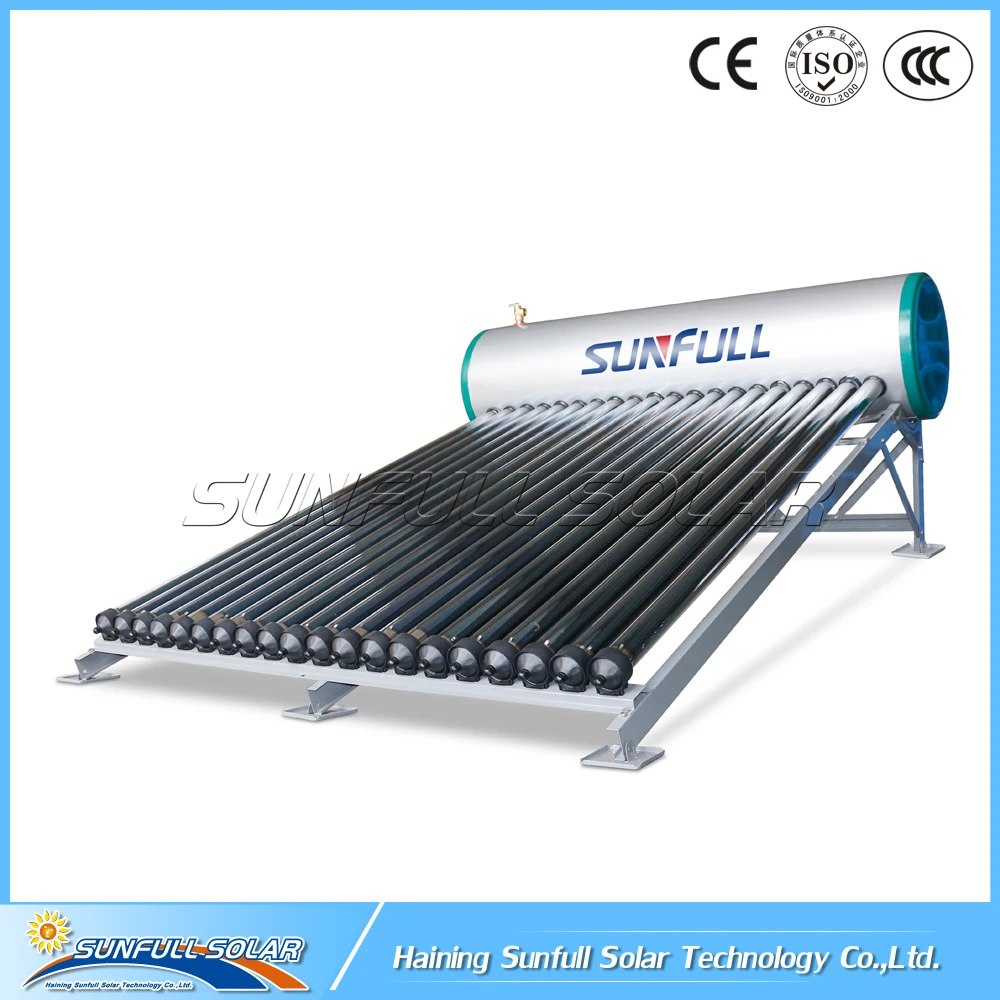

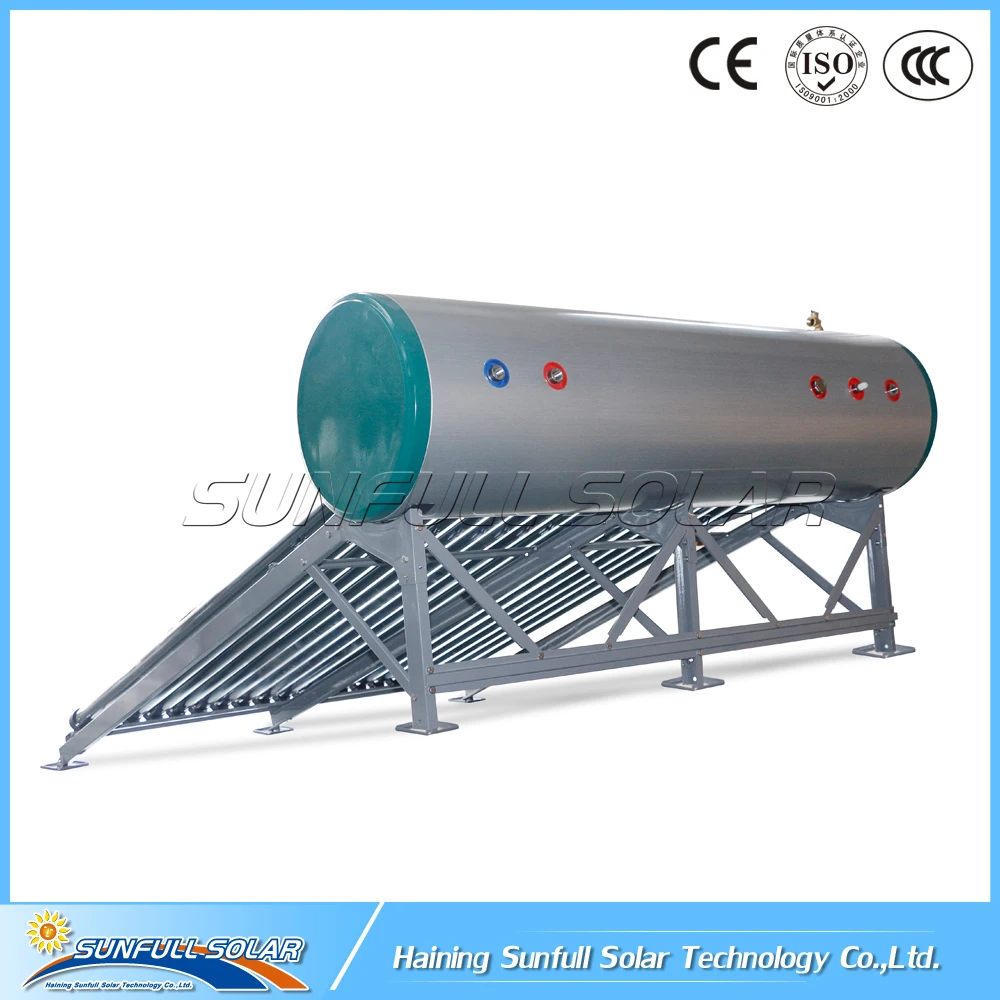

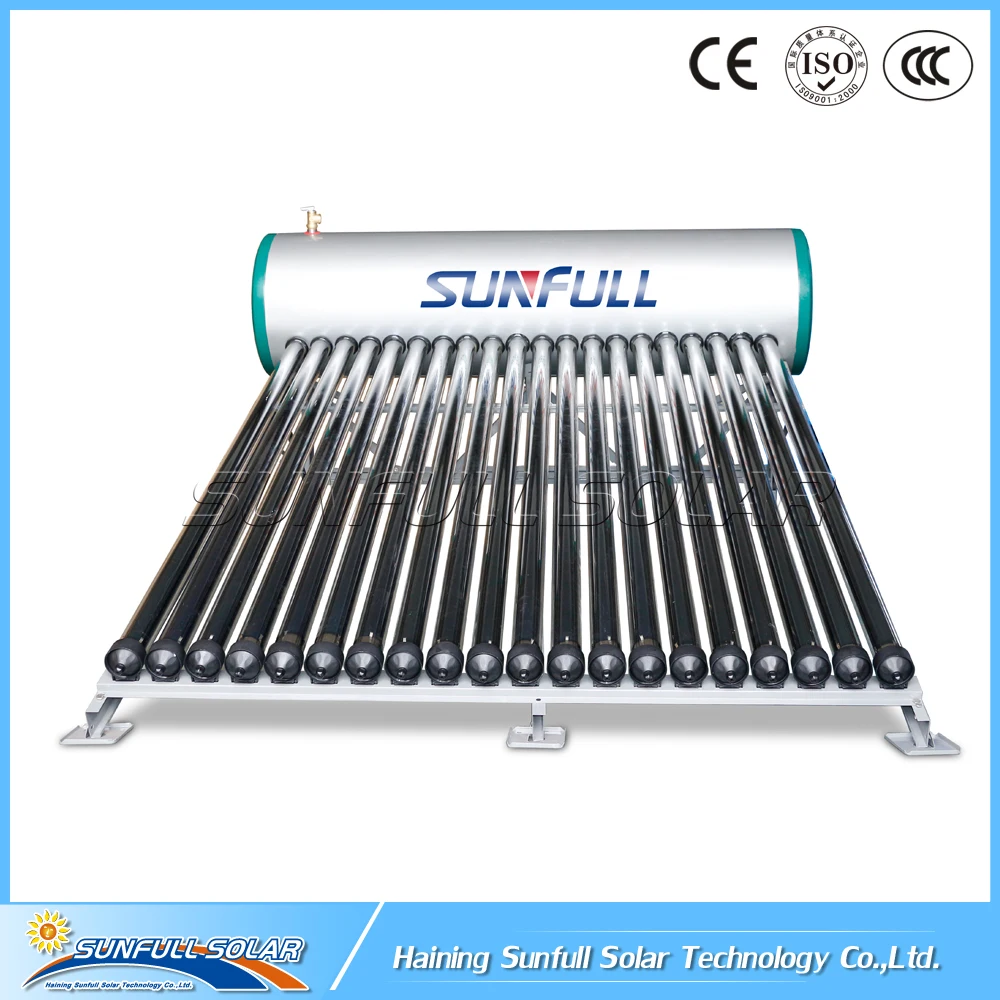

Kenya 300L Slope Roof Heat Pipe Pressure Solar Water Heater

WATER STORAGE TANKS

Material of out tank

painted steel , 0.4mm thickness

Material of inner tank

Food grade stainless steel 304-2B ,1.2-1.5mm thickness

Tank insulating layer

PUF Insulation 50/55/60 mm thickness with high density.

Welding:

Argon arc welding

Water tank Diameter

360/460mm normally

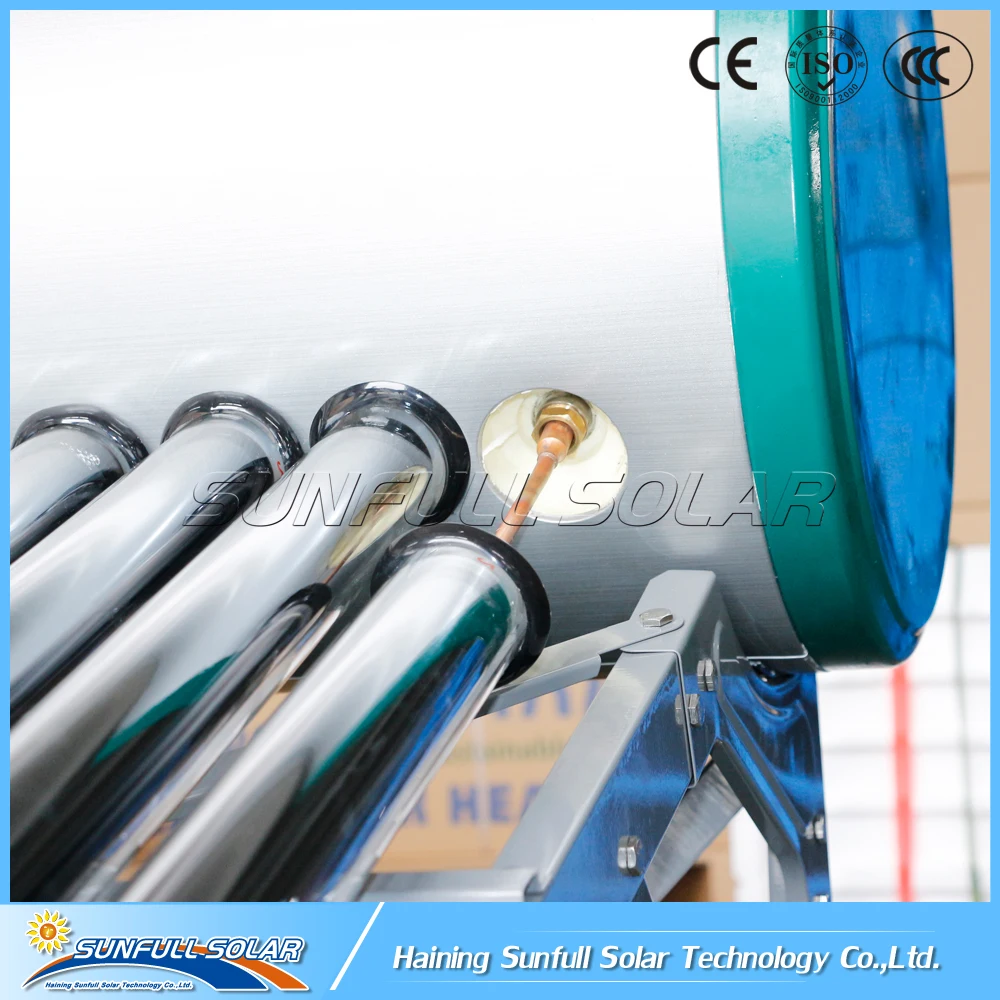

EVACUATED VACUUM TUBES

Tube structure

All-glass double deck co-axial structure

Glass material

High borosilicate 3.3 glass

Outer tube diameter and glass thickness

Ø58±0.7mm; Glass thickness 1.6±0.15mm

Inner tube diameter and glass thickness

Ø47±0.7mm; Glass thickness 1.6±0.15mm

Tube size

58*1800mm

Resistant Hail

≤25mm

Useful life

15 years

BRACKET

Bracket:

galvanized steel. structure

Bracket angle:

15, 38, 45 optional, pitched roof, flat roof optional.

Fastening pieces:

Stainless Steel Nut Bolt.

Capacity

(Liter)

Tube

quantity

Packing

size(CBM)
