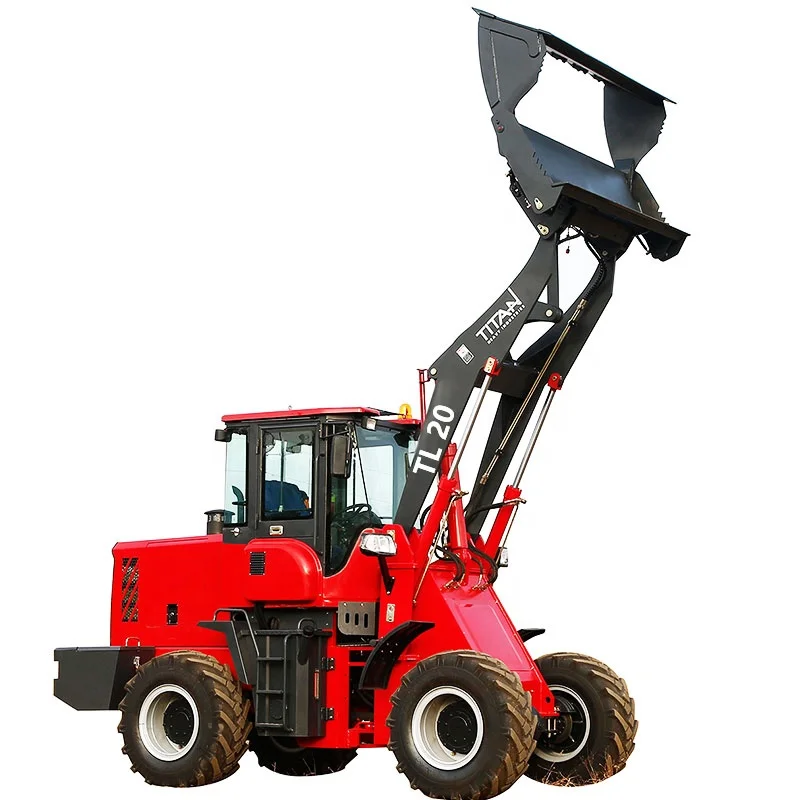

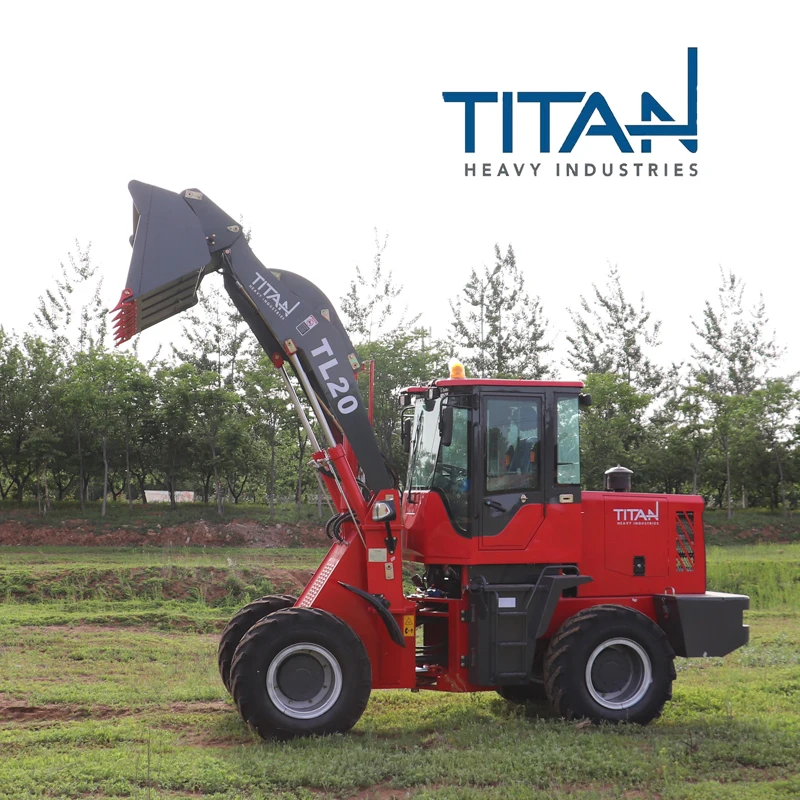

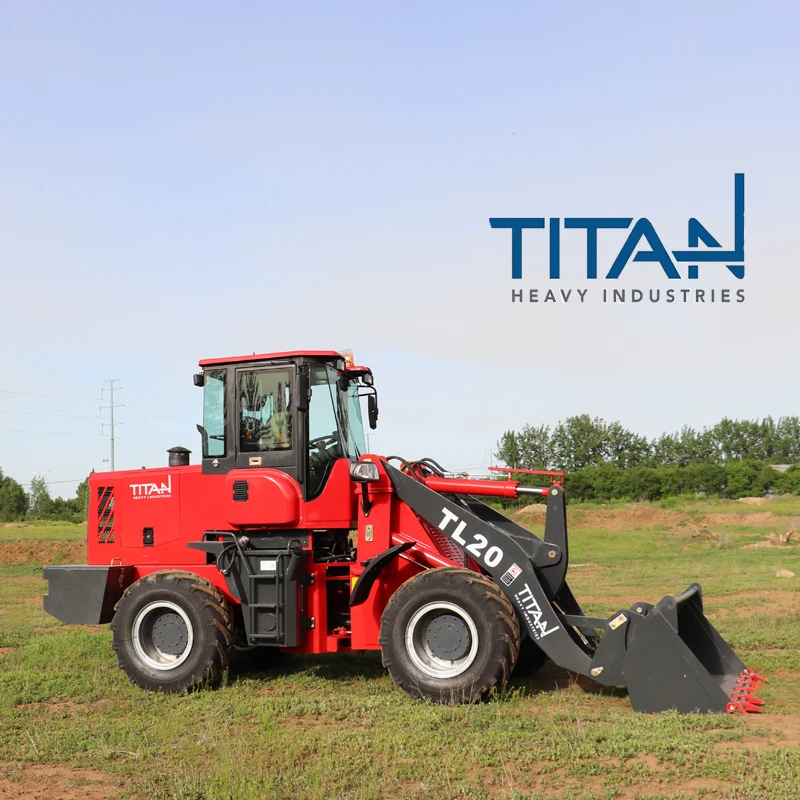

  • Chinese Titan Brand China Mini front end loader bucket TL20 Wheel Loader

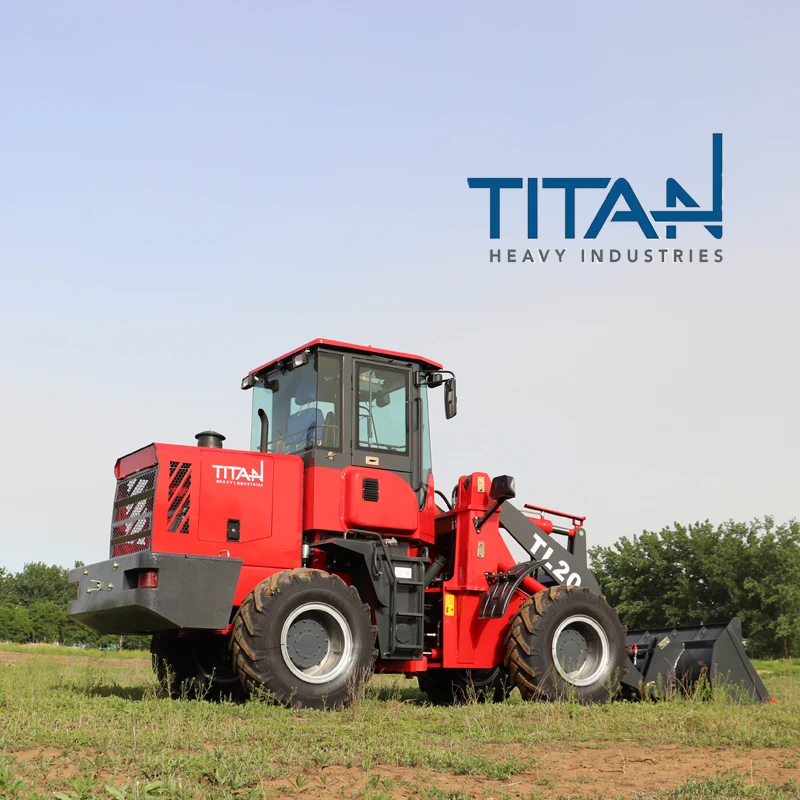

Chinese Titan Brand China Mini front end loader bucket TL20 Wheel Loader
Chinese Titan Brand China Mini front end loader bucket TL20 Wheel Loader
Chinese Titan Brand China Mini front end loader bucket TL20 Wheel Loader
Chinese Titan Brand China Mini front end loader bucket TL20 Wheel Loader
Chinese Titan Brand China Mini front end loader bucket TL20 Wheel Loader
Chinese Titan Brand China Mini front end loader bucket TL20 Wheel Loader
Chinese Titan Brand China Mini front end loader bucket TL20 Wheel Loader

Chinese Titan Brand China Mini front end loader bucket TL20 Wheel Loader

Share on (60788407002):


Price:$6,000.00 - $9,000.00

Quantity:


Product Overview

Description





Products Description


China cheap price 2.0ton front end hydraulic construction machinery wheel loaders

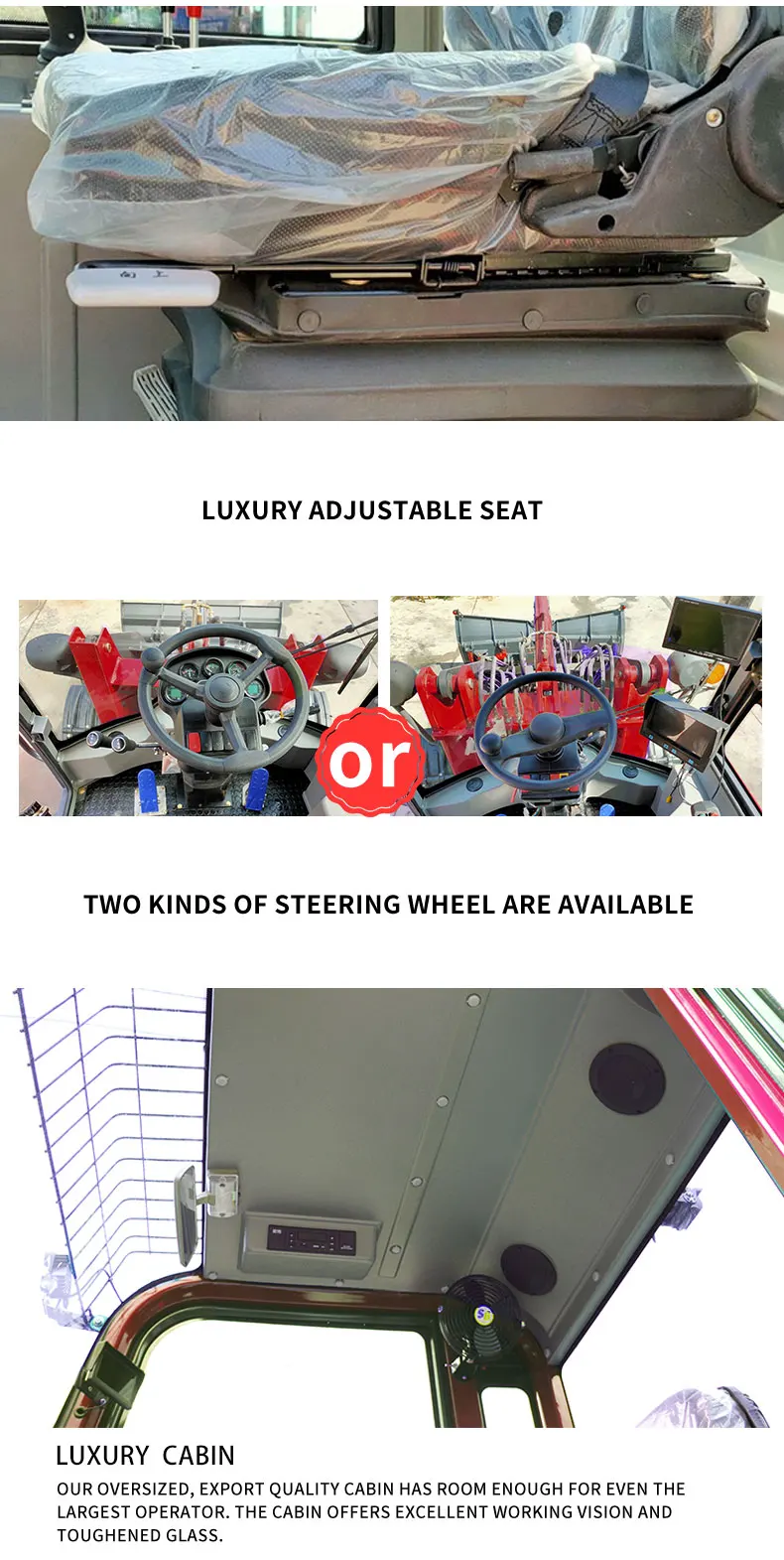

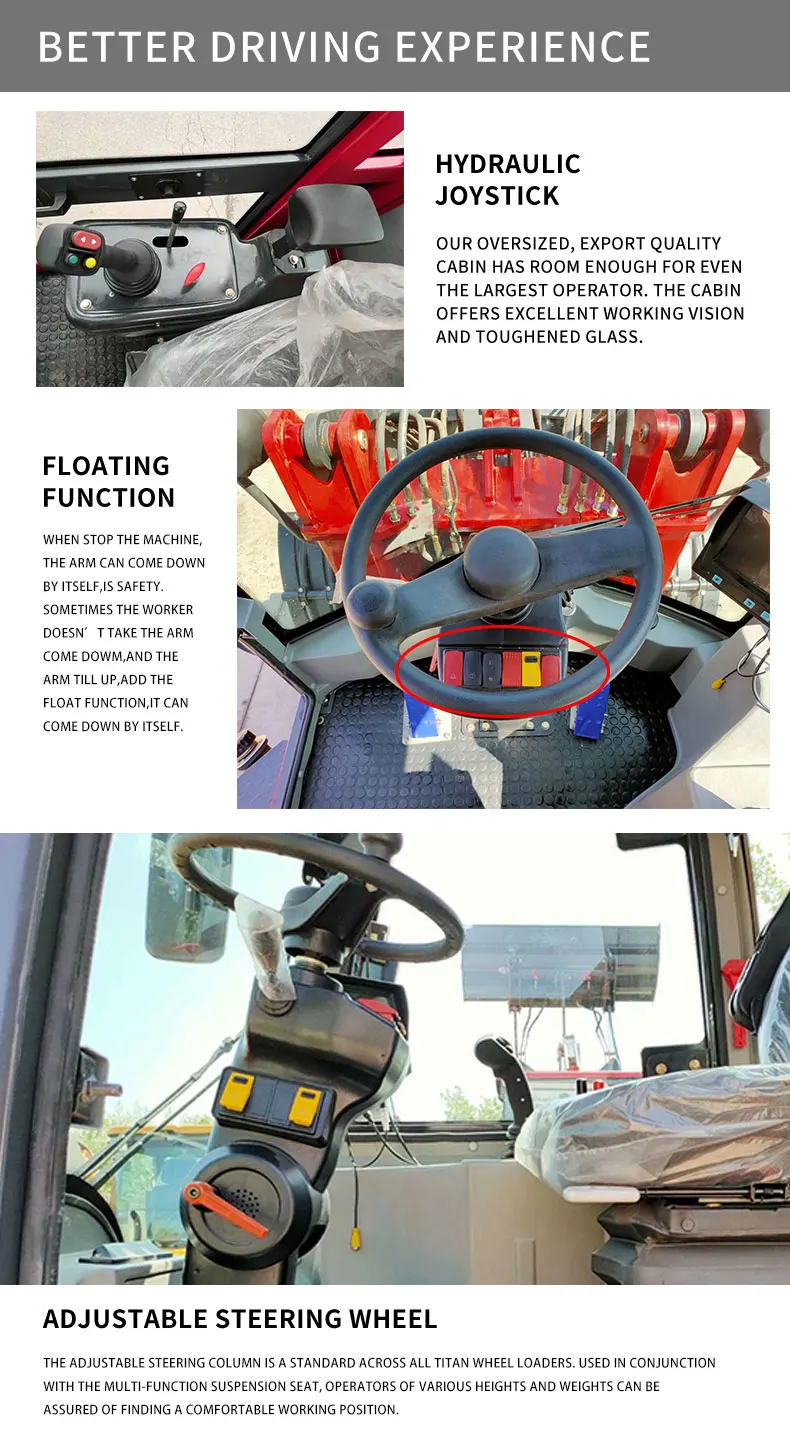

1. All hydraulic system joy stick control , luxurious cab,adjustable seat,back camera, cab heat, LED light, auxiliary pipes

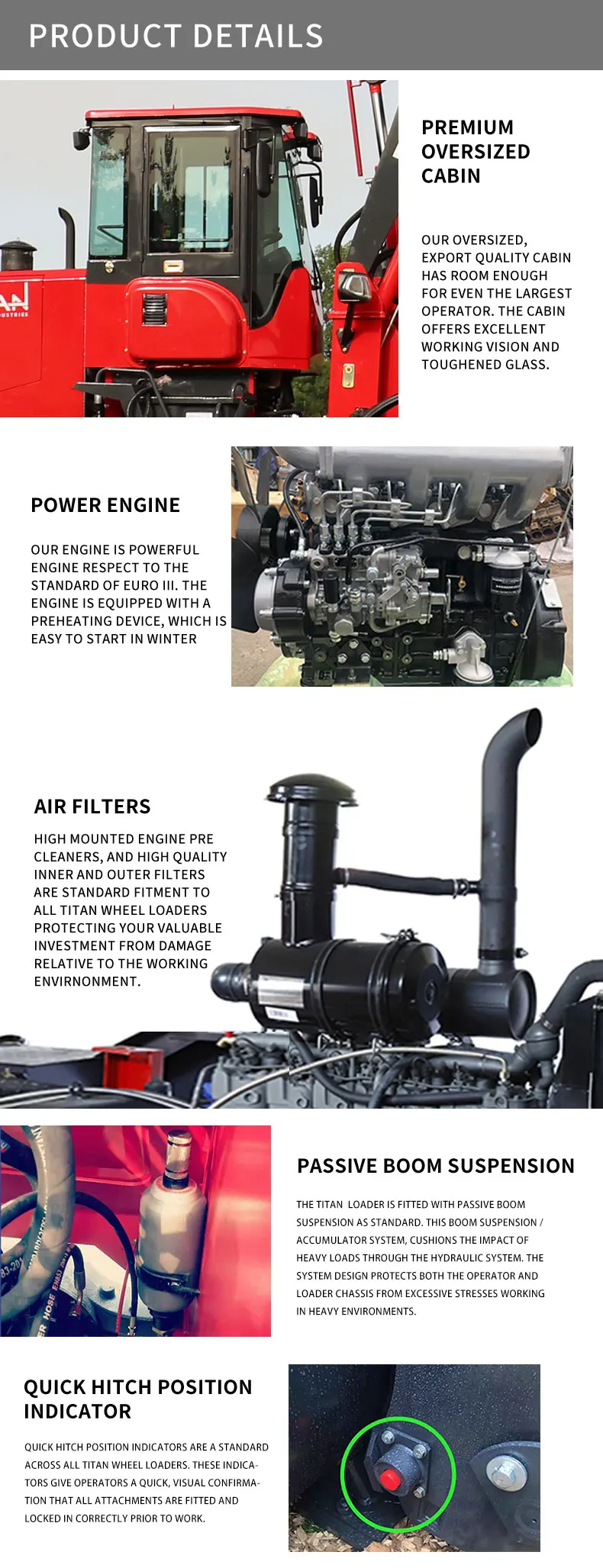

2. Dongfanghong 4108, 60kw, four cylinder,water-cooled
3. 2.0ton;1.0cbm bucket capacity;25km/h;5800×2000×2800mm
. 4.It also can install different accessories like pallet fork, snow bucket,snow blade,grass cutter,4in 1 bucket for different
work condition.
All the machine with CE, ISO certificate




TL20 WHEEL LOADER SPECIFICATION
ITEM
SPECIFICATION
ITEM
SPECIFICATION
1.0 Engine details:

Ground to Cab Top
2750mm
Model

Dumping Height
2800mm
Engine type
Diesel Engine
Min. Base to the Ground
350mm
Rated Power

60kw
Overall Width
2000mm
Rated Speed
2400rpm
5.0 Operating Specifications

Rated loading weight
2000kg
Steering System
Articulated Frame with hydraulic power steering
2.0 Transmission System

Min Turning Radius
4600mm
Type
Four-wheel full hydraulic drive
Driving System
Four wheel drive
Transmission gear box form
2 gear hydraulic variable speed changes
6.0 Brake System

Rated input speed
2500 (rpm)

Service Brake

Four-wheel hydraulic spread-shoed brake
3.0 Bucket

Parking Brake
Hand operated
Bucket Capacity
1.00CBM
7.0 Tyre

Bucket width
2000mm
Model
16/70-20
Bucket type
Heavy-duty bolt on teeth
8.0 Wheelbase
2350mm
Max. Breakout Force
60KN
9.0 Track base
1500mm
Rated Load
2000kg
Maximum speed
25km/h
Operating Weight
5900kg
Lifting time
≤5.0s
4.0 Overall Dimensions

Reach fully raised
1050mm
Overall Length (Bucket on ground position)
5800mm
The minimum circle diameter
310mm
Overall Height
2750mm
