OE diode laser stack 10bar for hair removal used for diode laser hair removal from China with water pipe on the bottom

Description

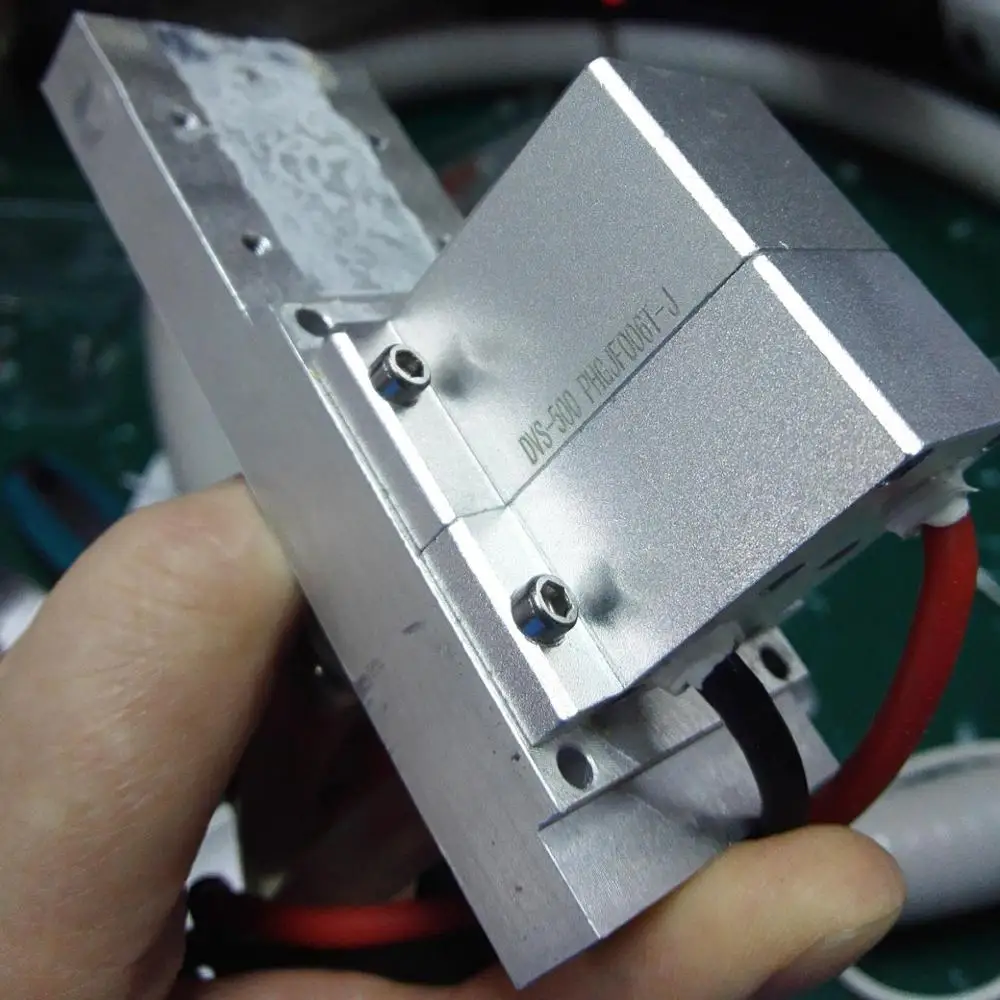

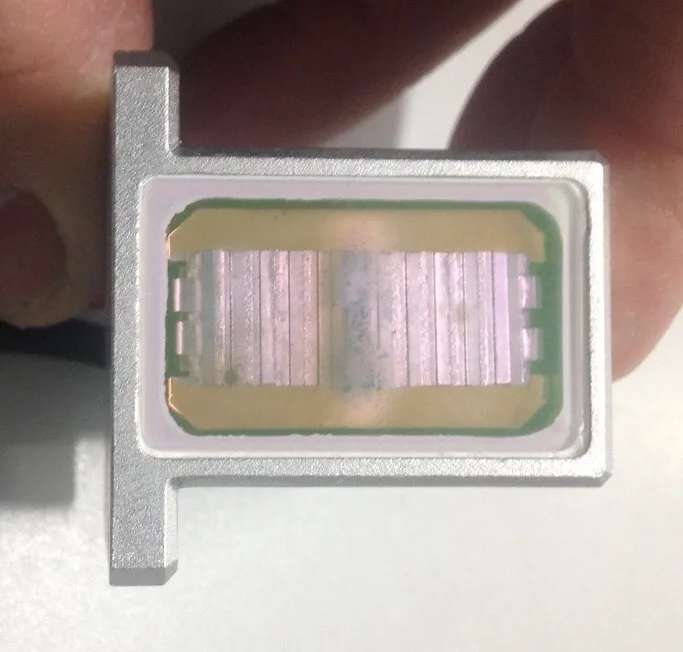

This diode laser stack

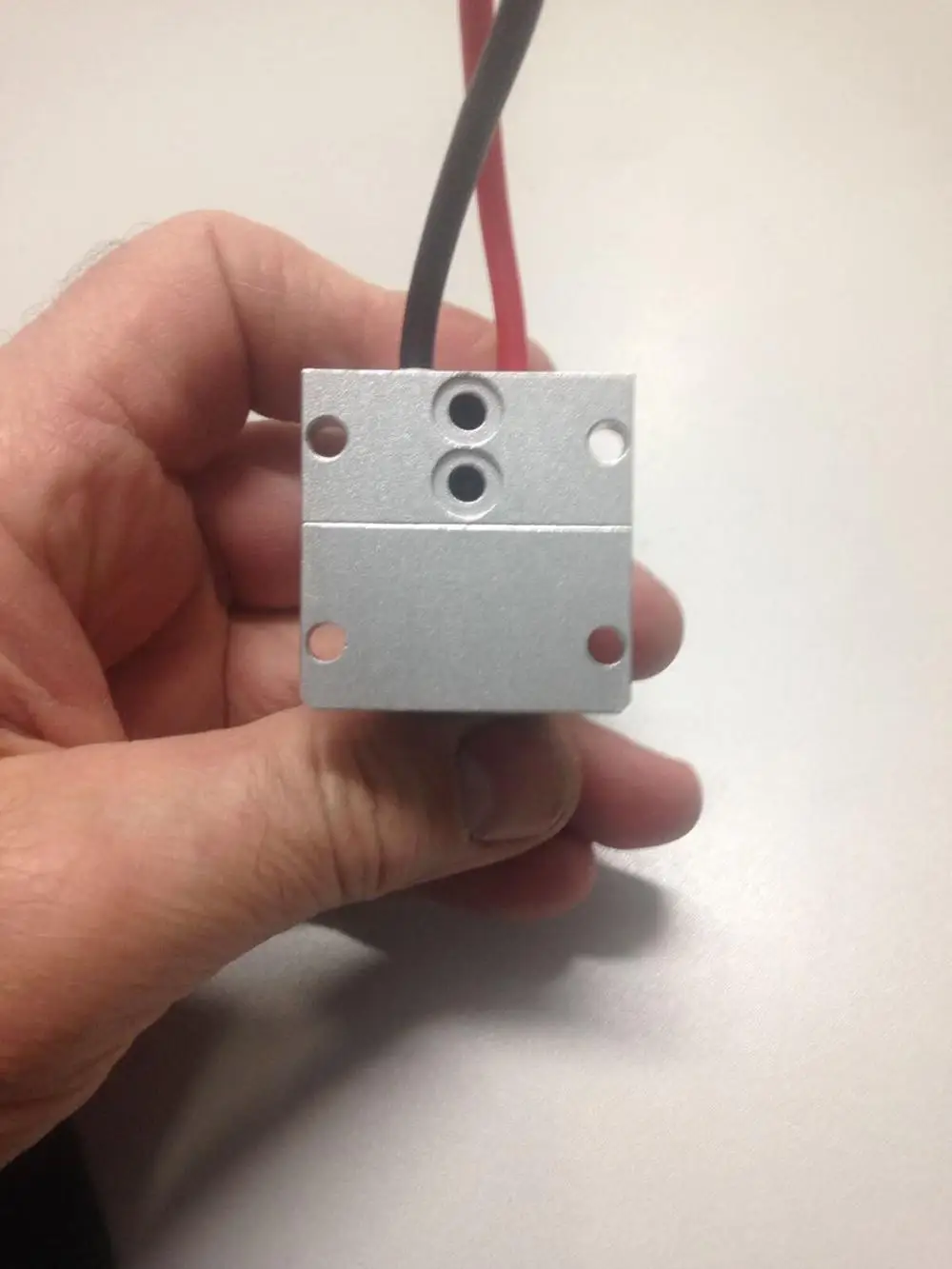

 10bar Model B for hair removal which has 10bars with a aluminum shell. The water holes

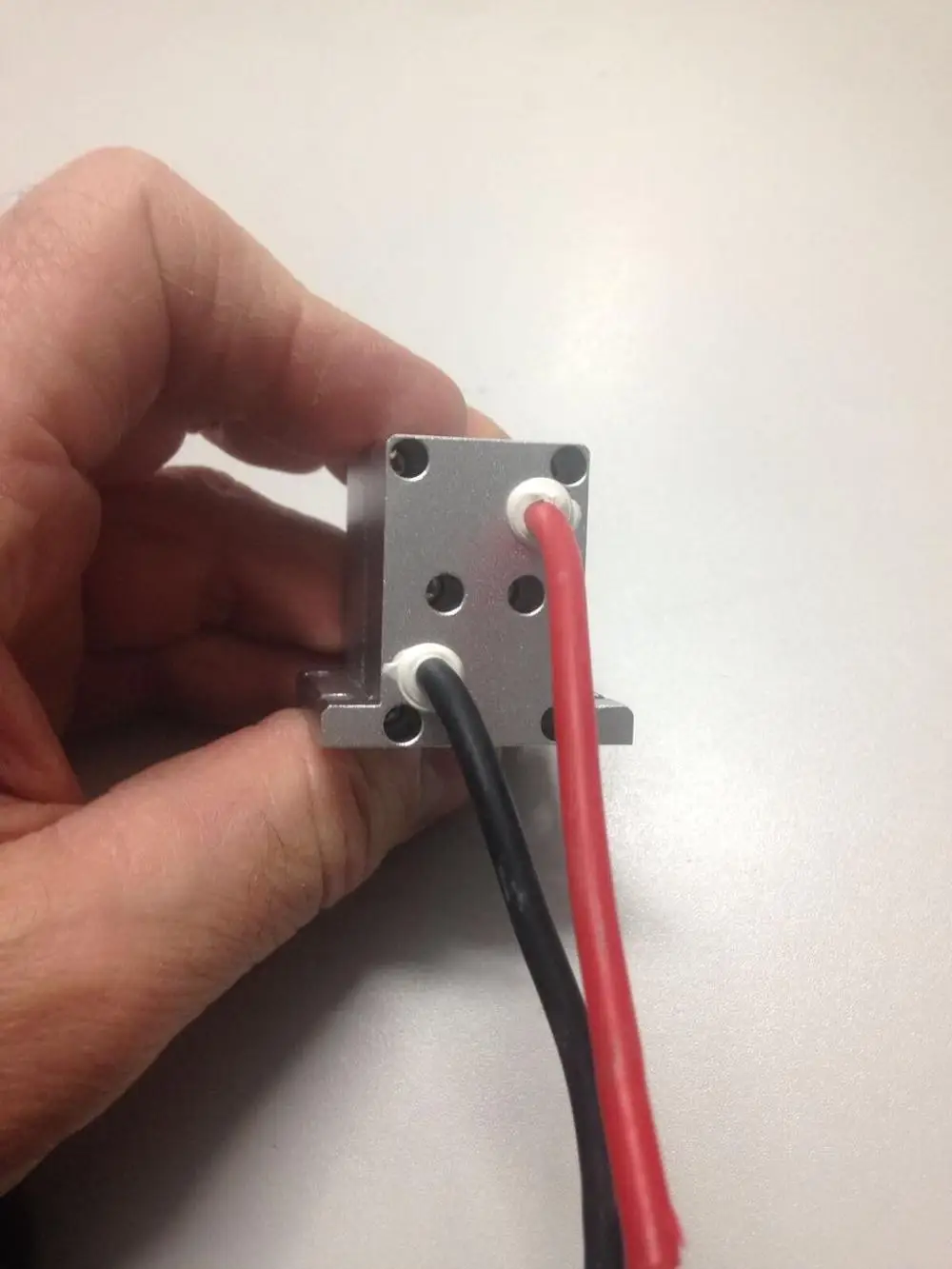

 are on the bottom of the stack.  Electrodes are on the back of stack.

It is used for most of diode laser hair removal machine from China. wavelength 808 or mix wavelength as 755, 808

and 1064.

Oriental-laser focused on diode laser bar assembling for more than 16 years and we have seen various alma soprano diode laser stacks.Also we can use the same Jenoptik bar like Alma used to recondition the power the laser soprano power.

Repairing procedure

Advantages

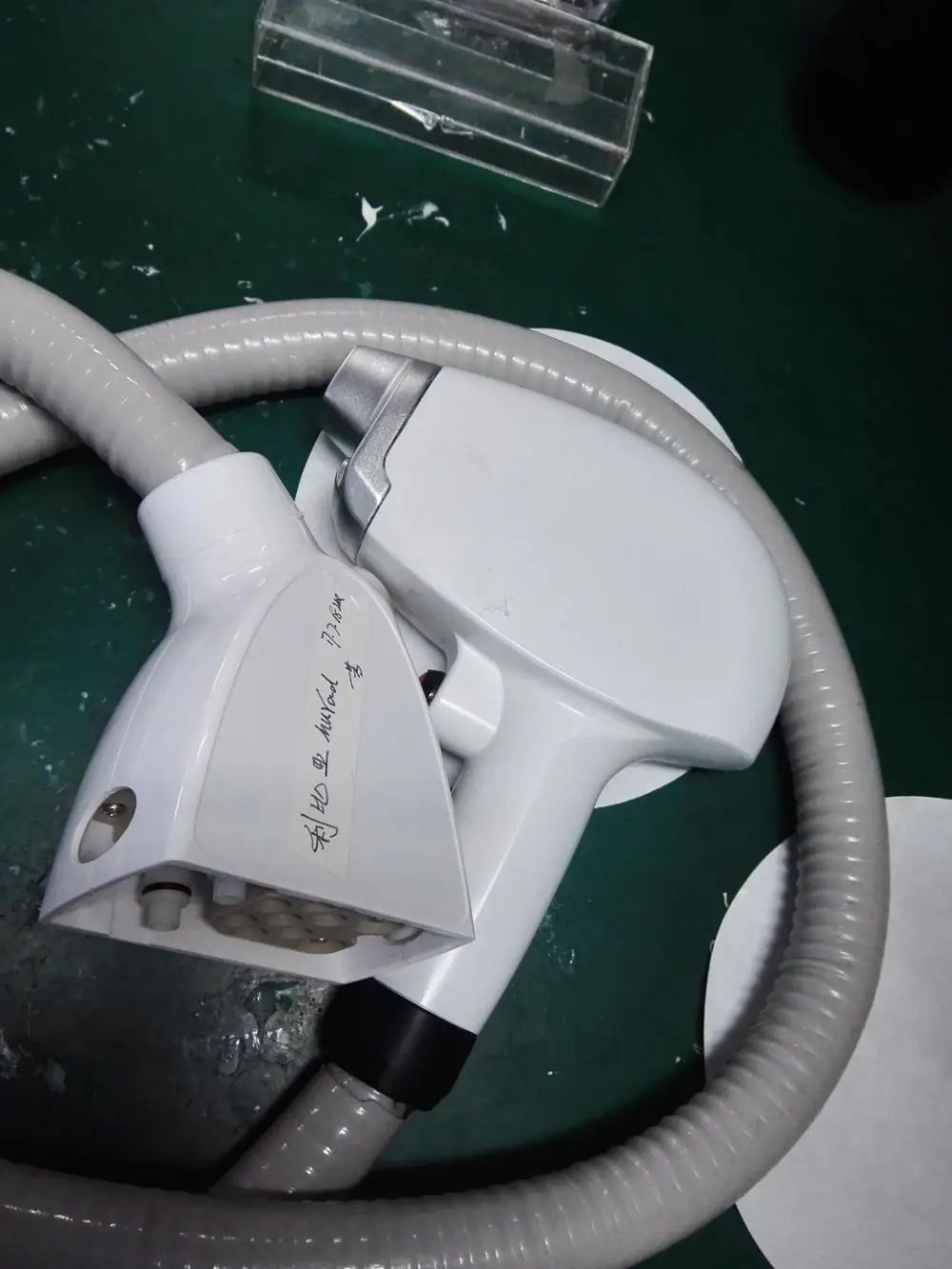

>Chioce A:Send the old broken handpiece to our facatory. We will do the process of checking , repairing, cleanning and etc. Then send the fresh new handpiece back to you.

>Save Money. Replace the broken diode stack only. Low cost and convenient

>Chioce B:if you have basic assambly capacity, you can send the diode laser stack only to our factory. We remove the old bar and mount the new bar to recover the laser power of the stack.

>Long life time.we use diode laser bars from Germany. The newest Ausn mounting technology will be applied when repairing. After repair. The handpiece will be as a new one. life time is much longer than before

>Choice C: Measure your stack and comfrim the water pipe hole and screw hole position. Then press the button below to buy a ready-made stack which is match your old hadnpiece.

>All technical support available. We major in diode laser mounting, software, spare parts over 16 years. All the technologies about laser hair removal machine are open to you.

 Click to Contact Us Learn More Information

Specification

Model No.

VS-MI-60-12-AlmaSoprano-B

Application

Alma Soprano Handle Piece Repair And Replacement

Operation Mode

CW

Power per submounts

50W

Number of submounts in one stack

10bars

Central wavelength

at 25℃ 808 ± 5nm

Typical Operation current

40A

Maximum Operating current

50A

Typical Threshold current

8A

Maximum Operating Voltage

<20V

Fast Axis Divergence (FWHM)

39º

Slow Axis Divergence (FWHM)

8º

Operation Condition

non-condemsing atmosphere, cleaning room

Expected lifetime

10000hours

Typical pitch per bar

1.8mm

Cooling requirement

Flow rate

3.5L/min +-10%

Water Temperature

27+-3°C

Water Quality

pure water

Cooling System

Do not use any material that combination with copper would form galvanic elements
