- Bright LED Light Component 2835 SMD Cool White 0.2W
Bright LED Light Component 2835 SMD Cool White 0.2W
- Category: >>>
- Supplier: Shenzhen Rigdoo Optoelectronics Co. Ltd.
Share on (60788477670):
Product Overview
Description
Products Name

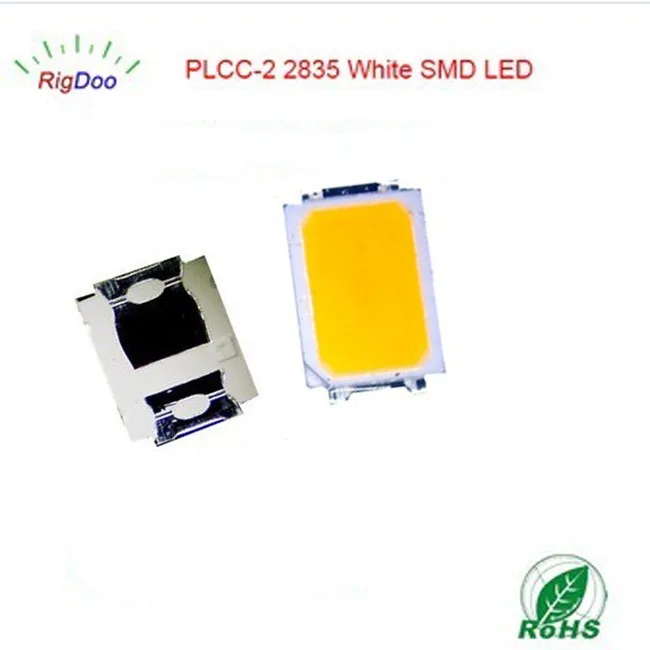

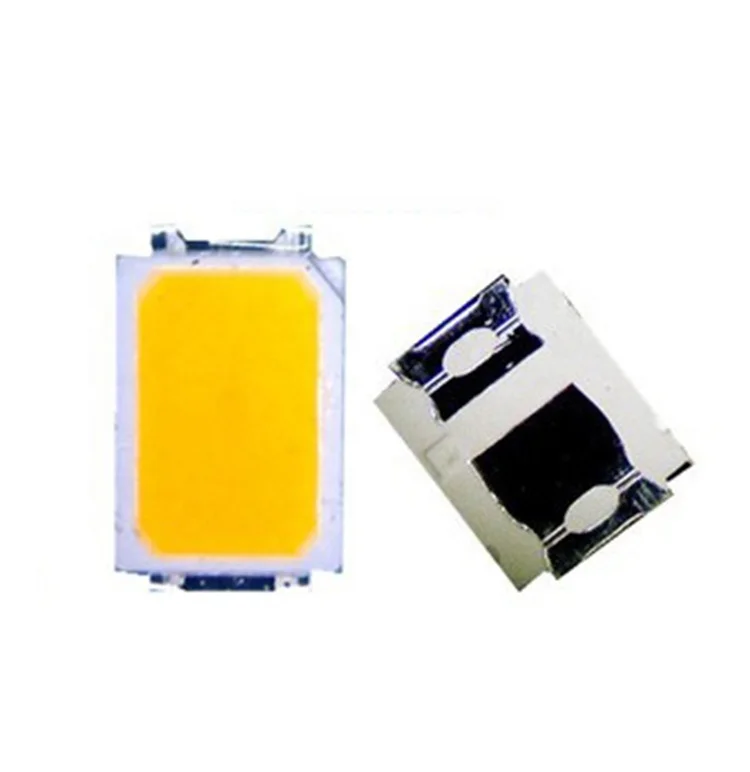

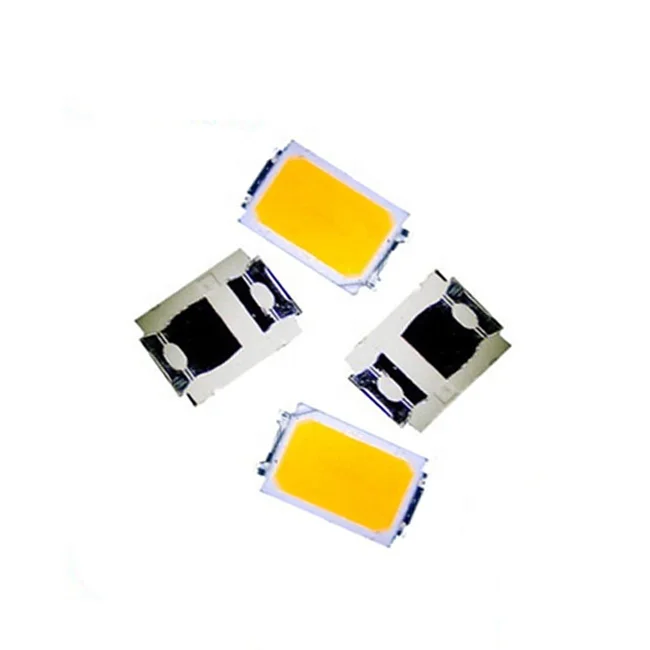

Bright LED Light Component 2835 SMD Cool White 0.2W
China Factory Shenzhen Manufacturing High Quality Low Price Cheap 2835 SMD Cool White LED Chip, Producing 2835 Diode LED, Making 2835 Light Emitting Diode, Producer 2835 LED Blue Components, Maker 2838 LED Beads Cool White Chip Diode, 2835 Blue Light Source LED Beads Wholesale, 2835 Diode LED Blue Manufacturer, 2835 LED Diode, 2835 Package, 2835 Packaging
Products Description
Absolute Maximum Ratings At Ta=25℃
Features
Package ( L/W/H ) : 2.8×3.5×0.65 mm
Color : Ultra High Bright Cool White
Lens: Yellow Diffused Flat Mold
EIA STD Package
Meet ROHS, Green Product
Compatible With SMT Automatic Equipment
Compatible With Infrared Reflow Solder Process

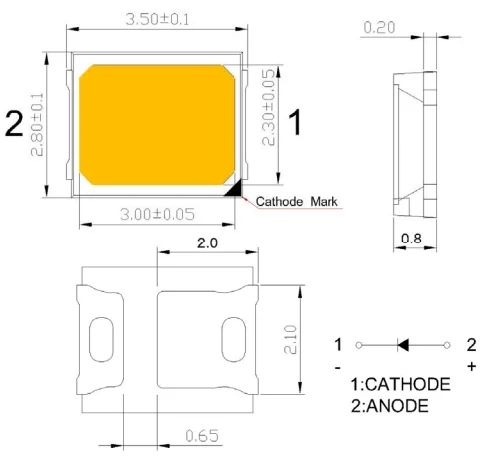

Package Profile & Soldering PAD Suggested
Absolute Maximum Ratings At Ta=25℃
| Parameter | Symbol | Rating | Unit |
| Power Dissipation | Pd | 500 | mW |
| Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) | IFP | 200 | mA |
| DC Forward Current | IF | 150 | mA |
| Reverse Voltage | VR | 5 | v |
| Operating Temperature Range | Topr | -40C ~ + 85C | |
| Storage Temperature Range | Tstg | -40C ~ + 100C | |
| Soldering Condition | Tsol | Reflow soldering : 260C For 5 Seconds Hand soldering: 300C For 3 Seconds | |
Electrical Optical Characteristics At Ta=25℃
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Lumens | Φ | | 60 | | lm | IF = 150mA |
| Color Rendering Index | Ra | 80 | IF = 150mA | |||
| Viewing Angle | 2θ1/2 | --- | 120 | --- | deg | IF = 150mA |
| Color Temperature | CCT | 2800 | | 12500 | K | IF=150mA |
| Forward Voltage | VF | 2.8 | --- | 3.6 | V | IF=150mA |
| Reverse Current | IR | --- | --- | 5 | uA | VR=5V |
Packing
Certificates
Applications
Backlight for Indicator Board
Backlight for Automobile Meter
Backlight for Digital and Marks
Backlight for Digital，words and Marks
Indicator Application
Backlight for Keyboard and Nameplate
LED Lighting
LED Strips, LED Strings
LED Screen
Company Information
Company Profile
Shenzhen RigDoo Optoelectronics Co., Ltd is awarded High-Tech enterprise by China with more than 18 years experience in LED industry.
RigDoo specially R&D, manufacture and sales LED, SMD LED, DIP LED (Lamp LED, Through Hole LED) and High Power LED. Good Quality, Competitive Price and Good Service!
For SMD LED, we have package 0402, 0404 (1010), 0603 (1608), 0605 (1615), 0805 (2012), 1206 (3216 3215), 1204 (3210), 3014, 3020, 3528 (1210), 2835, 5050 (5054), 5630 5730, Top View & Side View, Single Color, Bi-color and RGB Full color, Red, Blue, Green, Yellow, Orange, White, Warm White, Purple, Pink, Red/Blue, Red/White, Red/Green, Red/Yellow, Blue/Green, Yellow/Green, RGB full color etc..
For DIP LED (Lamp LED, Through Hole LED), we have 3mm, 5mm, 8mm and 10mm Single color, Bi-color and RGB Tri-Color, Red, Blue, Green, Pure Green, Yellow, Orange, White, Warm White, Purple, Pink, Red/Blue, Red/Green (Common Anode & Common Cathode), RGB full color etc..
For High Power LED, we have 1-300W, White, Red, Green, Yellow, Blue, Orange, Bi-Color, RGB etc.
Our factory are with certificates of ISO9001 and ISO14000.
Our products are with certificates of RoHS, CE, SGS, Reach Test etc..
RigDoo specially R&D, manufacture and sales LED, SMD LED, DIP LED (Lamp LED, Through Hole LED) and High Power LED. Good Quality, Competitive Price and Good Service!
For SMD LED, we have package 0402, 0404 (1010), 0603 (1608), 0605 (1615), 0805 (2012), 1206 (3216 3215), 1204 (3210), 3014, 3020, 3528 (1210), 2835, 5050 (5054), 5630 5730, Top View & Side View, Single Color, Bi-color and RGB Full color, Red, Blue, Green, Yellow, Orange, White, Warm White, Purple, Pink, Red/Blue, Red/White, Red/Green, Red/Yellow, Blue/Green, Yellow/Green, RGB full color etc..
For DIP LED (Lamp LED, Through Hole LED), we have 3mm, 5mm, 8mm and 10mm Single color, Bi-color and RGB Tri-Color, Red, Blue, Green, Pure Green, Yellow, Orange, White, Warm White, Purple, Pink, Red/Blue, Red/Green (Common Anode & Common Cathode), RGB full color etc..
For High Power LED, we have 1-300W, White, Red, Green, Yellow, Blue, Orange, Bi-Color, RGB etc.
Our factory are with certificates of ISO9001 and ISO14000.
Our products are with certificates of RoHS, CE, SGS, Reach Test etc..
FAQQ1. Can I have samples order for LED?
Q1. Can I have samples order for LED?
Yes, if quantity is small, we can supply samples free of charges. Just you need pay for shipping cost. It is better that you have account number of DHL, TNT, UPS, FedEx or Aramex. If you have no it, you could pay us shipping cost and we ship the samples via DHL, TNT, UPS, FedEx or Aramex.
Q2. What about the lead time?
If we have the products in our stock, lead time is 3-5 days. If we need special production, lead time is around 15 days.
Q3. Do you have any MOQ limit for LED order?
Yes, normally, MOQ is SPQ, Standard Packing Quantity.
Q4. How do you ship the goods and how long does it take to arrive?
Normally we ship the goods via international express. It is better that you have account number of DHL, TNT, UPS, FedEx or Aramex. If you have no it, you could pay us shipping cost and we ship the products via DHL, TNT, UPS, FedEx or Aramex. It takes around 2-6 days to arrive. And we can also ship the goods to your agent in China Mainland or HongKong.
