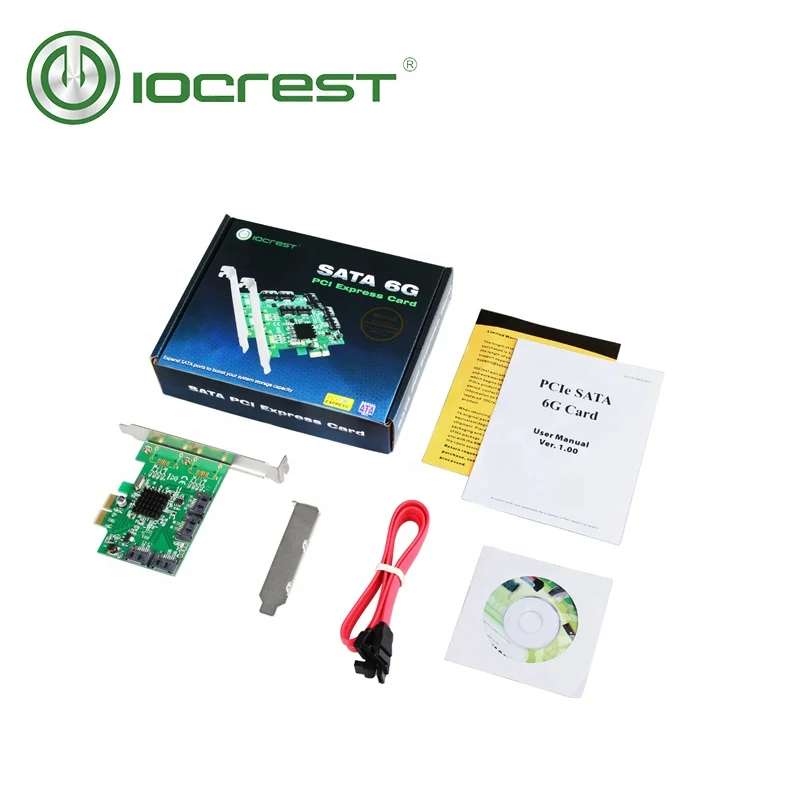

Factory raid multiplier port expansion pcie sata card

Share on:

Price in USD:Details


Product Overview






Ports:Compliant with PCI-Express Specification v2.0 and Backward Compatible with PCI-Express 1x

4 Internal SATA 6Gb/s Ports

Compliant with Serial ATA Specification 3.0

PCI-Express x2 Interface (for Selected Models) is Compatible with PCI-Express x4, x8, and x16 slots

Supports Communication Speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps

Hot Plug and Hot Swap

Supports Native Command Queue (NCQ)

Supports Port Multiplier FIS Based Switching or Command Based Switching

Compatible with SATA 6G, 3G and 1.5G Hard Drives

RAID Function:Note: Not Supported RAID on PM

RAID 0-Striping (Stripe Size: 32K, 64K)

RAID 1-Disk Mirroring

RAID 10-Stripe of Mirrors (Stripe Size: 32K, 64K)

HyoperDuo Safe (Mirrored Protection) or Capacity-Cost (Optimized)


 Software Requirement

Windows 8

Windows 7


Windows XP

Server 2008

Server 2008 R2

Server 2003

Linux 2.6.x and Above (AHCI devices driver is a built-in feature)


Hardware Requirement

Computer Motherboard with PCI-e Version 2.0 x2 Slot (This card will not fit into a PCI-e 1.0 x1 slot)
