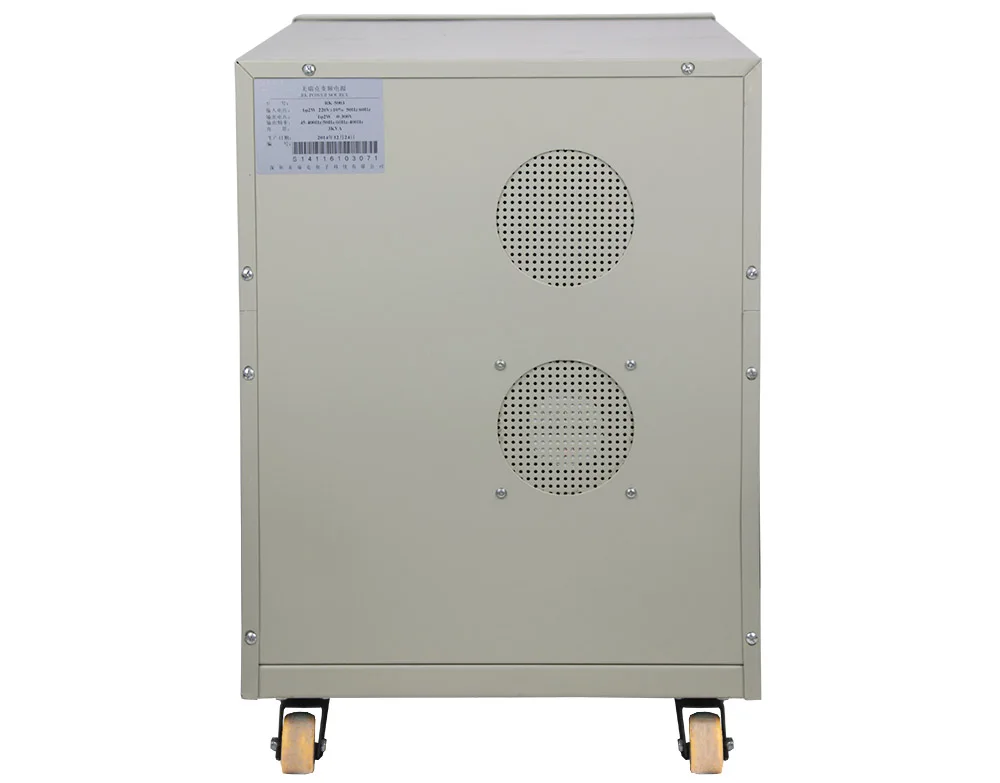

AC AC adjustment power supply RK5003 AC power source
- Category: >>>
- Supplier: Shenzhen Meiruike Electronic Technology Co. Ltd.
Share on (60788517197):
Product Overview
Description
RK5000 series Variable frequency power supply
Product introduction
RK5000 series variable frequency power supply use the microprocessor as core,made with MPWM mode,design with the active components IGBT module,it using a digital frequency division,D/A conversion,instantaneous value feedback,sinusoidal pulse width modulation technology,and increase the stability of the whole machine by isolating the transformer output.The load has strong adaptability,output waveform quality is good,it is simple operation,small volume,light weight.With short circuit,over-current,overload,overheat protection function to ensure the reliable operation of power.
Application area
It is widely used in home appliance manufacturing industry,electric machinery,electronic manufacturing industry,IT industry and computer equipment manufacturing and other industries and laboratories and electronic products testing agencies.
Performance characteristics
n High precision frequency stabilized voltage regulator,regulate the voltage and frequency by knob type fast.
n The speed of transient response is fast.
n High precision,4 windows measure and display at the same time:frequency,voltage, current,power,power factor,don’t need to switch.
n It has multiple protection of over voltage,over current,over load,over temperature and alarm function.
n No radiation interference,including harmonic components,and no interference after the special treatment.
n Provide the world standard voltage,frequency,analog test a variety of electrical products
Technical indicators
Parameter Type | RK5000 | RK5001 | RK5003 | RK5005 | |||||
Capacity | 500VA | 1kVA | 3kVA | 5kVA | |||||
Circuit mode | Mode of IGBT/SPWM | ||||||||
Number of phases | 1ψ2W | ||||||||
Voltage | 220V±10% | ||||||||
Frequency | 47Hz-63Hz | ||||||||
OUPUT | Number of phases | 1ψ2W | |||||||
Voltage | Low=0-150VAC | High=0-300VAC | |||||||
Frequency | 45-70Hz,50Hz,60Hz,2F,4F,400Hz | 45-70Hz,50Hz ,60Hz ,400Hz | |||||||
The maximum current | L=120V | 4.2A | 8.4A | 25A | 42A | ||||
H=240V | 2.1A | 4.2A | 12.5A | 21A | |||||
Rate of load voltage stabilization | 1% | ||||||||
Waveform distortion | 1% | ||||||||
Frequency stability | 0.01% | ||||||||
LED display | Voltage V, current A,frequency F,power W | ||||||||
Voltage resolution | 0.1V | ||||||||
0.1Hz | |||||||||
Curren tresolution | 0.001A | 0.01A | |||||||
Protection | |||||||||
Weight | 15kg | 20kg | 55kg | 75kg | |||||
Volume(mm) | 430×133×370mm | 420×520×600mm | |||||||
Operating environment | 0℃~40℃,≤85%RH | ||||||||
Accessories | Power line | ———— | |||||||
Means:
*About voltage and current(eg. RK5001)
RK5001 is 1000W have two range, 0-150V /0-300V(all model have two range 0-150V/0-300V)
voltage= power / current
When in 120V 8.4A is max
When in 240V 4.2A is max
then,in range 0-150V,if you let it output 110V or other lower votage, max current can not over 8.4A, it means 8.4A is max.
the same as 0-300V range, if you in this range, max current can not over 4.2A
We can special order 0-500V, Power is constant, voltage goes up, current goes down,
That means if still RK5001(1000W), 0-250V/0-500V(special order)
when in 500V ,2A is max
When in 250V ,4.2A is max
if you want the voltage in 500V, and current more than 2A, you need choice more power,
*About Frequency:
45-70Hz,50Hz,60Hz,2F,4F,400Hz
means 45-70HZ can be adjustment(55Hz,60Hz...)
50Hz,60Hz,2F(100Hz),4F(200Hz),400Hz is fixed(can not be adjustment)
We can do special order 45-400Hz can be adjustment.
sorry specail order have not manual,the manual is for standard model.
Specail order is different price with the standard order, and usually standard
order is in stock but specail order need waiting 5-7 days.

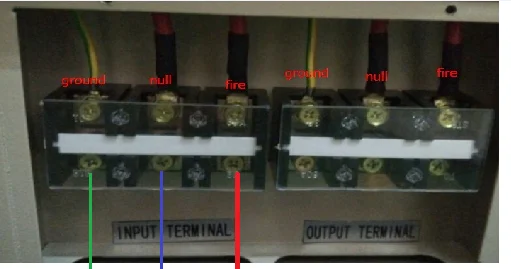

RK5003/RK5005 more than 10A current please not use the socket,please use the binding post:
Take the lid off,and then use the binding post:
