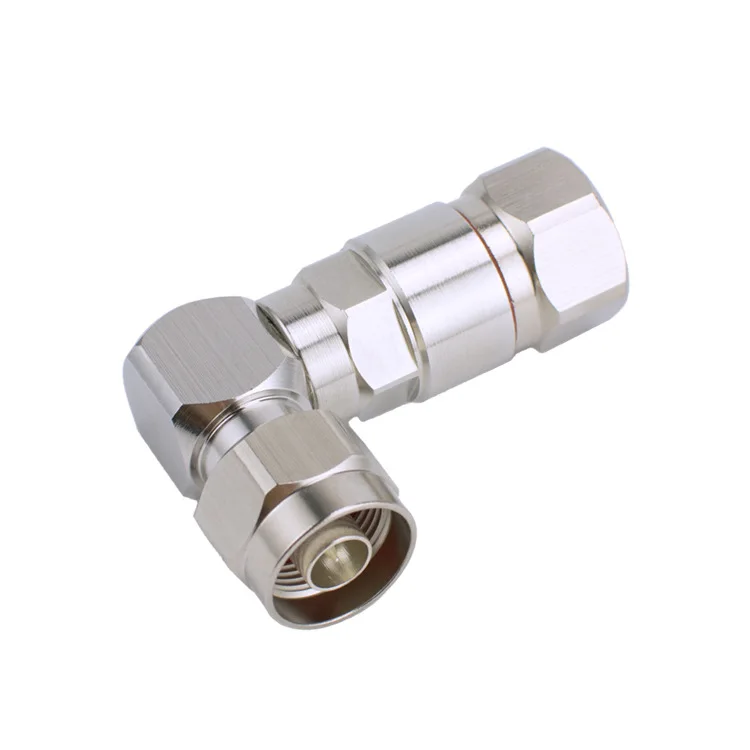

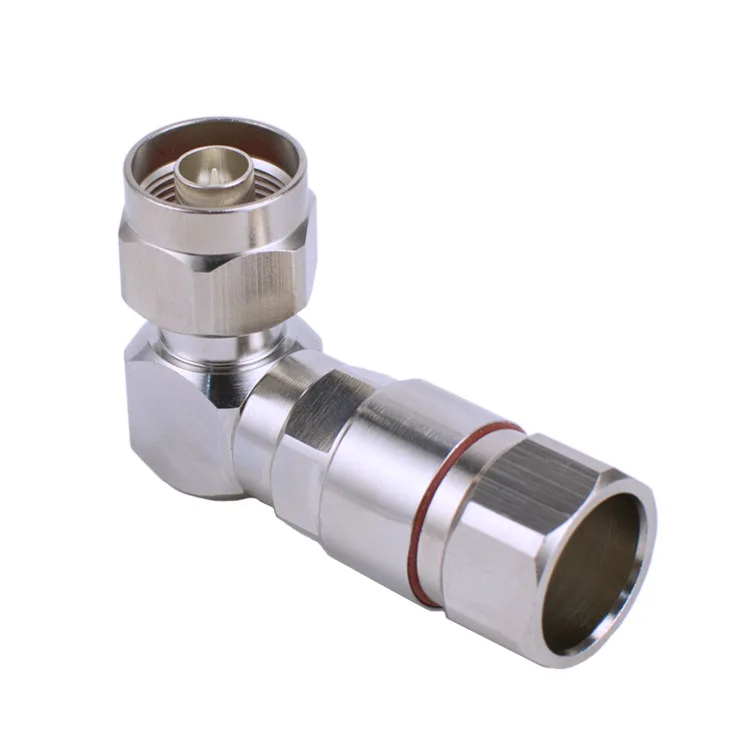

RF N Male Connector Right Angle Connector N Male For 1/2 Coaxial Cable
- Category: >>>
- Supplier: Hangzhou Shengtong Technology Co. Ltd.
Share on (60788524101):
Product Overview
Description
Features
1. Multiple-Band Frequency 2. Good shielding performance 3. Low VSWR;Low attenuation 4. Low PIM 5. High Reliability 6. Economic price | ||
Electrical Specifications | ||
Impedance | 50 ohm | |
Frequency | 0-11GHz | |
VSWR | ≤1.08 (0-2.2GHz); ≤1.1 (0-3GHz) | |
Dielectric Strength | ≥2500V RMS, at sea level | |
Dielectric Resistance | ≥5000MΩ | |
Insertion Loss | ≤0.12dB (@2200MHz) | |
Center contact resistance | ≤1.0mΩ | |
Outer contact resistance | ≤0.25mΩ | |
PIM (900MHz, 1800MHz 2×20W) | ≤-155dBc | |
Mechanical Feature | ||
Mating cycles | ≥500 times | |
Termination cable retention | ≥500N | |
Apply with the electric cable | 1/2" low loss Feed Cable | |
Environmental parameters | ||
Temperature range | -40℃ to +85℃ | |
Environmental standards | RoHs | |

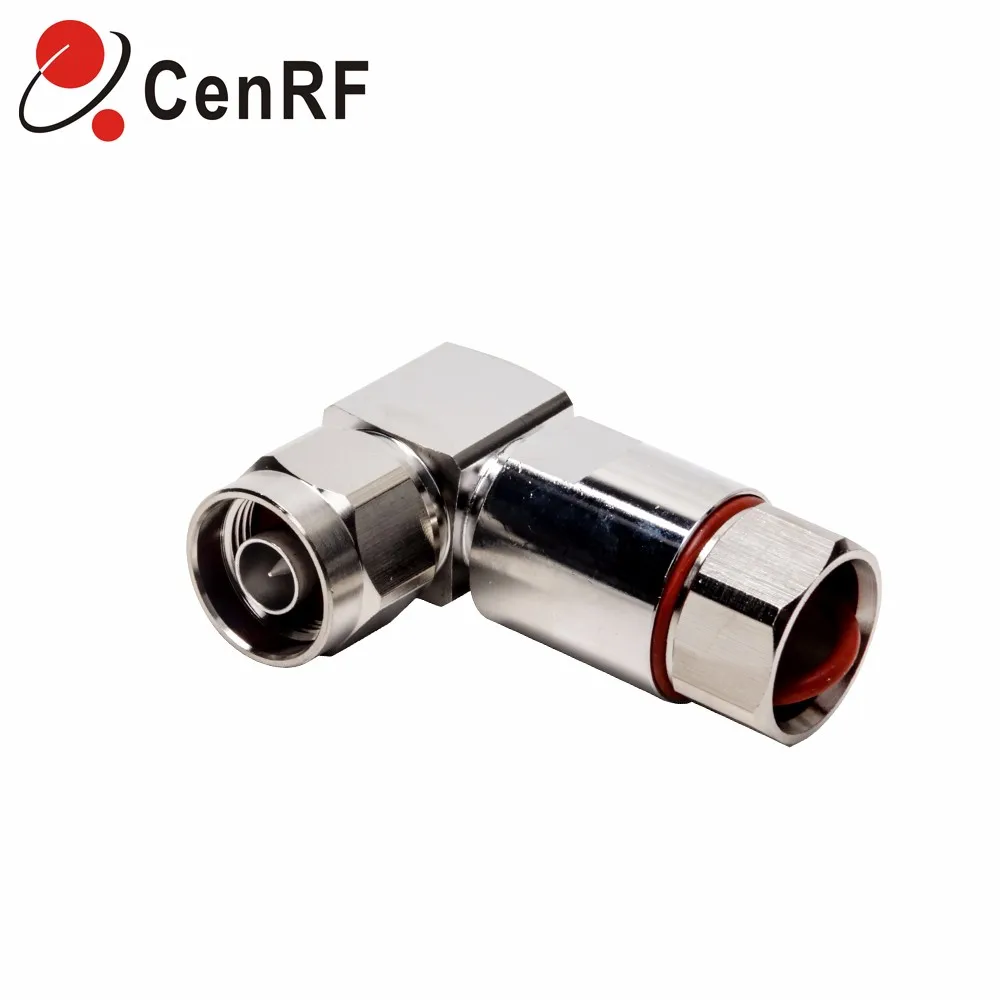

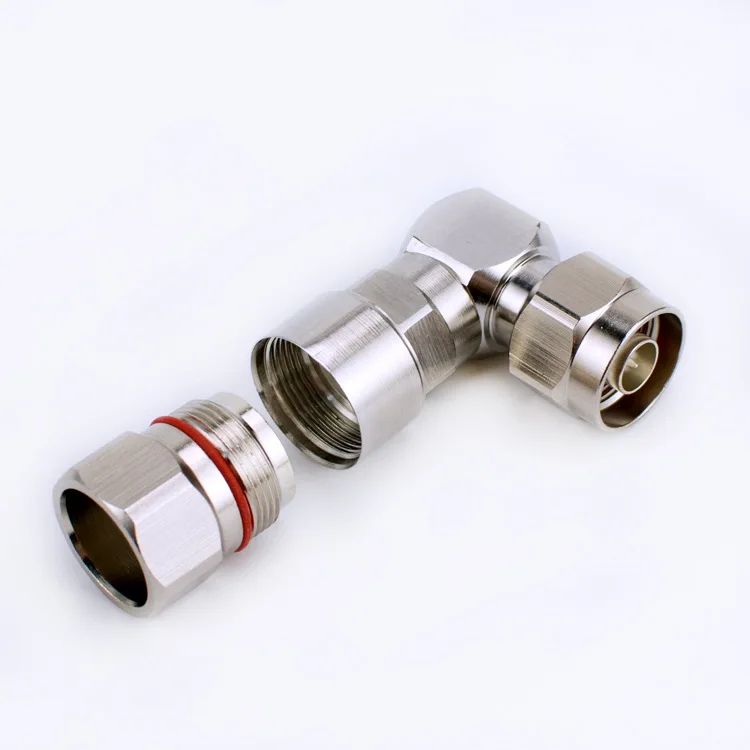

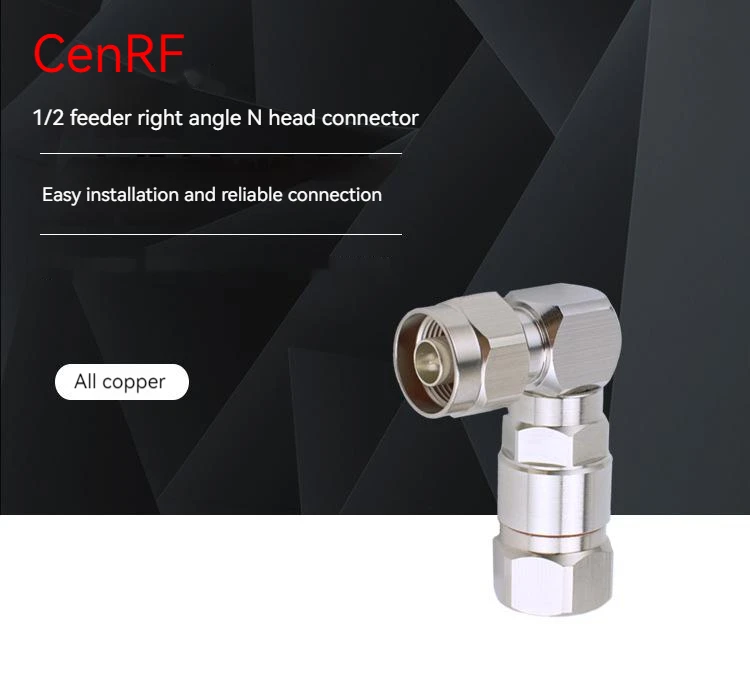

Product Show
Coaxial connector&adapter are used between equipment and equipment,equipment and compoments,parts and components to achieve the mechanical performance of the various parts of the transmission of electrical signals,and can be used for scientific research,electromagnetic confrontation,aerospace,precision measurement and other microwave fields.We can provide research and development,design,field mapping,routing and structural optimization to provide the full range of solutions and services based on customers special requirements.
Company Profile
Hangzhou Shengtong Technology Co,. Ltd
Hangzhou Shengtong Technology Co.,ltd , Is A Certified ISO9001-2015 Company Located In Hangzhou Were Founded In 1999.
There Is Well Educated Management Team And Also Experienced Engineers Major In Microwave Technology. It Is Specialize In The Products Including, Comprehensive Mobile Enhancement Solutions, All Kinds Of Repeater, Rf Components, Antenna,Subassembly To Help To Optimize Operators’ Mobile Networks
Product Package
FAQ
Q:What're the main products of CenRF?
A: CenRF specializes in manufacturing all types of communication products. Our main products are repeaters, antennas, power splitters, couplers, combiners, cables, and connectors.
A: CenRF specializes in manufacturing all types of communication products. Our main products are repeaters, antennas, power splitters, couplers, combiners, cables, and connectors.
Q: Can your company provide Technical Support?
A: Yes. We have experienced technical experts who are willing to help you deal with technical problems.
A: Yes. We have experienced technical experts who are willing to help you deal with technical problems.
Q: Do you test the equipment before your delivery?
A:Yes. We do test every component after installation to ensure we've delivered the signal solution you needed.
A:Yes. We do test every component after installation to ensure we've delivered the signal solution you needed.
Q: Do you have OEM&ODM service?
A: Yes, we can support our customers specialled products and we are able to put your logo on the products.
A: Yes, we can support our customers specialled products and we are able to put your logo on the products.
Q: Can your company provide CO or Form E certificate?
A: Yes, we can provide it if you need.
A: Yes, we can provide it if you need.
Q：Can your company provide solutions?
A：Yes. Our team of IBS experts will help find the most cost-effective solution for your application.
A：Yes. Our team of IBS experts will help find the most cost-effective solution for your application.
